Ganesh V. More,
Kirtikumar C. Badgujar and
Bhalchandra M. Bhanage*
Institute of Chemical Technology, Department of Chemistry, Matunga, Mumbai-400019, India. E-mail: bm.bhanage@gmail.com; Fax: +91-22-3361-1020; Tel: +91-22-3361-2601
First published on 9th December 2014
The present work reports a highly efficient and biocatalytic heterogeneous protocol for kinetic resolution (KR) of racemic secondary alcohols with vinyl acetate as an acyl donor, using the biocatalyst Burkholderia cepacia lipase (BCL) immobilized on a biodegradable ternary blend support through polylactic acid (PLA)/polyvinyl alcohol (PVA)/chitosan (CHI); (PLA/PVA/CHI–BCL). The KR reaction with various substituted aromatic, heterocyclic racemic secondary alcohols gave enantiomerically pure alcohol and its enantioenriched acetate derivatives with high conversion (45–50%) and excellent enantiomeric excess (up to 99% ee) at optimized reaction conditions. The reaction works under mild conditions using simple and inexpensive starting materials such as racemic alcohols, vinyl acetate, and immobilized biocatalyst. The given protocol provides excellent recyclability with good yield and enantiomeric excess values up to the studied range of five cycles. The resultant products were characterized with the help of different analytical techniques such as 1H and 13C-NMR, chiral HPLC column, polarimeter, IR and GC-MS.

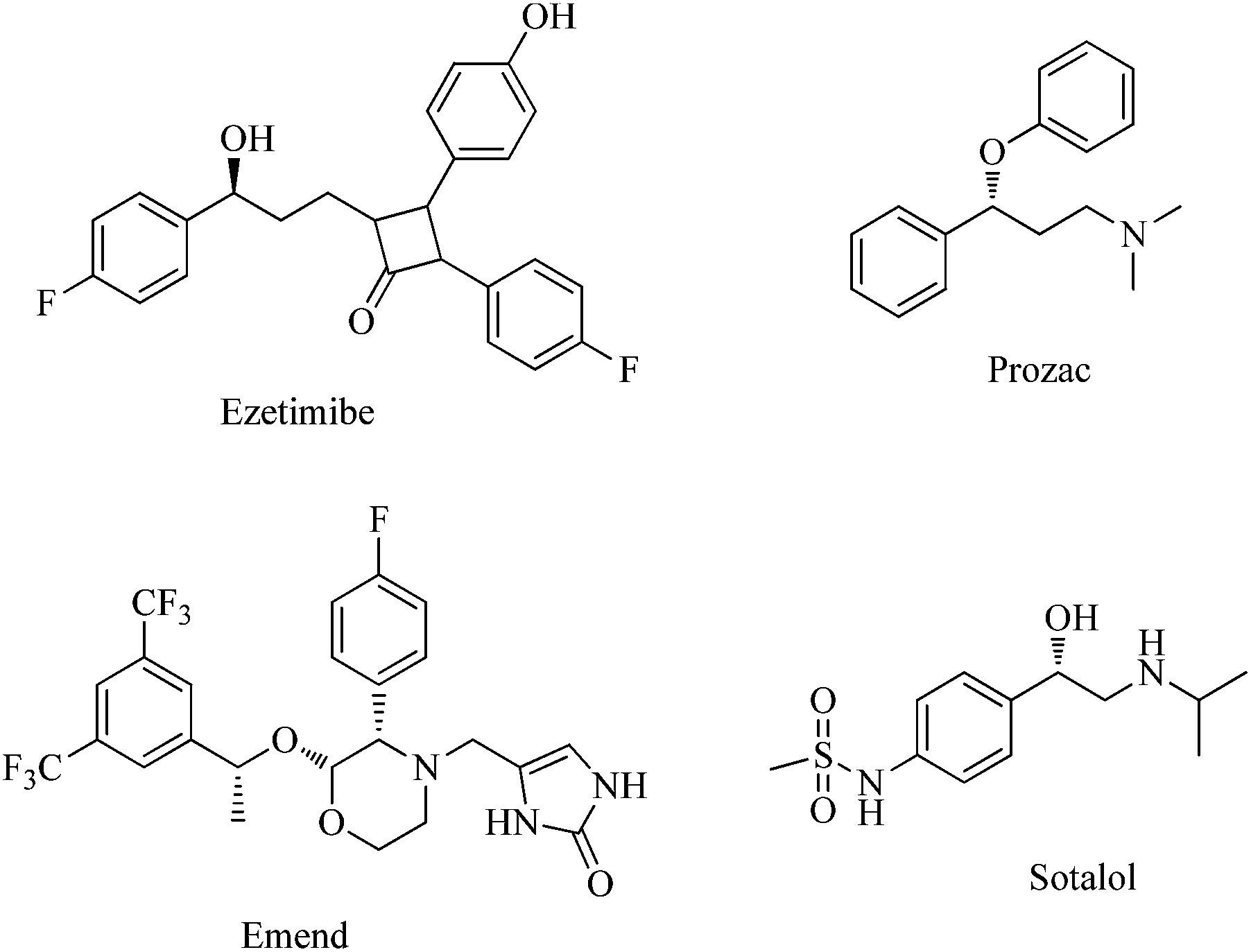

From last decades, several strategies were invented for the preparation of enantiopure alcohols such as: (a-i) an asymmetric transfer hydrogenation of ketones using mixture of formic acid–triethylamine, HCO2Na or IPA as a hydrogen source, (a-ii) an organocatalytic reduction of ketones, (a-iii) reduction of ketone using silane as a hydrogen source with metal, (a-iv) and reduction of ketones by using molecular hydrogen,4b oxidative kinetic resolution (OKR) of alcohol,5c selective hydrolysis of epoxides.6 These methodologies gave good yield and enantiomeric excess of compounds, but suffers from several drawbacks such as use of molecular hydrogen that requires high pressure autoclave, low enantiomeric excess, longer reaction time, use of expensive metal precursor, phosphine based ligands, additives, multistep synthesized chiral ligands and no catalyst recovery, which limits their practical catalytic applications. Thus, the synthesis of enantiomerically pure alcohol and its acetate derivative is a challenging task, which can be achieved simply via greener biocatalytic pathway. In biocatalysis enzymes are used as catalysts which possessing advantages such as excellent stereo-, regio- and chemo-selectivities, milder reaction condition, no by-products formation and no need of cofactors.7
In recent years, lipases have been widely used as an eco-friendly biocatalyst for the synthesis of pharmaceutical active intermediates and fine chemicals because of their stability, broad range of substrate scope and easy availability from bacteria and fungi.8 Kinetic resolution of various racemates using lipases is considered to be a greener method for the separation of enantiomers as it works at mild reaction conditions without any harm.9 Kinetic resolution of inexpensive racemic alcohols using lipases is an attractive process for synthesis of expensive optically active alcohol intermediates as compared to hydrogenation of ketones, OKR and hydrolysis of epoxide.10 However, direct use of free enzymes as a biocatalyst for the synthesis of enantiopure molecules suffers from several drawbacks such as lower activity, low selectivity, low yield, no recyclability, lesser stability in organic solvents and denaturation at higher temperature.11 Also enzymes are expensive, and discarding them after one use is not economical, which restricts use of free enzymes for further industrial applications. To overcome theses drawbacks, various immobilization protocols are applied which give benefits such as improved stability, activity, reusability and less reaction time to obtain high yield and enantiopure compounds.12 In literature various reports are present for KR of secondary alcohols but still there is lot of scope to find out new lipases and new immobilization techniques for the synthesis of chiral drug intermediate via KR.10 In 2007, Sheldon et al.13 proposed that immobilized enzyme on biodegradable polymer can serve great application in membrane and bioreactor coating; considering these aspects, use of the polymer matrix for enzyme immobilization is of great interest.
In continuation of our ongoing research on development of new superficial protocol for the KR of secondary alcohols;10b hence we prepared a ternary blend of PLA, PVA and CHI using the Grande et al.14 method and used it for further immobilization of Burkholderia cepacia lipase (PLA/PVA/CHI–BCL, as a composition 1:
6
:
1
:

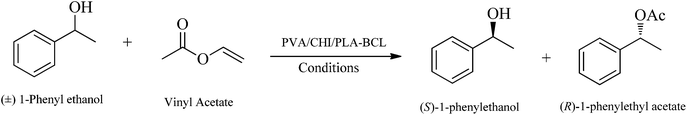

2) by our procedure reported earlier.15,16 The prepared immobilized biocatalyst was fully characterized by different techniques such as scanning electron microscopy (SEM) FT-IR and thermo-gravimetric (TGA). In the present study, we report a green and convenient strategy for KR of secondary alcohols catalyzed by PLA/PVA/CHI–BCL as a catalyst and reaction is carried out at 40 °C for 30 h, which afforded optically enriched alcohols (up to 99% ee) and its acetate derivatives (up to 99% ee) with high conversion (Scheme 1).
![]() | ||
Fig. 2 (A) Ternary blend PLA/PVA/CHI (1![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
![]() | ||
Fig. 3 (A) Ternary blend PLA/PVA/CHI (1![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |

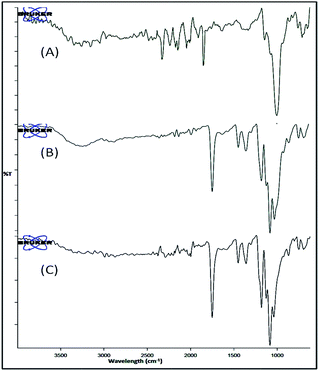

In FT-IR analysis the wave number values of ternary blend (PLA/PVA/CHI) are in good agreement with the literature values (Fig. 3A).14 The FT-IR analysis of parent lipase molecules showed three characteristics amide I, II, III bands in between spectral region of 1750–1300 cm−1.15,18,19 In our FT-IR study of free lipase BCL (Fig. 3C), the amide I band was observed at 1600–1750 cm−1 which is a characteristic band of the C–O stretching vibrations. The amide II band was observed at 1500–1600 cm−1 because of N–H bending and C–N stretching vibrations.15,18,19 The amide III band is attributed at 1300–1450 cm−1 owing to, C–C, C–N stretching and N–H bending vibrations. Similar types of bands were existed in the immobilized lipase PLA/PVA/CHI–BCL also (Fig. 3B). Thus, the amide I, II, III bands for the free BCL and ternary blend immobilized PLA/PVA/CHI–BCL (1:
6
:
1
:
2) lipases were observed in same region, which indicating the existance of the parent amide functionality of enzyme in immobilized biocatalyst (Fig. 3B and C).
Turner and Vulfson20 proposed that temperature around 90–130 °C is required to eliminate the physically adsorbed water molecules while temperature between 200–240 °C is required to eliminate tightly bound water which is present in close vicinity of the enzyme (Fig. 4). Similar type of results has been observed in the present study. Physically adsorbed water molecules seem to be eliminated around 100–110 °C of temperatures, while closely associated water molecules are eliminated at around 240 °C as evident from the TGA curve. Moreover it can be clearly seen that stability of the immobilized lipase (Fig. 4; blue colour line) is considerably improved as compared to free lipase (Fig. 4; black colour line). Similar type of improved stability was observed by Dhake et al.17 for the HPMC–PVA film immobilized Rhizopus oryzae lipase.
![]() | ||
Fig. 4 Pink colour: ternary blend PLA/PVA/CHI (1![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
In the present study, a series of experiments were performed to optimize the various reaction parameters such as catalyst screening, effect of solvent, biocatalyst loading, effect of acyl donors, effect of agitation speed, molar ratio, reaction temperature and time; which are summarized in Tables 1 and 2. For screening purpose, we used two enzymes i.e. free BCL and CCL (Candida cylindracea lipase), and their ternary blend immobilized form denoted as PLA/PVA/CHI–BCL and PLA/PVA/CHI–CCL (Table 1, entries 1–4). It was observed that among above four biocatalysts; PLA/PVA/CHI–BCL gave 50% conversion with excellent enantioselectivity towards the (S)-1-phenylethanol (ees) 95% ee and (R)-phenylethyl acetate (eep) 93% ee, in n-hexane as a solvent at 45 °C temperature and hence it was used for further studies (Table 1, entry 1). Subsequently, we studied the effect of the catalyst loading on the conversion and enantioselectivity of the desired products. We screened the catalyst loading ranging from 10 mg to 50 mg (see Table 1, entries 5–9). It was observed that with increase in catalyst concentration from 10 mg to 20 mg increases the enantioselectivity and yield of desired product (Table 1, entry 6). Further increase in the amount of catalyst concentration did not show significant effect on the yield and enantioselectivity of the desired product (Table 1, entries 7–9). A control experiment in the absence of PLA/PVA/CHI–BCL did not show any conversion, thus elucidating that PLA/PVA/CHI–BCL was solely responsible to catalyze the KR of racemic alcohols (Table 1, entry 10).
Entry | Catalyst | Catalyst loading (mg) | Conversion (%) | % eesb | % eepc | E |
---|---|---|---|---|---|---|
a Reaction conditions: 1-phenylethanol-0.5 mmol, vinyl acetate-2 mmol, n-hexane-2 mL, speed of agitations-150 rpm, temp-45 °C, time-48 h, NR: no reaction.b Determined by chiral HPLC on chiralcel OD-H column.c Determined by chiral HPLC on chiralcel OD-H column. | ||||||
Biocatalyst screening | ||||||
1 | PLA/PVA/CHI–BCL | 20 | 50 | 95 | 93 | 103 |
2 | Free BCL | 4 | 10 | 10 | 95 | 43 |
3 | PLA/PVA/CHI–CCL | 20 | 30 | 25 | 57 | 5 |
4 | Free CCL | 4 | 17 | 8 | 40 | 3 |
![]() |
||||||
Catalyst loading | ||||||
5 | PLA/PVA/CHI–BCL | 10 | 43 | 68 | 90 | 39 |
6 | PLA/PVA/CHI–BCL | 20 | 50 | 95 | 93 | 103 |
7 | PLA/PVA/CHI–BCL | 30 | 50 | 91 | 92 | 76 |
8 | PLA/PVA/CHI–BCL | 40 | 50 | 93 | 92 | 82 |
9 | PLA/PVA/CHI–BCL | 50 | 50 | 93 | 94 | 110 |
10 | PLA/PVA/CHI–BCL | — | NR | — | — | — |
Entry | Solvent | Acyl donor | Temp. (°C) | Time (h) | Conversion (%) | % eesb | % eePc | E |
---|---|---|---|---|---|---|---|---|
a Reaction conditions: 1-phenylethanol-0.5 mmol, acyl donor-2 mmol, PLA/PVA/CHI–BCL-20 mg, solvent-2 mL.b Analysis performed by chiral HPLC on chiralcel OD-H column.c Analysis performed by chiral HPLC on chiralcel OD-H column.d SF: solvent free.e Vinyl acetate 1.5 mmol.f Vinyl acetate 2.5 mmol.g Speed of agitation-165 rpm.h Speed of agitations-125 rpm, NR: no reaction, RT: room temperature. | ||||||||
Effect of solvent | ||||||||
1 | n-Hexane | Vinyl acetate | 45 | 48 | 50 | 95 | 93 | 103 |
2 | Toluene | Vinyl acetate | 45 | 48 | 42 | 69 | 95 | 81 |
3 | MTBE | Vinyl acetate | 45 | 48 | 50 | 96 | 97 | >200 |
4 | DCM | Vinyl acetate | 45 | 48 | 49 | 93 | 96 | 168 |
5 | THF | Vinyl acetate | 45 | 48 | 50 | 97 | 95 | 165 |
6 | ACN | Vinyl acetate | 45 | 48 | 49 | 94 | 96 | 175 |
7 | 1,4-Dioxane | Vinyl acetate | 45 | 48 | 20 | 22 | 88 | 19 |
8 | Ethyl acetate | Vinyl acetate | 45 | 48 | 50 | 94 | 93 | 98 |
9 | n-Heptane | Vinyl acetate | 45 | 48 | 50 | 97 | 93 | 116 |
10 | SFd | Vinyl acetate | 45 | 48 | 45 | 78 | 95 | 93 |
![]() |
||||||||
Effect of acyl donor | ||||||||
11 | MTBE | Ethyl acetate | 45 | 48 | 15 | 6 | 35 | 2 |
12 | MTBE | Acetic anhydride | 45 | 48 | 34 | 34 | 66 | 7 |
13 | MTBE | Acetic acid | 45 | 48 | NR | Racemic | NR | — |
14e | MTBE | Vinyl acetate | 45 | 48 | 49 | 91 | 95 | 124 |
15f | MTBE | Vinyl acetate | 45 | 48 | 49 | 95 | 97 | >200 |
![]() |
||||||||
Effect of temperature | ||||||||
16 | MTBE | Vinyl acetate | RT | 48 | 35 | 54 | 99 | >200 |
17 | MTBE | Vinyl acetate | 40 | 48 | 50 | 98 | 99 | >200 |
18 | MTBE | Vinyl acetate | 50 | 48 | 49 | 96 | 96 | >200 |
19g | MTBE | Vinyl acetate | 40 | 48 | 49 | 97 | 99 | >200 |
20h | MTBE | Vinyl acetate | 40 | 48 | 50 | 96 | 99 | >200 |
![]() |
||||||||
Effect of time | ||||||||
21 | MTBE | Vinyl acetate | 40 | 1 | 6 | 6 | 99 | >200 |
22 | MTBE | Vinyl acetate | 40 | 3 | 11 | 12 | 99 | >200 |
23 | MTBE | Vinyl acetate | 40 | 5 | 15 | 18 | 99 | >200 |
24 | MTBE | Vinyl acetate | 40 | 10 | 30 | 42 | 99 | >200 |
25 | MTBE | Vinyl acetate | 40 | 15 | 40 | 66 | 99 | >200 |
26 | MTBE | Vinyl acetate | 40 | 24 | 48 | 90 | 99 | >200 |
27 | MTBE | Vinyl acetate | 40 | 30 | 50 | 98 | 99 | >200 |
28 | MTBE | Vinyl acetate | 40 | 48 | 50 | 98 | 99 | >200 |
Next, by using PLA/PVA/CHI–BCL as a catalyst, the influence of the solvent on the KR of racemic 1-phenylethanol reaction was investigated (Table 2, entries 1–10). Nonpolar solvents like n-hexane, n-heptane, toluene, methyl tertiary butyl ether (MTBE), dichloromethane (DCM) and polar solvents like tetrahydrofuran (THF), acetonitrile (ACN), ethyl acetate were screened.
It was observed that the nature of solvent marginally affects the conversion and enantioselectivity of the (R)-phenylethyl acetate (eep) and (S)-1-phenylethanol (ees) except 1,4 dioxane. All developed immobilized biocatalyst are stable in various screened solvents (except 1,4 dioxane). Literature survey showed that generally solvent greatly influences the catalytic activity and stability of the lipase enzymes. Present biocatalyst is highly stable and in literature, we rarely find any report which showed such excellent stability and activity of immobilized biocatalyst in various solvents. The activity along with the enantioselectivity was significantly higher in nonpolar solvents such as MTBE gives ees 96% ee and eep 97% ee with 50% conversion (Table 2, entry 3) hence; MTBE was used it for further studies. Also one experiment was carried out in under neat condition (solvent free – SF) which provides the 45% conversion with ees 78% ee and eep 95% ee (Table 2, entry 10). It is well known fact that acyl donor plays a crucial role in prediction of the conversion and enantioselectivity in KR reaction; hence we screened various acyl donors such as vinyl acetate, ethyl acetate, acetic anhydride, acetic acid (Table 2, entries 11–13). Among these acyl donors vinyl acetate gives 50% conversion with ees 96% ee and eep 97% ee (Table 2, entry 3), while in presence of acetic acid no conversion was observed (NR) (Table 2, entry 13). Thus we used vinyl acetate as an acyl donor for further experiments. However molar ratio study is an important aspect hence we studied effect of the molar ratio on conversion and enantioselectivity, the different molar ratio of alcohol: vinyl acetate was screened ranging from (0.5:
1.5) to (0.5
:
2.5). The molar ratio 0.5
:
2 (alcohol
:
vinyl acetate) gave better conversion and enantioselectivity (Table 2, entry 3). The decrease in moles of vinyl acetate from 2 to 1.5 showed decreases in the conversion and enantioselectivity (Table 2, entry 14); whereas increase in moles of vinyl acetate from 2 to 2.5 had no significant effect on the conversion as well as enantioselectivity (Table 2, entry 15).
Influence of temperature is an important aspect which greatly affect on the enantioselectivity in chiral chemistry hence we studied the effect of temperature (30–50 °C) on conversion and enantioselectivity of desired products (Table 2, entries 16–18). It was observed that at room temperature, the conversion and enantioselectivity of alcohol (ees) was low, whereas increase in the temperature to 40 °C increases the conversion up to 50% as well as enantioselectivity of ees 98% ee and eep 99% ee. Further increase in the temperature up to 50 °C had no profound effect on conversion but slightly decreases the enantioselectivity of product; therefore further experiments were carried at 40 °C temperature.
Finally, we examined the effect of the reaction time on the reaction yield and enantioselectivity for a given model reaction (Table 2, entries 21–28). After 30 h, maximum conversion and enantioselectivity of desired product was obtained. Thus, the best optimized reaction parameters to obtain the good yield and enantioselectivity for KR of racemic alcohol are as: 1-phenylethanol (0.5 mmol: 1 eq.), vinyl acetate (2 mmol: 4 eq.), PLA/PVA/CHI–BCL (20 mg), and MTBE (2 mL) at 40 °C for 30 h.
Encouraging with these mild and softer optimized reaction conditions, we studied the various racemic secondary alcohols for broaden the scope and general applicability of the developed methodology (Fig. 5). It was observed that all substrate gave higher conversion and excellent enantioselectivity. The model reaction of rac 1-phenylethanol with vinyl acetate under the optimized reaction conditions provides 50% conversion and enantiomeric excess as 1a: 98% ee, 2a: 99% ee. Among the various electron donating (–Me, –OMe) derivatives furnished good yield of corresponding enantiomerically pure alcohols and its acetate derivatives as 1b: 77% ee; 2b: 99% ee and 1c: 99% ee; 2c: 97% ee. Moreover, derivatives bearing halo-substituents (–F, –Cl, –Br) were also provided good yield of corresponding enantiomerically pure alcohols and its acetate derivatives as for 1d: 99% ee; 2d: 99% ee, 1e: 93% ee; 2e: 98% ee, 1f: 83% ee; 2f: 99% ee. It was found that bulky naphthyl-based carbinols providing corresponding enantio-rich alcohol and its acetate derivatives gives 1g: 74% ee, 2g: 98% ee respectively. Next, we also studied heterocyclic derivative which gave enantio-rich alcohol and its acetate derivatives as 1h: 85% ee, 2h: 96% ee respectively. Subsequently, cyclic aromatic derivatives also provided good enantiomeric excess of desired products 1i: 99% ee; 2i: 91% ee and 1j: 99% ee; 2j: 91% ee.
