A novel 3,6-diamino-1,8-naphthalimide derivative as a highly selective fluorescent “turn-on” probe for thiols

Abstract

A novel 1,8-naphthalimide derivative bearing 3-amino and 6-(2,4-dinitrobenzenesulfonamido) groups was synthesized and found to exhibit a fluorescent “turn-on” response to biothiols, including Cys, Hcy and GSH. This compound exhibited high selectivity and low detection limit, in particular toward Cys. The sensing mechanism involved the cleavage of the 2,4-dinitrobenzenesulfonamido group and the formation of an electron-donating amino group. In addition, its properties for cellular imaging were also briefly discussed.

---

Biologically important thiol-containing molecules, such as cysteine (Cys), homocysteine (Hcy) and glutathione (GSH), play an essential role in many biological processes. Abnormal levels of these species are closely related to certain diseases, such as liver damage, skin lesions, Alzheimer's disease, cardiovascular disease, heart disease and AIDS.¹ This biological and practical significance has spurred great efforts to develop efficient approaches to detect and quantify biothiols in physiological media. Remarkable among them are synthetic molecular sensors that can change optical properties predominantly in response to the presence of the analytes of interest.

In this regard, 1,8-naphthalimide has served as an attractive fluorophore. Owing to its intense fluorescence, high sensitivity and photostability,^2,3 1,8-naphthalimide has been widely used to synthesize various probes for the colorimetric and fluorescent detection of chemical and biological species from inorganic metal ions,⁴ anions,⁵ H₂S,^6,7 biothiols,^8–13 reactive oxygen species,¹⁴ nucleobases to cancer cells.^15–17 These fluorescent probes have been largely confined to 4-substituted 1,8-naphthalimide derivatives,^{2–7,13–17} for example 4-amino-1,8-naphthalimides.^{6,7,13,15,16,18–20} As a matter of facts, all the amino-substituted 1,8-naphthalimides, including 4-amino, 3-amino and 3,6-diamino-substituted derivatives, emit strong fluorescence through a typical intramolecular charge transfer (ICT) process and in principle can be used in the field of fluorescence sensing.^21,22‡ However, few molecular sensors based on 3-mono or 3,6-bis-substituted 1,8-naphthalimides have been reported to date.²¹

In the work reported herein, we designed a new 1,8-naphthalimide derivative as a fluorescent “turn-on” probe for thiols, that is, compound 1 (Scheme 1). This compound bears 3-amino and reactive 6-(2,4-dinitrobenzenesulfonamido) (DNs) groups. Because of this structural feature, compound 1 may be readily converted into strongly fluorescent 3,6-diamino-1,8-naphthalimide derivative 2 (Scheme 1), leading to immediate fluorescence regeneration and enabling the efficiency of fluorescence activation to be optimized.^23–25 Thus, rapid and sensitive detection of targeting biothiol molecules is feasible by use of compound 1 rather than its corresponding analog having two DNs groups. In addition, the left free amino group may adjust the cellular permeability of the molecule itself.²⁵ Herein we report the synthesis of compound 1 and its sensing properties towards biothiols. In addition, its properties for cellular imaging are also briefly discussed.

Scheme 1 Synthesis of compound 1. Reagents and conditions: (a) H₂/Pd/C, EtOH; (b) 2,4-dinitrobenzenesulfonyl chloride (5.0 equiv.), 2,6-dimethylpyridine (5.0 equiv.), anhydrous CH₂Cl₂, rt, 45 h.

Compound 1 was prepared according to the synthetic route in Scheme 1. Thus, palladium/carbon-catalyzed reduction of N-butyl-3,6-dinitro-1,8-naphthalimide 3 gave N-butyl-3,6-diamino-1,8-naphthalimide 2 in an 85% yield. Mono-acylation of compound 2 with 2,4-dinitrobenzenesulfonyl chloride in the presence of 2,6-dimethylpyridine as a base afforded compound 1 in a 28% yield. Compound 3 was prepared according to the reported protocols.²⁶ The structure of compound 1 was confirmed by NMR (¹H and ¹³C) and ESI-MS (LR and HR) (ESI†).§

Fig. 1 shows the fluorescence changes that compound 1 undergoes upon the addition of various amino acids, including Cys, GSH, Hcy, Ala, Arg, Gln, Glu, Gly, His, Lys, Met, Phe, Ser, IIe, Val, Leu, Asp, Thr, Asn, Pro, Trp and Tyr, in 1 : 1 DMSO-PBS buffer (0.01 M, pH 7.4).¶ It can be seen that compound 1 was essentially non-fluorescent, and addition of amino acids without thiol groups induced negligible changes in the fluorescence intensity. However, addition of thiol-containing Cys, Hcy and GSH caused up to 83-fold fluorescence enhancements with new strong emission at 560 nm. Of those three biothiols, Cys caused the highest increase in the fluorescence intensity, with a dramatic fluorescent color change from dark to orange (Fig. 1b). This result suggests that compound 1 exhibited fluorescent “turn-on” response toward Cys with much higher selectivity than toward the other amino acids (Scheme 2).

Fig. 1 (a) Fluorescence spectra and (b) fluorescence intensity at 560 nm of compound 1 (25 μM) in the presence of various amino acids (250 μM), including Cys, GSH, Hcy, Ala, Arg, Gln, Glu, Gly, His, Lys, Met, Ser, Ile, Val, Leu, Arp, Thr, Asn, Pro, Trp and Tyr (250 μM), in 1 : 1 DMSO-PBS buffer (0.01 M, pH 7.4). The inset in (b) denotes the color change of compound 1 in the presence of Cys, GSH and Hcy (λ_ex = 365 nm).

Scheme 2 Plausible mechanism of response of compound 1 to Cys.

In order to ensure the accurate detection of Cys, the sensing behavior of compound 1 should not be interfered by other chemical species. Given the complexity of intracellular environments, we studied the response of compound 1 toward a wide range of common species, including reactive sulfur species (HS⁻, S²⁻ and HSO₃⁻), reactive oxygen species (H₂O₂), nucleophiles (KI) and metal ions (K⁺, Ca²⁺, Na⁺, Mg²⁺, Al³⁺, Zn²⁺, Fe³⁺, Cu²⁺, Mn²⁺ and Cd²⁺). As shown in Fig. 2, compound 1 triggered no fluorescent feedback in the presence of NaHSO₃, KI, H₂O₂ or metal ions. NaHS and Na₂S led to a slight fluorescence increase. These results suggest that compound 1 exhibited fluorescent response to Cys with remarkably high selectivity.

Fig. 2 Fluorescence response of compound 1 (25 μM) to a wide range of bioanalytes (250 μM) in 1 : 1 DMSO-PBS buffer (0.01 M, pH 7.4), including Cys, K⁺, Ca²⁺, Na⁺, Mg²⁺, Al³⁺, Zn²⁺, Fe³⁺, Cu²⁺, Mn²⁺, Cd²⁺, NaHS, Na₂S, NaHSO₃, KI and H₂O₂ (λ_ex/λ_em = 415/560 nm).

To ensure practical application, a sensor should have low detection limit and reasonably short response time. Therefore we firstly measured the detection limit of compound 1 toward Cys, GSH and Hcy by means of spectrofluorimetric titrations. As shown in Fig. 3a, the fluorescent intensity increased with the increase in the concentrations of Cys until saturation was observed. The stoichiometric ratio of Cys to compound 1 was found to be 9 : 1, and the detection limit was calculated to be 2.0 × 10⁻⁷ M based on S/N = 3 (Fig. S10†).²⁷ Under the same conditions, compound 1 exhibited response to GSH and Hcy with the detection limits being 4.3 × 10⁻⁷ M and 1.2 × 10⁻⁶ M, respectively (Fig. S11 and S12†).

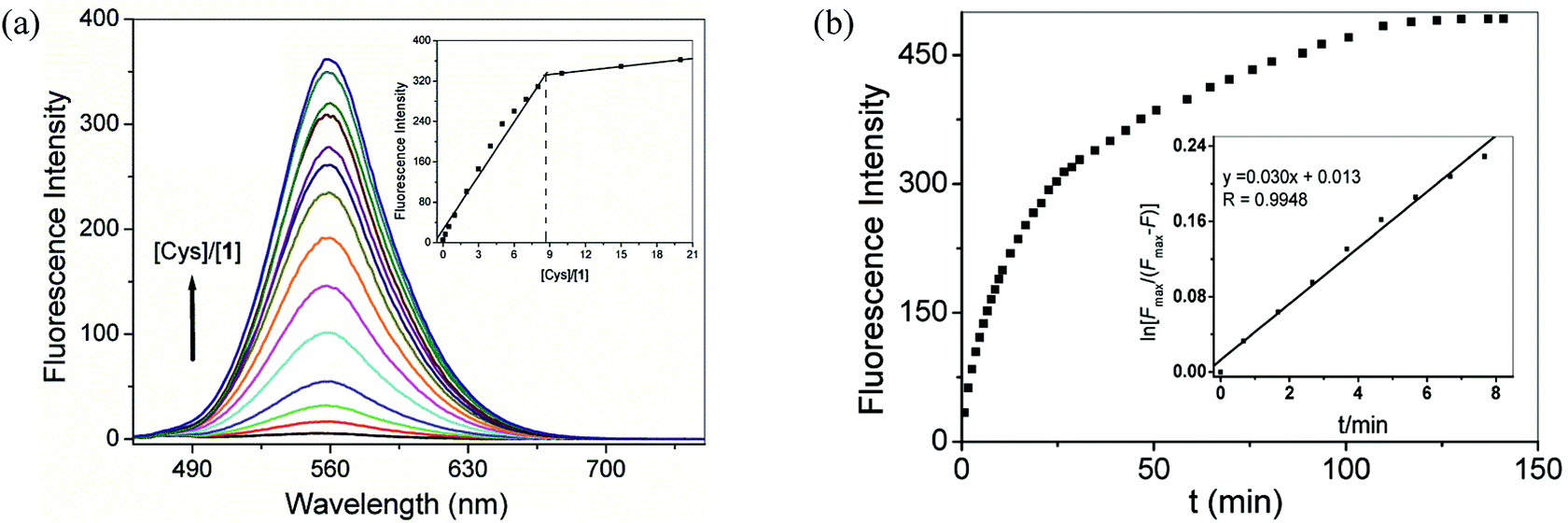

Fig. 3 (a) Spectrofluorimetric titration of compound 1 (25 μM) in 1 : 1 DMSO-PBS buffer (0.01 M, pH 7.4) upon the addition of Cys of varying concentrations from 0 to 500 μM. Inset: fluorescence change against [Cys]/[1] ratios. (b) Kinetic study of the response of compound 1 (25 μM) to Cys (500 μM) at 25 °C under pseudo-first-order condition. λ_ex/λ_em = 415/560 nm.

Then we studied the time course of the response of compound 1 to Cys, GSH and Hcy under pseudo-first-order conditions and at pH 7.4 and 25 °C (Fig. 3b, S13 and S14†). Non-linear fitting of the initial concentration changes according to a pseudo-first-order kinetics equation afforded the rate constants of 3.0 × 10⁻² min⁻¹ for Cys, 9.5 × 10⁻³ min⁻¹ for GSH and 5.9 × 10⁻³ min⁻¹ for Hcy, respectively. Thus, the pseudo-first-order rate constant of Cys was 3- and 5-fold higher than those of GSH and Hcy, respectively.²⁸ These data underlie the selectivity of compound 1 to small-molecular-weight biological thiols in the order of Cys > GSH > Hcy.

The above-observed new strong emission peak at 560 nm is thought to be due to the cleavage of the DNs group to produce an electron-donating amino group. In other words, the sensing mechanism involves the nucleophilic attack of thiols on the DNs group of compound 1 to give highly fluorescent N-butyl-3,6-diamino-1,8-naphthalimide 2, leading to immediate fluorescence regeneration.^23,24 To verify this, the response of compound 1 to Cys was investigated by ¹H NMR spectra. Upon the addition of Cys, the resonances at 7.82 ppm (H_a), 7.81 ppm (H_d), 7.66 ppm (H_c) and 7.19 ppm (H_b) of compound 1 disappeared. Meanwhile, two new resonances appeared at 7.61 ppm corresponding to H^′_a and H^′_d and 7.08 ppm corresponding to H^′_b and H^′_c of compound 2, respectively (Fig. 4b and c and S6†). This result is indicative of the cleavage of the DNs group and the production of compound 2. This was further supported by ESI-MS spectra, in which a peak at m/z 284.2 corresponding to [2 + H]⁺ (calcd = 284.2) was clearly observed (Fig. S7 and S8†).

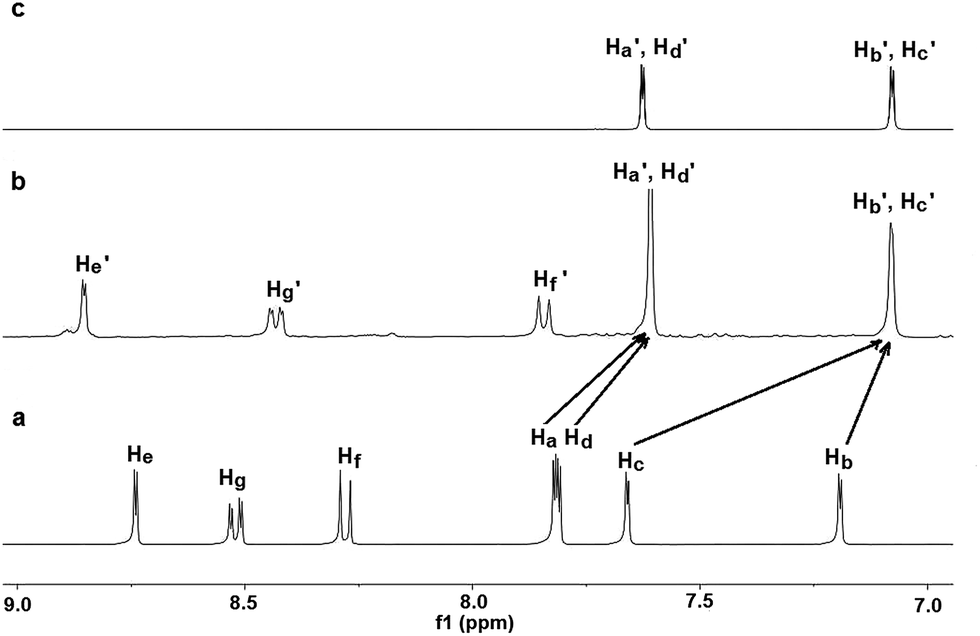

Fig. 4 Partial ¹H NMR spectra of compound 1 before the addition (a) and 72 h after the addition (b) of Cys, and of compound 2 (c) in d₆-DMSO/D₂O (5/2, v/v).

To evaluate whether compound 1 has sufficient cellular permeability and can be activated by intracellular biothiols in living cells, its permeability and subsequent monitoring of thiols in living cells were investigated.²⁹ Thus, human hepatocarcinoma HepG2 cells were incubated with compound 1 (5 μM) for 2 h. Strong red-fluorescence was exhibited inside the cells (Fig. 5d). In a control experiment, when cells were pretreated with N-ethylmaleimide (NEM, 20 μM, 0.5 h, a trapping reagent of thiol species), a remarkable decrease in fluorescence intensity was observed (Fig. 5g), indicating the specific detection of thiols by compound 1. These results suggest that compound 1 could enter cells and make fluorescence labeling.

Fig. 5 Fluorescence images of HepG2 cells (λ_ex = 488 nm) (a) in the absence of compound 1; (d) incubated with compound 1 (5 μM) for 2 h; (g) pretreated with N-ethylmaleimide (20 μM) for 30 min and then incubated with compound 1 (5 μM) for 2 h. (b, e and h) corresponding bright field images of (a, d and g); (c, f and i) overlays of the fluorescent and bright field images.

In summary, we have successfully developed a novel 3,6-diamino-1,8-naphthalimide-based fluorescent “turn-on” probe for biothiols. It functions via the cleavage of the DNs group and the formation of an electron-donating amino group. This compound exhibits high selectivity toward biothiols over the other natural amino acids and a wide range of common species, with an obvious fluorescent color change from dark to orange. This compound may also be applied in the biological imaging of biothiols in living cells.
