Issue 40, 2023

Surface chemical mechanisms of trimethyl aluminum in atomic layer deposition of AlN

Abstract

Aluminum nitride (AlN) is an important material for semiconductor devices, such as ultraviolet light emitting diodes (LEDs) or high-electron-mobility transistors (HEMTs). One emerging approach to deposit very thin, and highly conformal AlN films is atomic layer deposition (ALD), most commonly by using trimethyl aluminum (TMA) and ammonia. Despite TMA being one of the most common ALD precursors, its surface chemistry in ALD of AlN is poorly understood. By quantum chemical modeling, we have investigated the adsorption and decomposition of TMA on an AlN surface. We have found two competing decomposition pathways, either ligand exchange by protonation of the methyl groups in TMA by a surface amino group, or reductive elimination of the methyl groups as ethane. Reductive elimination is shown to be the dominating reaction step if a TMA molecule adsorbs far from any previously adsorbed molecule. Ligand exchange is preferred if it adsorbs close to an already adsorbed molecule. By comparing the obtained surfaces after decomposition, we find that the saturation coverage is dependent on the preferred pathways with a third of a monolayer saturation for reductive elimination and a full for ligand exchange. The relative low diffusion rate compared to decomposition rate of TMA will cause the molecules to be far apart after adsorption, and we conclude that the dominating decomposition path is reductive elimination.

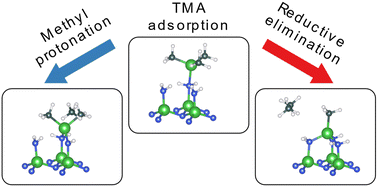

Graphical abstract: Surface chemical mechanisms of trimethyl aluminum in atomic layer deposition of AlN

  • This article is part of the themed collection: #MyFirstJMCC

Supplementary files

Article information

Article type
Paper
Submitted
03 Jūl. 2023
Accepted
25 Sept. 2023
First published
26 Sept. 2023
This article is Open Access
Creative Commons BY license

J. Mater. Chem. C, 2023,11, 13935-13945

Surface chemical mechanisms of trimethyl aluminum in atomic layer deposition of AlN

K. Rönnby, H. Pedersen and L. Ojamäe, J. Mater. Chem. C, 2023, 11, 13935 DOI: 10.1039/D3TC02328A

This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. You can use material from this article in other publications without requesting further permissions from the RSC, provided that the correct acknowledgement is given.
