Issue 16, 2015

Graphene/enzyme-encrusted three-dimensional carbon micropillar arrays for mediatorless micro-biofuel cells

Abstract

Two-dimensional graphene is a promising candidate material for use in high-performance enzymatic biofuel cells (EBFCs). In this work, graphene/enzyme has been integrated onto three-dimensional (3D) micropillar arrays in order to obtain efficient enzyme immobilisation and enhanced enzyme loading and facilitate direct electron transfer. The fabrication process of this system combines top-down carbon microelectromechanical systems (C-MEMS) to fabricate the 3D micropillar array platform and bottom-up electrophoretic deposition (EPD) to deposit the graphene/enzyme onto the electrode surface. The amperometric response of the graphene-based bioelectrode exhibited excellent electrochemical activity, which indicated the successful co-deposition of graphene with the enzymes. The developed 3D graphene/enzyme network-based EBFC generated a maximum power density of 136.3 μW cm−2 at 0.59 V, which is almost seven times the maximum power density of the bare 3D carbon micropillar array-based EBFC.

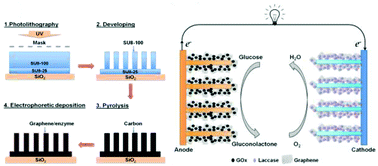

Graphical abstract: Graphene/enzyme-encrusted three-dimensional carbon micropillar arrays for mediatorless micro-biofuel cells

Article information

Article type
Paper
Submitted
19 Nov. 2014
Accepted
11 Janv. 2015
First published
12 Janv. 2015

Nanoscale, 2015,7, 7084-7090

Graphene/enzyme-encrusted three-dimensional carbon micropillar arrays for mediatorless micro-biofuel cells

Y. Song, C. Chen and C. Wang, Nanoscale, 2015, 7, 7084 DOI: 10.1039/C4NR06856D
