Issue 12, 2023

Characterising flow with continuous aeration in an oscillatory baffle flow reactor using residence time distribution

Abstract

Multi-phase flow occurs in many reactions with gas, an integral part of the reaction. This study assesses the synergistic impact of continuous aeration and velocity ratio on mixing conditions within an oscillatory baffled flow reactor to enhance the degree of plug flow, quantified by a tanks-in-series (TiS) model. A bubbly flow regime is shown in all experiments. In most cases, the TiS value was reduced with gas flow, and a maximum TiS value of 23.6 was achieved at a velocity ratio of 3.8 at 225 ml min−1 in a counter-current direction. Single-phase runs and co-current multi-phase runs produced maximum TiS values of 23.5 and 18.2 respectively at a velocity ratio of 2.2. Regardless of the gas flow rate, the velocity ratio was found to be the most influential factor that dictates the level of plug flow within the OBR. A predictive model is developed and used to maximise the mixing efficiency by determining the level of plug flow within the OBR at selected amplitudes, frequencies, and gas flow rates.

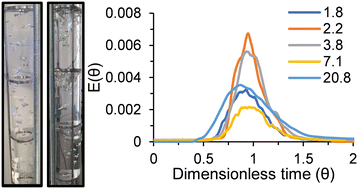

Graphical abstract: Characterising flow with continuous aeration in an oscillatory baffle flow reactor using residence time distribution

Article information

Article type
Paper
Submitted
31 1 2023
Accepted
23 8 2023
First published
30 8 2023
This article is Open Access
Creative Commons BY license

React. Chem. Eng., 2023,8, 3104-3116

Characterising flow with continuous aeration in an oscillatory baffle flow reactor using residence time distribution

R. Cox, K. Salonitis, S. A. Impey and E. Rebrov, React. Chem. Eng., 2023, 8, 3104 DOI: 10.1039/D3RE00065F

This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. You can use material from this article in other publications without requesting further permissions from the RSC, provided that the correct acknowledgement is given.

Read more about how to correctly acknowledge RSC content.
