Recent advances in functionalized cycloparaphenylenes: from molecular design to applications

Abstract

Cycloparaphenylenes (CPPs), which feature a radial π-system, have attracted considerable attention due to their size-dependent photophysical properties and distinctive curved π-conjugated cavity. Incorporating aromatic systems beyond benzene enables precise tuning of their optoelectronic properties to meet specific requirements in supramolecular chemistry and materials science. In this review, we systematically summarize the synthesis, properties, and functional applications of CPP derivatives in chiral materials, supramolecular chemistry, and photoelectric devices. It is anticipated that this review will provide valuable insights for researchers working on CPP derivatives and carbon nanohoops, and contribute to the advancement of synthetic chemistry and materials chemistry.

---

Xiaonan Li

Xiaonan Li received her master's degree in organic chemistry from Beijing Normal University in 2023 and is currently pursuing a PhD under the supervision of Professor Hua Jiang. Her research focuses on supramolecular organic chemistry, particularly the design and synthesis of novel π-conjugated macrocycles, and explores their potential applications in host–guest chemistry and supramolecular functional materials.

Shengzhu Guo

Shengzhu Guo received his master's degree in chemical engineering and technology from Wuyi University in 2022 and subsequently relocated to Beijing Normal University to embark on a PhD specializing in organic chemistry under the guidance of Professor Hua Jiang. Currently, his research focuses on the development of synthetic methodologies for π-conjugated macrocycles and their applications in host–guest chemistry and supramolecular systems.

Hua Jiang

Hua Jiang, a Professor at Beijing Normal University, completed his undergraduate studies at Hubei University in 1991 and subsequently worked there as an assistant engineer until 1995. He received his master's degree in organic chemistry in 1998 at Wuhan University, and PhD in organic chemistry in 2001 at the Institute of Chemistry, Chinese Academy of Sciences (ICCAS). Subsequently, he was a post-doctoral fellow at the Institut Européen de Chimieet Biologie (France) and University of Notre Dame (USA). In 2006, he joined ICCAS as a Professor and then moved to Beijing Normal University in 2013. He is actively engaged in the study of the synthesis of organic functionalized molecules and supramolecular chemistry, focusing on the development of novel chiral organic supramolecular systems including helical foldamers, π-conjugated nanocarbon molecules, mechanical interlocking molecules, and molecular machines.

---

1. Introduction

The pursuit of novel carbon allotropes with atomic precision has driven substantial advancements in the field of carbon nanotechnology.^1–4 From fullerenes^5–8 and carbon nanotubes (CNTs) to graphene⁹ and cycloparaphenylenes (CPPs),^10,11 each new form of carbon has not only expanded our understanding of its versatility but also unlocked new possibilities for functional materials (Fig. 1). As researchers delve deeper into the synthesis, functionalization, and assembly of carbon nanostructures, the potential applications of these materials in electronics, energy storage, catalysis, and biomedicine are expected to proliferate. The future of carbon nanotechnology hinges on achieving precise synthesis of topological carbon materials and developing sustainable methodologies for their production, thereby paving the way for next-generation technologies and innovative solutions to global challenges.

Fig. 1 Structures of carbon allotropes and (a–d) the synthetic procedures of [n]CPPs.

As prominent representatives of carbon materials, CPPs, which were first conceptualized in theoretical studies as the shortest possible segments of armchair CNTs, have garnered significant attention in the fields of organic chemistry, supramolecular chemistry, and materials science.^12–15 However, their synthesis remained elusive for decades due to the strain and conformational challenges of macrocyclization. The breakthrough came in 2008 when Jasti, Bertozzi, and coworkers¹⁰ reported the first synthesis of [9]-, [12]-, and [18]CPP via a stepwise, reductive aromatization strategy (Fig. 1a). This landmark work unlocked access to these strained, radially π-conjugated systems. Subsequent synthetic advances were achieved by Yamago,¹⁶ Itami,¹⁷ Osakada and Tsuchido¹⁸ through several alternative routes, including platinum-mediated cyclization, iterative Suzuki–Miyaura couplings and gold-mediated cyclization (Fig. 1b–d). The versatility of [n]CPPs is further enhanced by their potential as building blocks for developing structurally diverse conjugated carbon nanohoops. This can be achieved through the strategic incorporation of aromatic systems beyond benzene, enabling precise tuning of their optoelectronic properties to meet specific requirements in supramolecular chemistry and materials science.

Recent years have witnessed a surge in research exploring the exceptional properties of CPPs and their derivatives, accompanied by several comprehensive reviews documenting these advancements. Thus, in this review, we will focus on the recent advances in the synthesis and applications of novel CPP derivatives that have emerged in the last decade. Herein, we provide a comprehensive analysis of recent progress in the design, synthesis, and application of these topologically unique molecules, emphasizing their potential to contribute significantly to future organic functional material developments. We anticipate that this review will be a guiding source for the development of supramolecular chemistry and materials chemistry.

2. Chiral CPP derivatives and their applications in advanced chiral materials

Chirality occupies a pivotal position in various scientific and technological domains, including molecular synthesis, materials design, enantioselective catalysis, fundamental physics, pharmaceutics, and biomedicine.^19–22 Chiral [n]CPP derivatives have garnered significant attention due to their unique chiroptical properties, which make them highly promising for applications in 3D displays, security encryption, asymmetric synthesis, and circularly polarized luminescence (CPL) materials. As a result, several chiral CPP derivatives have been reported, exhibiting remarkable performance in chiral materials and further expanding the diversity of CPL materials. A promising strategy to construct chiral CPP derivatives is to fabricate achiral functional groups into the CPP framework. This modification breaks the structural symmetry of the nanohoop by introducing conformational bending, strain, and steric hindrance, thereby endowing the system with distinct chiral properties. For example, the incorporation of achiral aromatic units, such as naphthalene²³ and 2,6-anthrylene,²⁴ into the CPP backbone generates chiral CPP analogs (1 and 2, shown in Fig. 2), which can be regarded as the shortest chiral single-walled carbon nanotubes (SWCNTs) exhibiting helical chirality. Meanwhile, nanohoops 2 confirms that inherent chirality is more pronounced in smaller ring sizes. Accordingly, planar achiral moieties like perylene diimide (PDI) and rubicene, when embedded into the strained CPP framework, nanohoops 3²⁵ and 4²⁶ undergo structural symmetry breaking due to torsional distortion, resulting in pronounced chiral characteristics. However, some of the chiral nanohoops synthesized by inserting an achiral functional group undergoes rapid racemization at ambient temperature, thereby limiting their further application in chiral materials.²³

Fig. 2 Structures of chiral CPP-derivates 1–4.

Incorporating chiral moieties into the framework of [n]CPPs enables precise control over the chiral properties of the resulting molecules, thereby facilitating the development of customized materials tailored for specific applications. Chiral binaphthyl molecules have been extensively studied in the field of chiral materials and serve as crucial building blocks for the construction of carbon macrocycles (Fig. 3). In 2020, Mazaki²⁷ and coworkers synthesized nanohoop 5, which is directly linked to the framework of CPP at the 7,7′-position of binaphthyl and can serve as a solid-state CPL dye. Du et al. subsequently reported the synthesis of chiral binaphthyl nanohoops 6²⁸ and 7,²⁹ connected the skeleton of CPP at the 3,3′- and 1,1′-positions of binaphthyl respectively, for CPL studies. Furthermore, Tanaka³⁰ also reported the use of sterically demanding binaphthyl-linked diyne as a chiral functional group for the synthesis of chiral nanohoop 8. These studies demonstrate that incorporating a chiral binaphthyl scaffold into a macrocyclic structure at varying positions results in distinct properties.

Fig. 3 Structures of binaphthyl-based chiral CPP-derivates 5–8.

[2.2]Paracyclophane can also serve as essential building blocks for the construction of carbon macrocycles. In 2022, our group³¹ achieved the successful synthesis of chiral [2.2]PCP-based nanohoops 9 (PCP-[n]CPP) by incorporating a functionalized pseudo meta-[2.2]PCP unit with CPP backbones of varying dimensions (Fig. 4). The structural integrity of the nanohoops was validated through X-ray crystallographic analysis, and they demonstrate size-dependent crystal packing patterns. Meanwhile, the macrocycles exhibit intriguing size-dependent UV-vis absorption and fluorescence emission properties, characterized by exceptionally high quantum yields of up to 0.82 and favourable chiroptical properties with dissymmetry factors on the order of 10⁻³. The study also highlights the importance of chirality transfer and structural design in achieving stable and functional chiral macrocycles.

Fig. 4 The (a) synthetic procedures, (b) dense stack (c) CD and (d) CPL spectra of compound 9. Adapted from ref. 31 with permission from Wiley-VCH, copyright 2022.

Next, our group³² reported the regioselective synthesis of all-carbon lemniscular nanohoops, 10a (bis-po-CC) and 10b (bis-pm-CC), through strategic control of ring closures at distinct positions of planar chiral tetrasubstituted[2.2]PCP (Fig. 5). Topological analyses demonstrated that 10b features a nonplanar trefoil graph, while 10a shows a planar graph, and consequently, 10b exhibits topological chirality, while 10a is topologically achiral. CD and CPL measurements demonstrated that the chiroptical properties of 10b differ markedly from those of 10a. The CD spectra of 10b showed an inverted sign compared to 10a, indicating opposite chirality despite sharing the same planar chiral PCP core. CPL spectra further confirmed these findings, with 10b displaying a negative signal in the range of 400–700 nm, consistent with the CD results. These differences are attributed to the distinct orientation of the embedded [2.2]PCP core within the lemniscular nanohoops and their differing topological chiralities. This study highlights the influence of regioselective synthesis on the topological chirality of these nanohoops, providing new insights into the design and synthesis of topologically chiral all-carbon molecules.

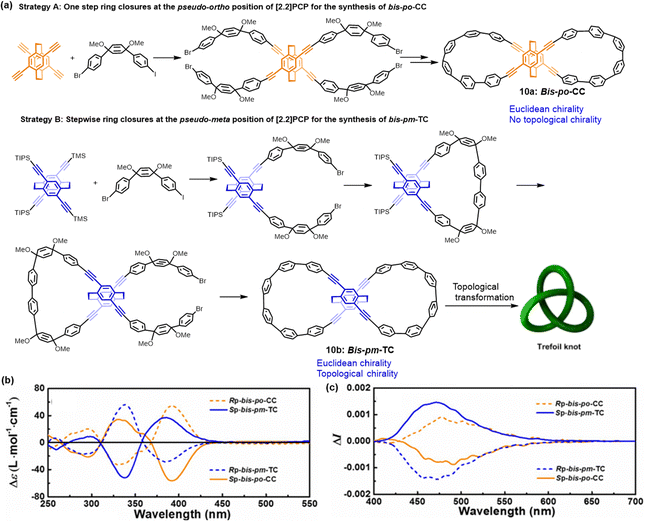

Fig. 5 (a) Regioselective synthesis of isomers 10 with a differently oriented [2.2]PCP core in which ethylene bridges are located out of and in the lemniscular framework, respectively. (b) CD and (c) CPL spectra of compound 10. Adapted from ref. 32 with permission from Royal Society of Chemistry, copyright 2023.

Very recently, our group³³ reported the rational design and synthesis of highly luminescent chiral triptycene-based nanohoops 11 (TP-[n]CPP) with broken symmetry by embedding chiral 2,6-dimethoxytriptycene into the frames of [n]CPPs (Fig. 6). The nanohoops exhibited unique size-dependent frontier molecular orbitals and consequently displayed size-dependent photophysical properties. This suggests that incorporating aromatic systems beyond benzene can effectively control the topologies of the frontier molecular orbitals, enabling precise tuning of their optoelectronic properties. Nanohoops 11 demonstrate exceptionally high fluorescence quantum yields, with TP-[13]CPP achieving a maximum value of 0.93. This represents the highest fluorescence quantum yield reported to date for chiral conjugated carbon nanohoops. The exceptional luminescence efficiency is attributed to the unique acyclic and radial conjugation within the nanohoops, as well as their elevated radiative transition rates, which were further validated through theoretical investigations. Chiroptical analyses revealed that these chiral TP-[n]CPPs exhibit intense CPL, with CPL brightness reaching up to 100.5 M⁻¹ cm⁻¹ for TP-[11]CPP. This high CPL brightness is directly correlated with the high fluorescence quantum yields of the nanohoops. Notably, the studies uncovered an intriguing size-dependent relationship in the (chir)optical properties of Nanohoops 11, which exhibits a linear trend when plotted against 1/n (where n denotes the number of repeating units). This linear correlation offers profound insights into the structural and electronic factors influencing the optical and chiroptical behaviors of these nanohoops.

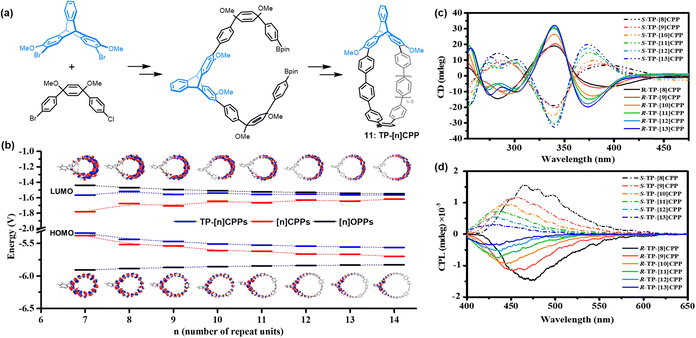

Fig. 6 (a) Synthetic procedures of chiral triptycene-based nanohoops 11, (b) the frontier molecular orbitals and LUMO–HOMO gaps for TP-[n]CPPs, [n]CPPs, and [n]OPPs at the optimized geometries of S₀ state calculated by DFT at the PBE0/6-31G(d)/PCM level, (c) CD and (d) CPL spectra of macrocycles 11 in DCM solution (1.0 × 10⁻⁵ M); adapted from ref. 33 with permission from Wiley-VCH, copyright 2024.

Other chiral building blocks, such as stereogenic Tröger's base,³⁴ [6]helicene³⁵ and [5]helicene,³⁶ when incorporated into CPP architectures, have facilitated the development of chiral CPP analogs 12–14 (as depicted in Fig. 7). These nanohoops demonstrate remarkable (chiro)optical properties, with dissymmetry factors on the order of 10⁻³, positioning them as highly promising candidates for applications in chiral optoelectronics and asymmetric synthesis. Furthermore, the identification of Möbius strip topology in nanohoops 13 and 14 highlights their potential as topological materials exhibiting unique electronic and optical characteristics.

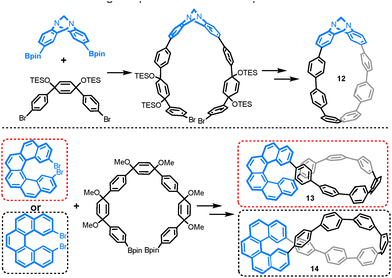

Fig. 7 The synthetic procedures of compounds 12–14.

In the pursuit of stable chiral nanostructures, researchers have explored the concept of writhe stabilization through cross-linking, as opposed to relying solely on twist to prevent unwinding. This approach has led to the development of axially chiral figure-eight CPPs, where the writhe is stabilized by cross-linking, resulting in a robust three-dimensional structure. This strategy has proven particularly effective in maintaining the chiral integrity of the macrocycles, preventing racemization, and enhancing their chiroptical properties. To achieve this, three-dimensional building blocks such as bicarbazole,³⁷ spirobifluorene,³⁸ binaphthyl units³⁰ and 2,11,18,27-tetrabromooctabenzo[8]circulene³⁹ have been strategically incorporated as structural units in the synthesis of chiral cycloparaphenylene-based molecular lemniscates 15–18 (Fig. 8). These building blocks not only provide the necessary rigidity to stabilize the writhe but also introduce additional functional groups that enhance the overall stability and performance of the resulting macrocycles. These macrocycles exhibit pronounced CPL, with nanohoop 17 showing a high affinity for vapor analytes. This characteristic renders them highly valuable for applications in chiral sensing, optoelectronics, and chemical detection.

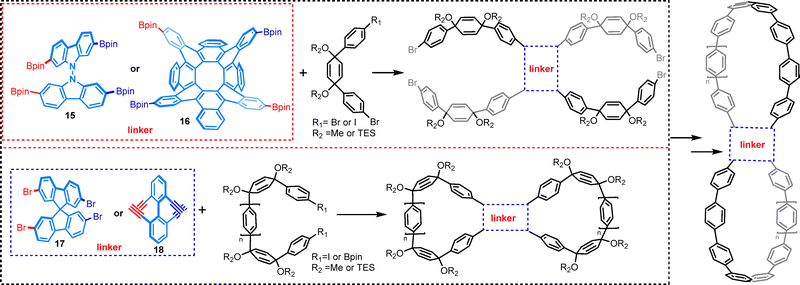

Fig. 8 Structures of chiral bis-nanohoops 15–18.

In 2019, Cong and coworkers described the synthesis of a pentiptycene-derived chiral dual nanohoop molecule 19⁴⁰ with key steps including ring expansion through dianthracene cycloreversion and transannular [4+2] cycloaddition across a 64-membered macrocycle (Fig. 9). The crystal structure of the nanoring molecule exhibits an orderly stacking pattern and forms a long-range channel structure in the solid state. Furthermore, the nanoring enantiomers were successfully resolved, and the macrocycle demonstrates exceptional chiral properties, with |g_lum| reaching the order of 10⁻³. Subsequently, Du reported a novel chiral dual-emissive bismacrocycle 20⁴¹ with tunable aggregation-induced emission colors. This compound features a 1,2,4,5-tetraphenylbenzene core locked by two intersecting polyphenylene-based macrocycles. The luminescence behavior of 20 shows the unique characteristics of both the ACQ effect and AIE effect, inducing a remarkable redshift emission with near white-light emission. In addition, 20 displays enhanced circularly polarized luminescence properties due to the AIE effect.

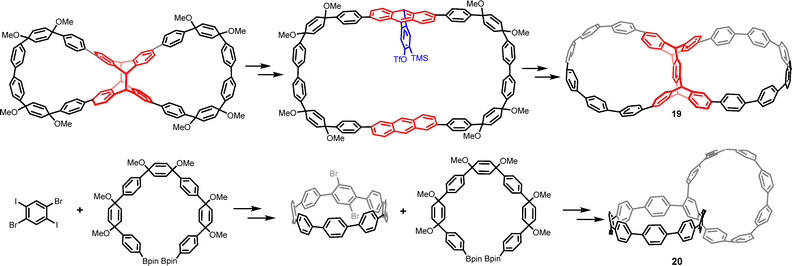

Fig. 9 The synthetic procedures of compounds 19 and 20.

In 2024, Cong⁴² and coworkers reported the synthesis of helical tubular molecule 21 featuring three diyne linkers between two site-specifically functionalized [9]CPP (Fig. 10). This radially conjugated compound demonstrates remarkable solid-state packing patterns, exceptional CPL properties, and facile post-functionalization. In the solid state, the crystal structure of 21 displays a C₃-symmetrical packing mode with a trigonal R3̄c space group, wherein pairs of enantiomers alternate in a hexamer pattern featuring threefold rotation axes and one-dimensional channels along the [001] direction. Notably, 21 demonstrates outstanding chiroptical properties, with |g_lum| reaching the order of 10⁻². This study is expected to inspire future bottom-up synthesis efforts aimed at creating a wider range of chiral tubular structures derived from CPPs, thus paving the way for the expansion of molecular nanocarbons with emergent properties.

Fig. 10 (a) Structures of chiral CPP-derivates and (b) single crystals of 21. Adapted from ref. 42 with permission from Wiley-VCH, copyright 2024.

3. Functionalized CPPs and their application in supramolecular chemistry

The unique curved π-surface structures and concave cavities of [n]CPPs enable them to function as effective hosts for both aromatic and nonaromatic guests with complementary curved surfaces through CH–π hydrogen bonds, π–π interactions, and dispersion forces, resulting in the formation of stable binary or ternary complexes.^43,44 We⁴⁵ have comprehensively summarized the most recent advances and examples on host–guest chemistry of binary and ternary complexes utilizing [n]CPPs and related derivatives. In this feature article, we highlight the application of CPP in supramolecular chemistry over the past few years, with a focus on the precise control of molecular topologies.

In contrast to alternant hydrocarbons, the incorporation of nonalternant systems reduces the aromaticity of nanohoops, resulting in a narrower HOMO–LUMO energy gap and more pronounced changes in their optoelectronic properties. Azulene, a classic nonalternant aromatic hydrocarbon, is particularly notable for its ease of protonation, rendering it an ideal candidate for designing stimuli-responsive systems. These unique characteristics make it highly suitable for constructing stimuli-responsive nanohoops with potential applications in host–guest chemistry. In 2023, our group⁴⁶ reported the synthesis of a novel nonalternant azulene-embedded carbon nanohoop, 22a (1,3-Az[9]CPP), which exhibits reversible pH stimuli-responsiveness, anti-Kasha emission, and tunable band gaps upon protonation and deprotonation (Fig. 11). The nanohoop demonstrated a significant shift in its UV-vis absorption spectra upon protonation, with the optical gap decreasing from 2.74 eV to 1.82 eV, indicating a strong modulation of electronic properties. Furthermore, the structural and binding properties were confirmed by single-crystal X-ray diffraction, revealing a 1 : 1 host–guest complex with C₆₀. And 22a showed highly selective binding for C₆₀ over C₇₀ in acidic media, with a binding constant ratio Ka_C60/C70 = 30. This selectivity was attributed to the enhanced cation–π interactions between the protonated azulene unit and the fullerene.

Fig. 11 The (a) synthetic procedure and (b) reversible pH stimuli-responsiveness of 22 and (c) X-ray crystal structures of C₆₀@22a. Adapted from ref. 46 with permission from Royal Society of Chemistry, copyright 2023.

In 2023, our group⁴⁷ reported the synthesis and chiroptical properties of novel chiral carbon nanoring 23 ([12]PCPP) containing a planar chiral [2.2]PCP unit (Fig. 12). Nanoring 23 demonstrates exceptional UV-vis absorption and fluorescence emission properties, characterized by exceptionally high quantum yields of up to 0.71 and favorable chiroptical properties with dissymmetry factors on the order of 10⁻³. Meanwhile, we discovered that nanohoop 23 exhibits outstanding performance in supramolecular chemistry, particularly in the construction of Russian doll complexes with 18-crown-6 and S/R-protonated amines. The homochiral S@Sp- and R@Rp-ternary complexes demonstrated a highly narcissistic chiral self-recognition for S/R-protonated chiral amines, respectively. This unique property underscores the ability of nanohoop 23 to selectively recognize and differentiate chiral guests based on their stereochemistry. The chiral ternary complexes formed by nanohoop 23 can be further applied to determine the enantiomeric excess (ee) values of chiral guests. This application highlights the potential of carbon nanorings in developing supramolecular sensors for chiral recognition and analysis, offering a new approach to determining the ee values of chiral molecules.

Fig. 12 The (a) synthetic procedure of 23, (b) the structure of the guests and (c–e) cartoon illustrations of self-assemblies of homochiral S@Sp- and heterochiral R@Sp-ternary complexes from 23 and their applications in narcissistic chiral self-recognitions. Adapted from ref. 47 with permission from Wiley-VCH, copyright 2024.

Furthermore, our group⁴⁸ reported the synthesis and characterization of heterotopic bisnanohoops 24 (P5-[8,10]CPPs) which integrate CPPs with a pillar[5]arene (P5A) unit (Fig. 13). These compounds exhibit remarkable chiral properties, characterized by |g_lum| values on the order of 10⁻³.⁴⁹ This value is comparable to that of C₅-symmetric P5A and significantly larger than those of previously reported CPL-active P5A compounds.⁵⁰ The latter were prepared via single-unit modification, which resulted in the loss of C₅-symmetry and exhibited |g_lum| values on the order of 10⁻⁴.^51–53 Meanwhile, nanohoop 24 demonstrate supramolecular chemical potential, particularly in the construction of sophisticated Förster resonance energy transfer (FRET) systems. Through host–guest interactions, these bisnanohoops can self-assemble with various acceptor molecules, such as BODIPY-Br and Rh–Br, which have distinct emission spectra. This self-assembly process enables the precise tuning of energy transfer between the donor (24) and the acceptors, facilitating multi-color tunable emissions, including white-light emission. The ability to achieve white-light emission through these FRET systems has significant practical implications. The host–guest complexes formed between 24 and the acceptor molecules have been successfully employed in the development of white-light fluorescent films. These films exhibit stable and efficient white-light emission, making them suitable for integration with 365 nm LED lamps to produce functional white LED devices. This integration represents a significant step forward in the application of chiral nanohoops in optoelectronic devices and lighting technologies.

Fig. 13 (a, b) The construction of FRET systems based heterotopic bisnanohoops 24 and (c) their application on tunable white light emission. Adapted from ref. 48 with permission from the Royal Society of Chemistry, copyright 2023.

Furthermore, our⁵⁴ investigations revealed that nanohoop 11 exhibits exceptional performance in supramolecular chemistry and has been employed to construct Russian-doll-like complexes with P5A and haloalkyl derivatives of 9,10-bis(phenylethynyl)anthracene (Fig. 14). Nanohoop 11 not only functions as a host for P5A but also serves as an energy donor in the construction of FRET systems. Importantly, we demonstrated that the hierarchical assembly processes could be efficiently monitored in real time using FRET. Notably, the Russian-doll complexes exhibited both one-step and sequential FRET behavior dependent on the subcomponents P5A/P5A-An during hierarchical assembly, reminiscent of the structure and energy transfer mechanisms observed in the light-harvesting systems of purple bacteria. These findings underscore the importance of matching the dimensions of two distinct macrocycles for the development of hybrid supramolecular assemblies involving ring-in-ring complexes and smaller neutral guest molecules, while also highlighting the utility of FRET as a powerful tool for monitoring the formation of binary or Russian-doll complexes.

Fig. 14 (a) The construction of FRET systems-based compound 11. Fluorescence emission spectra of the (b) ring-in-ring complexes and (c) the Russian-doll complexes. Adapted from ref. 54 with permission from American Chemical Society, copyright 2024.

The integration of supramolecular engineering into the design of luminescent nanohoops offers a powerful strategy to manipulate photophysical properties through non-covalent interactions and controlled self-assembly. CPP derivatives, with their intrinsic curvature and π-conjugated cavities, serve as ideal platforms for exploring supramolecular packing and optoelectronic behaviors. In 2025, our group⁵⁵ explored the acceptor engineering of quinone-based CPPs to achieve white-light emission in single-molecules. By employing a post-synthetic strategy involving Diels–Alder reactions with 25a (oxTh[10]CPP), a series of [10]CPPs 25b–25d (Nq[10]CPP, Aq[10]CPP, and Tq[10]CPP) were efficiently synthesized (Fig. 15). X-ray crystallographic analysis revealed that the structural differences of the CPPs led to unique packing arrangements, with 25b showing side-by-side naphthoquinone stacking and 25c adopting an intercalated conformation. Notably, fluorescence studies and theoretical calculations indicated that the quinone-based [10]CPPs exhibited acceptor-dependent dual emissions from both locally excited (LE) and charge-transfer (CT) states upon single-wavelength excitation. In particular, 25c achieved white-light emission in CHCl₃, with CIE coordinates of (0.33, 0.25). The research also demonstrated the tunability of dual-emission properties through solvent polarity, aggregation, and redox reactions. In a THF/water mixture, the quinone-based [10]CPPs and 25a exhibited a broad range of fluorescence emissions, including white-light, as the water fraction increased, accompanied by nanoparticle formation evidenced by the Tyndall effect and SEM. Interestingly, the fluorescence of 25c could be switched from white to blue in CHCl₃ upon redox manipulation.

Fig. 15 (a) Conceptional strategy for constructing nanohoops with dual-emission states. (b) The structure of nanohoops 25a–25d. (c) X-ray crystal structures of 25b and 25c. (d) Changes of fluorescence emission spectra and fluorescence colors of compound 25c with different water fractions in THF solvent. Adapted from ref. 55 with permission from Springer Nature, copyright 2025.

In 2024, a notable advancement in the construction of conjugated nanobelts was achieved through both symmetrical and asymmetrical longitudinal π-extensions of [12]CPP, as reported by Tan and coworkers.⁵⁶ Three distinct nanobelts, designated as 26a–26c (Fig. 16), were synthesized, and their structures were unequivocally confirmed using single-crystal X-ray diffraction analysis. The incorporation of fused aromatic units into these nanobelts resulted in effective electronic conjugation, which was evidenced by red-shifted emission spectra. The design of these nanobelts leveraged the matched size and π–π interactions of the fused aromatic units, facilitating the stable double-walled assembly of 26b and 26c. Specifically, [9]CPP within 26b was found to insert into [15]CPP of 26c, forming a unique double-walled complex, 26b⊃26c. Upon photoexcitation, this complex exhibited emission solely from 26b, indicating complete intermolecular energy transfer from 26c to 26b. This phenomenon underscores the potential of such structures in studying energy transfer mechanisms. The efficient energy transfer observed in the double-walled 26b⊃26c complex provides a valuable molecular model for understanding intertube energy transfer in multiwalled carbon nanotubes (CNTs).

Fig. 16 The (a) synthetic procedures and (b) construction of FRET system-based compound 26. Adapted from ref. 56 with permission from American Chemical Society, copyright 2025.

Very recently, Itami⁵⁷ successfully synthesized 29 (PF[12]CPP⊃(6,6)CNB), the shortest fragment of double-walled noncovalent CNTs reported to date (Fig. 17). Time-dependent ¹H NMR and thermogravimetric analysis revealed that the encapsulation of 28 ((6,6)CNB) within 27 (PF[12]CPP) significantly enhanced its stability, highlighting the protective role of the host framework. The structural organization of 27 and 28 was found to be highly dependent on the crystallization conditions. When crystallized from chloroform/pentane, the complex adopted a “dimeric” brickwall alignment, whereas crystallization from 1,1,1-trichloroethane/octane resulted in a brickwall packing arrangement. Interestingly, crystallization from chloroform alone led to a tubular arrangement, demonstrating that the encapsulated solvent molecules play a critical role in dictating the packing structure. This solvent-directed assembly underscores the dynamic nature of the system and its responsiveness to environmental conditions. The tubular arrangement observed in this study represents a novel class of double-walled noncovalent CNTs. These structures are expected to exhibit high structural uniformity and resilience, making them promising candidates for advanced supramolecular materials. Furthermore, they serve as a molecularly defined model system for understanding and constructing double-walled CNTs with precise control over their architecture and properties.

Fig. 17 (a) The chemical structure of 27–29. (b) ORTEP and packing structures of PF[12]CPP⊃(6,6)CNB. Adapted from ref. 57 with permission from Wiley-VCH, copyright 2024.

The chemistry of CPP mechanically interlocked molecules is expected to facilitate the development of physical properties beyond the exciting topology. In 2018, Cong⁵⁸ and coworkers reported an efficient and precise synthesis of catenane 30 consisting of two mechanically linked, fully conjugated nanohoops via Sauvage's copper(I)-templated method (Fig. 18). Its crystal structure exhibits unusual topology, representing a rare case of a stabilized Möbius twisted π-system in the solid state. Theoretical calculations reveal the aromaticity in the monomer nanohoop as well as a strong driving force for the stabilization of catenane 30 through non-covalent π–π interaction. In 2019, Itami et al.⁵⁹ successfully developed a novel traceless covalent template approach to achieve the synthesis of catenanes 31 and a molecular trefoil knot 32 composed exclusively of para-connected benzene rings. The interlocked structures were confirmed via X-ray crystallography. Characteristic fluorescence associated with rapid energy transfer between the two rings was observed in a heterocatenane system. Additionally, the topological chirality of the all-benzene knot 32 was validated through enantiomer separation and circular dichroism spectroscopy. Despite its apparent rigidity, the all-benzene knot exhibits rapid vortex-like motion in solution, even at −95 °C, leading to averaged nuclear magnetic resonance signals for all hydrogen atoms.

Fig. 18 Structures of CPP MIM 30–35.

Subsequently, Jasti⁶⁰ reported the incorporation of a 2,6-pyridine coordination motif into the backbone of a nanohoop macrocycle. This design enables the synthesis of a diverse range of [2]rotaxanes 33 with high emissivity through two distinct CuI-catalyzed active-metal template reactions. Furthermore, the metal coordination, an intrinsic property conferred by the resulting mechanical bond, facilitates molecular shuttling and modulates fluorescence under both organic and aqueous conditions. Inspired by these findings, a self-immolative [2]rotaxane was designed to undergo self-destruction in the presence of an analyte, thereby eliciting a strong fluorescent turn-on response. This serves as a proof-of-concept for a novel class of molecular sensing materials. In 2022, Cong⁶¹ developed a conjugated covalent template strategy based on the azo group and successfully applied this approach to synthesize a novel all-benzene catenane 34. A key feature of this innovative synthetic strategy is the use of a tetra-substituted azobenzene core as a rigid π-conjugated synthon, which facilitates dual intramolecular macrocyclizations with high efficiency. Furthermore, the resulting precatenane can be effectively converted into the target catenane via a two-step process involving the traceless removal of the azo linker. Notably, in addition to these remarkable synthetic studies, Cong,⁶² Jasti,⁶³ Delius⁶⁴ and Itami⁶⁵ also achieved the elegant synthesis of analogous [2]catenanes and rotaxanes based on topologically complex nanocarbons.

Recently, Xu⁶⁶ and coworkers successfully synthesized a rare ABC-type hetero-[3]catenane 35 using an innovative ring-in-ring assembly strategy, incorporating unmodified [12]CPP, 24-crown-8, and a dibenzylammonium macrocycle. The structural and assembly properties of the binary [12]CPP⊂24-crown-8 and ternary [12]CPP⊂24-crown-8⊂dibenzylammonium complexes were elucidated through X-ray crystallography, providing critical insights into the pre-organization and mechanical bonding of the system. Photophysical characterization revealed that the introduction of flexible macrocycles had only a modest impact on the absorption and fluorescence properties of [12]CPP, preserving its intrinsic optical behavior. Molecular dynamics simulations provided detailed insights into the internal dynamics of the catenane, demonstrating that the larger [12]CPP ring can undergo slippage across the smaller 24-crown-8 ring. These simulations also highlighted the critical role of the protonation state of the dibenzylammonium moiety in modulating the dynamics of the system, suggesting a potential avenue for controlling the catenane's behavior through pH changes.

4. CPP derivatives and their applications in organic optoelectronic materials

4.1 [n]CPPs

CPPs, characterized by their rigid and cyclic π-electron systems, represent an exceptional structural platform for advanced organic optoelectronic materials. A particularly intriguing aspect of CPPs lies in their tunable optoelectronic properties, which can be precisely modulated through ring size variation. For instance, Zhu⁶⁷et al. demonstrated that [n]CPPs (n = 5 to 12) exhibit higher conductance than linear oligoparaphenylenes at smaller ring sizes, due to their radially π-conjugated structures. Notably, the HOMO–LUMO gap of CPPs decreases as the molecular size reduces, contrasting with linearly conjugated molecules. This unique feature enables CPPs to achieve enhanced conductance at shorter lengths, making them highly suitable for nanoscale electronic applications. Moreover, CPPs exhibit excellent solubility and film-forming capabilities, complemented by their ability to self-assemble into ordered structures. These properties not only simplify device fabrication but also facilitate the development of molecular devices with tunable transport properties, further underscoring their potential in organic optoelectronics.

CPPs can serve as promising organic luminophores for transparent luminescent solar concentrators (LSCs). Traditional LSCs often suffer from reabsorption losses, where emitted light is reabsorbed by the fluorophores, reducing overall efficiency. However, CPPs, particularly [8]CPP and [10]CPP, exhibit remarkably large Stokes shifts of 1.4 eV and 1.07 eV, respectively, which significantly reduce reabsorption losses.⁶⁸ In 2019, Gaeta⁶⁷ and colleagues successfully embedded these CPP derivatives into poly(methyl methacrylate) (PMMA) slabs using a photopolymerization method, preserving their spectral properties and enhancing their luminescence quantum yields. Notably, the luminescence efficiency of [8]CPP 36 increased from 10% in solution to 14% in PMMA, while that of [10]CPP 37 improved from 65% to 78% (Fig. 19a). The resulting LSCs demonstrated minimal reabsorption and scattering losses, with only about 10% attenuation of guided luminescence over optical distances as long as 18 cm, compared to 40% attenuation in traditional Lumogen R 305-based LSCs at just 3 cm, indicating that CPPs are highly suitable for developing transparent LSCs with potential applications in building-integrated photovoltaics.

Fig. 19 (a) CHCl₃ solutions and PMMA slabs containing [8]CPP 33 and [10]CPP 34 under UV light irradiation at λ = 365 nm. Adapted from ref. 68 with permission from the Royal Society of Chemistry, copyright 2019. (b) CPP derivatives 38 as an electron-transport material in electron-only devices. Adapted from ref. 69 with permission from the American Chemical Society, copyright 2017.

Furthermore, CPP and their derivatives also have potential for constructing electron-transport materials. In 2017, Yamago et al.⁶⁹ reported the gram-scale synthesis and conductivity investigation of [10]CPP and its tetraalkoxy derivatives 38 (Fig. 19b). The researchers achieved the synthesis of 38 in just 7 steps, starting from 1,4-benzoquinone or 2,5-dialkoxy-1,4-benzoquinone, with an overall yield of 17% for [10]CPP. This represents a significant improvement over previous methods that required 10 steps and yielded only 7%. Moreover, thin films of CPPs were measured for their carrier transport properties, revealing that these materials could rival phenyl-C₆₁-butyric acid methyl ester (PCBM), a widely used n-type active layer in bulk heterojunction photovoltaics. Specifically, the ionization potential and electron affinity of 38 were found to be around 6.0 eV and 3.3 eV, respectively, comparable to those of PCBM (IP = 6.1 eV, EA = 3.9 eV). Additionally, the electron mobility was measured to be 4.5 × 10⁻⁶ cm² V⁻¹ s⁻¹ at 0.7 MV cm⁻¹, setting a valuable benchmark for further developing [10]CPP derivatives with enhanced electronic properties for organic electronics applications.

In 2019, the Du group⁷⁰ successfully synthesized a novel π-extended polymer 39 (PS1) containing a bifunctionalized CPP monomer into a poly(para-phenylene) backbone, representing the first polymeric segment of armchair [8,8] single-walled carbon nanotubes (SWCNTs) (Fig. 20a). The charge carrier mobilities of 39 in both electron and hole transport layers were measured using the space charge limited current (SCLC) method. In the electron-only device (ITO/ZnO/PS1/Ca/Al), the electron mobility of 39 was found to be approximately 2.0 × 10⁻⁵ cm² V⁻¹ s⁻¹, while in the hole-only device (ITO/PSS/PS1/MoO₃/Ag), the hole mobility was measured to be around 1.2 × 10⁻⁵ cm² V⁻¹ s⁻¹. These results demonstrate that 39 exhibits promising charge transport properties for both electron and hole transport layers, highlighting its potential applications in optoelectronic devices. Furthermore, wide-angle X-ray diffraction (WAXD) analysis revealed that it possesses a certain degree of crystallinity, further supporting its suitability for device applications.

Fig. 20 (a) The synthetic procedure of CPP-based polymers 39–40 and (b) nanographene-embedded CPP 41b.

Building on this, in 2021, this group⁷¹ further expanded the applications of CPP-based polymers by designing and synthesizing a novel all-carbon supramolecular polymer host 40 (SPh), which forms a supramolecular polymeric heterojunction 40⊃C₆₀. Femtosecond transient absorption and fluorescence up-conversion measurements revealed that photoexcited 40 transfers electrons to C₆₀ within less than 300 femtoseconds, followed by charge recombination in the nanosecond timescale to produce the triplet excited state of C₆₀. In device testing, the electron mobility of 40⊃C₆₀ was found to be 8.06 × 10⁻⁵ cm² V⁻¹ s⁻¹, while the hole mobility was significantly enhanced to 3.64 × 10⁻⁴ cm² V⁻¹ s⁻¹. These results indicate that the incorporation of C₆₀ markedly improves the charge transport properties of 40, thereby validating the potential application of CPP-based polymers in optoelectronic devices.

In 2021, Du⁷² and colleagues reported the synthesis of a nanographene-embedded CPP 41bvia the Scholl reaction, demonstrating its promising potential as an electron-transport material (Fig. 20b). Compared to its precursor 41a, compound 41b exhibited significant redshifts in both absorption and emission spectra, attributed to enhanced π-conjugation, which increased molecular rigidity and reduced the HOMO–LUMO gap from 3.17 eV in 41a to 2.79 eV in 41b. The electron mobility of 41b, measured using the SCLC method, reached approximately 1.8 × 10⁻⁴ cm² V⁻¹ s⁻¹, surpassing that of precursor 9 (1.4 × 10⁻⁴ cm² V⁻¹ s⁻¹) and exceeding the electron mobility of other nanoring derivatives by a factor of 40. This enhancement in electron transport properties is attributed to the extended π-conjugation and the curved crown-shaped structure of 41b. The device performance was evaluated using electron-only devices with the structure ITO/ZnO/10/Ca/Al, highlighting the potential of CPP derivatives as an efficient electron-transport layer in organic electronic devices.

4.2 Donor–acceptor CPPs

The incorporation of electron donor (D) and acceptor (A) units into the framework of [n]CPPs has also emerged as a promising strategy for precisely modulating their electronic structures and expanding their potential applications in advanced technologies, including organic light-emitting diodes (OLEDs),⁷³ organic semiconductors (OSCs),⁷⁴ and biological imaging.⁷⁵ Currently, the synthesis of D–A integrated nanohoops is primarily achieved through two distinct strategies: selective incorporation of individual donor or acceptor moieties, or simultaneous integration of non-benzene donors and acceptors. These approaches have yielded diverse D–A CPP architectures, such as those incorporating pyridinium,^76,77 carbonyl,⁷⁸ fluorenone,⁷⁹ 2-(9H-fluoren-9-ylidene)malononitrile⁷⁹ and benzothiadiazole^80,81 as acceptors into the CPP skeleton; or introducing dimethoxynaphthalene as a donor paired with phthalate or phthalimide as acceptors;⁸² bithiophene as a donor with a perylene diimide derivative as an acceptor;⁸³ and thiophene as a donor with 9-fluorenone as an acceptor,⁸⁴ among others.

Through systematic variation of the chemical properties and spatial arrangement of these D–A units, researchers can precisely control the HOMO–LUMO energy gap and charge transfer mechanisms, which are crucial for optimizing material performance in device applications. In 2015, Itami⁸⁵ and co-workers reported the first D–A CPP. Specifically, the introduction of anthraquinone (AQ, [10]CPAq) and tetracyanoanthraquinodimethane (TCAQ, [10]CPTcaq) as acceptors significantly lowered the LUMO energies to −2.71 eV and −3.55 eV, respectively, compared to −1.64 eV in the [12]CPP. This led to smaller HOMO–LUMO gaps and pronounced solvatofluorochromic behavior, exemplified by the fluorescence of [10]CPAq shifting from green to orange as solvent polarity increased.

The introduction of certain electron donors has facilitated the application of CPPs in the field of organic electronic devices. In 2022, Quinton⁸⁶ and co-workers reported a series of donor carbazole-bridged CPPs with varying ring sizes, 42a–42c ([16]CPP4N, [12]CPP3N, and [8]CPP4N) (Fig. 21a). The study demonstrated that modulating the number of donor carbazole and acceptor phenylene units enables precise tuning of the HOMO/LUMO energy levels. Specifically, the removal of a carbazole-based building unit predominantly enhanced the reduction capability, while the elimination of all phenylenes significantly improved the oxidation capability. Moreover, the removal of all phenylenes effectively reduced intermolecular interactions in the solid state, and increasing the number of donor units enhanced dipole–dipole interactions between the nanohoops and polar solvent molecules, leading to greater stabilization of the excited state. These findings establish a robust framework for designing nanohoop-based OSCs to suit specific application demands.

Fig. 21 Structures of (a) carbazole-bridged CPPs 42a–42c, D–A CPPs incorporating (b) phenoxazine 44 and (c) di(4-methoxyphenyl)amino 46 moieties, and (d) CPP-based copolymers with dibenzo[a,e]pentalene as a central connector 47a–47c.

In 2023, Yamago⁷² and colleagues designed a CPP derivative, 44 (4PXZPh-[10]CPP), by incorporating four phenoxazine as electron donors, with the aim of achieving thermally activated delayed fluorescence (TADF) (Fig. 21b). Density functional theory calculations demonstrated that 44 exhibits a favorable spatial separation between the HOMO and LUMO, accompanied by a small predicted singlet–triplet energy gap (ΔE_ST) of 0.08 eV. The synthesized compound displayed green emission in toluene (λ_PL = 508 nm) with a photoluminescence quantum yield (Φ_PL) of 34% and a prompt lifetime of 11.0 ns. When doped into the ambipolar host CzSi at 15 wt%, 44 exhibited moderately bright sky-blue emission (λ_PL = 475 nm) with a Φ_PL of 29%. Solution-processed OLEDs utilizing 44 as the emitter achieved sky-blue electroluminescence (λ_EL = 465 nm) with a maximum external quantum efficiency (EQE_MAX) of 1.0%. However, the device performance was constrained by a combination of low Φ_PL and inefficient reverse intersystem crossing.

In 2024, Du⁸⁷ and colleagues reported the synthesis, photophysical properties, and charge transport characteristics of a novel intramolecular D–A system, 46 ([12]CPP-8TPAOMe), functionalized with eight di(4-methoxyphenyl)amino groups as electron donors (Fig. 21c). Compared to [12]CPP (446 nm), 46 shows a significant redshift in emission to 524 nm, along with remarkable solvatofluorochromism, transitioning from blue in toluene (484 nm) to yellow in DMF (546 nm). Furthermore, 46 demonstrates distinctive bipolar charge transport behavior, with both electron and hole mobilities reaching the order of 10⁻⁵ cm² V⁻¹ s⁻¹ when utilized as the active layer in organic field-effect transistors (OFETs).

In 2023, the Esser group⁸⁸ reported a versatile synthetic approach for conjugated nanohoop polymers, employing dibenzo[a,e]pentalene (DBP) as a central connector. Three distinct copolymers 47a-42c (P1, P2 and P3) were synthesized by incorporating electronically diverse comonomers: dithienyldiketo(pyrrolopyrrole) (DTDPP, electron-deficient), fluorene (electronically neutral), and carbazole (electron-rich) (Fig. 21d). The DTDPP-based copolymer 47a exhibited D–A characteristics, with a strong absorption band centered at 592 nm and a dual emission profile at 644 nm and 473 nm, indicating dominant linear conjugation along the polymer backbone. In contrast, the fluorene 47b and carbazole 47c copolymers showed cyclic conjugation within the nanohoops, with absorption maxima around 342–345 nm and emission maxima at 470 nm, closely resembling the reference DBP nanohoop. The antiaromatic character of DBP imparts ambipolar electrochemical properties to these polymers, endowing them with broad application potential in organic batteries and electrochemical energy storage. Electrochemical studies revealed reversible redox activity for all polymers, with 47a showing two reductions at approximately −1.58 V and three oxidations, the first at 0.40 V, while 47c exhibited a significant oxidation current at 0.66 V, likely due to carbazole participation. When tested as positive electrode materials in lithium-organic half-cells, copolymer 47c demonstrated superior performance, delivering a discharge capacity of 30 mA h g⁻¹ in the first cycle and retaining 22.8 mA h g⁻¹ after 100 cycles at 100 mA g⁻¹, with a capacity retention of 99%. In comparison, the nanohoop-free reference polymer achieved only 21.8 mA h g⁻¹ initially, highlighting the enhanced charge storage capabilities of nanohoop polymers.

4.3 Supramolecular heterojunction based on CPPs

The unique concave–convex complementarity between the curved π-surface of CPPs and the spherical geometry of fullerenes facilitates the formation of stable host–guest complexes, primarily driven by π–π stacking and van der Waals interactions. These interactions not only stabilize the supramolecular assemblies but also induce charge transfer between CPPs and fullerenes, a phenomenon that has significant potential for the development of advanced optoelectronic devices.¹² In 2015, Itami⁸⁹et al. synthesized the first CPP-based ionic donor–acceptor supramolecule Li⁺@C₆₀⊂[10]CPP·X⁻, highlighting the strong charge-transfer interaction between [10]CPP and Li⁺@C₆₀. This interaction results in significant delocalization of the positive charge across the entire complex, with the positive charge of the lithium ion being distributed not only on the C₆₀ cage but also on the outer CPP ring, as confirmed by electrochemical measurements and spectroscopic analyses. Further insights into the charge-transfer dynamics were provided by Casado⁹⁰ and colleagues, who revealed that mechanical stress can facilitate electron transfer between [n]CPPs and C₆₀. Under high pressure, [10]CPP and C₆₀ form a charge-transfer complex characterized by the generation of the C₆₀ anion radical (C₆₀˙⁻) and the [10]CPP cation radical ([10]CPP˙⁺). Moreover, a study by the Delius⁹¹ group in 2018 highlighted the potential of [10]CPP as a supramolecular mediator in facilitating efficient photoinduced electron transfer in modular porphyrin–[10]CPP–fullerene complexes. Synthetically, the construction of a porphyrin–[10]CPP conjugate via iodo-[10]CPP enabled the demonstration of strong binding affinities with fullerenes such as C₆₀, C₇₀, and (C₆₀)₂, as well as their derivatives, with association constants (K_A) reaching 10⁵–10⁶ M⁻¹. The [10]CPP moiety served as a rigid, non-covalent bridge that enabled efficient photoinduced charge separation between the porphyrin donor and fullerene unit acceptors. Time-resolved transient absorption spectroscopy revealed the formation of long-lived charge-separated states, with lifetimes reaching up to 0.5 μs. These findings underscore the versatility of CPPs in modulating electron transfer processes and suggest its potential application in organic electronic devices.

In 2019, the Du⁹² group reported the synthesis and characterization of two novel curved nanographene-based molecular crowns, 48 (TCR) and 49 (HCR), which exhibit strong supramolecular interactions with C₆₀ (Fig. 22a). The binding constants for these complexes were determined to be 3.34 × 10⁶ M⁻¹ for 48⊃C₆₀ and 2.33 × 10⁷ M⁻¹ for 49⊃C₆₀. Transient absorption spectroscopy revealed efficient photoinduced electron transfer from 48 and 49 to C₆₀, with charge-separated states exhibiting lifetimes in the nanosecond range. These complexes demonstrated significant photoconductive properties, generating stable photocurrents under visible light irradiation. Photocurrent measurements on FTO electrodes coated with C₆₀@49 films exhibited a 1000-fold increase in current under irradiation, highlighting the potential of these supramolecular heterojunctions for light-to-electrical energy conversion materials.

Fig. 22 Structures of (a) nanographene-based molecular crown complexes with C₆₀48–49, (b) [9]CPP complexes with PCBM 50, (c) heptagon-containing CPP 51, and (d) the double-walled carbon nanoring [6]CPP⊂[12]CPP 52 and the FTO/film/Ag device for photocurrent production. Adapted from ref. 97 with permission from the Royal Society of Chemistry, copyright 2021.

In 2020, the Du⁹³ group also reported a novel strategy to enhance the performance of fullerene organic solar cells (OSCs) by incorporating [9]CPP as a third component in the active layer. The [9]CPP forms a stable supramolecular complex 50 with fullerene acceptors due to concave–convex π–π interactions, which improves the π–π stacking and enhances charge transfer and transport (Fig. 22b). This approach led to a significant increase in the short-circuit current density (J_SC) from 17.91 mA cm⁻² to 19.27 mA cm⁻² and the fill factor (FF) to 68%, resulting in a high power conversion efficiency (PCE) of 11.03% in PTB7-Th:[9]CPP:PC71BM ternary OSCs, which is nearly 20% higher than that of binary devices. The addition of [9]CPP also improved the absorption in the short-wave region (300–400 nm) and optimized the film morphology, forming a nano-inter-transmission network that further enhanced the device performance. This study demonstrates that [9]CPP can effectively improve the efficiency of fullerene-based OSCs by optimizing the molecular interactions and film structure.

In 2022, Zhang⁹⁴et al. investigated the photoelectrochemical properties of three metallofullerene-[12]CPP supramolecular complexes, namely Sc₃N@C₇₈⊂[12]CPP, Sc₃N@C₈₀⊂[12]CPP, and Sc₂C₂@C₈₂⊂[12]CPP, and explored their potential applications in photodetectors and photoelectronic materials. The study revealed that these supramolecular complexes demonstrated significantly enhanced photocurrent responses compared to their pristine metallofullerene counterparts. Notably, the photocurrent response of Sc₂C₂@C₈₂⊂[12]CPP reached 0.32 μA under a 1 V bias voltage, surpassing that of pristine Sc₂C₂@C₈₂ (0.2 μA). This enhancement is attributed to the efficient photocurrent generation and improved charge carrier transport facilitated by the host–guest interactions. Furthermore, the formation of supramolecular complexes also optimizes the assembly morphology of metallofullerenes on fluorine-doped tin oxide (FTO) glass, leading to increased carrier mobility and electrical conductivity. I–V measurements indicated that Sc₂C₂@C₈₂⊂[12]CPP exhibited superior conductivity compared to both pristine Sc₂C₂@C₈₂ and Sc₂C₂@C₈₂-biphenyl derivative mixtures. These findings underscore the potential of metallofullerene-CPP supramolecular complexes in advancing photoelectronic applications.

In 2023, a study by Campaña⁹⁵ and colleagues reported the efficient electron transfer between a heptagon-containing CPP 51 (hept-HBC[10]CPP) and fullerenes, driven by strong host–guest interactions (Fig. 22c). The binding constants for 51⊃C₆₀ and 51⊃C₇₀ were determined as 1.1 × 10⁷ M⁻¹ for C₆₀ and 7.8 × 10⁶ M⁻¹ for C₇₀, respectively. Femtosecond transient absorption spectroscopy revealed ultrafast charge separation upon photoexcitation. While 51⊃C₆₀ exhibited rapid charge recombination (τ₁ = 110 fs, τ₂ = 800 fs), the 51⊃C₇₀ complex displayed a long-lived charge-separated state, persisting beyond the picosecond timescale. This difference indicates that the choice of fullerene guest can modulate the electron-transfer dynamics, enabling the system to adapt to applications requiring controlled charge separation, with implications for advanced material design in photovoltaics and photocatalysis.

In 2025, our group⁹⁶ synthesized a series of nanohoops, NDI-[n]CPP (n = 7, 8, 9), by incorporating naphthalene diimide (NDI) as an electron acceptor into CPP frameworks (Fig. 23). These nanohoops exhibit size-dependent photophysical properties, with fluorescence emission shifting from 599 nm for 53a (NDI-[7]CPP) to 578 nm for 53c (NDI-[9]CPP). Their HOMO–LUMO gaps range from 2.38 eV for 53c to 2.42 eV for 53a, significantly narrower than those of the parent [n]CPPs. In photoconductive applications, NDI-[n]CPPs generate significant photocurrents under visible light, with 53a showing the highest photocurrent density of 10.17 μA cm⁻². Notably, the photocurrent of 53a is enhanced by 3.46 times upon complexation with C₆₀. These nanohoops also demonstrate moderate electron and hole mobilities, with 53a showing balanced hole mobility (μ_h)/electron mobility (μ_e) ratios suitable for efficient charge collection.

Fig. 23 Structures of (a) NDI-[n]CPP 53a–53c and (b) their complexes with C₆₀, and (c) device for photocurrent production. Adapted from ref. 96 with permission from American Chemical Society, copyright 2025.

Apart from fullerenes and their derivatives, CPP itself can also serve as a guest molecule to be included in larger nanohoops. In 2021, Zhao⁹⁷et al. reported the construction of a double-walled carbon nanoring [6]CPP⊂[12]CPP 52, which can be considered as the fragment of a double-walled carbon nanotube (Fig. 22d). The host–guest interaction between [6]CPP and [12]CPP was thoroughly investigated through UV-Vis absorption, fluorescence, and electrochemical studies. The HOMO–LUMO gap of [6]CPP⊂[12]CPP (2.9 eV) was narrowed compared to the individual CPPs. Electron paramagnetic resonance (EPR) spectroscopy revealed that the cation radical of [6]CPP⊂[12]CPP had higher stability due to the host–guest interaction, with the unpaired spin fully delocalized on the inner [6]CPP and protected by the outer [12]CPP. Moreover, the complex showed significantly enhanced photoconductivity and photocurrent under light irradiation, with the current increasing by about twice upon uninterrupted irradiation. The impedance of [6]CPP⊂[12]CPP decreased from 4.65 × 10⁶ to 4.24 × 10⁵ Ω cm² after irradiation, indicating improved conductivity. The self-assembly of [6]CPP⊂[12]CPP in DMF forms square rod structures, highlighting its potential for micro-device applications.

5. Summary and outlook

CPPs, characterized by intrinsic curvature, tunable electronic configurations, and size-dependent π-conjugation, have evolved into a multifunctional molecular platform. Over the past years, our group has focused on innovative methodologies to expand the structural and functional diversity of CPP-based systems. Through strategic incorporation of chiral or achiral motifs into CPP frameworks, we engineered high-brightness CPL emitters, advancing chiral photonic technologies. Within the field of host–guest chemistry, stimuli-responsive CPP derivatives capable of dynamically modulating guest-binding affinities have been engineered. Moreover, the formation of binary and ternary complexes through precisely tailored CPP hosts has been demonstrated, facilitating Förster resonance energy transfer and selective molecular recognition. In the topological chemistry, systematic exploration of regioselective synthesis strategies has provided insights into the control of topological chirality. Concurrently, the development of donor–acceptor CPPs has demonstrated their potential in white-light emission tuning and integration into optoelectronic devices. These advancements collectively demonstrate the unparalleled potential of CPPs in constructing topologically sophisticated systems with functionalities for next-generation materials science. Despite these advancements, several challenges and opportunities remain to propel CPP chemistry toward practical applications and unexplored frontiers. As synthetic methodologies mature and structure–property relationships deepen, CPP-based systems are poised to revolutionize fields ranging from nanotechnology to sustainable energy.

Data availability

No primary research results, software or code have been included and no new data were generated or analysed as part of this review.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was financially supported by the National Natural Science Foundation of China (22271019 and 22471022).
