An unexplored role of the CrOx shell in an elaborated Rh/CrOx core–shell cocatalyst for photocatalytic water splitting: a selective electron transport pathway from semiconductors to core metals, boosting charge separation and H2 evolution

Abstract

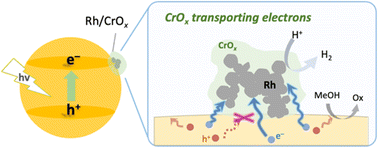

A core–shell structured Rh/CrO_x cocatalyst has endowed various semiconductors with high efficiency in water-splitting photocatalysis, where thin CrO_x layers on Rh have been assumed to be physical blockers of O₂ to the metal surface to suppress unfavorable reverse reactions (e.g., catalytic H₂O formation from H₂ and O₂). Herein, we propose another unexplored but favorable function of CrO_x layers: a selective electron transport pathway from photocatalysts to the Rh core boosting charge separation and H₂ production. The subsequent loading of CrO_x layers onto Rh increased the rate of visible light H₂ evolution of a Bi₄NbO₈Cl photocatalyst, even in a half reaction with a hole scavenger where O₂ does not evolve. Transient absorption spectroscopy revealed that the CrO_x layer increases the electron path from Bi₄NbO₈Cl to Rh. Importantly, the highest H₂-evolution activity was obtained by simultaneous photodeposition using Cr^III and Rh^III precursors, which had not yet been examined. In this sample, Rh nanoparticles were enclosed by an amorphous CrO_x shell, where Rh particles were less directly attached to the semiconductor. Therein, CrO_x inserted between Bi₄NbO₈Cl and Rh effectively suppresses undesirable hole transfer from Bi₄NbO₈Cl to Rh, while such hole transfer partially occurs when they are in direct contact. These results indicated that CrO_x functions as a selective electron transport pathway and improves the H₂ evolution activity. Although the development strategy of cocatalysts has so far focused on surface redox reactions, this study offers a new approach for the design of highly efficient cocatalysts based on the carrier transfer process, especially at semiconductor–cocatalyst interfaces.
