Coordinated assembly of alkali and alkaline earth metals with the perfluorinated [AlF₆] group to design deep-ultraviolet zero-order waveplate materials

Abstract

The capability of zero-order waveplates to manipulate the polarization of fundamental-frequency light has garnered significant attention in light of the rapid advancements in laser technology. In particular, zero-order waveplate materials in the deep-ultraviolet range (DUV; λ < 200 nm) are in urgent and short supply. In this study, three new aluminum fluorides, AlF₃ (P6/mmm), BaAlF₅ (I4/m), and Li₂KAl₂F₉ (C2/m), have been successfully designed and synthesized through a strategy that combines the perfluorinated [AlF₆] group with alkali and alkaline-earth metals. The results of experimental and theoretical calculations indicate that three new aluminum fluorides have a short cutoff edge (λ < 200 nm) and small birefringence (0.0006–0.0056@1064 nm). In addition, the AlF₃ (P6/mmm) has the shortest wavelength of 125 nm based on theoretical calculations, which is comparable to the shortest wavelength of the commercially available MgF₂. However, its birefringence of 0.0006@1064 nm is about 20 times lower than that of the MgF₂ (0.012@546 nm), making it highly advantageous for fabricating deep-ultraviolet zero-order waveplate materials. Further microscopic analysis reveals that the [AlF₆] group exhibits a substantial band gap of 9.17 eV and small polarizability anisotropy, indicating that the aluminum fluorides are potential candidates for designing suitable compounds for DUV zero-order waveplate materials.

---

Introduction

Waveplate materials, serving as crucial devices for phase modulation and polarization state transformation of light waves, find extensive applications in the fields of polarization measurement, laser technology, and optical imaging.^1–4 Zero-order waveplates are widely acknowledged to possess several advantages over multistage ones, including lower sensitivity, higher temperature stability, and effective reception angle.^5–7 However, the processing of zero-order wave plate materials has long been hindered by the inverse relationship between thickness and birefringence.^6,7 Meanwhile, with the continuous development of laser technology, its application wavelength range has expanded from the visible region to the ultraviolet (UV) and deep-ultraviolet (DUV) bands.^8–14 The current commercial crystals for DUV and UV applications are MgF₂ and quartz, which pose challenges in fabrication and processing due to their big birefringence as zero-order waveplate materials.^15–18 Balancing a smaller birefringence and a wide wavelength range, particularly in the DUV band, presents an urgent challenge that needs to be addressed.

The materials for DUV zero-order waveplates should possess a small birefringence (Δn < 0.01) and DUV (λ < 200 nm) transparency range.^19–21 According to the design requirements for zero-order waveplate materials, the building blocks must exhibit small polarizability anisotropy and large HOMO–LUMO gaps, such as non-π-conjugated tetrahedral groups.^22–26 Furthermore, rigid octahedral motifs exhibit identical properties.^27–30 For instance, the hybridization of Al and O atoms occurs via sp³, sp³d, and sp³d² orbitals to form [AlO_n] (n = 4, 5, 6) polyhedral groups, which also belong to non-π-conjugated groups possessing low optical anisotropy and do not impact the bandgap due to the absence of d–d and f–f electron transitions in Al³⁺ ions.^31–36 The introduction of fluorine atoms into the [AlO_mF_n] (m + n = 4, 5, 6) polyhedra enables modulation, where substituting highly electronegative fluorine for oxygen atoms contributes to a blue-shift in the UV absorption edge by inducing ionization of the Al–F bonds.^37–47 Particularly when the fluorine atoms entirely substitute for the oxygen atoms, such as the [AlF₆] group, the blue shift of the UV absorption edge becomes more pronounced. Therefore, the incorporation of fluorine atoms into conventional non-π-conjugated oxypolyhedral structures not only preserves their low optical anisotropy but also facilitates the enhancement of their microscopic HOMO–LUMO bandgap.^48–50

Based on the above ideas, a synergistic combinatorial approach is employed to design DUV zero-order waveplate materials by incorporating perfluorinated [AlF₆] octahedra, which exhibit a large HOMO–LUMO energy gap and low polarizability anisotropy, with alkali and alkaline-earth metals lacking d–d or f–f transitions. Through systematic experiments, three aluminum fluorides, AlF₃, BaAlF₅, and Li₂KAl₂F₉, were successfully synthesized using the high temperature melt method. Theoretical calculations demonstrate that all three materials exhibit large energy band gaps (8.85–9.89 eV) and small birefringence (0.0006–0.0056@1064 nm). This indicates that aluminum fluorides are potential candidates for DUV zero-order waveplate materials.

Experimental section

Experimental reagents

Lithium fluoride (LiF, 99%), potassium fluoride (KF, 99%), aluminum fluoride (AlF₃, 99%), ammonium hexafluoroaluminate (H₁₂AlF₆N, 98%), potassium fluoroaluminate (KAlF₄, CP), lead fluoride (PbF₂, 99.9%), barium carbonate (BaCO₃, AR), tetrafluoroboric acid (HBF₄, AR), and boron oxide (B₂O₃, 99.9%) were obtained from Aladdin Chemical Industry Co., Ltd. The reagents were used as received.

Syntheses

The crystals of AlF₃ (P6/mmm), BaAlF₅ (I4/m), and Li₂KAl₂F₉ (C2/m) can be obtained by the high temperature solution method in a vacuum system. The AlF₃ (P6/mmm) crystals were synthesized from a mixture of B₂O₃ (0.107 g) and KAlF₄ (0.093 g) (molar ratio 7 : 3). The BaAlF₅ (I4/m) crystals were synthesized from a mixture of B₂O₃ (0.078 g), PbF₂ (0.069 g), Ba(BF₄)₂ (0.029 g) and AlF₃ (0.024 g) (molar ratio 12 : 1 : 3 : 3). The Li₂KAl₂F₉ (C2/m) crystals were synthesized from a mixture of B₂O₃ (0.076 g), LiF (0.010 g), KF (0.043 g) and H₁₂AlF₆N (0.071 g) (molar ratio 3 : 1 : 2 : 1). B₂O₃ and PbF₂ were utilized in the crystal synthesis process to serve as fluxes. The starting material Ba(BF₄)₂ was synthesized by reacting BaCO₃ with an excess amount of HBF₄. The stoichiometric starting reagents were put into a quartz tube (Φ10 mm × 120 mm) after grinding uniformly and then a vacuum was created inside the tube (1 × 10⁻³ Pa). The encapsulated quartz tube was placed into a programmable temperature furnace. The temperature was maintained at 700 °C for 24 hours, and then reduced to 600 °C at a rate of 1.0 °C h⁻¹, followed by a further reduction to 500 °C at a rate of 2.0 °C h⁻¹, and finally it was allowed to cool to room temperature. The crystals of the three aluminum fluorides inside the quartz tubes were taken out for structural determination.

Li₂KAl₂F₉ polycrystalline samples were obtained by a solid state reaction. LiF (0.280 g), KF (0.314 g), and AlF₃ (0.906 g) (molar ratio 2 : 1 : 2) were mixed, ground, and put into a quartz tube. The mixture was heated to 500 °C and this temperature was maintained for 24 hours, followed by cooling it down to room temperature. This process was repeated three times. The purity of the sample was confirmed by powder X-ray diffraction (XRD) (Fig. 1). Although a series of attempts under different experimental conditions were carried out, the pure polycrystalline samples of AlF₃ (P6/mmm) and BaAlF₅ (I4/m) were not obtained.

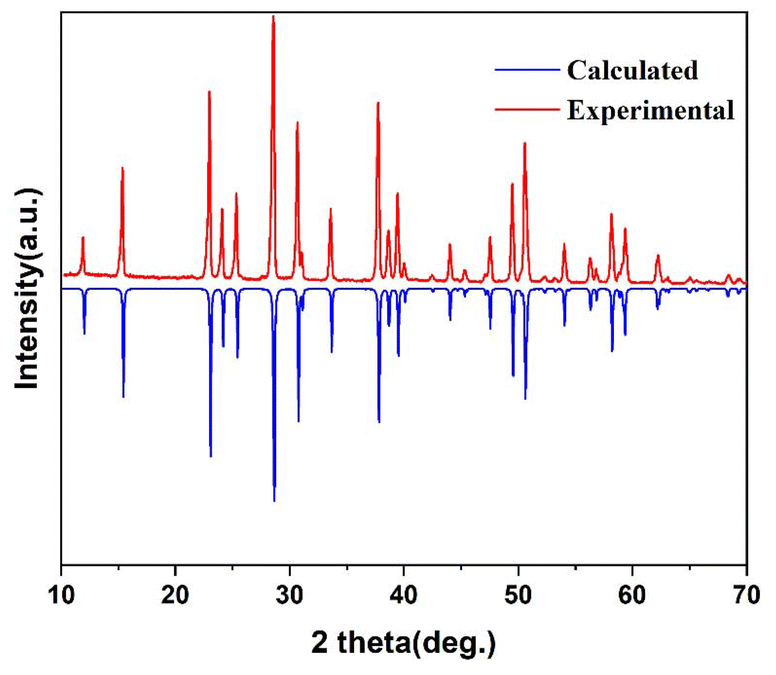

Fig. 1 Experimental and calculated XRD patterns of Li₂KAl₂F₉.

Single-crystal XRD

High-quality crystals were selected and used for single-crystal XRD measurements. Single crystal XRD data were recorded on a Bruker D8 Venture diffractometer using Mo Kα radiation (λ = 0.71073 Å) at room temperature. The intensity, reduction, and cell refinement investigations were carried out on a Bruker SAINT.⁵¹ Crystal structures were solved by the direct methods and refined by full matrix least-squares on F² with OLEX2 software.⁵² These structures were verified using the ADDSYM algorithm from PLATON.⁵³ IUCDcheckCIF (https://checkcif.iucr.org) was used to check the consistency and integrity of the structure file in CIF format. The crystal data and refined parameters, atomic coordinates, bond lengths, and angles are provided in Tables S1 and S7.†

Powder X-ray diffraction (XRD)

Powder XRD data were collected with a Bruker D2 PHASER diffractometer (Cu Kα radiation with λ = 1.5418 Å, 2θ = 10 to 70°, scan step width = 0.02°, and counting time = 1 s/step).

Thermal analysis

Thermal gravimetric (TG) analysis and differential scanning calorimetry (DSC) were measured on a simultaneous NETZSCH-STA 449 F3 thermal analyzer instrument. Li₂KAl₂F₉ polycrystalline sample was heated from 40 to 1000 °C with a heating rate of 5 °C min⁻¹ in a Pt crucible under an atmosphere of flowing N₂.

Infrared (IR) spectroscopy

The IR spectroscopy was conducted using a Shimadzu IR Affinity1 spectrometer at room temperature, covering the wavelength range of 400 to 4000 cm⁻¹. The sample and dried KBr were thoroughly mixed before the test.

UV-vis-NIR diffuse reflectance spectroscopy

The UV-vis-NIR diffuse reflectance spectrum was measured at room temperature with a Shimadzu SolidSpec-3700 DUV spectrophotometer in the 200–2600 nm wavelength range.

Calculation details

The electronic structure and optical properties were calculated by using the DFT method implemented in the CASTEP package.^54,55 The Perdew–Burke–Ernzerhof (PBE) functional within GGA with the scheme was adopted to describe the optical performance. Because of the discontinuities in the exchange correlation energy, the GGA often understates the band gap under the norm-conserving pseudopotential (NCP).⁵⁶ Therefore, the Heyd–Scuseria–Ernzerhof (HSE06) hybrid functional was chosen to provide a more accurate bandgap value.⁵⁷ Based on the scissor-corrected electron structure, the linear optical properties were obtained using the Kramers–Kronig transform. The ion–electron interactions were modeled using the norm-conserving pseudopotentials for all elements. The cutoff energy was set to 900 eV for the self-consistent field (SCF) calculations, and the convergence criterion for the total energy was 1 × 10⁻⁷ eV per atom. The Monkhorst–Pack k-point meshes spanning less than 0.04 Å⁻¹ in the Brillouin zone were used to ensure sufficient accuracy of the calculated results. From the dielectric function, the linear optical properties are obtained: ε (ω) = ε₁ (ω) + iε₂ (ω), where ε₁ (ω) and ε₂ (ω) are the real and imaginary parts of the dielectric function, respectively. The imaginary part ε₂ of the dielectric function can be calculated from the electronic structure, and the real part ε₁ can be calculated using the Kramers–Kronig transformation, which allows the calculation of the refractive index and birefringence (Δn).

Results and discussion

Crystal structure

AlF₃ crystallizes in the hexagonal central space group P6/mmm. The asymmetric unit comprises one Al atom and two F atoms. The Al atom is coordinated with six fluorine atoms forming an [AlF₆]³⁻ octahedron, with the Al–F bond lengths ranging from 1.7712(5) to 1.7798(15) Å. The [AlF₆]³⁻ octahedron is interconnected through sharing edges resulting in the [Al₅F₂₄]⁹⁻ polymer (Fig. 2a). Then, the 12-membered ring pores are formed by [Al₅F₂₄]⁹⁻ through the interconnection of fluorine atoms (Fig. 2b), which gives rise to a three-dimensional (3D) architecture along the c-axis direction.

Fig. 2 Crystal structures of AlF₃, BaAlF₅, and Li₂KAl₂F₉. (a) [Al₅F₂₄]⁹⁻ polymer. (b) 12-membered ring pore structure along the c-axis for AlF₃. (c) ¹_∞[Al₆F₂₉]¹¹⁻ and ¹_∞[AlF₅]²⁻ chains. (d) Ba atom is embedded within the pore structure formed by the double chain along the c-axis for BaAlF₅. (e) ¹_∞[Al₆F₂₈]¹⁰⁻ chain. (f) Li and K atoms are embedded in the gaps of the chain along the [101] direction for Li₂KAl₂F₉.

BaAlF₅ crystallizes in the tetragonal center space group I4/m. In the structure, the asymmetric unit comprises two Ba atoms, three Al atoms, and nine F atoms. The [AlF₆]³⁻ octahedron forms two distinct 1D infinite chain structures of ¹_∞[Al₆F₂₉]¹¹⁻ and ¹_∞[AlF₅]²⁻ through the sharing of fluorine atoms, forming a unique lattice structure along the c-axis direction (Fig. 2c and d). The Ba atom exhibits two coordination modes of [BaF₈]⁶⁻ and [BaF₉]⁷⁻ filling in the pore structure to achieve charge balance (Fig. S1†). It is noteworthy that in BaAlF₅, the Ba–O–F framework interpenetrates with the Al–O–F framework, resulting in a fully integrated 3D structure.

Li₂KAl₂F₉ exhibits a monoclinic centrosymmetric crystal structure in the space group C2/m. The asymmetric unit comprises one Al atom, two Li atoms, one K atom, and six F atoms. The [AlF₆]³⁻ octahedron forms a 1D infinite chain-like structure of ¹_∞[Al₆F₂₈]¹⁰⁻, which is neatly parallelized along the [101] direction (Fig. 2e and f). The K atom is coordinated with the F atom to generate the [KF₈]⁷⁻ polyhedron, which interconnects by sharing edges to form a 1D infinite chain of ¹_∞[KF₄]³⁻ (Fig. S2†). The Li atom exhibits two coordination modes ([LiF₄]³⁻ and [LiF₅]⁴⁻) and forms the 1D infinite chains of ¹_∞[Li₂F₆]⁴⁻ by sharing F atoms (Fig. S2†). The overall structure consists of three 1D infinite chains, ¹_∞[Al₆F₂₈]¹⁰⁻, ¹_∞[KF₄]³⁻, and ¹_∞[Li₂F₆]⁴⁻, which finally connect through shared F atoms to form a 3D framework structure.

Bond valence calculations (BVSs) yielded bond valences for Al³⁺ and F⁻ ions of 3.177 and 1.060–1.029 in AlF₃; 2.917–3.175 and 0.949–1.134 in BaAlF₅; 3.047 and 0.967–1.031 in Li₂KAl₂F₉, respectively, and the detailed data calculations are shown in Tables S2, S4 and S6†, which are in agreement with normal valence consistency.

Thermal properties and optical properties

The TG-DSC curve of Li₂KAl₂F₉ reveals prominent exothermic peaks at 587 and 620 °C (Fig. S3a†). The minor mass loss preceding the absorption peak at 587 °C is attributed to the slight volatilization of fluorine. Following the absorption peak at 620 °C, the product is gradually decomposed. To further investigate the thermal behavior of Li₂KAl₂F₉, its polycrystalline samples were subjected to calcination experiments (Fig. S3b†). Experiments demonstrated that the samples exhibited distinct characteristics before and after calcination experiments, indicating that the compounds underwent incongruent melting.

UV-vis-NIR diffuse reflectance tests were successfully performed on the synthesized Li₂KAl₂F₉, covering the wavelength range of 200–2600 nm (Fig. S4a†). The spectral analysis reveals a cut-off edge below 200 nm. The absence of d–d and f–f electron transitions for alkali/alkaline earth metals and Al³⁺ ions, along with the introduction of electronegative F⁺ ions, results in a reduced UV cutoff edge.

The IR spectra of Li₂KAl₂F₉ powder samples are presented in Fig. S4b†. Based on both experimental and theoretical calculations, it is demonstrated that the prominent absorption peaks observed at 660, 596, and 478 cm⁻¹ may originate from the stretch–bend vibration of the [AlF₆] unit (Fig. S4c and d†).

Theoretical calculations

The relationship between the electronic structure and optical properties is further elucidated through first-principles calculations. The energy band structure and partial density of states (PDOS) were computed for the three compounds. The calculations indicate that all three compounds possess substantial band gaps, and the GGA band gaps of AlF₃ (8.853 eV), BaAlF₅ (7.187 eV), and Li₂KAl₂F₉ (7.729 eV) are shown in Fig. 3a and c. By analyzing the PDOS (Fig. 3d and f), it is evident that the dominant contribution to the valence band (VB) in all three compounds originates from F 2p orbitals, while the conduction band (CB) primarily arises from Al 3s3p, Ba 5d, K 4s and Li 2s orbitals. To accurately analyze the band gap values of the three compounds, high-precision DFT calculations of the band gap using the HSE06 hybrid functional were performed and the results are as follows: AlF₃ – 9.897 eV (corresponding to 125 nm), BaAlF₅ – 8.853 eV (corresponding to 140 nm), and Li₂KAl₂F₉ – 9.598 eV (corresponding to 129 nm). It is proved that all three new compounds have large band gaps and DUV cutoff edges. The scissors operator is introduced, and the birefringence values of AlF₃, BaAlF₅, and Li₂KAlF₉ are calculated to be 0.0006, 0.0044, and 0.0056 at 1064 nm (Fig. 3g and i). The potential of the three newly discovered aluminum fluorides to serve as materials for zero-order waveplates is demonstrated.

Fig. 3 Calculated optical properties of AlF₃, BaAlF₅, and Li₂KAl₂F₉. Electronic structures of (a) AlF₃, (b) BaAlF₅, and (c) Li₂KAl₂F₉. Density of states of (d) AlF₃, (e) BaAlF₅, and (f) Li₂KAl₂F₉. Calculated birefringence of (g) AlF₃, (h) BaAlF₅, and (i) Li₂KAl₂F₉.

The hybridization of Al atoms with O/F atoms via sp³ results in the formation of [AlO_mF_n] (m + n = 6) octahedral structures, exhibiting ten distinct coordination modes (Fig. S5†). The Gaussian 09 program package was utilized to conduct DFT calculations at the B3LYP/6-31G level, aiming to investigate the microscopic changes in F atoms following the substitution of O atoms to reflect the changes before and after substitution (Table S8†). It is found that the band gap is improved favorably when the F atom replaces the O atom, while complete substitution results in a threefold enhancement of the [AlF₆] unit HOMO–LUMO band gap compared to that of the [AlO₆] group (Fig. 4). The band gap of the [AlF₆] unit, demonstrated by both experimental and theoretical models, exceeds 9.0 eV. By analyzing the electron localization function maps (Fig. S6a and c†), it is evident that the distribution of electron density exhibits an elliptical shape with small polarizability anisotropy. Therefore, the perfluorinated [AlF₆] unit exhibits a high microscopic band gap and small anisotropic polarizability, making it an excellent building group for DUV zero-order waveplate materials.

Fig. 4 The HOMO–LUMO gaps of the experimental structure and theoretical model of [AlO_mF_n] (m + n = 6) units.

Conclusions

In summary, using a synergistic combinatorial strategy of the perfluorinated [AlF₆] unit (with small polarizability anisotropy and a large HOMO–LUMO band gap) and alkali/alkaline-earth metals, the three new compounds AlF₃, BaAlF₅, and Li₂KAl₂F₉ were successfully synthesized. These compounds exhibit a large bandgap range of 8.85 to 9.89 eV and small birefringence ranging from 0.0006 to 0.0056 at 1064 nm. These characteristics make them promising candidates for DUV zero-order waveplates. The analysis of microscopic variations in the HOMO–LUMO band gap resulting from F atom substitution demonstrates that the [AlF₆] group serves as a suitable building block for DUV applications, thereby facilitating the search for suitable DUV zero-order waveplate materials, which presents novel approaches for sourcing materials to design zero-order waveplates.

Author contributions

Yun Yang and Xifa Long supervised the research and revision of the manuscript. Shaohua Liu designed and performed the experiments, wrote the first draft and revised it. Ke Li did the theoretical calculations. Lili Zhang and Xiaotian Ma assisted with the experimental work. All authors participated in the discussion.

Data availability

The data supporting this article have been included as part of the ESI.†

Conflicts of interest

The authors declare no conflict of interest.

Acknowledgements

This work was supported by the Science and Technology Plan Project of Yili Kazakh Autonomous Prefecture (YZ2022B021), National Natural Science Foundation of China (22375215), Strategic Priority Research Program of the Chinese Academy of Sciences (XDB0880000), CAS Youth Interdisciplinary Team (JCTD-2021-18), West Light Foundation of CAS (2021-XBQNXZ-004), Outstanding Youth Science Fund Project of Natural Science Foundation of Xinjiang (2022D01E90), Xinjiang Tianshan Talent Program (2023TSYCJU0003), and Xinjiang Tian chi Talent Program, Key Training Object of Talent Project of Urumqi.

References

1. Y. Y. Yang, Y. Guo, Y. G. Chen, X. W. Hu, X. Zhang and X. M. Zhang, Inorg. Chem. Front., 2022, 9, 5469–5477.
2. Z. Y. Zhang, D. Xu, A. Tudi, Z. H. Yang, S. J. Han and S. L. Pan, Sci. China Mater., 2024, 67, 914–920.
3. B. Boulbry, B. Bousquet, B. Le Jeune, Y. Guern and J. Lotrian, Opt. Express, 2001, 9, 225–235.
4. J. L. Vilas, L. M. Sanchez-Brea and E. Bernabeu, Appl. Opt., 2013, 52, 1892–1896.
5. M. Emam-Ismail, Opt. Commun., 2010, 283, 4536–4540.
6. M. Cheng, W. Q. Jin, Z. H. Yang and S. L. Pan, Inorg. Chem., 2020, 59, 13014–13018.
7. H. K. Ren, Z. X. Wu, Z. P. Wang, F. Wang, F. Q. Li, X. Sun and X. G. Xu, In: Proceedings of Second Symposium on Novel Technology of X-ray Imaging., Hefei: SPIE, 2018.
8. M. Mutailipu, M. Zhang, H. P. Wu, Z. H. Yang, Y. H. Shen, J. L. Sun and S. L. Pan, Nat. Commun., 2018, 9, 3089.
9. G. Q. Shi, Y. Wang, F. F. Zhan, B. B. Zhang, Z. H. Yang, X. L. Hou, S. L. Pan and K. R. Poeppelmeier, J. Am. Chem. Soc., 2017, 139, 10645–10648.
10. X. F. Wang, Y. Wang, B. B. Zhang, F. F. Zhang, Z. H. Yang and S. L. Pan, Angew. Chem., Int. Ed., 2017, 56, 14119–14123.
11. Y. Wang, B. B. Zhang, Z. H. Yang and S. L. Pan, Angew. Chem., Int. Ed., 2018, 57, 2150–2154.
12. Z. T. Yan, J. B. Fan, S. L. Pan and M. Zhang, Chem. Soc. Rev., 2024, 53, 6568–6599.
13. B. B. Zhang, G. Q. Shi, Z. H. Yang, F. F. Zhang and S. L. Pan, Angew. Chem., Int. Ed., 2017, 56, 3916–3919.
14. Q. Z. Zhang, R. An, Z. H. Yang, X. F. Long, S. L. Pan and Y. Yang, Sci. China Chem., 2024, 67, 2155–2170.
15. M. J. Dodge, Appl. Opt., 1984, 23, 1980–1985.
16. Z. C. Wu, H. M. Li, Z. Y. Zhang, X. Su, H. S. Shi and Y. N. Huang, Inorg. Chem., 2024, 63, 1674–1681.
17. G. Ghosh, Opt. Commun., 1999, 163, 95–102.
18. G. H. Li, J. H. Li and Y. Li, Appl. Opt., 1990, 29, 1870–1871.
19. L. Grineviciute, M. Andrulevicius, A. Melninkaitis, R. Buzelis, A. Selskis, A. Lazauskas and T. Tolenis, Phys. Status Solidi A, 2017, 214, 1700764.
20. A. V. Samoylov, V. S. Samoylov, A. P. Vidmachenko and A. V. Perekhod, J. Quant. Spectrosc. Radiat. Transfer, 2004, 88, 319–325.
21. S. Y. Zhang, X. Wu, Y. T. Song, D. Q. Ni, B. Q. Hu and T. Zhou, J. Cryst. Growth, 2003, 252, 246–250.
22. J. K. Harada, N. Charles, K. R. Poeppelmeier and J. M. Rondinelli, Adv. Mater., 2019, 31, 1805295.
23. F. Liu, P. F. Gong, Z. S. Lin and L. Kang, Coord. Chem. Rev., 2025, 526, 216349.
24. H. Y. Sha, Y. R. Shang, Z. J. Wang, R. B. Su, C. He, X. M. Yang and X. F. Long, Adv. Opt. Mater., 2023, 11, 2300987.
25. A. Tudi, Z. J. Li, C. W. Xie, T. Baiheti, E. Tikhonov, F. F. Zhang, S. L. Pan and Z. H. Yang, Adv. Funct. Mater., 2024, 34, 2409716.
26. Y. C. Yan, Y. N. Chen, B. Jiang, Q. Jing and J. Zhang, New J. Chem., 2021, 45, 19883–19888.
27. Z. Akdeniz and P. A. Madden, J. Phys. Chem. B, 2006, 110, 6683–6691.
28. C. Martineau, F. Fayon, M. R. Suchomel, M. Allix, D. Massiot and F. Taulelle, Inorg. Chem., 2011, 50, 2644–2653.
29. C. R. Morelock, J. C. Hancock and A. P. Wilkinson, J. Solid State Chem., 2014, 219, 143–147.
30. S. F. Parker, A. J. Ramirez-Cuesta and L. L. Daemen, RSC Adv., 2020, 10, 25856–25863.
31. Z. Fang, X. X. Jiang, M. H. Duan, Z. Y. Hou, C. C. Tang, M. J. Xia, L. J. Liu, Z. S. Lin, F. D. Fan, L. Bai and C. T. Chen, Chemi. Eur. J., 2018, 24, 7856–7860.
32. F. J. Guo, J. Han, S. C. Cheng, S. J. Yu, Z. H. Yang and S. L. Pan, Inorg. Chem., 2019, 58, 8237–8244.
33. M. Mutailipu, M. Zhang, Z. H. Yang and S. L. Pan, Acc. Chem. Res., 2019, 52, 791–801.
34. H. K. Su, J. H. Jiao, S. B. Wang, D. H. An and M. Zhang, Dalton Trans., 2024, 53, 932–937.
35. J. Sun, M. Mutailipu and S. L. Pan, Chem. Eur. J., 2021, 27, 8698–8703.
36. Z. T. Yan, D. D. Chu, Z. H. Yang, S. L. Pan and M. Zhang, Chem. Commun., 2024, 60, 15047–15050.
37. S. Bai, X. D. Zhang, B. B. Zhang, L. Li and Y. Wang, Inorg. Chem., 2021, 60, 10006–10011.
38. C. Chen, D. Y. Dou, Y. J. Bai, B. B. Zhang and Y. Wang, Inorg. Chem. Front., 2024, 11, 6020–6027.
39. B. Jiang, S. Shu, Z. H. Yang, F. F. Zhang, M. Zhang and S. L. Pan, Dalton Trans., 2022, 51, 3964–3969.
40. J. H. Jiao, M. Zhang and S. L. Pan, Angew. Chem., Int. Ed., 2023, 62, e202217037.
41. H. K. Liu, Y. Wang, B. B. Zhang, Z. H. Yang and S. L. Pan, Chem. Sci., 2020, 11, 694–698.
42. Y. Wang, J. Han, J. B. Huang, Z. H. Yang, S. Z. Huang and S. L. Pan, New J. Chem., 2020, 44, 9852–9857.
43. Y. Wang, J. Han, J. B. Huang, Z. H. Yang and S. L. Pan, Inorg. Chem., 2020, 59, 810–817.
44. H. P. Wu, H. W. Yu, S. L. Pan and P. S. Halasyamani, Inorg. Chem., 2017, 56, 8755–8758.
45. Z. T. Yan, D. D. Chu, M. Zhang, Z. H. Yang and S. L. Pan, Adv. Opt. Mater., 2023, 11, 2202353.
46. Y. Yang, S. Z. Huang and S. L. Pan, J. Mater. Chem. C., 2022, 10, 11232–11238.
47. H. W. Yu, J. S. Young, H. P. Wu, W. G. Zhang, J. M. Rondinelli and S. Halasyamani, Adv. Opt. Mater., 2017, 5, 1700840.
48. M. Mutailipu, Z. H. Yang and S. L. Pan, Acc. Mater. Res., 2021, 2, 282–291.
49. Q. R. Ding, X. M. Liu, S. G. Zhao, Y. S. Wang, Y. Q. Li, L. N. Li, S. Liu, Z. S. Lin, M. C. Hong and J. H. Luo, J. Am. Chem. Soc., 2020, 142, 6472–6476.
50. G. P. Han, B. H. Lei, Z. H. Yang, Y. Wang and S. L. Pan, Angew. Chem., Int. Ed., 2018, 57, 9828–9832.
51. SAINT, Version 7.60A, Bruker Analytical X-ray Instruments, Inc., Madison, WI, 2008.
52. O. Dolomanov, L. Bourhis, R. Gildea, J. Howard and H. Puschmann, J. Appl. Crystallogr., 2009, 42, 339–341.
53. A. Spek, J. Appl. Crystallogr., 2003, 36, 7–13.
54. A. M. Rappe, K. M. Rabe, E. Kaxiras and J. D. Joannopoulos, Phys. Rev. B:Condens. Matter Mater. Phys., 1990, 41, 1227–1230.
55. J. P. Perdew, K. Burke and M. G. G. Ernzerhof, Phys. Rev. Lett., 1996, 77, 3865–3868.
56. D. Hamann, M. Schlüter and C. Chiang, Phys. Rev. Lett., 1979, 43, 1494–1497.
57. J. Heyd, G. E. Scuseria and M. Ernzerhof, J. Chem. Phys., 2003, 118, 8207–8215.

---

Footnote

† Electronic supplementary information (ESI) available. CCDC 2423523–2423525. For ESI and crystallographic data in CIF or other electronic format see DOI: https://doi.org/10.1039/d5dt00356c

---
