Wet-chemical approach to the synthesis of iron whitlockite (Ca₁₈Fe₂(HPO₄)₂(PO₄)₁₂) via a dissolution–precipitation process under hydrothermal conditions

Abstract

In the present work, iron whitlockite (Fe-WH, Ca₁₈Fe₂(HPO₄)₂(PO₄)₁₂) powder was successfully synthesized by a wet-chemical approach. The synthesis was performed through a dissolution–precipitation process under hydrothermal conditions. The final product was obtained in a time-efficient manner via a phase conversion from CaHPO₄·2H₂O at 230 °C in just 1 h. Structural properties of the obtained material were comprehensively characterized by X-ray diffraction analysis and FTIR, Raman, and EPR spectroscopy. It was determined that in the as-prepared material, Fe ions mainly exist in a reduced divalent state in accordance with the peculiarities of the WH crystal structure. Magnetic studies also revealed paramagnetic behavior of Fe-WH in the temperature range from 5 to 300 K. Upon annealing, the Fe-WH structure decomposed, forming Fe-doped β-Ca₃(PO₄)₂ and Ca₂P₂O₇. Thermally induced decomposition was accompanied by the oxidation of Fe²⁺ to Fe³⁺. The biocompatibility of the synthesized material was assessed by in vitro cytotoxicity experiments with the MC3T3-E1 preosteoblastic cell line. The investigated Fe-WH powder did not show a cytotoxic effect on the cells at all studied concentrations, demonstrating its high biocompatibility.

---

1. Introduction

Calcium phosphates (CPs) are a family of materials widespread in nature, both in biological and geological systems.¹ These materials are of particular importance for humans since the hard tissues of human beings are made of CPs, namely calcium hydroxyapatite (HA).² The chemical similarity with biological calcified tissues makes synthetic CPs highly biocompatible, which in turn leads to the use of these materials in medicine for various applications, including bone regeneration and reconstruction, gene delivery, bioimaging, etc.^2,3

In literature, the name “whitlockite” is commonly referred to as magnesium whitlockite (Mg-WH, Ca₁₈Mg₂(HPO₄)₂(PO₄)₁₂), which can be considered as Mg-substituted CP. This mineral can be found both in the human body and in nature.^4,5 The WH of biological origin is assumed to be pure Mg-WH; however, there is a lack of data on the chemical analysis of this biomineral; therefore, the presence of other divalent ions in its structure cannot be excluded. The geological WH found in nature also contains some other elements besides Mg²⁺ ions, such as Na⁺, Sr²⁺, Fe²⁺, Mn²⁺etc.⁴

In recent decades, synthetic Mg-WH has attracted attention with the perspective of using this material in regenerative medicine. As a result, various synthetic approaches were demonstrated for preparing Mg-WH in the form of powders,^6–10 granules,¹¹ and composites.^12,13 Further biological studies indicated that in some cases, Mg-WH-based materials demonstrate superior properties compared to those of the most commonly used CPs such as HA or tricalcium phosphate (TCP, Ca₃(PO₄)₂).^13–18

More recently, studies on the synthesis and application of transition metal (TM) WH were published, reporting the preparation and application of Zn-, Cu-, Co-, and Mn-WH ((Ca₁₈M₂(HPO₄)₂(PO₄)₁₂), M = Zn²⁺, Cu²⁺, Co²⁺, Mn²⁺).^19–25 In these materials, the WH structure is stabilized by relatively small first-row TM ions instead of Mg²⁺. One more member of divalent TM ions is Fe²⁺; however, according to our knowledge, there are no papers describing the synthesis of iron whitlockite (Fe-WH, Ca₁₈Fe₂(HPO₄)₂(PO₄)₁₂) powders by wet chemical approaches. It is worth noting that Fe is redox-active, which can lead to the spontaneous oxidation of Fe²⁺ to Fe³⁺ in the reaction environment,²⁶ bringing additional difficulties to the synthesis of Fe-WH, where Fe ions should be present in their reduced oxidation state. According to our knowledge, currently, there is only one published article reporting the synthesis and characterization of deuterated Fe-WH powder.²⁷ In that work, the target material was prepared by a two-step procedure, which includes a high-temperature solid-state synthesis of Ca₉Fe(PO₄)₇ (Fe oxidation state is +3) with its further transformation to Fe-WH at elevated temperature in a reducing atmosphere.

Iron is not only an essential element in the human body, involved in numerous physiological processes, but also possesses magnetic properties, which can be employed for different biomedical applications. Particularly, magnetic Fe-substituted CPs or CP-based composites attracted scientific interest due to their potential application in magnetic hyperthermia, drug delivery, magnetic resonance imaging (MRI), etc.^28–34 Various Fe-substituted CPs and their composites were prepared and characterized in recent decades. For instance, Iafisco et al.³³ employed a superparamagnetic composite of Fe-doped HA and Fe₃O₄ as a delivery system for the anticancer drug doxorubicin. The application of magnetic field resulted in an increased release of the drug. A similar composite was demonstrated as a suitable agent for MRI, opening new prospects for the design of theranostic agents for personalized medical applications.²⁸ Duraisamy et al.³⁰ fabricated a multifunctional NiFe₂O₄-calcium fluorapatite composite with magnetic and antibacterial properties. Under tumor-mimicking conditions, the prepared composite achieved a hyperthermia temperature of ca. 43 °C; moreover, it was considered to be a promising drug delivery agent. Ribeiro et al.³² determined HA substituted with mixed-valent Fe ions as pH-sensitive and biodegradable peroxidase-like nanozymes for cancer chemodynamic therapy and MRI. Taking into account the aforementioned properties of Fe-containing phosphates and their composites, Fe-WH can be considered as a more beneficial candidate for biomedical applications such as magnetic hyperthermia, drug delivery, or MRI, when compared to Mg-WH.

Our work aims to study Fe-WH as a member of the CP family, which is poorly investigated. First of all, we were interested in the feasibility of forming this material by a wet-chemical process in an aqueous medium. Further comprehensive characterization of structural, morphological, magnetic, and cytotoxic properties was performed, opening new horizons for using Fe-WH for biomedical applications.

2. Experimental

2.1. Synthesis

The synthesis of Fe-WH powder was performed through a dissolution-precipitation process under hydrothermal conditions. Dicalcium phosphate dihydrate (DCPD, CaHPO₄·2H₂O, 99.1%, Eurochemicals) and iron sulfate heptahydrate (FeSO₄·7H₂O, ≥99.5%, Roth) were used as starting materials. In a typical procedure, appropriate amounts of CaHPO₄·2H₂O and FeSO₄·7H₂O were dissolved in a mixture of 30 mL of deionized water and 30 mL of 1M phosphoric acid (H₃PO₄, 75%, Roth) in a 90 mL Teflon liner. The molar Ca-to-Fe ratio in the above mixture was equal to 9, and the total metal ion concentration was 0.42 mol L⁻¹. After the complete dissolution of precursors, the pH value of the obtained mixture was adjusted to 6.2 with an ammonia solution (NH₄OH, 25%, Roth) under constant mixing on a magnetic stirrer. The increase in the pH value resulted in the instantaneous formation of precipitates. Next, the obtained mixture was sealed in a stainless steel container and placed into an oven preheated to 230 °C for 1 h. The reaction time was calculated as a period from the placement of the container into the oven to the moment it was removed to room temperature. After the reaction, the precipitates were vacuum filtered, washed with deionized water, and dried at 80 °C in the oven.

2.2. Characterization

Powder X-ray diffraction (XRD) data of the synthesized powders were obtained using a Rigaku MiniFlex II diffractometer (Cu-K_α, λ = 1.5419 Å) working in the Bragg–Brentano (θ/2θ) geometry. The data were collected within the 10–100° 2θ angle range with a speed of 1° min⁻¹. The FullProf suite was employed for structural refinement (FullProf suite software version September-2020). Fourier transform infrared (FTIR) spectra were taken in the 400–4000 cm⁻¹ range (30 scans) with a Bruker ALPHA-FTIR spectrometer. Raman spectra were recorded using a combined Raman and scanning near-field optical microscope WiTec Alpha 300 R equipped with a 532 nm excitation laser source. The measurements were performed with 600 g mm⁻¹ diffraction grating, pixel resolution of <3 cm⁻¹, the integration time was 1 s, the number of scans was 50 and the approximate laser power of 15 mW. The morphology of the synthesized specimens was studied by scanning electron microscopy (SEM) using a Hitachi SU-70 microscope. Magnetic susceptibility data for Fe-WH were collected using a Quantum Design MPMS3 SQUID magnetometer. The data collection involved a temperature sweep ranging from 5 K to 300 K at a magnetic field strength of 100 Oe under both zero-field cooled (ZFC) and field-cooled (FC) conditions. Magnetic hysteresis data were collected at 5 K and 300 K over a range of −20 000 Oe to 20 000 Oe. Data collection was performed either in vibrating sample magnetometry (VSM) mode with 5 mm scan lengths and 2 s averaging or in direct current (DC) scan mode with 30 mm scan lengths and 5 s averaging. A Bruker ELEXSYS-II E500 CW-EPR spectrometer was used for electron paramagnetic resonance (EPR) investigations of the samples. The spectra acquisition settings were: room temperature, 9.839 GHz (X-band) or 34.00 GHz (Q-band) microwave frequency, 1 mW microwave power, and 0.4 mT magnetic field modulation amplitude. Elemental composition of the Fe-WH powder was determined by inductively coupled plasma optical emission spectrometry (ICP-OES) using a Perkin-Elmer Optima 7000 DV spectrometer. The sample was dissolved in 5% nitric acid (HNO₃, Rotipuran® Supra 69%, Carl Roth) and diluted to appropriate volume. Calibration solutions were prepared by an appropriate dilution of the stock standard solutions (single-element ICP standards 1000 mg L⁻¹, Carl Roth).

2.3. In vitro cytotoxicity studies

The cytotoxicity of the Fe-WH powder was evaluated using the MC3T3-E1 preosteoblast cell line. For the extract test, 4500 cells per well were seeded in a 96-well plate with 100 μL of cell culture medium, which consisted of 89% Alpha Modified Eagle Medium (α-MEM), 10% fetal bovine serum (FBS), and 1% penicillin/streptomycin (P/S). The plates were incubated overnight at 37 °C with 5% CO₂ (New Brunswick™ S41i CO₂ Incubator Shaker, Eppendorf, Hamburg, Germany).

Fe-WH powder was suspended in 5 mL of fresh cell culture medium to achieve a 10 mg mL⁻¹ concentration. After 24 and 48 h, the entire solution was collected and replaced with another 5 mL of fresh cell culture medium. The collected solution was filtered through a 0.2 μm syringe filter and then diluted with fresh medium to concentrations of 1 mg mL⁻¹, 0.1 mg mL⁻¹, and 0.01 mg mL⁻¹. These extract dilutions were immediately added to the preincubated cells (100 μL per well). Untreated cells served as the positive control, while cells treated with a 5% dimethylsulfoxide (DMSO) solution in the medium served as the negative control. Each sample and control conditions were tested in six replicates.

Cytotoxicity of the Fe-WH extracts was assessed using a Cell Counting Kit-8 (CCK-8) assay. Samples were incubated for 24 h for both time points, after which 10 μL of CCK-8 solution was added to each well and incubated for 1 h at 37 °C with 5% CO₂. Absorbance at 450 nm was measured using an Infinite M Nano microplate reader (Tecan, Männedorf, Switzerland).

3. Results and discussion

The as-precipitated powder (without hydrothermal treatment) was analyzed by means of XRD analysis, and the crystalline phase was identified as DCPD (Fig. S1†), which is in good agreement with the previous data on the dissolution-precipitation synthesis of Zn-WH.²⁰ However, a broad signal centered at ca. 30° suggests that the amorphous component also co-exists in the sample. The XRD analysis of the as-prepared Fe-WH did not indicate the presence of secondary crystalline phases (Fig. 1a). All diffraction peaks matched very well with the standard XRD data of Mg-WH (#04-009-3397). There were no peaks corresponding to any impurity such as monetite or HA, which are commonly obtained secondary phases during the wet synthesis of WH materials.^20,35 Rietveld refinement was further performed using a rhombohedral structure with a space group R3c (#161) adopted from Mg-WH as a model. The results demonstrated a good agreement between the calculated and experimental data; the cell parameters were calculated as a = 10.341(85) Å and c = 37.130(24) Å. These values are close to those of Mg-, Zn- and Cu-WH synthesized by the wet chemical approach.^6,20,23 Overall, the lattice parameters of isostructural Mg-WH and divalent TM-WH are quite similar, which can be explained by the closeness of the ionic radii of Mg²⁺ and TM²⁺ ions.³⁶ In all cases, a small cation (Mg²⁺ or TM²⁺) occupies the octahedral Ca(5) site, which is reasonable since this site has the smallest coordination number in the WH crystal structure. In our case, it was also determined that Fe²⁺ ions occupy the Ca(5) site (Fig. S2†). The agreement of the lattice parameters of our synthesized Fe-WH and literature data^4,20,37 can be considered as an indirect confirmation of the predominant divalent state of Fe ions. The parameters reported by Belik et al.²⁷ for the deuterated analog of Fe-WH, namely Ca₁₈Fe₂(DPO₄)₂(PO₄)₁₂ were slightly larger.

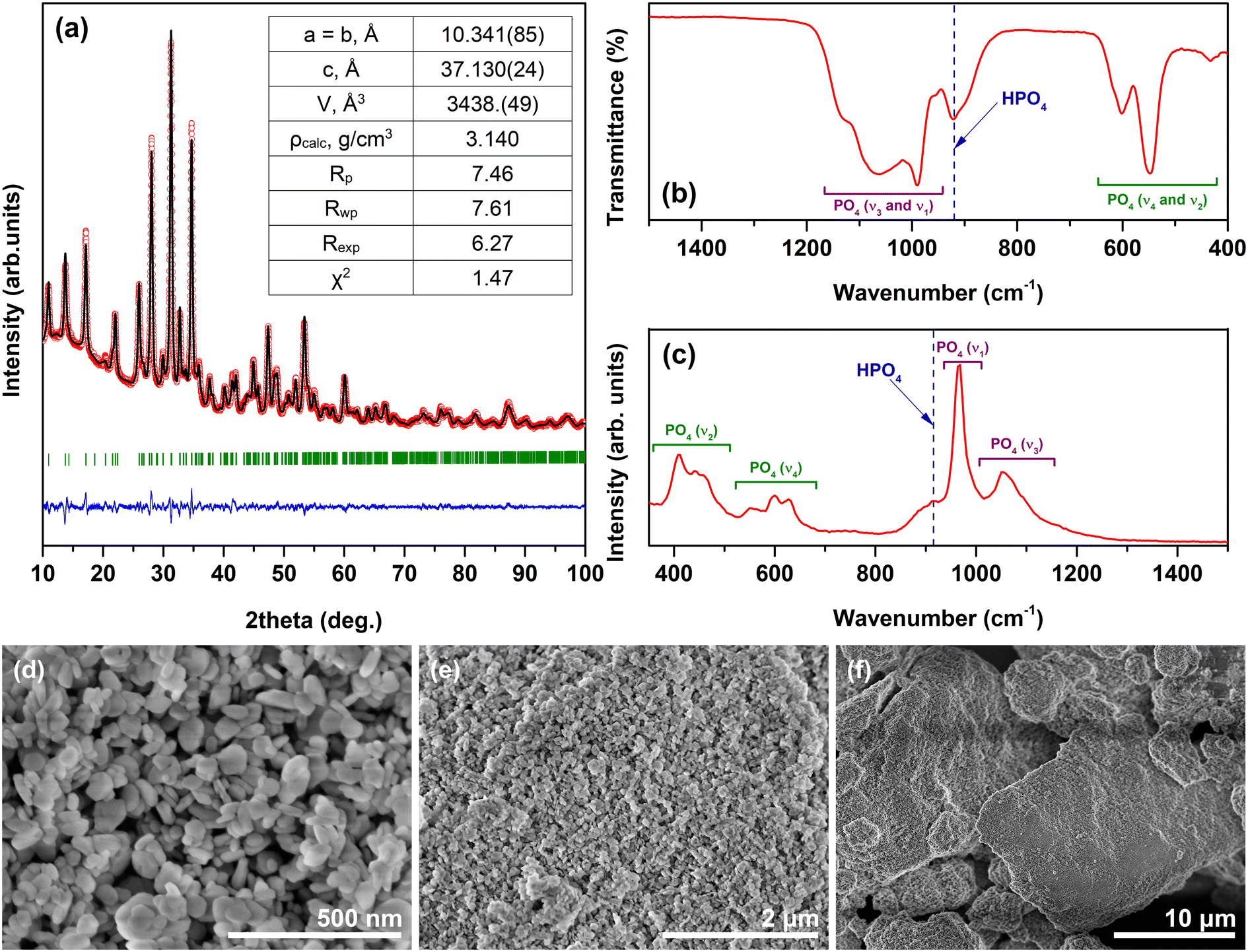

Fig. 1 XRD pattern (a); FTIR spectrum (b); Raman spectrum (c); and SEM micrographs (d–f) of the Fe-WH powder.

FTIR and Raman spectroscopy are powerful tools for identifying the WH structure since these techniques allow observing the absorption band corresponding to the HPO₄²⁻ group. The presence of this spectral marker confirms the formation of WH but excludes related structures such as Fe-doped β-TCP or Ca₉Fe(PO₄)₇, which do not contain this structural unit.³⁸ The FTIR spectrum of the Fe-WH powder is given in the representative range of 400–1500 cm⁻¹ (Fig. 1b) since the materials with the WH structure do not show any bands in the rest part of the spectrum up to 4000 cm⁻¹. Three groups of absorption bands can be highlighted: the bands located in the range from ca. 1200 to 945 cm⁻¹ correspond to ν₃ and ν₁ stretching modes of the phosphate tetrahedra; while the bands ranging from 500 to 650 cm⁻¹ and the band centered at 430 cm⁻¹ are ascribed to ν₄ and ν₂ bending modes, respectively;^19,39 finally, the band centered at 920 cm⁻¹ represents the HPO₄²⁻ unit.^6,7 A remarkable feature of the observed FTIR spectrum is the width of the band at 920 cm⁻¹, which was significantly broader compared to that observed for Mg- and TM-WH reported in previous works.^6,20,23 Corresponding bands were also observed in the Raman spectrum in the ranges of approximately 370–510 cm⁻¹ (ν₂), 530–655 cm⁻¹ (ν₄), and 1100–1200 cm⁻¹ (ν₃) (Fig. 1c); the most intense band peaked at 965 cm⁻¹ is attributed to the ν₁ symmetric stretching mode.⁴⁰ The band assigned to the HPO₄²⁻ group located at ca. 920 cm⁻¹ is clearly visible in the spectrum;^41,42 however, it is not perfectly resolved due to overlapping with the ν₁ band. Similarly, like in the FTIR spectrum, the bands in the Raman spectrum are very broad compared to previously reported data on both synthetic²⁰ and especially natural WH.⁴² A possible reason for the broadening could be the low crystallinity of the synthesized material. The relatively low intensity of the ν₁ band also could be attributed to the low crystallinity. Alternatively, the presence of Fe³⁺ defects in the crystal lattice of Fe-WH could lead to the distortion of crystal structure and broadening of the bands. Overall, the results of both spectroscopic techniques are in good agreement and confirm the formation of the Fe-WH structure.

The SEM images of the Fe-WH powder depict the formation of well-defined plate-like particles varying in size from approximately 40 to 100 nm (Fig. 1d). The polygonal shape of the particles is characteristic of WH materials; however, the formation of a particular shape depends on many parameters, including the synthetic approach, concentration of starting materials, the ratio of metal cations, etc.^7,9,19,20 The SEM micrographs taken under lower magnification indicate the aggregation of individual particles to large agglomerates of micrometric dimensions (Fig. 1e and f).

The elemental analysis of the Fe-WH powder was performed by means of ICP-OES to determine the chemical composition of the synthesized material (Table 1). The theoretical values were calculated according to the Ca₁₈Fe₂(HPO₄)₂(PO₄)₁₂ formula, which assumes that Fe ions are exclusively divalent. Overall, the experimental data agree very well with the theoretical data; however, the experimentally determined Ca/Fe ratio was slightly higher than that of the theoretical data, while the determined (Ca + Fe)/P molar ratio was slightly lower compared to that of the theoretical data. This observation is compatible with the hypothesis that a minor part of the Fe ions is oxidized to the trivalent state; although, the discrepancies are insignificant. Moreover, the presence of minor amorphous impurities, influencing the composition of the bulk material, cannot be excluded.

Table 1 Results of the elemental analysis of Fe-WH powder

Theoretical Ca/Fe molar ratio	Determined Ca/Fe molar ratio	Theoretical (Ca + Fe)/P molar ratio	Determined (Ca + Fe)/P molar ratio
9.00	9.16	1.43	1.40

---

We were also interested in the feasibility of synthesizing a mixed-valent Fe-WH containing comparable/significant amounts of both Fe²⁺ and Fe³⁺ ions. For this purpose, a mixture of divalent and trivalent iron precursors was used, namely FeSO₄·7H₂O and Fe(NO₃)₃·9H₂O. A series of powders was synthesized, varying the ratio of Fe³⁺/Fe²⁺ in the initial reaction mixture from 0 to 100 mol% with a step of 20 mol%. The results demonstrated that the presence of Fe³⁺ ions moved the phase equilibrium toward the formation of HA (Fig. S3†). The presence of 20 mol% of Fe³⁺ already resulted in the formation of biphasic material consisting of Fe-WH and HA, while HA was a dominant phase when a higher amount of Fe³⁺ was used. These results indicate that by varying the iron precursors, the phase composition of the final product can be tuned; however, the co-existence of a significant amount of both Fe³⁺ and Fe²⁺ in the crystal structure of Fe-WH was impossible to achieve. On the other hand, previous works demonstrated that the WH structure is stabilized exclusively by relatively small divalent ions. To our knowledge, there are no reports on preparing the WH structure containing only Ca²⁺ and trivalent ions. By contrast, a successful synthesis of Fe²⁺/Fe³⁺-doped HA was previously reported in the literature, indicating a better ability of the HA crystal structure to adopt aliovalent ions compared to WH.^26,43

Magnetic properties of the synthesized Fe-WH powder were investigated by measuring the inverse magnetic susceptibility 1/χ vs. T and the dependence of magnetization on the applied field. The 1/χ vs. T curves obtained in both FC and ZFC modes are presented in Fig. 2a. The linear dependence was observed in both cases, reflecting a paramagnetic behavior of Fe-WH in the temperature range from 300 K down to 5 K. No difference between FC and ZFC curves was observed. The effective magnetic moment, μ_eff = (8C)^1/2, was calculated as 5.07 μ_B (μ_B, Bohr magneton) per Fe²⁺ ion, which is only slightly higher compared to the theoretical value of 4.90 μ_B. The calculated μ_eff value can be assumed as a confirmation of the presence of Fe ions in a divalent state. The results agree with the data reported by Belik et al.²⁷ for Ca₁₈Fe₂(DPO₄)₂(PO₄)₁₂, who calculated the μ_eff value as 4.97 μ_B. The M vs. H curves, taken at 5 K and 300 K, also show an expected paramagnetic behavior demonstrating magnetization values of 6.7 and 0.19 emu g⁻¹ at the magnetic field of 20 kOe at 5 K and 300 K, respectively (Fig. 2b).

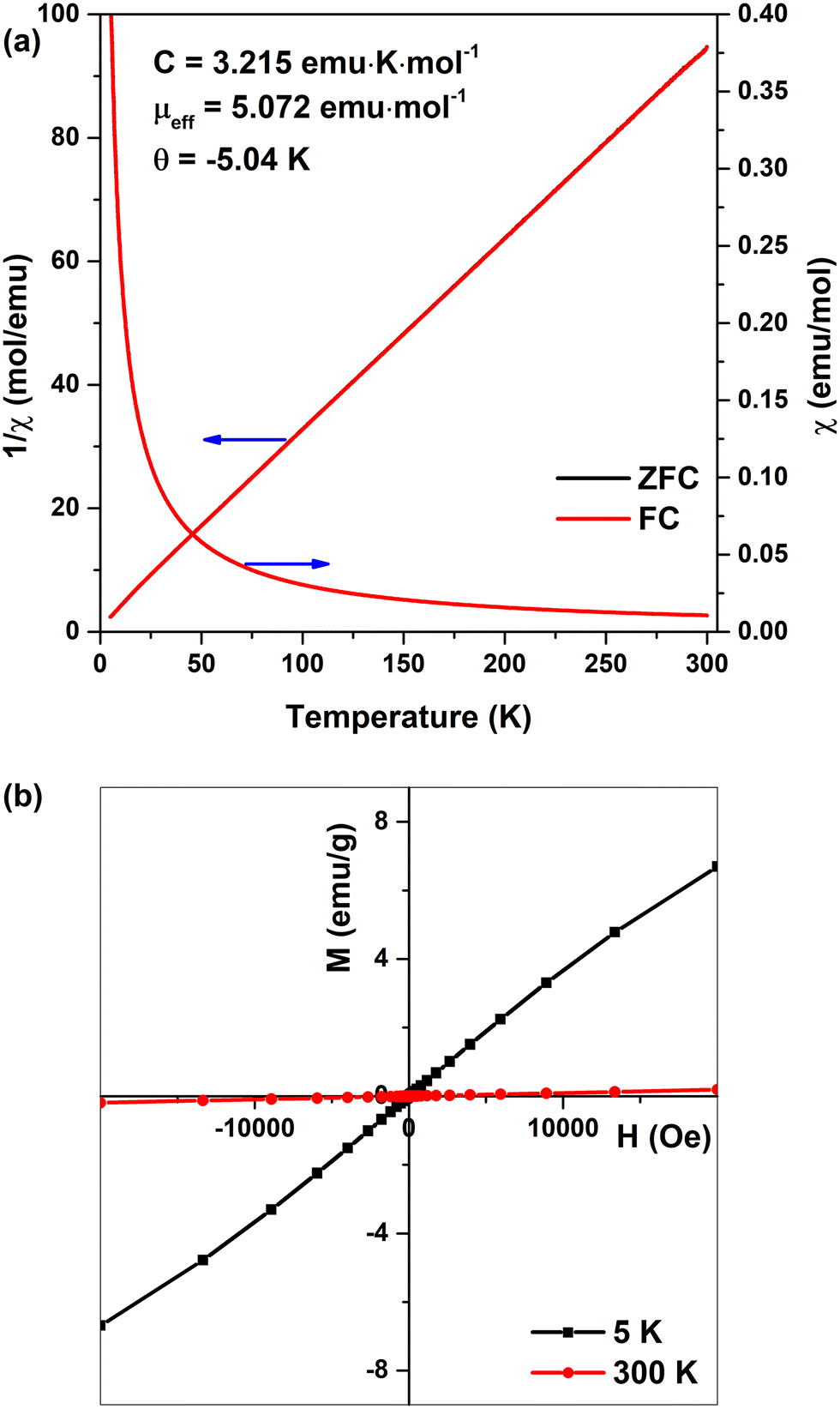

Fig. 2 Magnetic susceptibility and inverse magnetic susceptibility of Fe-WH vs. T (a); M vs. H curves of Fe-WH at 5 K and 300 K (b).

Tuning of the magnetic properties of Fe-WH potentially could be achieved by the fabrication of Fe-WH composites with iron oxides. This approach was previously demonstrated by Tampieri et al.,²⁶ who investigated the composite of Fe-doped HA and iron oxides. It was shown that hyperthermia curves of undoped HA-Fe₃O₄ and Fe-doped HA-Fe₃O₄ differ significantly. The difference was ascribed to the potential interaction between two magnetic phases compared to a single magnetic material in HA-Fe₃O₄.

Both Mg- and TM-WH are known to be thermally unstable.^6,19,23,44 Upon annealing, these materials gradually decompose, forming ion-substituted β-TCP and Ca₂P₂O₇ (CPP). In terms of chemical bonds, this phase transformation leads to the formation of the P–O–P bond presenting in the CPP structure instead of the decomposed HPO₄²⁻ structural unit. The detailed study on the thermally-induced degradation of Mg-WH revealed a broad temperature range of the co-existence of 3 crystalline phases: WH, β-TCP, and CPP.⁶ Moreover, it was shown that the information obtained from the XRD analysis is limited, since it allows only for determining the starting degradation temperature by detecting the appearance of the secondary CPP phase. This technique does not detect the end of the phase transformation due to the identical XRD patterns of WH and β-TCP.

It should be noted that in the case of Mg-, Zn-, or Cu-stabilized WH, the oxidation state of all composing elements is supposed to be the same after the thermal treatment; however, the situation is different in the case of redox-active Fe. At least two scenarios should be considered for the possible mechanism of thermally-induced degradation of Fe-WH in the air atmosphere. The first scenario assumes the oxidation of Fe²⁺ to Fe³⁺ accompanied by the transformation of HPO₄²⁻ to exclusively PO₄³⁻ and H₂. In this case, the reaction should occur according to eqn (1), and the oxidation of Fe achieves the charge compensation. For this reaction, the XRD analysis will not show the appearance of new diffraction peaks.

Ca₁₈Fe₂(HPO₄)₂(PO₄)₁₂ → 2Ca₉Fe(PO₄)₇ + H₂ (1)

The second potential scenario considers that the oxidation of Fe²⁺ occurs at temperatures exceeding those of the decomposition of HPO₄²⁻, which would lead to the formation of PO₄³⁻ and P₂O₇⁴⁻.

The representative XRD patterns of Fe-WH powders annealed at different temperatures are given in Fig. 3a (all XRD patterns for annealing temperatures from 500 °C to 1200 °C are shown in Fig. S4†). Annealing up to 600 °C did not produce new diffraction peaks; however, the XRD pattern of the powder annealed at 700 °C already contained some reflections corresponding to CPP. The temperature of the formation of CPP agrees well with the results obtained for Mg- and other TM-WH.^6,23 The annealing at higher temperatures showed no further significant changes except the narrowing of the diffraction peaks.

Fig. 3 XRD patterns (a) and FTIR spectra (b) of Fe-WH powders annealed at different temperatures.

As a rule, the decomposition of the WH structure can be detected in FTIR spectra by simultaneous reduction of the intensity of the HPO₄²⁻-related band and the appearance of the P–O–P absorption band centered at 726 or 754 cm⁻¹, characteristic of CPP.⁴⁵ For Mg-, Zn-, and Cu-WH, these processes occur gradually and start at around 600–700 °C.^6,20,23Fig. 3b shows that the FTIR spectrum of Fe-WH considerably changes already after annealing at 500 °C. The absorption band ascribed to HPO₄²⁻ (ca. 920 cm⁻¹) disappeared. On the other hand, two new bands centered at 877 and 930 cm⁻¹ were observed instead. Such behavior was not previously observed for Mg-, Zn- or Cu-WH. The reason for the drastic spectral change could be associated with the change in the oxidation state of Fe²⁺ ions. The appearance of the absorption bands centered at 726 and 756 cm⁻¹ was observed only at 700 °C. These bands indicate the simultaneous formation of both α- and β-CPP polymorphs.⁴⁵ At higher annealing temperatures, only β-CPP was detected up to 1200 °C. The band observed at 877 cm⁻¹ gradually shifted to the lower wavenumbers, peaking at 864 cm⁻¹ for 900 °C.

Doping of a closely related β-TCP structure with aliovalent Fe³⁺ or Ga³⁺ ions modified the FTIR spectrum of β-TCP.^38,46,47 The absorption bands at 873 cm⁻¹ and 871 cm⁻¹ appeared with an increase of the dopant concentration in β-TCP prepared at 800 °C and 900 °C, respectively.^38,46 Overall, the spectrum of Fe-WH annealed at 500 °C is very similar to that of Fe³⁺-doped β-TCP in terms of the shape and band positions.^38,46 These observations suggest that annealing at 500 °C causes the oxidation of Fe²⁺ to Fe³⁺; however, it does not induce the transformation of HPO₄²⁻ structural unit to P₂O₇⁴⁻, which occurs starting from ca. 700 °C. Thus, the degradation pathway could be assumed to be an intermediate between the abovementioned mechanisms. Previously, it was demonstrated that ¹H and ³¹P solid-state nuclear magnetic resonance is the most powerful tool in monitoring the phase transformation from Mg-WH to β-TCP;⁶ unfortunately, in the case of Fe-WH, the use of this technique is impossible due to the presence of Fe ions.

EPR spectroscopy analysis of the investigated samples is presented in Fig. 4. The EPR spectra cover a broad magnetic field range and depend on the sample treatment temperature. Iron in the Fe³⁺ state is detectable in conventional EPR measurements at room temperature.^38,48–50 X-band EPR spectra, normalized to sample mass (Fig. 4a), can be used to compare the relative Fe³⁺ ion content in the samples. A Fe³⁺ signal can be detected in the as-prepared sample, possibly showing the presence of a minor amount of Fe³⁺ in the Fe-WH crystal lattice or a minor contribution of Fe³⁺-rich impurity. EPR spectra double integral (DI) values, which are proportional to the number of paramagnetic centers, exhibit an increasing tendency up to 1100 °C annealing temperature. This increase in signal intensity is likely due to the oxidation of Fe²⁺ to Fe³⁺ during sample annealing in an air atmosphere.

Fig. 4 X-band (a) and normalized Q-band (b) EPR spectra of the Fe-WH powders. Inset: double integral (DI) intensities of EPR spectra as a function of the sample annealing temperature.

Annealing also produces changes in the local structure of Fe³⁺ ions, which is evidenced by the variations in EPR signal shapes. This effect is illustrated in Fig. 4b, where Q-band EPR spectra are shown in a normalized representation. As EPR transitions of paramagnetic ions are sensitive to the coordination geometry with neighboring ligands, EPR spectra are helpful in monitoring structural transformations of materials. The EPR spectra of the annealed samples resemble those of Fe³⁺-doped β-TCP,^38,49 which is consistent with the conclusion inferred from XRD and FTIR analysis that Fe-WH decomposes into β-TCP.

The cell viability of Fe-WH was evaluated in adherence to ISO 10993-5:2009 guidelines. Analysis indicated that none of the tested Fe-WH extract dilutions exhibited cytotoxic effects following a 24-hour incubation period at both 24 and 48 h timepoints (Fig. 5).

Fig. 5 Fe-WH extract effect on MC3T3-E1 cell proliferation.

Two main observations can be highlighted from the examination of cell viability data. First, at the 24 h timepoint, slightly lower cell viability was observed for a higher concentration of Fe-WH (1 mg mL⁻¹). Second, the observed pattern suggests that cell viability declines across the lower Fe-WH dilutions (1 and 0.1 mg mL⁻¹) following a 48-hour incubation period. Nevertheless, the value remains consistently and noticeably above 70%, indicating that cytotoxic effects are not pronounced. A recent study by Predoi et al.⁵¹ on amorphous iron-calcium phosphate nanoparticles showed that osteoblastic cell viability was dependent on the incubation period, and iron-containing CP coating promoted the proliferation and adhesion of the cells after 72 h of incubation. Furthermore, Wei et al.⁵² studied the effect of collagen-coated composite of iron oxide nanospheres and Sr-substituted HA on the MC3T3-E1 preosteoblast cell line, showing increased gene expression and, thus, cell differentiation in the presence of the nanospheres. Cell viability and upregulation of the osteogenic and angiogenic genes are linked with the Fe concentration and release kinetics from the material since concentrations from 10 to 100 μM enhance angiogenesis, but excessive amounts can cause toxicity and ferroptosis.⁵³ Unfortunately, other studies on the biological properties of Fe-WH are currently absent for comparison; however, our results demonstrate the potential of Fe-WH for further studies in the biomedical field.

4. Conclusions

Iron whitlockite (Fe-WH, Ca₁₈Fe₂(HPO₄)₂(PO₄)₁₂) powder was successfully synthesized by a wet chemical approach under hydrothermal conditions in just 1 h. According to the XRD analysis, the obtained material was phase-pure, without any crystalline impurities. Rietveld refinement confirmed that Fe²⁺ ions occupy the Ca(5) site, which agrees well with the peculiarities of the WH crystal structure. The magnetic studies confirmed that in the as-prepared Fe-WH, Fe ions mostly exist in a reduced divalent state; however, the Fe³⁺ signal in the as-prepared sample was detected by EPR, possibly showing the presence of a minor amount of Fe³⁺ in the Fe-WH crystal lattice. The magnetic studies also revealed a paramagnetic behavior of Fe-WH in the temperature range from 5 to 300 K. Upon annealing, the Fe-WH structure decomposed, forming Fe-doped β-Ca₃(PO₄)₂ and Ca₂P₂O₇. Thermally induced decomposition was accompanied by the oxidation of Fe²⁺ to Fe³⁺. The biocompatibility of the synthesized material was assessed by in vitro cytotoxicity experiments and did not show a cytotoxic effect on the cells at all studied concentrations, demonstrating its high biocompatibility.

Data availability

The data supporting this study have been included within the article and the corresponding ESI.†

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This project has received funding from the Research Council of Lithuania (LMTLT), agreement No S-MIP-23-85. The authors acknowledge the access to the infrastructure and expertise of the BBCE – Baltic Biomaterials Centre of Excellence (European Union's Horizon 2020 research and innovation programme under grant agreement No. 857287). Prof. S. L. Stoll, Dr. O. Stewart (Georgetown University) and Dr. T. Murauskas (Vilnius University) are highly acknowledged for their help with material characterization.
