Ba₅Cu₈In₂S₁₂: a quaternary semiconductor with a unique 3D copper-rich framework and ultralow thermal conductivity

Abstract

A novel quaternary sulfide, Ba₅Cu₈In₂S₁₂ (1), has been successfully synthesized via a high-temperature solid-state reaction. It contains Cu₈S₁₀S_4/2 clusters as basic building blocks, which are connected to one another by discrete In³⁺ ions to generate a 3D copper-rich framework, where the Ba²⁺ cations reside. Interestingly, such large clusters that are fused by five crystallographically independent Cu sites with three different chemical environments result in the increase of phonon scattering, which is the crucial factor to the exceptionally low lattice thermal conductivity (ca. 0.28 W m⁻¹ K⁻¹ at 773 K) in 1.

---

Solid-state cuprous- and argentous-based chalcogenides have been extensively investigated for several decades not only for their promising applications in thermoelectric (TE) fields, such as Cu_2−xSe,¹ Cu₇PSe₆,² AgCuSe,³ AgSbTe₂⁴ and CsAg₅Te₃,⁵ but also for their intriguing architectures and topologies, for instance, monovalent Cu/Ag can create various asymmetric local environments to the chalcogenides due to the lack of crystal field stabilization, forming linear, trigonal, and tetrahedral geometries. On the other hand, group 13-containing chalcogenides containing MQ₄ tetrahedra (e.g., M = Ga, In) serve as the smallest structural units and have also attracted intensive research. From the point of view of crystallography, these structural units are always linked together by sharing corners or edges to form 1D chains, 2D layers, and 3D networks. Also, most of them show exciting TE properties. For instance, InTe, a mixed-valent 1D compound, exhibits an ultralow lattice thermal conductivity (κ_L ≈ 0.4 W m⁻¹ K⁻¹) in high-quality crystalline ingots.⁶ 2D layered In₄Pb_xSn_ySe₃ is an exceptional candidate for mid-temperature TE materials with a high figure of merit ZT value of 1.4 at 733 K.⁷ CuGaTe₂ and CuInTe₂ show high-efficiency TE performances based on the 3D diamond-like frameworks.⁸

To date, a large number of ternary A/TM/Q and A/M/Q (A = cations; TM = coinage metals; M = group 13 metals; and Q = chalcogenides) systems with diverse crystal structures have been explored and synthesized. However, the existing examples for quaternary compounds based on the A/TM/M/Q systems are limited to only K₂TMM₃Se₆ (TM = Cu, Ag; M = Ga, In),⁹ CsAgGa₂Se₄,¹⁰ Ba₇AgGa₅Se₁₅,¹¹ Ba₂AgInS₄,¹² Ba₄TMGa₅Q₁₂ (TM = Cu, Ag; Q = S, Se),^12,13 Ba₄TMMSe₆ (TM = Cu, Ag; M = Ga, In; Q = S, Se),¹⁴ Pb₈TMIn₁₇S₃₄ (TM = Cu, Ag, Au),¹⁵ RE₂CuInQ₅ (RE = La–Nd, Sm; Q = S, Se),¹⁶ La₄Ag₂In₄S₁₃,¹⁷ and RE₃CuGaQ₇ (RE = La–Nd; Q = S, Se) compounds.¹⁸ Moreover, all of them are not coinage metal-rich compounds, i.e., the ratio of TM/M ≤ 1. In recent years, a large family of natural minerals called tetrahedrites has received worldwide intensive investigation due to their unique structural characteristics (e.g., large Cu/Sb ratio and different coordination geometries of Cu atoms) and their promising thermoelectric applications. For example, the pure synthetic tetrahedrite Cu₁₂Sb₄S₁₃ has a ZT value of approximately 0.6 at 700 K; the values of transition-metal-substituted tetrahedrite compounds are in the range of 0.7–1.1.¹⁹ In this communication, we report a novel quaternary semiconductor, Ba₅Cu₈In₂S₁₂ (1), with a unique 3D copper-rich framework (Cu/In = 4) and unusual Cu coordination that exhibits ultralow thermal conductivity.

Air-stable 1 was prepared via a solid-state reaction by heating of a mixture of elements Ba, Cu, In, and S at 1223 K (for details, see the ESI†). The thermal stability of 1 was investigated by TG-DTA analysis on a NETZSCH STA 449C simultaneous analyser. As shown in Fig. 1a, compound 1 has excellent thermal stability and shows no obvious weight loss within the entire experimental temperature range. Moreover, the DTA data show only one sharp endothermic peak at around 968 K in the heating curve and one sharp exothermic peak at 902 K in the cooling curve, which indicates that 1 is a congruently melting compound. In order to further verify its thermal behaviour, the powder X-ray diffraction (PXRD) patterns recorded before and after DTA indicated the full recovery of compound 1 (Fig. 1b).

Fig. 1 Measurements on 1: (a) TG and DTA (inset) diagrams. (b) PXRD of simulated (black), as-synthesized (red), and DTA products (blue).

Single-crystal XRD analysis reveals that 1 crystallizes in the monoclinic space group C2/c (no. 15) with a = 14.584(2) Å, b = 16.369(2) Å, c = 10.509(2) Å, β = 100.14(2)° and Z = 4.‡ In the asymmetric unit, the structure of 1 consists of 15 crystallographically independent sites, which include three Ba sites, one In site, six S sites and five Cu sites (the corresponding Cu5 atom splits into three sites, Cu5A, Cu5B, and Cu5C, with occupancies of 17(4)%, 42(2)%, and 41(2)%, respectively). As shown in Fig. 2, the 3D copper-rich Cu–In–S open framework was constructed by 1D [Cu₈S₁₂]¹⁶⁻ chains (dashed area in Fig. 2) of vertex sharing S atoms. The channels along the c-direction were occupied by Ba²⁺ cations.

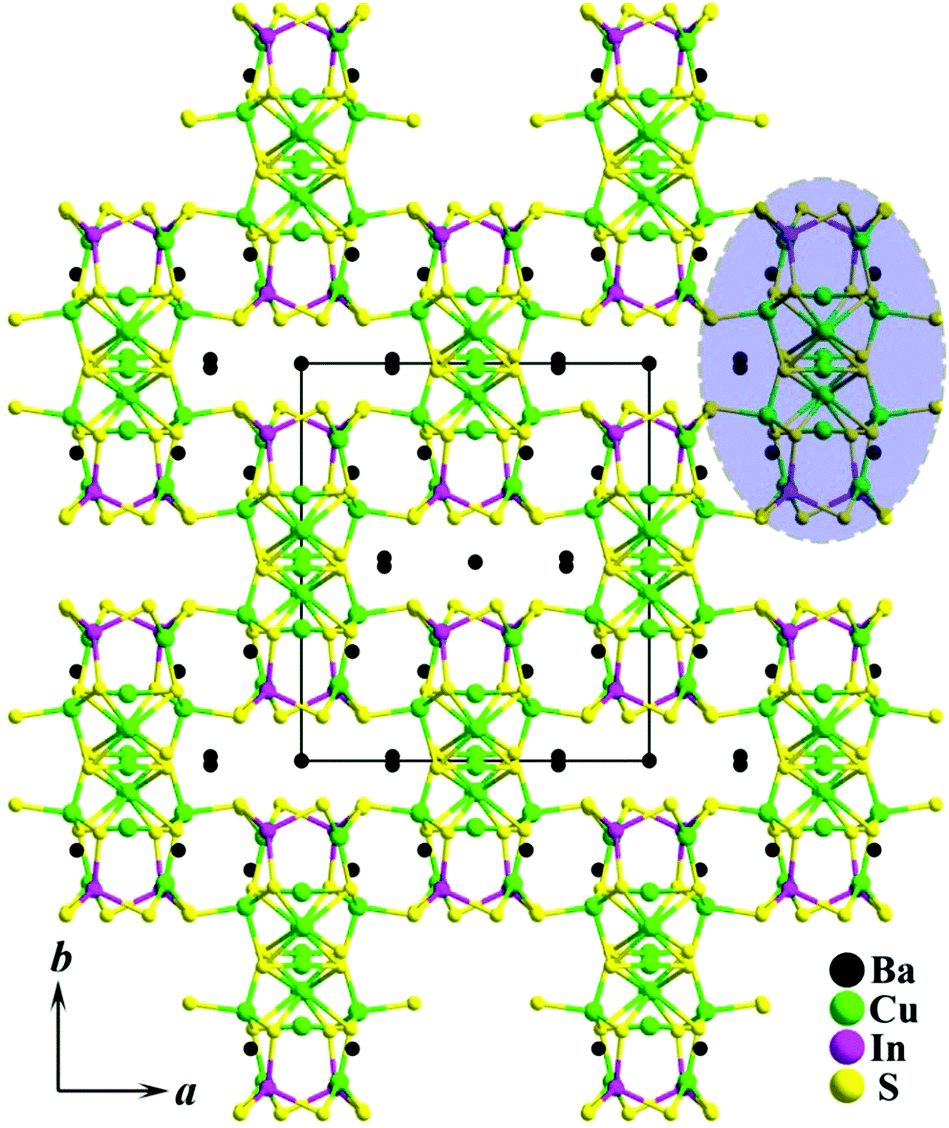

Fig. 2 3D framework structure of 1 viewed down the c-axis with the unit cell marked (1D [Cu₈S₁₂]¹⁶⁻ chain is outlined by a dashed area; for details, see Fig. 3).

The critical building block of 1 is the Cu₈S₁₀S_4/2 cluster, as shown in Fig. 3a, which consists of three types of coordination modes. The coordination geometry of Cu atoms is shown in Fig. 3b, where Cu1 and Cu5 are 3-fold coordinated in an approximate plane triangle, Cu2 and Cu4 are 2-fold coordinated in an approximate line, and Cu3 is 4-fold coordinated in a distorted tetrahedron. Each cluster is interconnected with other two neighbouring clusters by sharing four S6 atoms, which gives rise to 1D [Cu₈S₁₂]¹⁶⁻ chains along the 〈100〉 direction with a width of 13.6 Å (Fig. 3c). These chains are further linked together by discrete In³⁺ ions to form a 3D open framework. The Cu atoms show normal Cu–S distances, ranging from 2.142(4) to 2.574(4) Å and the In atom is four-fold coordinated in a distorted tetrahedral sphere with In–S bond distances of 2.444(4)–2.510(4) Å. There are three crystallographically independent Ba atomic sites with two different chemical environments, as shown in Fig. S1 (ESI†). Both Ba1 and Ba3 exhibit a square prismatic coordination with eight Ba–S bonds of distances between 3.191(4) and 3.596(6) Å, whereas the Ba2 atom is surrounded by six close S atoms at the corners of a distorted triangular prism with Ba–S distances of 3.057(4)–3.319 (4) Å and two capping S atoms at a further distance of 3.712(4)–3.921 (4) Å. Such an interesting coordination geometry of the Ba2 atom is also observed in Ba₁₂In₄S₁₉ and Ba₄M₂S₈ (M = Ga, In).²⁰

Fig. 3 (a) Cu₈S₁₀S_4/2 cluster with the atom number marked. (b) Coordination geometry of Cu atoms with Cu–S distances. (c) 1D [Cu₈S₁₂]¹⁶⁻ chain along the 〈100〉 direction with the width shown in the right side. The split site of atom Cu5 is omitted for a better view.

According to the solid-state optical absorption spectrum at room temperature, the energy gap (E_g) of 1 is estimated to be 2.14 eV (Fig. 4a), which is in agreement with its dark-red colour and suggests a semiconductor behaviour. To understand the nature of compound 1, the band structures together with the projected density of state (PDOS) calculations have been studied. As shown in Fig. 4b, the electronic structure calculations reveal an indirect E_g of 1.09 eV for 1, which is smaller than the measured value due to the well-known tendency of these calculations to underestimate the value of E_g. The PDOS between +5.0 and −7.0 eV, with the Fermi level at 0 eV, is shown in Fig. 4c. The major contribution to the valence band maximum (VBM) is from the S-3p and Cu-3d states, while the conduction band minimum (CBM) mainly consists of S-3p, In-5s, Cu-3d and Ba-5d states. Therefore, the optical absorption in 1 is mainly ascribed to the charge transitions from S-3p states to In-5s, Cu-3d and Ba-5d states.

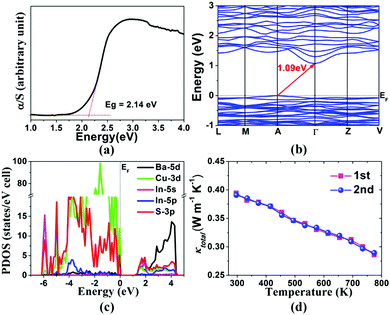

Fig. 4 (a) Solid-state optical absorption spectrum of 1. (b) The calculated band structure of 1. (c) The projected DOS of 1 (the orbitals with minor contributions are omitted for clarity). (d) Thermal conductivity as a function of the temperature for a hot-pressed polycrystalline sample of 1 during two thermal cycles.

The thermal conductivity (κ_total) and electrical conductivity (σ) of 1 have been measured on hot-pressed polycrystalline pellets, the relative densities of which are more than 98% of the theoretical value. As shown in Fig. 4d, the κ_total value decreases with increasing temperature from 0.39 W m⁻¹ K⁻¹ at 300 K to 0.28 W m⁻¹ K⁻¹ at 773 K. This decrease in κ_total with increasing temperature indicates that the phonon contribution to the conductivity is predominant. This is consistent with the very low thermal diffusivity (D) as a function of temperature (Fig. S2, in the ESI†) and the insulating character of the electrical transport properties (e.g., 1.75 × 10⁻¹⁰ S cm⁻¹ at 300 K for 1; for details, see Fig. S3 in the ESI†). The thermal conductivity of 1 is one of the lowest reported for crystalline materials. Such a value is more interesting to compare with the exceptional TE materials in the range of 300–800 K, such as the highest ZT value in the SnSe crystal, which exhibits an ultralow κ_L value (0.25–0.68 W m⁻¹ K⁻¹), is due to the strong anharmonicity of chemical bonds in this layered compound,²¹ phonon-liquid electron-crystal (PLEC) materials Cu_2−xS (0.30–0.55 W m⁻¹ K⁻¹)²² and Cu₇PSe₆ (0.23–0.34 W m⁻¹ K⁻¹),² and typical phonon-glass electron-crystal (PGEC) materials, e.g. multiple-filled skutterudites (Ba_0.08La_0.05Yb_0.04Co₄Sb₁₂, 1.61–0.97 W m⁻¹ K⁻¹),²³ Zintl phases (Yb₁₄MnSb₁₁,²⁴ 0.61–0.47 W m⁻¹ K⁻¹, and Gd₁₁₇Co₅₆Sn₁₁₂, 0.3–0.5 W m⁻¹ K⁻¹),²⁵ clathrates (Ba₈Ga₁₆Ge₃₀,²⁶ 0.20–0.46 W m⁻¹ K⁻¹, and Ba₈Au₁₆P₃₀,²⁷ 0.15–0.45 W m⁻¹ K⁻¹), tetrahedrites (Cu_12−xZn_xSb₄S₁₂,^19a 0.15–1.02 W m⁻¹ K⁻¹, and Cu₁₂Sb₄S₁₂Se,^19f 0.31–0.72 W m⁻¹ K⁻¹), highly disordered compound Zn₄Sb₃ (0.27–0.42 W m⁻¹ K⁻¹),²⁸ semiconducting sulfosalt LiPbSb₃S₆ (0.21–0.24 W m⁻¹ K⁻¹)²⁹ and Ag₉TlTe₅ (<0.25 W m⁻¹ K⁻¹).³⁰ In addition, the ultralow thermal conductivity of 1 appears to be similar in origin to the recently reported CsAg₅Te₃⁵ and likely results from the concerted rattling of Cu atoms with different chemical environments in the structure.

In summary, the first quaternary 3D copper-rich sulfide framework, Ba₅Cu₈In₂S₁₂, in the A/TM/M/Q system (A = cations; TM = coinage metals; M = group 13 metals; Q = chalcogenides) has been discovered. The remarkable structural feature is the novel Cu₈S₁₀S_4/2 clusters with the Cu atoms in three different chemical environments. More interestingly, such an extraordinary group of Cu atoms in the structure results in an ultralow lattice thermal conductivity (ca. 0.28 W m⁻¹ K⁻¹) at around 800 K. This new insight will shed useful light on the search and design of promising thermoelectric materials with exceedingly low thermal conductivities.
