Roles of hydrocarbon chain-length in preparing graphene oxide from mildly-oxidized graphite with intercalating anionic aliphatic surfactants

Yang Huab, Zhuang Liac, Hongqiang Liacd, Yanyan Liuacd and Shaoxian Song*acd
aSchool of Resources and Environmental Engineering, Wuhan University of Technology, Luoshi Road 122, Wuhan, Hubei 430070, China. E-mail: shaoxian@uaslp.mx; Fax: +86 2787 212127
bInstituto de Metalurgia, Universidad Autonoma de San Luis Potosi, Av. Sierra Leona 550, San Luis Potosi C.P. 78210, Mexico
cHubei Provincial Collaborative Innovation Center for High Efficient Utilization of Vanadium Resources, Wuhan University of Technology, Luoshi Road 122, Wuhan, Hubei 430070, China
dHubei Key Laboratory of Mineral Resources Processing and Environment, Wuhan University of Technology, Luoshi Road 122, Wuhan, Hubei 430070, China

Received 18th December 2015 , Accepted 19th January 2016

First published on 22nd January 2016


Abstract

The effects of the hydrocarbon chain-length of aliphatic surfactants on the preparation of graphene oxide from mildly-oxidized graphite oxide through intercalation and the intercalating mechanism have been studied in this work. This study was performed on a mildly-oxidized graphite oxide and its exfoliated products through the measurements of X-ray diffraction, ultraviolet visible spectrophotometer, atomic force microscopy, cyclic voltammetry, zeta potential, Fourier transformed infrared spectra and X-ray photoelectron spectrometer. The experimental results have shown that the in-plane graphitic order remained unaltered after intercalating surfactants into the graphite oxide. The yield and quality of prepared graphene oxide were proportional to the hydrocarbon chain-length of the aliphatic surfactants. Also, it was found that the aliphatic surfactants were intercalated into the lamellas of graphite oxide by means of hydrogen bonding and hydrophobic attractive force instead of electrostatic attraction or chemical bonding.


1. Introduction

As a star material, graphene has drawn significant attention in recent years because of its supreme mechanical stiffness,1 large specific surface area,2 high electrical and thermal conductivity.3–5 Graphene can be prepared using various methods such as micromechanical exfoliation of graphite,6 exfoliation of graphite in surfactant/water solutions,7 thermal or chemical reduction of graphene oxide,8,9 or chemical vapor deposition on metal substrates.10 Generally, the top-down method used to prepare graphene from graphite via graphene oxide (GO, prepared from graphite oxide) route was considered as the promising approach for the economical and mass production of graphene.

Although reducing GO can produce large amount of single-layer sheets, the resulting graphenes bear a substantial amount of structural defects and residual oxygen inherited from the oxidation step.11,12 To solve this problem, a method proposed was to decrease the oxidation degree of graphite oxide13 or exfoliate the graphite directly. As the yield of graphene produced through exfoliating graphite directly was low and most of the ribbons had two or more layers,14 it should be better to use the Mildly-oxidized Graphite Oxide (MGrO) as the initial raw material. Although a few of oxygen groups exist on the layers of the MGrO, the exfoliation of it with ultrasonic is still very hard.15

As reported by other researchers, ions (Mn2+, Mn3+ and SO4− etc.), surfactants (tetrabutylammonium hydroxide solution (40% water), oleylamine and octadecylamine etc.) and polymers (polyethylene oxide) were used to intercalate this MGrO to facilitate the exfoliation.16–20 Compared with other intercalators, the surfactant was most studied due to its high efficiency and ability of dispersing the suspension of reduced graphene oxide. However, most reports about the assistant exfoliation of MGrO with surfactants were concentrated on the cationic surfactants, few result about the anionic surfactants was shown. Hence, it is very valuable to study the effect of anionic surfactants on the exfoliation of MGrO. Considering the nonpolar carbon chain is the main component of anionic surfactants, the length of carbon chain should also be an important factor for the ultrasonic exfoliation of MGrO intercalated with anionic surfactants.

In this work, we attempted to investigate the effect of the length of carbon chain of short chain aliphatic surfactant aliphatic surfactants (2–18 carbon atoms, water-soluble) on the exfoliation of MGrO through the measurements of X-ray diffraction (XRD), ultraviolet visible spectrophotometer, atomic force microscopy (AFM), and cyclic voltammetry (CV). Besides, the mechanism by which the surfactants were intercalated into the lamellas of MGrO was studied through the measurement of zeta potential, Fourier transformed infrared spectra (FTIR) and X-ray photoelectron spectrometer (XPS). The objective was to obtain more understandings of the ultrasonic exfoliation of MGrO by means of intercalation of anionic surfactants.

2. Experimental

2.1. Materials

Graphite powder used in this work was artificial from the Sigma-Aldrich (USA). Its purity was over 99.99%, and the particle size was minus 45 μm.

Sodium acetate (SA), sodium laurate (SL), sodium stearate (SS), potassium permanganate, phosphoric acid (85% wt) and hydrogen peroxide aqueous solution (30% wt) from the Sinopharm Chemical Reagent Co. Ltd (China), sulfuric acid (98% wt) and hydrochloric acid (36% wt) from the Xinyang chemical reagent (China) were employed in this work. All the chemical reagents were of analytical purity. The deionized water used in this work was produced using a Millipore Milli-Q Direct 8/16 water purification system. The residual conductivity of the water was less than 1 μS cm−1.

2.2. Synthesis of graphite oxide and GO

MGrO was synthesized with improved Hummer's method by using KMnO4 as oxidant.21 First, 1.5 g graphite powders were mixed with 200 ml of concentrated H2SO4/H3PO4 mixture (ratio 9[thin space (1/6-em)]:[thin space (1/6-em)]1) in an ice water bath (5–10 °C) for 10 minutes, followed by a slow addition of 3 g KMnO4 powder. Then, the mixture was moved out the bath and was warmed to room temperature. After that, it was heated to 50 °C and then stirred at 400 rpm for 2 hours. Next, it was cooled to room temperature and then poured onto ice (made by 200 ml of water) together with 3 ml of 30% H2O2. The suspension was washed in succession with 200 ml of water, 100 ml of 30% HCl and 100 ml of ethanol in twice, followed by water washing until the pH became neutral. Finally, the solid was dried in a vacuum oven at 60 °C to obtain purified graphite oxide powder.

The GO was prepared in the following procedure. First, the purified MGrO powder was mixed with water to obtain a 0.05 wt% dispersion, and the pH of this dispersion was adjust to 10. Then a certain dosage of aliphatic surfactant was added in and mixed with the MGrO for a certain time at 300 rpm. After that, an ultrasonic treatment was carried out for a given time by using a Cole Parmer ultrasonic processor (750 W and 20 kHz) with 20% amplitude. This treatment aimed to exfoliate the graphite oxide. Then, the dispersion was applied to a centrifugation at 3000 rpm and rotor radius of 5.2 cm for 30 min with a Thermo Scientific Sorvall ST 16 centrifuge, in order to remove the unexfoliated particles.

Ultraviolet-visible (UV-vis) absorption spectra was recorded using a 1 cm path length quartz cuvette with a Thermo Scientific Orion AquaMate 8000 UV-VIS spectrophotometer. The wavelength of 230 nm was used to determine the absorbance of GO solution, because the light absorption at this wavelength was due to the π → π* transition of C[double bond, length as m-dash]C. Based on the Lambert Beer's law, the absorbance was expressed as follows:


A = εCl (1)
where A is the absorbance, ε is the molar extinction coefficient, C is the concentration of a solute, and l is the optical path length (1 cm).22 Since ε is related to the intrinsic feature of GO and the oxidation may result in the decrease of C[double bond, length as m-dash]C structure in GO, the increase of absorbance might just attribute to the increase of concentration of GO, which is proportional to the exfoliation degree of MGrO. In this case, we can use the absorbance of GO to represent the exfoliation yield of MGrO.

2.3. Characterization

In this work, X-ray diffraction was used to characterize the crystalline nature and phase purity of the as-synthesized graphite oxide. The XRD patterns were obtained by a Bruker D8 Advance X-ray diffraction spectrometer at a voltage of 40 kV and a current of 30 mA with Cu K radiation (λ = 0.15418 nm).

Fourier transformed infrared spectra was used to investigate the chemical structure of MGrO samples. The FTIR patterns were recorded in the range of 500–4000 cm−1 using the KBr pressed-disk technique, with a Thermo/Nicolet Nexus Fourier transform infrared spectroscopy.

Atomic force microscope images for GO were obtained with a Bruker MultiMode 8 AFM under peak force tapping Mode. To prepare the samples for AFM measurement, the aqueous GO colloidal solution was coated onto the freshly cleaved mica flakes at 800 rpm with a spin coater, then they were transferred into an automatic thermostatic blast air oven and dried at 60 °C for 2 h. The detailed morphology of GO edges was observed using a Japanese JEM-2100F high-resolution transmission electron microscopy (HRTEM).

The X-ray photoelectron spectrometer analysis was performed using a VG Multilab 2000 X-ray photoelectron spectrometer and an Al Kα X-ray source with a solution of 0.47 eV was used in this test.

Cyclic voltammograms were measured using a Princeton Applied Research Versa STAT 4 electrochemical workstation at the ambient temperature in a three-electrode configuration, in which a slice of platinum, a saturated calomel electrode and the GO-modified glassy carbon electrode were used as auxiliary electrode, reference electrode and working electrode, respectively. 1 mol L−1 of H2SO4 aqueous solution served as the electrolyte and the CV tests were performed in the potential range from −1.0 to 1.0 V (vs. SCE) at a scan rate of 50 mV s−1.

A Malvern zetasizer nano-ZS90 with electrophoresis technology was used to determine the zeta potentials of the MGrO particles in aqueous solutions. Aqueous MGrO suspension with 0.05 wt% of solid concentration was first conditioned at 300 rpm for 30 min to disperse the MGrO particles well. After that, a few milliliter of the slurry was withdrawn to be put into a disposable folded capillary call for the measurement. Acidic and alkaline titrations with 0.1 mol L−1 HCl and 0.1 mol L−1 NaOH were added automatically to adjust the slurry pH. The temperature was kept at 25 ± 2 °C throughout the measurement.

3. Results and discussion

Fig. 1 illustrated the UV absorbance histogram of GO prepared from mildly oxidized without or with the help of SA, SL and SS with respect to the exfoliation time. It is clear that the absorbance value of GO increased with the increase of exfoliation time, indicating the exfoliation degree was proportional to the exfoliation time. The absorbance of GO prepared with surfactant is much higher than that of GO prepared without surfactant, meaning that the surfactant do help the ultrasonic exfoliation a lot. Besides, it can be observed that the absorbance of GO prepared with SS is always the highest compared with that of SA and SL, suggesting that the high efficiency of it on the exfoliation of MGrO. As shown in Fig. 2, the polar parts of SA, SL and SS are same, the difference is just the number of carbon atom in their nonpolar chains. In this case, the increase of exfoliation efficiency should be attributed to the increase of the length of carbon chain when different surfactants were used.
image file: c5ra27089h-f1.tif
Fig. 1 Absorbance column pattern of GO prepared without or with 10−3 mol L−1 SA, SL and SS. The pre-intercalation time is 0.

image file: c5ra27089h-f2.tif
Fig. 2 The molecular structure diagram of SA, SL and SS.

It is known that the layer number is a very important property of graphene as just a single-, double- and few- (3 to <10) layer graphene can be distinguished as a 2D crystal.23 As the precursor of chemical converted graphene, the thickness of GO is a key property to evaluate its quality. In Fig. 3, the AFM images of GO–SA, GO–SL and GO–SS (GO prepared in the presence of SA, SL and SS) at 30 min were presented. We can find that the morphologies of GO sheets (Fig. 3a, d and g) obtained with the help of surfactants were plate-like sheets with lateral dimensions between 100 nm and 1.2 μm, and these flakes were stretched on the mica substrate well due to their hydrophilicity. Line profiles taken from the AFM images (Fig. 3b, e and h) revealed the flakes of GO–SA to have an apparent thickness of 1.24–1.96 nm (e.g., Fig. 3b), the flakes of GO–SL to have a thickness of 1.47–2.05 nm (e.g., Fig. 3e) and the flakes of GO–SS to have a thickness of 1.09–1.3 nm (e.g., Fig. 3h). According to literature, the thickness of a single-layer GO should be about 1 nm.24 The thickness results showed that the particles of GO prepared with the help of surfactants should be 1 or 2 layers, indicating a good quality of them. Similarly, the HRTEM images showed in Fig. 4a–c also presented the plate-like particles of GO–SA, GO–SL and GO–SS, the enlarged images of their edges indicated that these particles were single layer. In addition, the statistical distribution histograms of GO–SA, GO–SL and GO–S were presented in Fig. 3c, f and i. It was shown that the normalized frequency of flake thickness distributed at 1.0–1.5 nm increased as the chain length of surfactants increased, indicating that the surfactant with longer chain length will help to prepare better (more single- or few-layer) GO.


image file: c5ra27089h-f3.tif

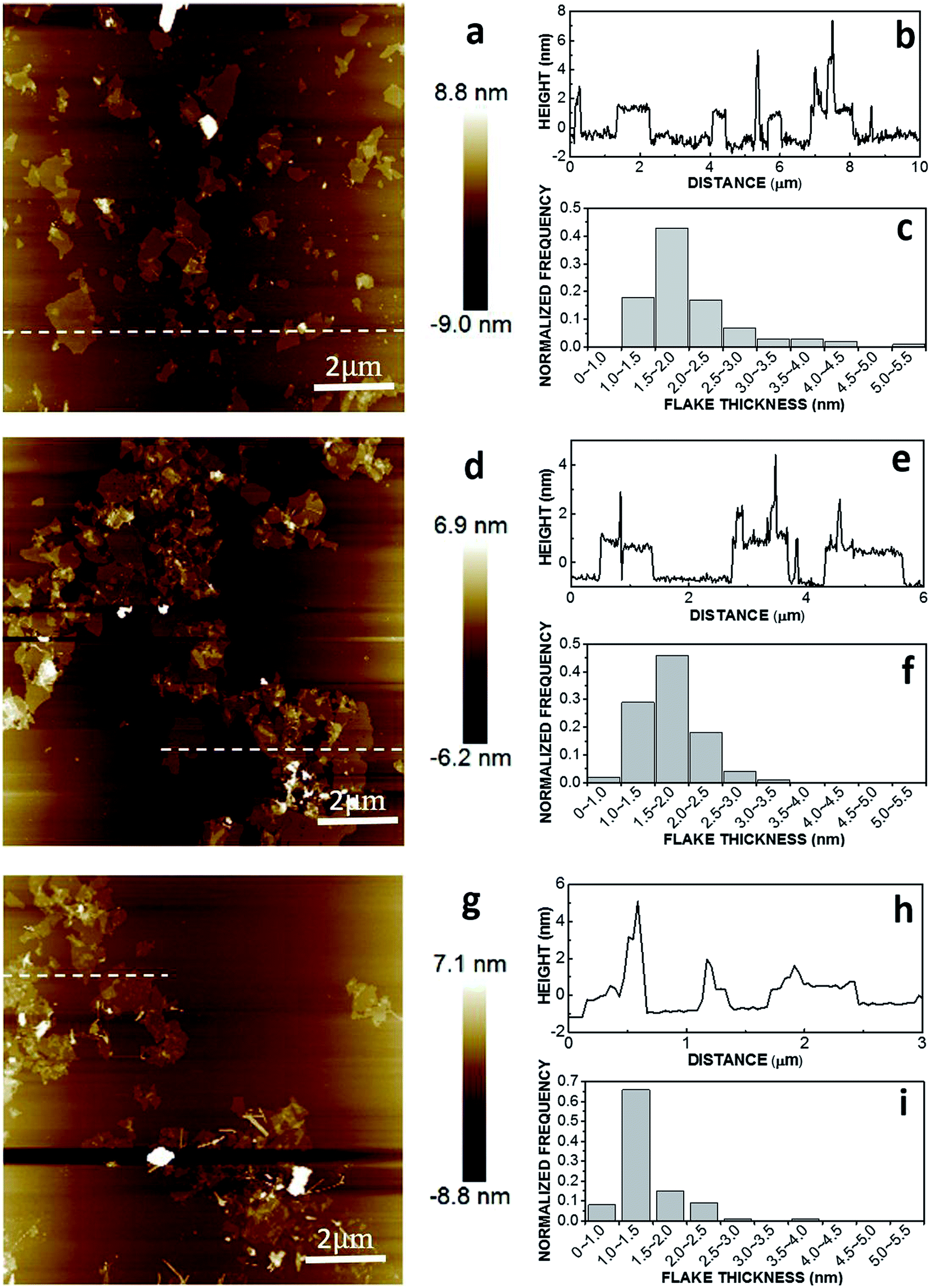

Fig. 3 (a, d and g) AFM images of GO–SA, GO–SL and GO–SS at 30 min; (b, e and h) line profiles taken along the white lines in (a), (d) and (g); (c, f and i) histogram showing the distribution of apparent flake thickness measured on ∼100 objects from the AFM images (a), (d) and (g).

image file: c5ra27089h-f4.tif
Fig. 4 (a–c) HRTEM images of GO–SA, GO–SL and GO–SS at 30 min. The edges of these GO particles were magnified and showed at the top left corner.

When surfactants were added into the suspension of MGrO, it was believed that the effect of surfactants on the basal spacing of MGrO also would be a very important factor of the exfoliation. The variation of basal spacing of MGrO with respect to the change of surfactant was shown in Fig. 5. As shown in the XRD pattern of pristine MGrO, the characteristic diffraction peak located at 2θ = 26.14° should belong to the graphitized part in mildly-oxidized graphite, which was very close to the peak (2θ = 26.24°) of pure graphite. Another apparent characteristic peak in the XRD curve of MGrO located at 2θ = 11.86°, indicating a low oxidation degree of the oxidized area. After surfactants were added, the peaks of the graphitized area and oxidized area both moved leftward gradually. It might be attributed to that the intercalation of surfactants into the interlayer of MGrO has broken the π–π van der Waals bond between the lamellas further, leading to the increase of the basal space of the interlayers. This enlargement of the sp3 C–O structure will make it easier for the surfactants to enter into the mildly or unoxidized area in MGrO further during the exfoliation. In this case, it will be easier to obtain the GO sheets with low oxidization degree from MGrO after surfactants was added. These GO sheets can be used to prepare reduced graphene oxide through thermal or chemical reduction, which contain a few defects on the surface of it.


image file: c5ra27089h-f5.tif

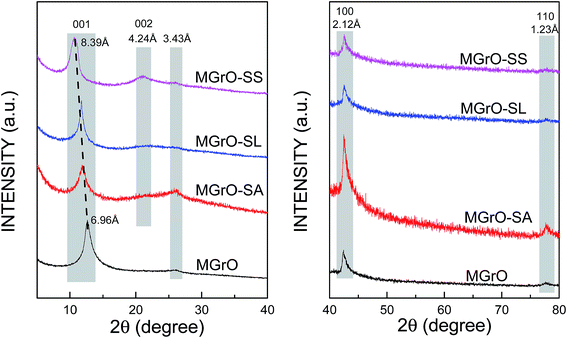

Fig. 5 XRD patterns of MGrO–SA, MGrO–SL and MGrO–SS. MGrO–SA, MGrO–SL and MGrO–SS corresponding to the MGrO mixed with 10−3 mol L−1 SA, SL and SS for 24 h at 300 rpm, respectively.

Moreover, the two patterns in Fig. 5 both show 100 and 110 reflections, indicating the maintenance of in-plane graphite oxide order. These reflections and hence the in-plane graphitic order remain unaltered after intercalating surfactants into MGrO. This phenomenon also was reported in the works of Mauro et al.25 In particular, a clear 002 reflections also was observed on the XRD pattern of MGrO–SS, which correspond to increases of spacing between MGrO layers from 0.696 to 0.839 nm, as a consequence of the good intercalation ability of SS. In addition, it was also found that the rank order of the basal spacing of GO–SA, GO–SL and GO–SS should be GO–SA < GO–SL < GO–SS. This phenomenon indicates that the longer the carbon chain of surfactant, the bigger the effect of it on the basal spacing of MGrO.

According to the discussing above, the surfactants facilitate the exfoliation through intercalating into the interlayer. The intercalation of surfactants might be realized in two periods during the exfoliation process (Fig. 6): (1) the surfactants were intercalated into lamellas as they were mixed with MGrO suspension, this period was the pre-intercalation process; (2) the surfactants were intercalated when ultrasonic was exerted on the MGrO particles to help open the lamellas, this period was the exfoliation-intercalation process. Fig. 7 presented the absorbance of GO–SA, GO–SL and GO–SS prepared with 0, 2, 12 and 24 h pre-intercalation. It was shown that the absorbance of GO–SA increased about 0.3 as the pre-intercalation time increased from 0 to 24 h, and this increment of absorbance is the largest in these three samples. Whereas, compared with the increase of absorbance which caused by changing the exfoliation time, this 0.3 increment was really small. In addition, it was noteworthy that the increment of the absorbance of GO–SS was just about 0.06, indicating that the effect of pre-intercalation on the exfoliation with SS was very small. Above all, it can be concluded that the exfoliation-intercalation played a major role in the exfoliation process.


image file: c5ra27089h-f6.tif
Fig. 6 Schematic representation for the pre-intercalation process and exfoliation-intercalation process.

image file: c5ra27089h-f7.tif
Fig. 7 Absorbance of GO–SA, GO–SL and GO–SS at 5 min prepared with 0, 2, 12 and 24 h pre-intercalation. The prey column represent the absorbance of GO–SS with 24 h pre-intercalation and followed a 2 min centrifugation at 10[thin space (1/6-em)]000 rpm.

Besides, the height of the three white columns in Fig. 7 were nearly same, meaning that a long pre-intercalation time may eliminate the effect of chain length on the exfoliation. However, after a 2 min centrifugation was carried out on the GO samples with 24 h pre-intercalation, the absorbance of GO–SA, GO–SL and GO–SS decreased from about 1.07 to 0.85, 0.91 and 1.02, respectively. This slightly decrease of absorbance may derive from the existence of thick particles in GO suspension. The shorter the length of the carbon chain in surfactants, the more the thick particles in the GO suspension prepared, which corresponding well with the distribution results of the thickness of GOs in Fig. 3c, f and i.

As surfactant effect the exfoliation of MGrO through intercalating into the lamellas, it is very important to understand how does it been moved into the interlayer and also how does it been kept inside the lamellas of MGrO. Fig. 8 illustrated the zeta potential of pristine MGrO with respect to the pH. It was shown that the zeta potential of MGrO particles decreased as pH increased from 2 to 9, then it increased a little with the continual increase of pH. In our work, the particles of MGrO were negatively charged as the pH was adjust to 10, and also the surfactant was negatively charged. In this case, there shouldn't exist electrostatic attractive force between the MGrO particles and aliphatic surfactants. Hence, the surfactants added will not be intercalated into lamellas by electrostatic attraction.


image file: c5ra27089h-f8.tif
Fig. 8 Zeta potential of pristine MGrO as the function of pH.

It is known that the adsorption species can be divided into physical adsorption and chemical adsorption. As there are abundant of oxygen groups exist on the structure of MGrO, it is wonder that SA, SL and SS may react with the oxygen groups to be fixed on MGrO. Fig. 9 illustrated the IR results of MGrO which was mixed with surfactants for 12 h and then followed with water washing. The peaks at 3417 and 1622 cm−1 were attributed to OH stretching vibration and OH bending vibration, respectively, indicating the existence of physisorbed water molecules and structural OH groups.26 The band at 1730 cm−1 might refer to the C[double bond, length as m-dash]O stretching motions in COOH groups located at the edges and vacancy defects of MGrO lamellae, and also that of the quinone and ketone groups.27 Besides, a band at 1224 cm−1 might attributed to C–O–C stretching vibration, indicating the existence of ethers and/or epoxides.28 The band at 1054 cm−1 was caused by the C–O stretching vibration in C–OH bond. In Fig. 9, the location of the oxygen groups described above didn't change after SA, SL and SS were added, indicating there was no chemical bond connection between the oxygen groups and the surfactants.


image file: c5ra27089h-f9.tif
Fig. 9 IR results of MGrO which was mixed with surfactants for 12 h and then followed with water washing.

In addition, it is known that the typical peak of C[double bond, length as m-dash]O in unionized carboxylic acid is at 1710–1713 cm−1, and the sodium carboxylate stretch generally appear at 1557–1560 cm−1.29,30 As no peaks appeared at these two areas in Fig. 9, it can be concluded that the FTIR results should belong to the vibration of oxygen groups in MGrO but not in aliphatic acid. This result suggest that the surfactant adsorbed on MGrO may be moved through repeated water washing, the adsorption type should belong to a physical adsorption or hydrogen bonding.

To understand the effect mechanism of surfactant on MGrO more, a XPS measurement was carried out on MGrO–SS and the results were presented in Fig. 10. Analysis of the XPS data was carried out using Thermo Scientific Avantage software, the peaks assigned to carbon atoms with sp2 hybridized orbitals (C–C) were all calibrated to 284.60 eV.31 The XPS data of C 1s of MGrO (Fig. 10a) exhibits the peak of C–O and C[double bond, length as m-dash]O bonds, located at 286.33 eV and 287.56 eV, respectively. The peaks at 532.46 eV and 534.36 eV in Fig. 10b were assigned to C–O and C[double bond, length as m-dash]O, respectively. According to literature,32 the carbon–oxygen double bond in this MGrO should belong to ketone in which the oxygen connected with aromatic nucleus but not belong to carboxyl group. This result corresponded well with the report which indicated that the after SS was added into the suspension of MGrO–SS, the XPS spectrums of C 1s and O 1s both changed a little compared with that of pristine MGrO. The position of the peaks of C–C, C–O and C[double bond, length as m-dash]O bonds were located at 284.60 eV, 286.59 eV and 288.73 eV, respectively. For the XPS results of O 1s, the binding energies of C–O and C[double bond, length as m-dash]O were located at 532.48 eV and 535.23 eV (Fig. 10c), and a new peak appeared at 530.73 eV (Fig. 10d) which indicated the existence of the O–C[double bond, length as m-dash]O in SS.


image file: c5ra27089h-f10.tif

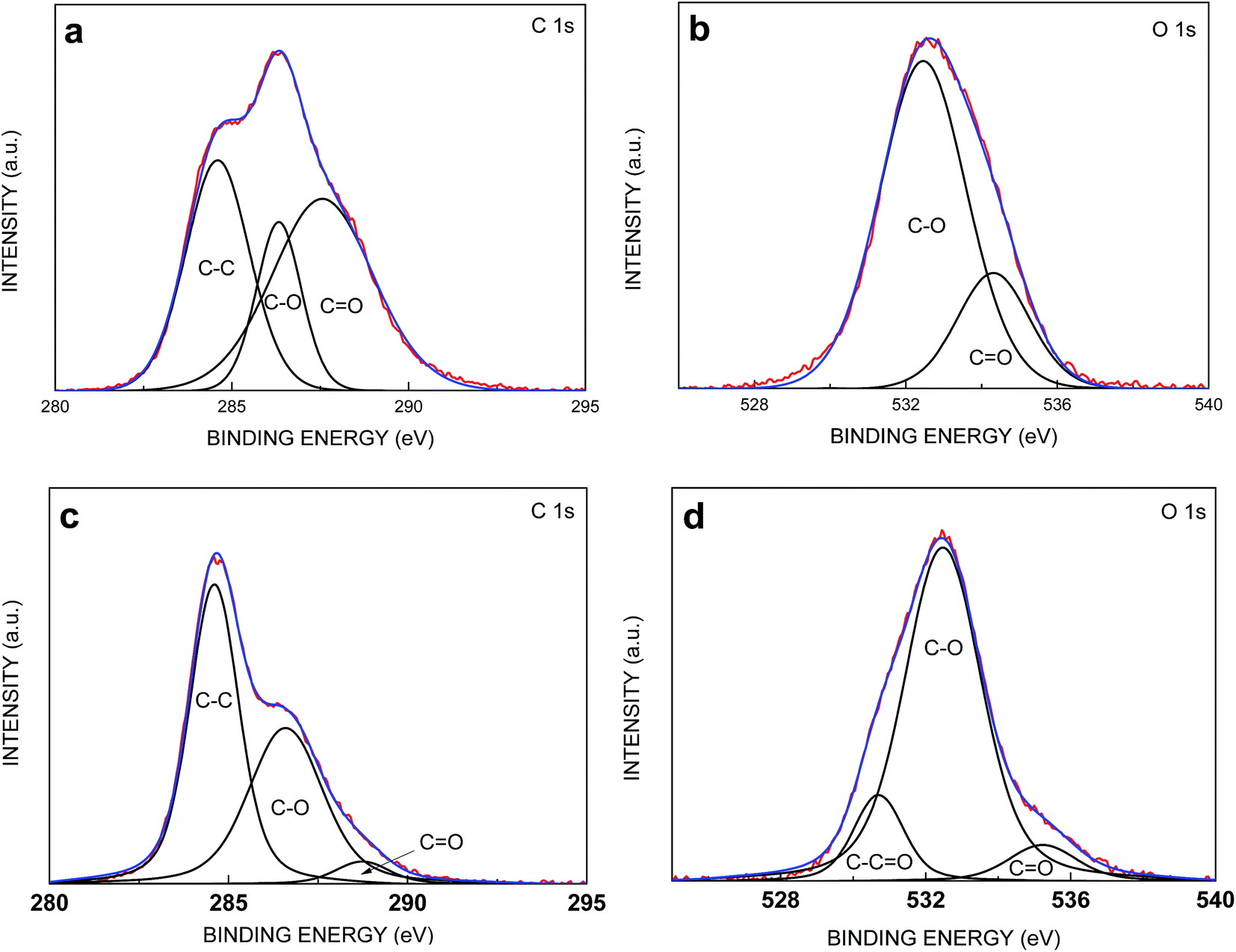

Fig. 10 (a) C 1s XPS spectra of MGrO; (b) O 1s XPS spectra of MGrO; (c) O 1s XPS spectra of MGrO–SS and (d) O 1s XPS spectra of MGrO–SS.

It is known that the binding energy will shift if the chemical environment around the atom changed. According to the report of Stevens et al., the formation of a new hydrogen bond will result in a high binding energy shift for the acceptor atom (O atom).33 As the FTIR results have proven that there is no new bond generated after SS was added, then it can be suggested that the red shift of the binding energy of C–O and C[double bond, length as m-dash]O should be attributed to the hydrogen bonding between MGrO and the hydrolysate (stearic acid) of SS (Fig. 11). Especially, the shift value of the peak of C[double bond, length as m-dash]O corresponded well with the results of Flamia et al., in which the binding energy of C 1s in C[double bond, length as m-dash]O changed from 287.6 eV to 288.8 eV as C[double bond, length as m-dash]O was transformed into C[double bond, length as m-dash]O⋯H.34

Considering the nonpolar carbon chains in anionic surfactants and the C[double bond, length as m-dash]C aromatic structure in mildly-oxidized graphite, it can be assumed that the surfactant and MGrO should be attracted into the interlayer through hydrophobic force (Fig. 11). The longer the carbon chain, the stronger the hydrophobic force. The stronger hydrophobic force makes it easier for the surfactant to be intercalated into the lamellas of MGrO, meaning better exfoliation efficiency. This mechanism corresponds well with the variation of the absorbance of GO–SA, GO–SL and GO–SS. According to the studies on the intercalation of cationic surfactants into graphite oxide,19,25 it was very hard to remove the cationic surfactants from GO prepared as a strong electrostatic attraction was formed between them. Compared with the cationic surfactants, the anionic surfactants used in our work can be moved through repeated water washing as the interaction between the surfactants and GO was not very strong, which was beneficial to the further application of GO prepared.


image file: c5ra27089h-f11.tif
Fig. 11 Schematic representation for the hydrogen bonding and hydrophobic connection between MGrO and SS.

The CV curves of GO–SA, GO–SL and GO–SS were shown in Fig. 12, it can be observed that the faradaic peak decreased with the increase of the length of carbon chain (in the red rectangle). This variation indicates that the content of the oxygen groups on GO surface should also decrease with the increase of the length of carbon chain. After GO was reduced into reduced graphene oxide (RGO), the less the oxygen groups, the less the defects in RGO. Hence, it can be concluded that the aliphatic surfactants (contain 2–18 carbon atoms) with longer chain length may help to produce more and better GO through exfoliating mildly-oxidized graphite.


image file: c5ra27089h-f12.tif
Fig. 12 Cyclic voltammograms curves of MGrO–SA, MGrO–SL and MGrO–SS.

4. Conclusions

1. It was experimentally found that the intercalation of sodium acetate, sodium laurate, sodium stearate wouldn't change the in-plane graphitic order of mildly-oxidized graphite oxide. These surfactants affect the exfoliation of mildly-oxidized graphite oxide through intercalating into the lamellas and enlarging the basal spacing of mildly-oxidized graphite oxide. The intercalation of these surfactants was realized mainly in the exfoliation-intercalation process, as the ultrasonic will open the lamellas slightly to facilitate the intercalation of surfactants. The longer the length of carbon chain, the higher the yield of graphene oxide and the better the quality of it.

2. The intercalation of the aliphatic surfactants into graphite oxide was implemented through hydrogen bonding and hydrophobic attractive force instead of electrostatic attraction or a chemical bonding. In this case, the surfactants adsorbed on graphite oxide may be moved through repeated water washing, which is beneficial to the further application of graphene oxide prepared.

Acknowledgements

The financial supports for this work from the National Natural Science Foundation of China under the project No. 51474167 and No. 51504176 are gratefully acknowledged. Also, Y. Hu would like to thank the Consejo Nacional de Ciencia y Tecnología for offering him the scholarship under the grant No. 301725 during his Ph. D. Studying.

References

  1. K. S. Novoselov, V. I. Falko, L. Colombo, P. R. Gellert, M. G. Schwab and K. Kim, A roadmap for graphene, Nature, 2012, 490, 192–200 CrossRef CAS PubMed.
  2. Y. W. Zhu, S. Murali, W. W. Cai, X. Li, J. W. Suk, J. R. Potts and R. S. Ruoff, Graphene and graphene oxide: synthesis, properties, and applications, Adv. Mater., 2010, 22, 3906–3924 CrossRef CAS PubMed.
  3. S. Stankovich, D. A. Dikin, G. H. B. Dommett, K. M. Kohlhaas, E. J. Zimney, E. A. Stach, R. D. Piner, S. T. Nguyen and R. S. Ruoff, Graphene-based composite materials, Nature, 2006, 442, 282–286 CrossRef CAS PubMed.
  4. C. Gomez-Navarro, R. T. Weitz, A. M. Bittner, M. Scolari, A. Mews, M. Burghard and K. Kem, Electronic transport properties of individual chemically reduced graphene oxide sheets, Nano Lett., 2007, 7, 3499–3503 CrossRef CAS PubMed.
  5. R. Prasher, Graphene spreads the heat, Science, 2010, 328, 185–186 CrossRef CAS PubMed.
  6. K. S. Novoselov, A. K. Geim, S. V. Morozov, D. Jiang, Y. Zhang, S. V. Dubonos, I. V. Grigorieva and A. A. Firsov, Electric field effect in atomically thin carbon films, Science, 2004, 306, 666–669 CrossRef CAS PubMed.
  7. W. Fu, J. Kiggans, S. H. Overbury, V. Schwartz and C. Liang, Low-temperature exfoliation of multilayer-graphene material from FeCl3 and CH3NO2 cointercalated graphite compound, Chem. Commun., 2011, 47, 5265–5267 RSC.
  8. Z. S. Wu, W. Ren, L. Gao, B. Liu, C. Jiang and H. M. Cheng, Synthesis of high-quality graphene with a pre-determined number of layers, Carbon, 2009, 47, 493–499 CrossRef CAS.
  9. S. Stankovich, D. A. Dikin, R. D. Piner, K. A. Kohlhaas, A. Kleinhammes, Y. Jia, Y. Wu, S. T. Nguyen and R. S. Ruoff, Synthesis of graphene-based nanosheets via chemical reduction of exfoliated graphite oxide, Carbon, 2007, 45, 1558–1565 CrossRef CAS.
  10. A. Reina, X. Jia, J. Ho, D. Nezich, H. Son, V. Bulovic, M. S. Dresselhaus and J. Kong, Large area, few-layer graphene films on arbitrary substrates by chemical vapor deposition, Nano Lett., 2008, 9, 30–35 CrossRef PubMed.
  11. C. Gomez-Navarro, J. C. Meyer, R. S. Sundaram, A. Chuvilin, S. Kurasch, M. Burghard, K. Kern and U. Kaiser, Atomic Structure of Reduced Graphene Oxide, Nano Lett., 2010, 10, 1144–1148 CrossRef CAS PubMed.
  12. K. Erickson, R. Erni, Z. Lee, N. Alem, W. Gannett and A. Zettl, Determination of the Local Chemical Structure of Graphene Oxide and Reduced Graphene Oxide, Adv. Mater., 2010, 22, 4467–4472 CrossRef CAS PubMed.
  13. Y. Hu, S. Song and A. Lopez-Valdivieso, Effects of oxidation on the defect of reduced graphene oxides in graphene preparation, J. Colloid. Interf. Sci., 2015, 450, 68–73 CrossRef CAS PubMed.
  14. X. L. Li, G. Y. Zhang, X. D. Bai, X. M. Sun, X. R. Wang, E. G. Wang and H. J. Dai, Highly conducting graphene sheets and Langmuir–Blodgett films, Nat. Nanotechnol., 2008, 3, 538–542 CrossRef CAS PubMed.
  15. Y. Xu, K. Sheng, C. Li and G. Shi, Highly conductive chemically converted graphene prepared from mildly oxidized graphene oxide, J. Mater. Chem., 2011, 21, 7376–7380 RSC.
  16. J. J. Sun, N. X. Yang, Z. Sun, M. Q. Zeng, L. Fu, C. G. Hu and S. S. Hu, Fully Converting Graphite into Graphene Oxide Hydrogels by Preoxidation with Impure Manganese Dioxide, ACS Appl. Mater. Interfaces, 2015, 7, 21356–21363 CAS.
  17. Y. Z. Hong, Z. Y. Wang and X. B. Jin, Sulfuric Acid Intercalated Graphite Oxide for Graphene Preparation, Sci. Rep., 2013, 3, 1–6 Search PubMed.
  18. J. W. Kim, D. W. Kang, T. H. Kim, S. G. Lee, N. Byun, D. W. Lee, B. H. Seo, R. S. Ruoff and H. S. Shin, Mosaic-like Monolayer of Graphene Oxide Sheets Decorated with Tetrabutylammonium Ions, ACS Nano, 2013, 7, 8082–8088 CrossRef CAS PubMed.
  19. K. K. Yang, S. Liang, L. F. Zou, L. W. Huang, C. Park, L. S. Zhu, J. Y. Fang, Q. Fu and H. Wang, Intercalating Oleylamines in Graphite Oxide, Langmuir, 2012, 28, 2904–2908 CrossRef CAS PubMed.
  20. Y. Matsuo, K. Tahara and Y. Sugie, Synthesis of poly(ethylene oxide)-intercalated graphite oxide, Carbon, 1996, 34, 672–674 CrossRef CAS.
  21. W. Hummers and R. Offeman, Preparation of graphitic oxide, J. Am. Chem. Soc., 1958, 80, 1339 CrossRef CAS.
  22. J. Chen, X. Zhang, X. Zheng, C. Liu, X. Cui and W. Zheng, Size distribution-controlled preparation of graphene oxide nanosheets with different C/O ratios, Mater. Chem. Phys., 2013, 139, 8–11 CrossRef CAS.
  23. A. K. Geim and K. S. Novoselov, The rise of graphene, Nat. Mater., 2007, 6, 183–191 CrossRef CAS PubMed.
  24. H. C. Schniepp, J. Li, M. J. McAllister, H. Sai, M. Herrera-Alonso, D. H. Adamson, R. K. Prud'homme, R. Car, D. A. Saville and I. A. Aksay, Functionalized Single Graphene Sheets Derived from Splitting Graphite Oxide, J. Phys. Chem. B, 2006, 110, 8535–8539 CrossRef CAS PubMed.
  25. M. Mauro, M. Maggio, A. Antonelli, M. R. Acocella and G. Guerra, Intercalation and Exfoliation Compounds of Graphite Oxide with Quaternary Phosphonium Ions, Chem. Mater., 2015, 27, 1590–1596 CrossRef CAS.
  26. T. Szabo, O. Berkesi, P. Forgo, K. Josepovits, Y. Sanakis, D. Petridis and I. Dekany, Evolution of surface functional groups in a series of progressively oxidized graphite oxides, Chem. Mater., 2006, 18, 2740–2749 CrossRef CAS.
  27. A. Bagri, C. Mattevi, M. Acik, Y. J. Chabal, M. Chhowalla and V. B. Shenoy, Structural evolution during the reduction of chemically derived graphene oxide, Nat. Chem., 2010, 2, 581–587 CrossRef CAS PubMed.
  28. S. Tamas, O. Berkesi, P. Forgo, K. Josepovits, Y. Sanakis, X. D. Petridis and I. Dekany, Evolution of Surface Functional Groups in a Series of Progressively Oxidized Graphite Oxides, Chem. Mater., 2006, 18, 2740–2749 CrossRef.
  29. H. V. Trana, L. D. Tranb and H. D. Vua, Thai. H. Facile surface modification of nanoprecipitated calcium carbonate by adsorption of sodium stearate in aqueous solution, Colloids Surf., A, 2010, 366, 95–103 CrossRef.
  30. A. C. Hendrik, G. B. Leanne and E. M. Gayle, Sodium stearate adsorption onto titania pigment, J. Colloid Interface Sci., 2003, 268, 293–300 CrossRef.
  31. S. F. Pei and H. M. Cheng, The reduction of graphene oxide, Carbon, 2012, 50, 3210–3228 CrossRef CAS.
  32. J. F. Moulder, W. F. Stickle, P. E. Sobol and K. D. Bomben Handbook of X Ray Photoelectron Spectroscopy: A Reference Book of Standard Spectra for Identification and Interpretation of Xps Data. Physical Electronics, Inc. U. S. A. 1992, p. 42 Search PubMed.
  33. J. S. Stevens, S. J. Byard, C. C. Seaton, G. Sadiq, R. J. Daveya and S. L. M. Schroeder, Proton transfer and hydrogen bonding in the organic solid state: a combined XRD/XPS/ssNMR study of 17 organic acid–base complexes, Phys. Chem. Chem. Phys., 2014, 16, 1150–1160 RSC.
  34. R. Flamia, G. Lanza, A. M. Salvi, J. E. Castle and A. M. Tamburro, Conformational Study and Hydrogen Bonds Detection on Elastin-Related Polypeptides Using X-ray Photoelectron Spectroscopy, Biomacromolecules, 2005, 6, 1299–1309 CrossRef CAS PubMed.
