New efficient tert-butyldiphenyl-4H-pyranylidene sensitizers for DSSCs

José María Andrés-Castána, Santiago Franco*a, Belén Villacampab, Jesús Ordunaa and Raquel Pérez-Tejadaa
aDepartamento de Química Orgánica-ICMA, Universidad de Zaragoza-CSIC, 5009-Zaragoza, Spain. E-mail: sfranco@unizar.es; Tel: +34 976 76 22 83
bDepartamento de Física de la Materia Condensada-ICMA, Universidad de Zaragoza-CSIC, 50009-Zaragoza, Spain

Received 5th November 2015 , Accepted 4th December 2015

First published on 7th December 2015


Abstract

Three new triarylamine-free sensitizers for DSSCs containing a tert-butyldiphenyl-4H-pyranylidene as the donor unit are reported. Devices have been carefully optimized resulting in high Jsc values. An efficiency of 5.80% has been obtained for a sensitizer with a thiophene ring in the π spacer. Solvent, dipping time, thickness and photoanode structure have been optimized.


Dye sensitized solar cells (DSSCs)1,2 constitute an interesting alternative to silicon-based devices due to their lower cost, light weight, greater flexibility in molecular design and aesthetic features, like color and transparency. Although for a long time the best performances were obtained with ruthenium-based dyes, efficiencies above 12% have been recently achieved with metal-free organic dyes,3–5 opening the possibility for further improvement of results. A donor–π–acceptor (D–π–A) configuration is usually used in the design of organic sensitizers. This architecture assures an appropriate intramolecular charge transfer (ICT) from donor to acceptor moieties, facilitating the injection of electrons on the semiconductor following light absorption.

A great number of promising donor units have been reported in the literature, including carbazole,6–9 triphenylamine (TPA),10–13 phenothiazine,14–16 indoline,17–20 dithiafulvene,21,22 coumarin23–25 and indenoperylene,3 among others. However, the syntheses of dyes containing these units are not always straightforward. TPA based metal-free organic dyes present several advantages, like an excellent electron-donating capability and a non-planar structure which suppresses the formation of aggregates on the TiO2 surface. For these reasons triarylamines are, probably, one of the most popular donors in DSSC. However, this unit is limited by its relatively narrow absorption range and low molar extinction coefficients. The absorption bandwidth can be extended by introducing auxiliary donor groups in the donor unit, but these changes often conduce to more unstable dyes and more complicated syntheses. In this context, to broaden the range of possibilities is therefore necessary to develop novel organic dyes containing triarylamine free donors.

Recently, we have reported the usefulness of 4H-pyranylidene-based dyes with silyl bulky groups on the thiophene spacer, as efficient sensitizers for DSSC.26 The 4H-pyranylidene is a more powerful donor group than TPA and it has scarcely employed in DSSC. The properties of this donor system can be modified by the incorporation of different substituents at the 4- and 6- positions of the pyranylidene ring, modulating its donor capability and exercising a good control on the aggregates formation. In this communication we present three new 4H-pyranylidene dyes with two bulky tert-butylphenyl groups in the donor unit. These bulky groups assure a good solubility and, at the same time, can reduce the recombination processes on the semiconductor surface. As it is well known, the π linker can greatly affect the photovoltaic performance of sensitizers and for this reason, three common spacers based on heterocyclic systems (thiophene and thiazole) have been chosen (Scheme 1).


image file: c5ra23339a-s1.tif
Scheme 1

The optimization process of photovoltaic measurements for new dyes in DSSC is not a simple issue because a great number of factors are involved, including structure and thickness of the TiO2 electrode, solvent and soaking time, electrolyte composition, co-absorption additives, device construction, etc. We have realised that in most cases the optimization process is not detailed. In this communication we can also cover the optimization steps from the synthesis to the final measurement of the photovoltaic properties of the new dyes.

The synthesis of the sensitizers can be carried out in a simple three step protocol from a pyrylium salt. The sequence consists in a Wittig coupling, from a phosphonium salt, and a Knoevenagel condensation of the corresponding aldehydes with cyanoacetic acid. In all cases, dyes precipitated in the reaction medium and further purification processes were not required. The new sensitizers and all intermediates were characterized by 1H, 13C NMR and mass spectrometry (see ESI section).

The absorption spectra of the dyes in CH2Cl2 and onto TiO2 electrodes are shown in Fig. 1. All of them exhibit a strong absorption band from 400 to 650 nm, which can be ascribed to ICT processes. Their molar extinction coefficients are relatively high, at the same level than other previously reported 4H-pyranylidene dyes.27 When dyes are adsorbed onto TiO2, absorption peaks are blue-shifted around 80 nm, probably due to deprotonation of the dyes or H aggregates formation during the adsorption. In order to compare the properties of the new dyes, the data and spectra of a TPA sensitizer28 (by changing the 4H-pyranylidene ring in dye 9 with a triarylamine) are also provided (Scheme 2).


image file: c5ra23339a-f1.tif

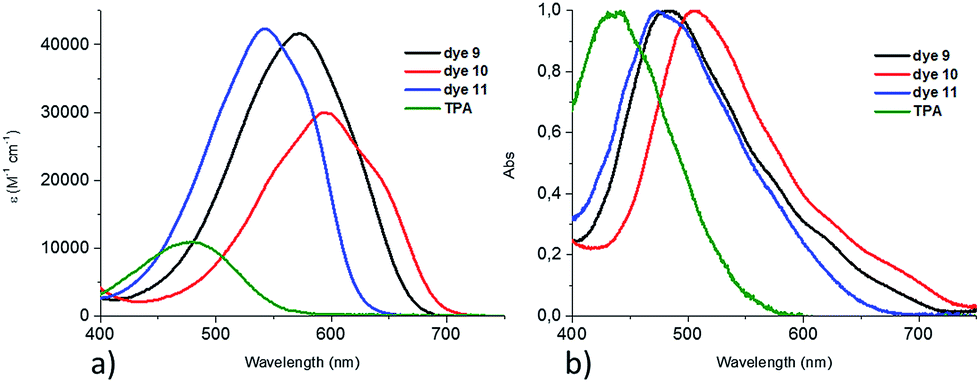

Fig. 1 (a) Absorption spectra of dyes 9–11 and TPA in CH2Cl2 solution and (b) normalized absorption spectra of dyes 9–11 and TPA adsorbed onto TiO2 electrodes.

image file: c5ra23339a-s2.tif
Scheme 2

The first oxidation potentials (Eox) vs. NHE of the new dyes were determined by Differential Pulse Voltammetry (DPV) in CH2Cl2 using a graphite working electrode, an Ag/AgCl reference electrode and a platinum counter electrode. The oxidation potential of the excited state (E*ox) was calculated from EoxEO–O. The measured Eox were in all cases lower than TPA, pointing to a better donor capacity for the 4H-pyranylidene unit (Table 1). The obtained values for Eox and E*ox assure in all cases the regeneration of the oxidized dyes (Eox electrolyte I/I3 = +0.40 V) and the injection from the excited states to the TiO2.

Table 1 Optical and electrochemical properties of dyes 9–11 and TPA
Dye λabsa, nm (ε, M−1 cm−1) λabsb, nm Eoxc, V (vs. NHE) Eo–od, eV E*oxe, V (vs. NHE)
a Absorption maxima in CH2Cl2 (10−5 M).b Absorption maxima on TiO2 films (14 μm).c First oxidation potentials were measured from a three electrode electrochemical cell in CH2Cl2 (10−3 M) containing 0.1 M TBAPF6. A glassy carbon, Ag/AgCl (KCl 3 M), and Pt were used as working, reference, and counter electrode respectively. Calibration was done using ferrocene as standard.d Zeroth–zeroth transition energies estimated from the intersection between absorption and emission spectra.e Excited-state oxidation potentials of the dyes obtained from EoxEO–O.
9 573 (41[thin space (1/6-em)]587) 480 +0.80 +1.95 −1.15
10 594 (29[thin space (1/6-em)]955) 508 +0.75 +1.89 −1.14
11 543 (42[thin space (1/6-em)]342) 474 +0.80 +2.06 −1.26
TPA 437 (10[thin space (1/6-em)]832) 416 +1.17 +2.40 −1.23


Before carrying out the photovoltaic measurements of the three new sensitizers, it was necessary to optimize the following parameters: solvent, time of dipping and structure and thickness of the titania electrodes.

Based in our experience with organic dyes, the starting conditions were defined as: 0.1 mM for dye and 0.3 mM of chenodeoxicolic acid in CH2Cl2 (2 hours of soaking) and a electrolyte based on the classical I/I3 system (1-butyl-3-methylimidazolium iodide (0.53 M), LiI (0.10 M), I2 (0.050 M), tert-butylpyridine (0.52 M) in acetonitrile). As it can be observed in Table 2, dye 9 obtained the highest efficiency and therefore this sensitizer was chosen for the optimization process.

Table 2 Photovoltaic parameters using preliminary (P) and optimized conditions
Dye Jsc (mA cm−2) Voc (V) ff (%) η (%)
9P 10.49 0.570 65.4 3.91
10P 5.89 0.540 69.2 2.20
11P 4.92 0.550 70.0 1.90
9 18.79 0.579 53.4 5.80
10 12.31 0.552 56.6 3.85
11 15.37 0.584 59.1 5.30
TPA 9.65 0.668 60.7 3.91


The first optimized parameter was the solvent. Three solvents were tested, i.e., CH2Cl2, acetonitrile/tert-butyl alcohol (1[thin space (1/6-em)]:[thin space (1/6-em)]1) and THF. The optimization was carried out after dipping the TiO2 anodes (made of Ti nanoxide T/SP from Solaronix of 14 μm) at five different immersion times: 2, 3, 4, 5 and 24 hours. Fig. 2 shows that CH2Cl2 was the best solvent for every studied soaking time, so it was chosen thereafter. Then, two different anode structures were tested: one double layered using Ti nanoxide T/SP and Ti nanoxide R/SP (2 μm) on top of it as scatter, both from Solaronix, and another single layered using 18NR-AO TiO2 from Dyesol. In addition, two different photoanode thicknesses (4 and 14 μm) were tested for each titania paste. Fig. 2 shows that the best performance, for the five studied soaking times, was obtained with the 14 μm Dyesol electrodes, so they were used thereafter. Moreover, 5 hours was found to be the most suitable immersion time. All the corresponding JV curves and their respective photovoltaic parameters can be found in the ESI.


image file: c5ra23339a-f2.tif
Fig. 2 Efficiencies obtained with dye 9 during the optimization step vs. the immersion time modifying (a) the solvent and (b) the structure and thickness of the TiO2 layer.

Eventually, the three new dyes were tested and their photovoltaic properties compared at the optimized conditions, under standard A.M. 1.5G simulated solar radiation. We have also included data for the TPA device in the same conditions.

As it can be observed in Table 2, the overall efficiency of each dye was significantly increased with respect to the preliminary data and this result can be related to the great increase in the Jsc value, whereas Voc is not dissimilar and ff decreases a little. In addition, dye 9 obtained the highest efficiency (5.80%), followed by dye 11 (5.30%) and dye 10 (3.85%), the latter very similar to the obtained efficiency for TPA devices fabricated at the same conditions (3.91%). Despite a better Voc for the TPA dye, Jsc is almost doubled in the case of dye 9, which compensates the lower Voc. The observed differences can be correlated to the obtained values of molar absorptivity and the amount of dye adsorbed onto the anode (2.29 × 10−7, 2.11 × 10−7, 1.76 × 10−7 and 1.75 × 10−7 mol cm−2 for dyes 9, 10, 11 and TPA respectively). The higher molecular size of the TPA sensitizer leads, probably, to a lower adsorption of this dye on the photoelectrode.29 The amount of the adsorbed dye was obtained by desorbing the sensitizer with a solution of NaOH[thin space (1/6-em)]:[thin space (1/6-em)]EtOH, 1[thin space (1/6-em)]:[thin space (1/6-em)]1 and measuring the concentration by UV-Vis spectroscopy from the corresponding calibrated curves.

As it can be observed in the IPCE curves (Fig. 3) dyes 9–11 exhibit a broader range of photon conversion in comparison to TPA reference dye. In addition, dye 9 featured a broad IPCE trace spanning a large spectral window spectrum, higher than 70% from 400 to 700 nm, suggesting that electrons are efficiently collected in this region.


image file: c5ra23339a-f3.tif
Fig. 3 (a) Photocurrent density–voltage curves and (b) IPCE curves for dyes 9–11 and TPA.

Electrochemical Impedance Spectroscopy (EIS) is a very useful tool to study the electron transport kinetics of a DSSC. The experiments were performed under a forward bias (−0.65 V) in the dark. Bode phase plots (Fig. 4) were used to estimate the lifetime of electrons (τ) in the conduction band of TiO2. The lifetimes were calculated following the equation τ = 1/2πf (f = frequency at the maximum of the curve in the intermediate frequency region in the Bode plot). The obtained τ are 7.82, 6.74, 7.92 and 10.5 ms for dyes 9, 10, 11 and TPA, respectively. Although the value obtained for TPA is higher, it is quite noticeable that the electron lifetimes are not dissimilar, but they are in agreement with the Voc observed (Voc TPA > Voc 11 > Voc 9 > Voc 10).


image file: c5ra23339a-f4.tif
Fig. 4 Bode plots of dyes 9–11 and TPA obtained by EIS.

In summary, a series of three triarylamine-free new dyes based on a tert-butylphenyl-4H-pyranylidene ring have been synthesized and successfully used as sensitizers for DSSC.

A quite suitable optimization conditions have been found and used for measuring 4H-pyranylidene dyes, which could be employed for other organic systems. The photovoltaic parameters of devices based on these sensitizers have been measured and compared with a TPA-dye used as reference. The obtained results (an efficiency 48% higher than obtained for the TPA system in the same conditions) probe that the 4H-pyranylidene ring presents new opportunities towards the design of efficient triarylamine-free organic dyes. This work is currently underway in our laboratory.

Acknowledgements

We gratefully acknowledge the financial support from the Spanish Ministry of Science and Innovation, MICINN-FEDER (Projects CTQ2011-22727 and CTQ2014-52331-R) and the Gobierno de Aragón-Fondo Social Europeo (E39). A contract to J. M. Andrés (ICMA, PI2-2015) is also acknowledged.

Notes and references

  1. B. E. Hardin, H. J. Snaith and M. D. McGehee, Nat. Photonics, 2012, 6, 162–169 CrossRef CAS.
  2. A. Hagfeldt, G. Boschloo, L. C. Sun, L. Kloo and H. Pettersson, Chem. Rev., 2010, 110, 6595–6663 CrossRef CAS PubMed.
  3. Z. Yao, M. Zhang, H. Wu, L. Yang, R. Li, P. Wang, Z. Yao and L. Yang, J. Am. Chem. Soc., 2015, 137, 3799–3802 CrossRef CAS PubMed.
  4. K. Kakiage, Y. Aoyama, T. Yano, K. Oya, J.-i. Fujisawa and M. Hanaya, Chem. Commun., 2015, 51, 15894–15897 RSC.
  5. K. Kakiage, Y. Aoyama, T. Yano, T. Otsuka, T. Kyomen, M. Unno and M. Hanaya, Chem. Commun., 2014, 50, 6379–6381 RSC.
  6. G. Tian, S. Cai, X. Li, H. Agren, Q. Wang, J. Huang and J. Su, J. Mater. Chem. A, 2015, 3, 3777–3784 CAS.
  7. J.-F. Huang, J.-M. Liu, L.-L. Tan, Y.-F. Chen, Y. Shen, L.-M. Xiao, D.-B. Kuang and C.-Y. Su, Dyes Pigm., 2015, 114, 18–23 CrossRef CAS.
  8. Y. Tan, M. Liang, Z. Lu, Y. Zheng, X. Tong, Z. Sun and S. Xue, Org. Lett., 2014, 16, 3978–3981 CrossRef CAS PubMed.
  9. Z. S. Wang, N. Koumura, Y. Cui, M. Takahashi, H. Sekiguchi, A. Mori, T. Kubo, A. Furube and K. Hara, Chem. Mater., 2008, 20, 3993–4003 CrossRef CAS.
  10. Z. J. Ning and H. Tian, Chem. Commun., 2009, 5483–5495,  10.1039/b908802d.
  11. W. Gao, M. Liang, Y. Tan, M. Wang, Z. Sun and S. Xue, J. Power Sources, 2015, 283, 260–269 CrossRef CAS.
  12. Q. Xia, M. Liang, Y. Tan, W. Gao, L. Ouyang, G. Ge, Z. Sun and S. Xue, Org. Electron., 2015, 17, 285–294 CrossRef CAS.
  13. W. D. Zeng, Y. M. Cao, Y. Bai, Y. H. Wang, Y. S. Shi, M. Zhang, F. F. Wang, C. Y. Pan and P. Wang, Chem. Mater., 2010, 22, 1915–1925 CrossRef CAS.
  14. R. Y.-Y. Lin, T.-C. Chu, P.-W. Chen, J.-S. Ni, P.-C. Shih, Y.-C. Chen, K.-C. Ho and J. T. Lin, ChemSusChem, 2014, 7, 2221–2229 CrossRef CAS.
  15. J.-S. Ni, W.-S. Kao, H.-J. Chou and J. T. Lin, ChemSusChem, 2015, 8, 2932–2939 CrossRef CAS PubMed.
  16. A. Baheti, K. R. Justin Thomas, C.-T. Li, C.-P. Lee and K.-C. Ho, ACS Appl. Mater. Interfaces, 2015, 7, 2249–2262 CAS.
  17. T. Horiuchi, H. Miura, K. Sumioka and S. Uchida, J. Am. Chem. Soc., 2004, 126, 12218–12219 CrossRef CAS PubMed.
  18. Y. Wu, M. Marszalek, S. M. Zakeeruddin, Q. Zhang, H. Tian, M. Graetzel and W. Zhu, Energy Environ. Sci., 2012, 5, 8261–8272 CAS.
  19. S. Ito, S. M. Zakeeruddin, R. Humphry-Baker, P. Liska, R. Charvet, P. Comte, M. K. Nazeeruddin, P. Péchy, M. Takata, H. Miura, S. Uchida and M. Grätzel, Adv. Mater., 2006, 18, 1202–1205 CrossRef CAS.
  20. S. Ito, H. Miura, S. Uchida, M. Takata, K. Sumioka, P. Liska, P. Comte, P. Pechy and M. Graetzel, Chem. Commun., 2008, 5194–5196,  10.1039/b809093a.
  21. K. Guo, K. Yan, X. Lu, Y. Qiu, Z. Liu, J. Sun, F. Yan, W. Guo and S. Yang, Org. Lett., 2012, 14, 2214–2217 CrossRef CAS PubMed.
  22. Z. Wan, C. Jia, Y. Duan, X. Chen, Z. Li and Y. Lin, RSC Adv., 2014, 4, 34896–34903 RSC.
  23. C. Zhong, J. Gao, Y. Cui, T. Li and L. Han, J. Power Sources, 2015, 273, 831–838 CrossRef CAS.
  24. K. Kakiage, Y. Aoyama, T. Yano, K. Oya, T. Kyomen and M. Hanaya, Chem. Commun., 2015, 51, 6315–6317 RSC.
  25. B. J. Song, H. M. Song, I. T. Choi, S. K. Kim, K. D. Seo, M. S. Kang, M. J. Lee, D. W. Cho, M. J. Ju and H. K. Kim, Chem.–Eur. J., 2011, 17, 11115–11121 CrossRef CAS PubMed.
  26. R. Pérez-Tejada, N. Martínez de Baroja, S. Franco, L. Pellejà, J. Orduna, R. Andreu and J. Garín, Dyes Pigm., 2015, 123, 293–303 CrossRef.
  27. S. Franco, J. Garín, N. Martínez de Baroja, R. Pérez-Tejada, J. Orduna, Y. Yu and M. Lira-Cantú, Org. Lett., 2012, 14, 752–755 CrossRef CAS.
  28. D. P. Hagberg, T. Marinado, K. M. Karlsson, K. Nonomura, P. Qin, G. Boschloo, T. Brinck, A. Hagfeldt and L. Sun, J. Org. Chem., 2007, 72, 9550–9556 CrossRef CAS PubMed.
  29. Z. J. Ning, Q. Zhang, H. C. Pei, J. F. Luan, C. G. Lu, Y. P. Cui and H. Tian, J. Phys. Chem. C, 2009, 113, 10307–10313 CAS.
