Rodrigo G. Gibiliscoa,
Martina Kieningerb,
Oscar N. Venturab and
Mariano A. Teruel*a
aINFIQC (CONICET – Facultad de Ciencias Químicas, Universidad Nacional de Córdoba).Dpto. de Fisicoquímica, Ciudad Universitaria, 5000 Córdoba, Argentina. E-mail: mteruel@fcq.unc.edu.ar
bCCBG, DETEMA, Facultad de Química, Universidad de la República, CC1157, 11400 Montevideo, Uruguay
First published on 7th December 2015
The rate coefficient for the reaction of propargyl alcohol (2-propyn-1-ol, 2P1OL) with OH radicals has been determined using gas chromatography with a flame ionization detector (GC/FID) at 298 K and atmospheric pressure. The experimental value obtained by the relative method using methyl methacrylate and butyl acrylate as references was (2.05 ± 0.30) × 10−11 cm3 per molecule per s. The present value was compared with previous determinations and a theoretical study of the reaction was performed in order to explain the differences in reactivity of the alcohol with that of the corresponding alkyne (propyne, P). A full discussion of the addition and abstraction mechanisms was developed for 2P1OL at the density functional and ab initio composite model levels. It was found that addition is much faster than abstraction for propyne but occurs at approximately the same rate for 2P1OL. In this last case, however, abstraction of hydrogen from the C1 carbon leads to a complex which can react further to yield addition products. Thermodynamic and kinetic data calculated for these reactions suggest that the products would be the 1,2- and 1,3-propanediol radicals. These products would react further with O2, in the case where it is present in the reaction mixture.
Alkynes are atmospherically important species since dicarbonyl compounds generated by their OH-initiated oxidation react rapidly with oxygen to give organic acids,2 which contribute to acid rain. Propargyl alcohol (2-propyn-1-ol, 2P1OL) is widely used as a corrosion inhibitor in solutions of metal complexes.3–5 It is also used as intermediate in organic synthesis and as solvent and stabilizing additive in electroplating rinsing for the manufacture of mirrors.
In the atmosphere, reaction of alkynes with OH radicals proceeds mainly by addition to the C–C triple bond; however there is a small contribution of the hydrogen abstraction channel when allowed.6 The stability of the alkoxy radical formed depends on the chain length and the possibilities of stabilization of the electronically excited adduct, which could minimize decomposition to initial reactants.6–8
While there are several studies concerning the degradation of unsaturated alcohols initiated by the main tropospheric oxidants,9–12 information on the reactions of alkynols is still scarce.13,14 A relative kinetic study of the reaction of OH + 3,5-dimethyl-1-hexin-3-ol in 1 atm of air in the presence of NOx was reported in the literature, and there is also an absolute determination of the rate coefficient of the reaction OH + 2P1OL at low pressures (1.33 to 2.67 kPa) using pulsed laser photolysis coupled with laser induced fluorescence technique (PLP-LIF). In this latter study, the authors evaluated also the possibility of formation of different adducts depending on the position of the OH radical attack to the C–C triple bond. A theoretical study of the degradation mechanism of the reaction of propargyl alcohol initiated by the OH radical has been also reported. This study gave more evidence of the importance of atmospheric oxidation of alkynes as a result of the formation of dicarbonyl compounds and acids in their reaction with molecular oxygen.15
Calvert et al.16 have suggested that the value obtained by Upadhyaya et al. for OH + 2P1OL at low pressure is not applicable to atmospheric conditions, and tentatively ascribed those results to a pressure dependence of the rate coefficient like in the reaction of allyl alcohol + OH radicals.14 In that case, they obtained a lower rate coefficient of k(OH + allyl alcohol) than in previous studies conducted near atmospheric pressure.17–19 Consequently, Calvert et al. recommended further work to determine the rate coefficient of 2P1OL + OH reaction at atmospheric pressure.16
In this context, and given the necessity to have kinetic and mechanistic information at atmospheric conditions, we present in this work the rate constant for the atmospheric oxidation of 2P1OL initiated by OH radicals at 1 atm and 298 K to determine the difference, if any, with the data of Upadhyaya et al. at different pressures.14
Additionally, a theoretical investigation of the reaction of OH radicals with 2-propyn-1-ol (2P1OL) and propyne (P) was developed to elucidate the differences in reactivity of 2P1OL and the analog alkyne at different temperatures:
CH![]() | (1) |
CH![]() | (2) |
The goal of the present work was to find an explanation that the rate of reaction (1) determined in our work is more than two times larger than the rate coefficient of reaction (2) determined by Atkinson and Aschmann, (6.21 ± 0.31) × 10−12 cm3 per molecule per s.20 In this paper, addition of OH to different sites was studied: C2 and C3 for 2P1OL and C1 and C2 for P. In the case of 2P1OL, the abstraction of the hydroxyl hydrogen has also been studied in order to have a full appraisal of the possible mechanisms.
Measured amounts of the organic reactants were flushed into the bag with a stream of nitrogen. The bag was then filled to its full capacity at atmospheric pressure with nitrogen. H2O2 was used to generate OH radicals by photolysis using a set of germicidal lamps:
H2O2 + hν → 2OH | (3) |
These lamps provide UV-radiation with a λ maximum around 254 nm. In the present work, typically 6 of these lamps were used to produce OH radicals and the time of photolysis varied from 2 to 5 minutes.
Reaction mixtures consisting of a reference organic compound and the sample organic reactant, diluted in nitrogen, were prepared in the reaction chamber and left to mix, prior to photolysis, for approximately 1 h. Before each set of experiments, the bag was cleaned by filling it with a mixture of O2 and N2 photolyzed for 15–25 min using 4 germicidal lamps (Philips 30W) with a UV emission at 254 nm, to produce O3. After this procedure, the bag was cleaned up again by repeated flushing with air and the absence of impurities was checked by gas chromatography before performing the experiments.
Gas samples were periodically removed from the Teflon bag using a gas tight syringe and put into the injector port at 473 K.
Organics were monitored by gas chromatography (Shimadzu GC-14B) coupled with flame ionization detection (FID), using a HP-20 capillary column held from 313 to 393 K.
In the presence of the oxidant OH radical the alcohol studied and the references decay through the following reactions:
OH + 2P1OL → products | (4) |
OH + reference → products | (5) |
Provided that the reference compound and the alcohol are lost only by reactions (4) and (5), then it can be shown that:
ln{[2P1OL]0/[2P1OL]t} = (k1/k4)ln{[Ref]0/[Ref]t} | (I) |
The relative rate technique relies on the assumption that the alcohol and the reference compounds are removed solely by reaction with OH radicals. To verify this assumption, mixtures of hydrogen peroxide and air with the alcohol of interest and the reference compound were prepared and allowed to stand in the dark for two hours. In all cases, the reaction of the organic species with the OH precursor (hydrogen peroxide), in the absence of UV light, was of negligible importance over the typical time periods used in this work.
Furthermore, to test for possible photolysis of the reactants used, mixtures of the alcohols in air, in the absence of hydrogen peroxide, were irradiated for 30 minutes using the output of all the germicidal lamps surrounding the chamber. No significant photolysis of any of the reactants was observed.
The initial concentrations used in the experiments were in the range of 70–200 ppm for 2P1OL, 80–250 ppm for methyl methacrylate and butyl acrylate.
In all cases studied, full geometry optimization of the structures was performed up to 10−4 Å accuracy in the Cartesian coordinates, with the aim of identifying all minima and transition states. Analytical second derivatives were used to calculate vibrational frequencies, which, in turn, were employed to guarantee the character of the critical point (either minimum or transition state) and to calculate thermodynamic properties using the standard statistical thermodynamics rigid rotor, harmonic oscillator, ideal gas model. The internal rotation of the OH group was not considered as a vibration, but the hindered rotor model was used instead. Results are reported at temperatures of 0 and 298 K, in both cases at the standard pressure of 101.325 kPa. The Gaussian 09 computer code27 running in a mixed Xeon/Opteron cluster with 24 nodes per calculation was employed for this work. Theoretical methods referred above were used to study the structure of reactants, intermediates (pre-barrier complexes), transition states and products for the reactions.
Losses of 2P1OL by OH radicals are shown with different reference compounds in Fig. 1.
![]() | ||
Fig. 1 Relative rate data for the OH reaction with 2P1OL using methyl methacrylate (●) and butyl acrylate (○) as references compounds at 298 K and atmospheric pressure. |
The following were used as reference reactions to determine the rate coefficients of reaction (1):
OH + CH2![]() | (6) |
OH + CH2![]() | (7) |
k1 = (2.05 ± 0.30) × 10−11 cm3 per molecule per s |
Compound | Reference | k2P1OL/kreference | k2P1OL 10−11 cm3 per molecule per s |
---|---|---|---|
2P1OL CH![]() |
Methyl methacrylate | 0.51 ± 0.03 | 2.10 ± 0.15 |
Methyl methacrylate | 0.57 ± 0.01 | 2.40 ± 0.20 | |
Butyl acrylate | 1.02 ± 0.02 | 1.80 ± 0.30 | |
Butyl acrylate | 0.59 ± 0.03 | 1.90 ± 0.30 | |
Average | 2.05 ± 0.30 |
The error included in this value was calculated as twice the standard deviation arising from linear least-squares fit, and includes the corresponding errors in the reference rate coefficients of reactions (6) and (7). The linearity of the data points and the fact that the plots show practically no intercepts suggest that the contribution of secondary reactions with the products of the reactions studied here was negligible. Furthermore, in the present work we obtained two values of k2P1OL using two different reference compounds (CH2C(CH3)C(O)OCH3 CH2
CHC(O)O(CH2)3CH3) and for each reactant organic studied, several runs were performed at different reference and alcohol concentrations, and different conversion yields. In all cases indistinguishable results were obtained from successive experiments.
This behavior could be explained by the possibility of formation of an intramolecular hydrogen bond which stabilizes the structure of the reaction intermediate30 as observed in other similar compounds.31,32 However, the reason in the case of substituted alkynes was still unclear, since other explanations may exist. For that reason, we considered that it was worthwhile to perform a deeper exploration from the molecular point of view. Several reaction paths were investigated for the reactions as summarized in Scheme 1 for 2P1OL and 2 for P. The first reaction studied was the addition of OH to the triple bond, which will be labeled reaction path A. Two additions are possible (to C2 or C3 in 2P1OL and to C1 or C2 in P). The other three reaction channels in the case of 2P1OL were the abstraction of hydrogen from the CH2 (path B), OH (path D) and CH (path C) groups.
A previous study has shown that abstraction from a CH3 group should be about 5 times more favorable than abstraction from an OH group (see, for instance, Xu and Lin on the reaction of OH with methanol and ethanol33). Channel C, corresponding to the abstraction of H from the CH group, was not thought to be important since the radical generated would be unstable. Transition states were identified in all cases and, in the case of paths A, B and D, the results for reactions of P and 2P1OL could be compared. The importance of reaction path C is negligible for P.
![]() | ||

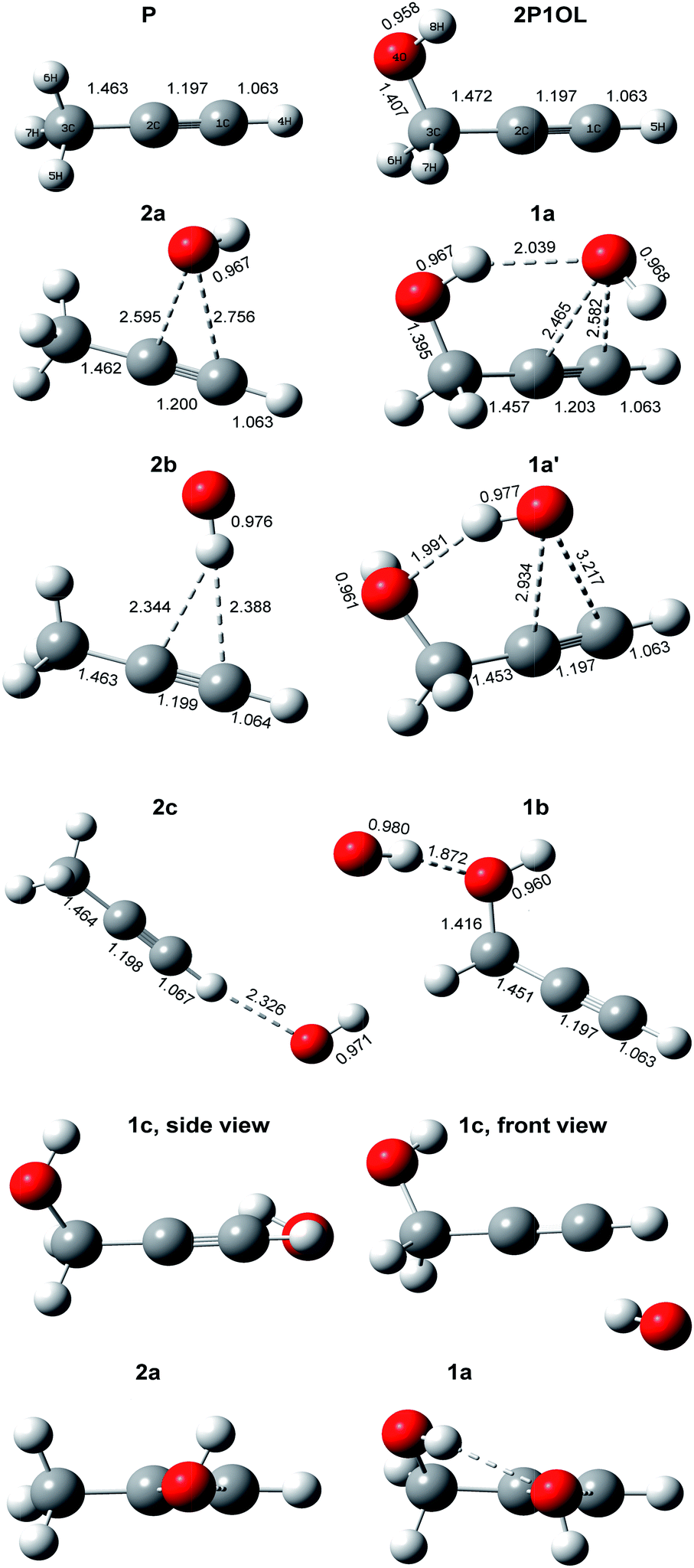

Fig. 2 Structure of propyne (P), propargyl alcohol (2P1OL) and the initial complexes for reactions (1) and (2) at the BMK/6-311++G(2df,2pd) level. Species 2a, 2b and 2c are the IC for P; species 1a, 1a′, 1b and 1c the IC for 2P1OL. Last two drawings show a comparison between the 1a (2P1OL) and 2a. |
Several pre-barrier complexes were identified. In the case of 2P1OL, 1a corresponds to the complex leading to either addition to the triple bond, or removal of the OH hydrogen. 1b corresponds to the initial complex leading to hydrogen abstraction from the CH2 group, and 1c corresponds to the initial complex leading to abstraction of the CH hydrogen. Two views of the latter are shown in Fig. 2 to appreciate the relative arrangement of the OH reactant with respect to the C–H bond. Additionally, a less stable isomer of the pre-reactive complex 1a, identified as 1a′, was found.
In this case the hydrogen bond is established between the hydrogen of the incoming hydroxyl radical and the oxygen of the alcohol group. In the case of P, 2a is the initial complex leading to addition. The comparison of front views of both 1a and 2a initial complexes show large similarities; the oxygen atom of the incoming OH is located midway between the carbon atoms but the C1–O and C2–O distances are both about 0.04 Å shorter for 2P1OL than for P. This is an effect of the hydrogen bond stabilization produced by the hydroxyl substituent in 2P1OL (the H⋯OH distance is 2.090 Å and the O–H⋯O angle is 142 deg at the BMK/6-311++G(2df,2pd) level of theory).
In the case of P, two other initial complexes, leading to hydrogen abstraction, were also identified. 2b is similar to 2a in the triangular disposition, but it is the hydrogen of the OH the one directed toward the carbons (in a similar disposition to the initial complex for the addition of hydrogen halides to alkenes in gas phase). This conformation allows the oxygen atom to be at a favorable geometry for abstraction of a hydrogen atom from the CH3 group. The third pre-reactive complex found for P shows a structure where the oxygen of the OH is clearly linked to the hydrogen of the CH group. The structure is more clearly pointing to the abstraction than in the case of 1c, but intrinsic reaction paths (IRC) calculations show that both are the correct initial complexes for those abstraction channels in their respective potential energy surfaces.
Two transition states TS1A1 and TS1A2 were found for the addition of OH to 2P1OL, as well as for the addition to P, TS2A1 and TS2A2. The effect of the hydroxyl group in propargyl alcohol is clearly seen from the comparison of the structures. For the addition at C3 in 2P1OL (C1 in P), the hydroxyl in propargyl alcohol “hooks” the incoming hydroxyl radical, the CCO angle is then reduced about 10 deg, the O–C1 distance is slightly increased, and a hydrogen bond is formed. The hydrogen of the incoming hydroxyl group is then pointing away from the triple bond, while in the addition to P is pointing towards the triple bond. In the case of the addition to C2 it is possible to observe a different effect. The hydroxyl of 2P1OL is not hydrogen bonded to the incoming hydroxyl. All efforts to locate a structure with such a bonding pattern were failing. Furthermore, the angle between the triple bond and the forming C–O bond is more closed in 2P1OL than in the addition to P.
Consequently, it may be concluded that the effect of the OH in 2P1OL with respect to the addition in C2 is relatively week and thus the addition at C2 would be similar in 2P1OL and P.
In the case of the hydrogen abstraction reactions, there are also some noticeable differences between the transition states of 2P1OL and P. In the case of abstraction from CH2OH in 2P1OL and from CH3 in P, TS1B and TS2B, the transition state appears earlier for the former than for the latter (the C–H distance in the former is about 0.04 Å shorter while the forming OH bond is larger in TS1B than in TS2B). This is clearly an effect of the hydroxyl group present in 2P1OL, since no such difference between the transition states is observed for TS1C and TS2C (corresponding to the abstraction of hydrogen from the CH group).
It is also noticeable that the HOCO dihedral angle is close to zero, another indication of the directing influence the OH of 2P1OL is having in the reaction. On the other side, the abstraction of the H bond from the CH group is similar in both 2P1OL and P. The only difference is that the transition state occurs later in 2P1OL than in P (the CH distance is larger and the OH distance shorter in TS1C than in TS2C). Finally, it is clear that abstraction of the hydrogen atom from the 2P1OL hydroxyl group occurs through a transition state that has no involvement of the triple bond. The height of the barriers and the reaction paths will be discussed later.
![]() | ||
Fig. 4 Structure of the products and intermediates obtained for the reaction of propyne with OH at the BMK/6-311++G(2df,2pd) level. Some of the important interatomic distances are shown (in Å). |
![]() | ||

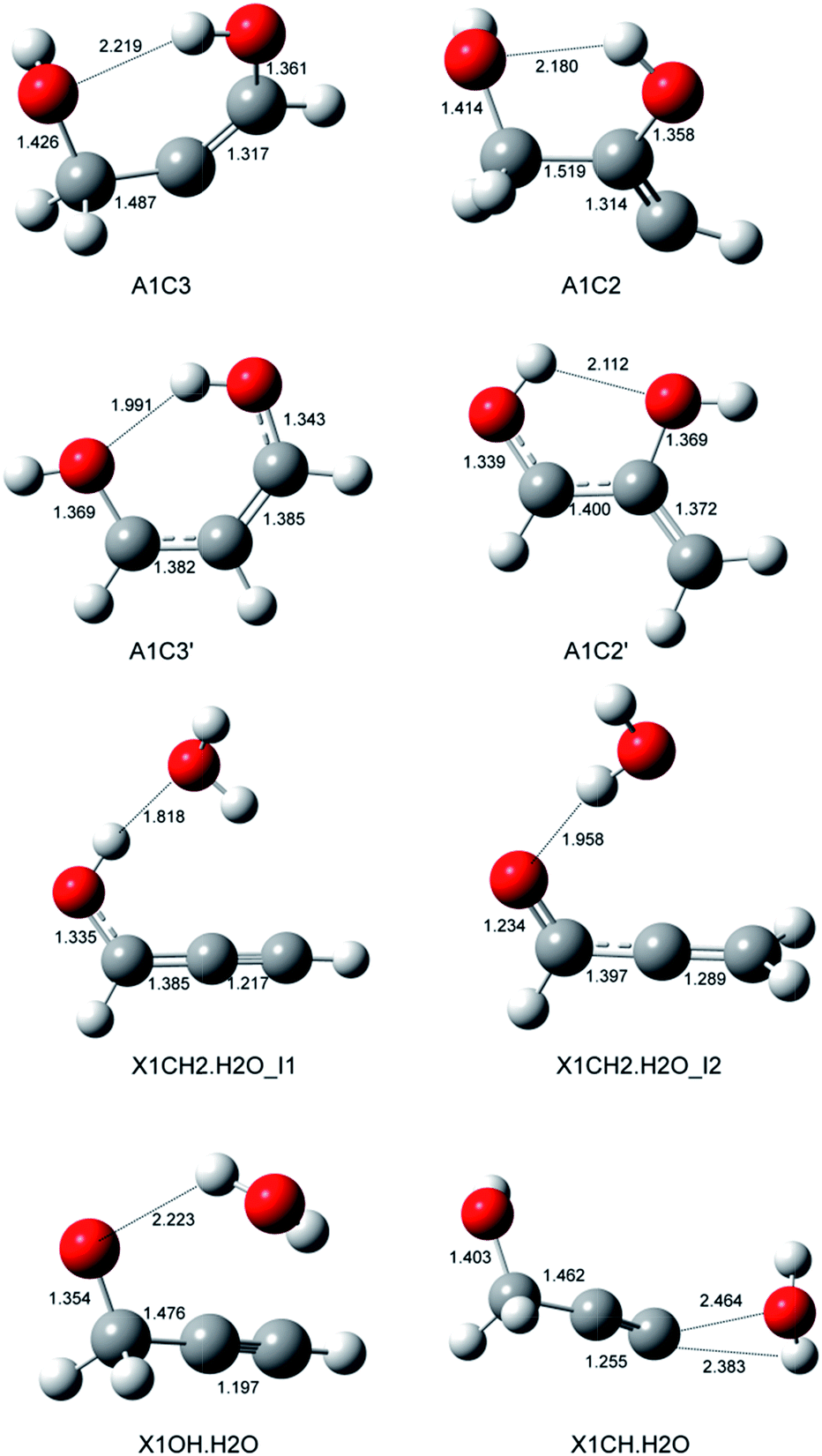

Fig. 5 Structure of the products and intermediates obtained for the reaction of 2P1OL with OH at the BMK/6-311++G(2df,2pd) level. Some of the important interatomic distances are shown (in Å). |
![]() | ||

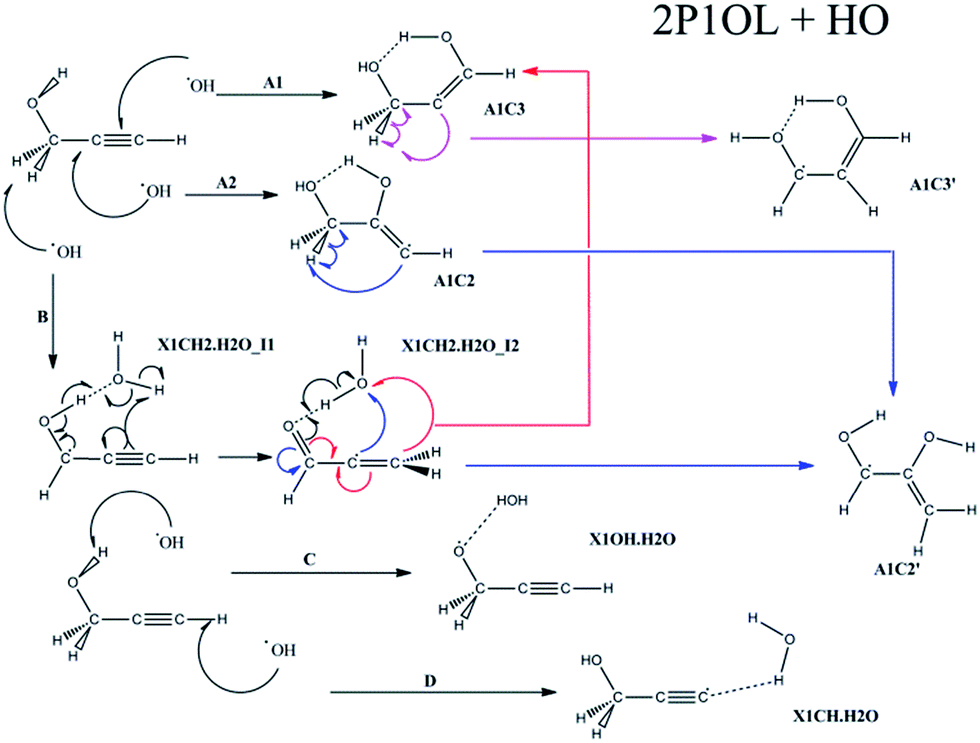

Scheme 3 Complete scheme of addition, abstraction, internal rearrangement and reaction with water of the radicals formed in the reaction of 2P1OL with OH. |
In the case of 2P1OL, the addition radical A1C3 is the one that leads to the observed products of oxidation, if oxygen is present in the reaction mixture. A hydrogen migration may occur from C1 to C2, leading to the very stable A1C3′ radical (see later for the thermochemical results). Similarly, the A1C2 product of the addition of OH to the C2 carbon in 2P1OL may lead by an H-atom internal migration from C1 to C3 to the planar stable radical A1C2′.
As shown in Scheme 3, the abstraction intermediate X1CH2·H2O_I1 may isomerize to X1CH2·H2O_I2, a structure which may further undergo a reaction between the radical and water. This may lead in turn, through different paths, to the products A1C3 or A1C2′. The complexes X1OH·H2O and X1CH·H2O do not participate in these reactions and may easily decompose, releasing water, and/or react with another radical present in the media. These reactions have not been investigated further.
As can be seen from the comparison of the structures in Fig. 4 and 5, the presence of the hydroxyl group in 2P1OL essentially determines the conformation of the stable isomers, due to the presence of the hydrogen bond. In the case of propyne, there are no structures analogue to X1CH2·H2O_I2 or X1OH·H2O, but there also exist the more stable planar isomers A2C1′ and A2C2′. This latter structure is particularly interesting and worth a deeper examination than that done in this work.
Relative energies of the pre-reactive complexes with respect to the isolated OH and P or 2P1OL reactants are shown in Table 2.
Complex | Method | ΔE | Δ(E + ZPE) | ΔH°298 K | ΔG°298 K |
---|---|---|---|---|---|
1a | M06 | −8.8 | −6.7 | −7.3 | 1.3 |
BMK | −5.7 | −4.2 | −4.6 | 3.4 | |
G2 | −4.1 | −4.4 | −4.7 | 2.7 | |
G4 | −2.8 | −2.8 | −3.4 | 5.2 | |
1a′ | M06 | −6.2 | −4.3 | −4.8 | 2.5 |
BMK | −5.2 | −3.3 | −3.7 | 3.1 | |
G2 | −4.0 | −4.3 | −4.6 | 1.7 | |
G4 | −4.8 | −4.9 | −5.4 | 2.1 | |
1b | M06 | −6.2 | −4.2 | −4.8 | 3.0 |
BMK | −5.3 | −3.6 | −3.9 | 2.5 | |
G2 | −4.0 | −4.3 | −4.6 | 1.7 | |
G4 | −4.8 | −4.9 | −5.4 | 2.1 | |
1c | M06 | −6.2 | −4.4 | −4.8 | 2.5 |
BMK | −5.2 | −3.3 | −3.7 | 3.1 | |
G2 | −4.0 | −4.3 | −4.6 | 1.7 | |
G4 | −4.8 | −4.9 | −5.4 | 2.1 | |
2a | M06 | −5.3 | −4.0 | −4.2 | 2.3 |
BMK | −2.8 | −1.5 | −1.6 | 4.6 | |
G2 | −2.3 | −2.7 | −2.9 | 3.3 | |
G4 | −0.5 | −0.9 | −1.1 | 5.6 | |
2b | M06 | −4.4 | −3.2 | −3.4 | 3.1 |
BMK | −3.5 | −2.1 | −2.3 | 4.2 | |
G2 | −2.3 | −2.7 | −2.9 | 3.3 | |
G4 | −2.8 | −3.1 | −3.4 | 3.6 | |
2c | M06 | −1.4 | −0.7 | −1.0 | 5.5 |
BMK | −0.9 | −0.1 | 0.2 | 5.3 | |
G2 | −2.3 | −2.7 | −2.9 | 3.3 | |
G4 | −1.2 | −1.5 | −1.8 | 4.7 |
Several features can be observed from the data listed. In the first place, it is clear that neither of these complexes is stable at room temperature (since for all of them ΔG°298 K > 0). Although formation of all the complexes is exergonic, the entropic term more than for compensates the enthalpy, and the free energy of formation is thus always positive. Therefore, only at low temperature these pre-reactive complexes might be observed spectroscopically.
In the second place, looking to the precision of the calculations, it can be seen that different methods give results which are very close. The best results obtained for ΔG°298 K, at the BMK/6-311++G(2df,2pd) and G4 levels, do not differ in more than 2 kcal mol−1 both for P and 2P1OL. The fact that methods based on very different levels of calculation give similar results lends credibility to the quantitative conclusions that may be reached.
In the third place, considering now only the two complexes of propyne, 2a and 2b, we conclude that their relative stability is dependent on the accuracy of the methods. Less accurate methods predict both pre-reactive complexes to be of similar stability at very low temperatures, while the more accurate methods (BMK and G4) predict 2b to be the most stable. As we pointed out before, this fact is negligible at room temperature, since entropy overrules enthalpy and the pre-reactive complexes would not be stable. Finally, considering now the three pre-reactive complexes of 2P1OL, it can be seen that they have almost all the same stabilization energy.
The only case in which there is an important difference between results of different methods is for the 1a complex in which the G4 results are way off the other methods. In all cases, the pre-reactive complexes of 2P1OL are more stable than those with P, due to the influence of the OH group. A second aspect concerning the thermodynamics of these reactions is to consider the heats and the reaction free energies.
The relative energies of the different intermediates and products have been collected in Table 3 for both P and 2P1OL. In the last column of this table we show the relative enthalpies at 298.15 K with respect to the most stable product. Both for the parent alkyne and for 2P1OL, the rearranged planar radicals are by far the most stable products. Whether these products could be obtained will depend on the height of the barriers, which we will discuss later. From the thermochemical point of view though, A1C3′ and A1C2′ for 2P1OL, and A2C1′ and A2C2′ for P, would be the preferred products of the reactions (1) and (2). On the other hand, as would be expected, the abstraction reaction from the terminal carbon is the one that gives the least stable product by far, both for P and 2P1OL. The presence of the hydroxyl group in 2P1OL does not affect at all the outcome of this reaction.
Reaction | Method | ΔE | Δ(E + ZPE) | ΔH°298 K | ΔG°298 K | ΔH°298 K |
---|---|---|---|---|---|---|
2P1OL + HO → A1C3 | M06/6-311++G(2df,2pd) | −42.3 | −37.0 | −38.5 | −28.1 | 32.0 |
BMK/6-311++G(2df,2pd) | −40.4 | −35.0 | −36.5 | −26.1 | 34.7 | |
G2 | −33.2 | −32.4 | −33.8 | −23.7 | 33.0 | |
G4 | −33.5 | −32.6 | −34.1 | −23.7 | 32.9 | |
2P1OL + HO → A1C3′ | M06/6-311++G(2df,2pd) | −73.7 | −69.0 | −70.5 | −60.0 | 0.0 |
BMK/6-311++G(2df,2pd) | −74.6 | −66.2 | −71.2 | −61.0 | 0.0 | |
G2 | −66.2 | −65.2 | −66.8 | −56.0 | 0.0 | |
G4 | −66.4 | −65.2 | −67.0 | −55.8 | 0.0 | |
2P1OL + HO → A1C2 | M06/6-311++G(2df,2pd) | −40.0 | −35.5 | −37.0 | −26.5 | 33.5 |
BMK/6-311++G(2df,2pd) | −38.9 | −34.3 | −35.8 | −25.2 | 35.5 | |
G2 | −33.1 | −32.4 | −33.7 | −23.5 | 33.0 | |
G4 | −33.4 | −32.5 | −34.0 | −23.4 | 33.0 | |
2P1OL + HO → A1C2′ | M06/6-311++G(2df,2pd) | −73.1 | −69.1 | −70.6 | −60.0 | −0.1 |
BMK/6-311++G(2df,2pd) | −73.7 | −69.5 | −71.0 | −60.3 | 0.2 | |
G2 | −65.7 | −65.2 | −66.3 | −56.6 | 0.5 | |
G4 | −65.6 | −64.9 | −66.2 | −55.9 | 0.8 | |
2P1OL + HO → X1CH2 + H2O | M06/6-311++G(2df,2pd) | −38.4 | −38.6 | −38.4 | −39.2 | 32.1 |
BMK/6-311++G(2df,2pd) | −35.5 | −36.0 | −35.7 | −36.7 | 35.5 | |
G2 | −34.2 | −34.8 | −34.2 | −35.7 | 32.6 | |
G4 | −35.6 | −35.7 | −35.6 | −36.3 | 31.4 | |
2P1OL + HO → X1CH + H2O | M06/6-311++G(2df,2pd) | 11.6 | 12.8 | 12.9 | 12.0 | 83.4 |
BMK/6-311++G(2df,2pd) | 15.7 | 15.0 | 15.3 | 14.1 | 86.5 | |
G2 | 20.3 | 20.0 | 20.3 | 19.1 | 87.1 | |
G4 | 14.2 | 14.0 | 14.2 | 12.1 | 81.2 | |
2P1OL + HO → X1COH + H2O | M06/6-311++G(2df,2pd) | −13.3 | −14.6 | −14.4 | −15.2 | 56.1 |
BMK/6-311++G(2df,2pd) | −12.9 | −13.8 | −13.8 | −14.5 | 57.5 | |
G2 | −11.5 | −11.6 | −11.5 | −12.2 | 55.3 | |
G4 | −12.6 | −12.7 | −12.6 | −13.4 | 54.4 | |
P + HO → A2C1 | M06/6-311++G(2df,2pd) | −37.2 | −32.8 | −33.9 | −24.8 | 24.2 |
BMK/6-311++G(2df,2pd) | −36.2 | −31.3 | −32.6 | −23.1 | 25.8 | |
G2 | −29.1 | −28.7 | −29.7 | −20.9 | 26.1 | |
G4 | −29.4 | −28.8 | −30.0 | −20.8 | 25.5 | |
P + HO → A2C1′ | M06/6-311++G(2df,2pd) | −60.3 | −56.0 | −57.5 | −47.3 | 0.7 |
BMK/6-311++G(2df,2pd) | −61.6 | −56.9 | −58.5 | −48.1 | 0.0 | |
G2 | −54.2 | −53.5 | −54.8 | −45.0 | 1.0 | |
G4 | −53.8 | −52.8 | −54.4 | −44.0 | 1.1 | |
P + HO → A2C2 | M06/6-311++G(2df,2pd) | −35.0 | −31.0 | −32.3 | −22.6 | 25.9 |
BMK/6-311++G(2df,2pd) | −33.9 | −29.9 | −31.1 | −21.7 | 27.4 | |
G2 | −28.6 | −28.2 | −29.2 | −21.2 | 26.7 | |
G4 | −28.8 | −28.1 | −29.4 | −19.7 | 26.1 | |
P + HO → A2C2′ | M06/6-311++G(2df,2pd) | −60.4 | −56.6 | −58.2 | −47.9 | 0.0 |
BMK/6-311++G(2df,2pd) | −61.0 | −56.8 | −58.4 | −48.0 | 0.0 | |
G2 | −55.2 | −54.5 | −55.8 | −45.9 | 0.0 | |
G4 | −54.9 | −53.8 | −55.5 | −45.0 | 0.0 | |
P + HO → X2CH3 + H2O | M06/6-311++G(2df,2pd) | −28.7 | −29.7 | −29.3 | −30.3 | 28.8 |
BMK/6-311++G(2df,2pd) | −26.0 | −27.0 | −26.6 | −27.6 | 31.8 | |
G2 | −26.4 | −26.9 | −26.4 | −27.7 | 29.4 | |
G4 | −27.0 | −27.4 | −27.0 | −28.0 | 28.5 | |
P + HO → X2CH + H2O | M06/6-311++G(2df,2pd) | 11.8 | 13.0 | 13.2 | 12.2 | 71.4 |
BMK/6-311++G(2df,2pd) | 16.4 | 15.5 | 15.8 | 14.6 | 74.3 | |
G2 | 14.3 | 13.9 | 14.3 | 12.5 | 70.2 | |
G4 | 14.5 | 14.2 | 14.5 | 13.1 | 70.0 |
From thermochemistry, the additions to C3 in 2P1OL or to C1 in P are slightly more favorable than the additions to C2 (between 1 and 2 kcal mol−1). In both cases the abstraction reaction at C1 in 2P1OL or C3 in P is more favorable than either addition. The main difference between the reactions of P and 2P1OL is that abstraction is thermochemically about two times more favorable than addition in the latter species. This is of course due to the presence of the OH in X1CH2·H2O_I1 and its absence in X2CH3·H2O, the hydrogen bond providing for the extra energy of the former product.
Considering the different methods of calculation, relatively large discrepancies can be seen in the results (up to 5 kcal mol−1). However, due to the large value of the enthalpies of reaction, the discrepancies are not larger than 10% of the respective values. This would be then the expected accuracy of our thermochemical calculations, although probably it is an upper limit and the results with the best methods are more accurate.
Transition state | Method | Relative energy | Barrier | ||||
---|---|---|---|---|---|---|---|
Δ(E + ZPE) | ΔH°298 K | ΔG°298 K | Δ(E + ZPE) | ΔH°298 K | ΔG°298 K | ||
TS1A1 | M06 | −4.7 | −5.9 | 3.8 | 1.9 | 1.4 | 3.8 |
BMK | −1.1 | −2.3 | 7.4 | 3.0 | 2.3 | 7.4 | |
G2 | −1.1 | −1.9 | 6.9 | 3.3 | 2.8 | 6.9 | |
G4 | −1.0 | −2.2 | 7.6 | 1.8 | 1.3 | 7.6 | |
TS1A2 | M06 | −1.5 | −2.4 | 6.8 | 1.9 | 1.4 | 6.8 |
BMK | 1.5 | 0.7 | 9.5 | 5.7 | 5.3 | 9.5 | |
G2 | 1.1 | 0.3 | 9.3 | 5.5 | 5.0 | 9.3 | |
G4 | 0.9 | 0.0 | 9.2 | 3.7 | 3.4 | 9.2 | |
TS1B | M06 | −3.1 | −3.9 | 4.6 | 1.0 | 0.8 | 4.6 |
BMK | −0.7 | −1.4 | 6.7 | 2.9 | 2.6 | 6.7 | |
G2 | −0.7 | −0.7 | 4.3 | 3.6 | 3.8 | 4.3 | |
G4 | −0.4 | −1.2 | 7.6 | 4.5 | 4.1 | 7.6 | |
TS1C | M06 | −1.8 | −2.8 | 6.3 | 2.5 | 2.0 | 6.3 |
BMK | 0.9 | 0.1 | 8.7 | 4.2 | 3.8 | 5.6 | |
G2 | 3.8 | 2.9 | 11.8 | 8.1 | 7.5 | 11.8 | |
G4 | 3.4 | 2.6 | 11.3 | 8.3 | 7.9 | 11.3 | |
TS1D | M06 | 23.0 | 22.5 | 30.4 | 27.3 | 27.2 | 30.4 |
BMK | 28.9 | 28.2 | 36.4 | 32.2 | 32.0 | 36.4 | |
G2 | 25.2 | 25.1 | 31.3 | 29.5 | 29.6 | 31.3 | |
G4 | 36.1 | 35.6 | 43.3 | 41.0 | 40.9 | 43.3 | |
TS1E | M06 | −17.5 | −19.2 | −8.3 | 27.9 | 26.6 | 29.6 |
BMK | −13.3 | −14.9 | −4.1 | 28.4 | 26.9 | 30.3 | |
G2 | |||||||
G4 | −11.7 | −13.4 | −2.4 | 29.3 | 27.9 | 30.9 | |
TS1F | M06 | −27.8 | −29.5 | −18.5 | 19.1 | 17.5 | 21.8 |
BMK | −25.4 | −27.1 | −16.1 | 19.9 | 18.1 | 23.2 | |
G2 | −21.9 | −23.2 | −13.0 | ||||
G4 | −21.6 | −23.4 | −12.3 | 20.3 | 18.5 | 23.5 | |
TS1G | M06 | −12.5 | −14.4 | −3.0 | 34.4 | 32.6 | 37.2 |
BMK | −9.1 | −11.0 | 0.3 | 36.2 | 34.2 | 39.5 | |
G2 | −4.7 | −6.6 | 4.5 | ||||
G4 | −5.4 | −7.3 | 4.1 | 36.6 | 34.7 | 39.8 | |
TS1H | M06 | −3.0 | −4.6 | 6.2 | 32.5 | 32.4 | 32.6 |
BMK | −4.0 | −5.6 | 5.1 | 30.2 | 30.1 | 30.3 | |
G2 | 0.4 | −1.0 | 9.4 | 32.8 | 32.8 | 32.8 | |
G4 | 0.1 | −1.5 | 9.2 | 32.5 | 32.5 | 32.6 | |
TS1I | M06 | −0.6 | −2.1 | 8.5 | 35.9 | 35.8 | 36.2 |
BMK | 2.5 | 0.8 | 11.6 | 37.5 | 37.3 | 37.7 | |
G2 | 0.1 | −1.3 | 9.1 | 32.6 | 32.5 | 32.8 | |
G4 | 7.3 | 5.8 | 16.3 | 39.9 | 39.9 | 40.0 | |
TS2A1 | M06 | −2.9 | −3.6 | 4.3 | 1.2 | 0.6 | 4.3 |
BMK | 0.1 | −0.6 | 7.0 | 1.6 | 1.1 | 7.0 | |
G2 | 0.7 | 0.0 | 8.1 | 3.9 | 3.5 | 8.1 | |
G4 | 0.1 | −0.6 | 7.1 | 0.9 | 0.4 | 7.1 | |
TS2A2 | M06 | −2.5 | −3.3 | 5.2 | 1.5 | 0.8 | 5.2 |
BMK | 0.8 | −0.1 | 8.4 | 2.3 | 1.6 | 8.4 | |
G2 | 0.7 | 0.0 | 8.1 | 3.4 | 2.9 | 8.1 | |
G4 | 0.8 | −0.1 | 8.5 | 1.6 | 1.0 | 8.5 | |
TS2B | M06 | −1.8 | −2.6 | 5.5 | 1.4 | 0.8 | 5.5 |
BMK | 0.9 | 0.1 | 8.1 | 3.0 | 2.4 | 8.1 | |
G2 | 1.6 | 1.0 | 8.8 | 4.4 | 3.9 | 8.8 | |
G4 | 2.2 | 1.7 | 8.7 | 5.3 | 5.1 | 8.7 | |
TS2C | M06 | 23.6 | 22.6 | 31.2 | 24.3 | 23.6 | 31.2 |
BMK | 29.2 | 28.6 | 36.4 | 29.3 | 28.5 | 36.4 | |
G2 | 17.1 | 17.0 | 23.0 | 19.8 | 19.9 | 23.0 | |
G4 | 18.3 | 17.8 | 24.6 | 19.8 | 19.5 | 24.6 |

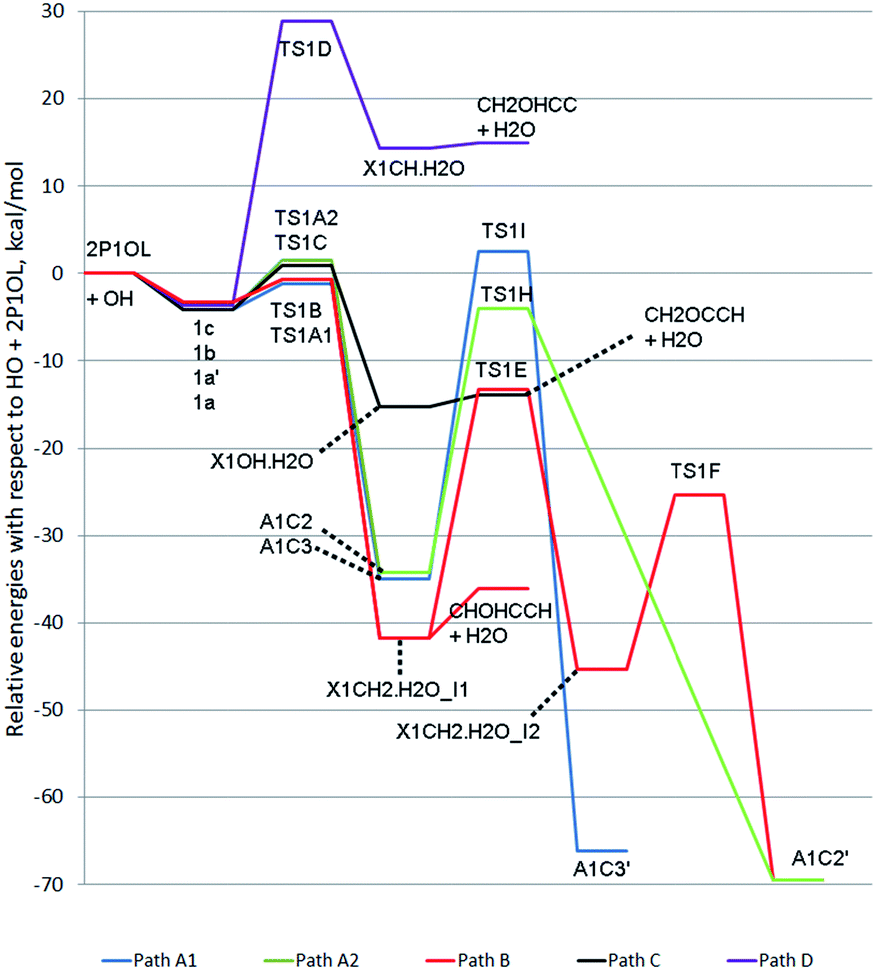

As shown above, all the pre-reactive complexes are more stable than the separated reactants at 0 K. Compared to the relative energies of other intermediates and products, the separation between the stability of the different pre-reactive complexes are quite minor. The transition states for the addition to C1, TS1A1, and the abstraction of hydrogen from C1, TS1B, are both below the energy of the separated reactants (about −2 and −1 kcal mol−1 respectively), thus confirming the experimentally observed negative Arrhenius behavior. The transition states for the addition to C2 and the abstraction of the hydrogen from the hydroxyl group, TS1A2 and TS1C respectively, are instead above the energy of the separated reactants (by about 1 and 2 kcal mol−1 respectively). The transition state for the abstraction of hydrogen from C3 is energetically unfavorable (about 30 kcal mol−1) and therefore considered negligible in the present analysis.
As pointed out before, the hydrogen abstraction product from C1, X1CH2·H2O_I1, is lower in energy than the addition product, A1C3, which is in turn lower than the product of hydrogen abstraction from the hydroxyl group, X1OH·H2O. The fate of the addition and abstraction products is quite different. A1C3 can suffer an internal rearrangement through a 1,2 hydrogen migration and end up giving the A1C3′ final product. The corresponding transition state, TS1I, is however quite high, its energy being above that of the separated products (between 3 and 7 kcal mol−1, depending on the method of calculation) and the barrier is substantial (about 38–40 kcal mol−1). This fact seems to suggest that the A1C3 → A1C3′ reaction would not occur. However, since this is a proton migration between two neighboring atoms, quantum tunneling is very likely to happen.
This point has not been explored further in this work, but it is worth to keep it in mind for future work. At any rate, the presence of O2 in the atmosphere would allow alternative reactions to take place and products from A1C3′ may well be never observed.
On the other side, the X1CH2·H2O_I1 intermediate can release water, since the complex is not exceedingly stable with respect to the separated species, or can rearrange to give the X1CH2·H2O_I2 complex. The energy of the corresponding transition state, TS1E, is much lower than the sum of the energies of 2P1OL and OH (about −12 kcal mol−1) and the isomer I2 is more stable than I1. Thus, both from the thermodynamic and kinetic points of view, this is a feasible reaction. In turn, X1CH2·H2O_I2 can proceed further to A1C2′ since the transition state TS1F is even lower than TS1E (about −22 kcal mol−1), the barrier is smaller than for the reverse reaction (about 20 kcal mol−1) and A1C2′ is more stable than either X1CH2·H2O_I1 or X1CH2·H2O_I2. Although it is clear that these reactions would not proceed in the atmosphere (since the presence of O2 would lead to the opening of other reaction channels) further research is necessary to know whether this reaction path is competitive with the possible condensation reactions starting from X1CH2·H2O_I1.
As was shown in Scheme 3, an alternative path exists starting from X1CH2·H2O_I2, leading to A1C3. This path was not depicted in Fig. 6 to avoid excessive complexity.
The corresponding transition state is TS1G and although it is more stable than the isolated reactants (between 5 and 9 kcal mol−1) the barrier is larger (about 40 kcal mol−1 as compared to the 20 kcal mol−1 necessary to rearrange to A1C2′).
The general picture emerging from these considerations is that abstraction of hydrogen from the C1 atom in 2P1OL is at least as favorable as addition to the C3 carbon. The free energy of activation for the addition and abstraction reactions are 7.4 and 6.7 kcal mol−1 at the BMK/6-311++G(2df,2pd) level and 7.6 and 7.6 kcal mol−1 at the G4 level respectively. In the absence of oxygen then, and leaving aside the possible condensation reactions, our calculations suggest that the A1C3 and A1C2′ radicals would be the resulting species of the reactions.
The global comparison of these results with those of propyne shows an interesting difference. The addition and abstraction reactions in the case of P have free energies of activation of about 7 and 9 kcal mol−1. While the addition reaction is predicted theoretically to be as fast in 2P1OL as it is in P, within the precision of the methods of calculation, the abstraction reaction is about one order of magnitude faster in 2P1OL than in P, providing then support to the experimental three times larger speed of the reaction of OH with 2P1OL than with P.
It must be stated that theoretical methods are not able to describe precisely such a small difference between the rate constants as found in this study. Since the free energy of activation participates in the exponent for the evaluation of rate constants, a difference in accuracy of 1 kcal mol−1 (smaller than that obtainable with practically all theoretical methods) shields a factor of five in the value of the rate constant. Thus, the computational studies, although can be useful for understanding qualitatively and semi-quantitatively the reaction paths of a given reaction system, are not able to produce rate constants with an accuracy similar to the experimental measurements.
To explain the differences in reactivity of 2P1OL and its analogue alkyne (P), DFT and ab initio composite models calculations on the reactants, intermediates, transition states and products were performed. From both the thermodynamic and kinetic points of view, it was determined that addition of OH to the end carbon at the triple bond (C1 in P, C3 in 2P1OL) occurs preferentially with respect to the addition to the middle C2 carbon. As found in other studies, addition is preferred over abstraction for the alkyne, but it was determined in this study that abstraction should proceed faster than addition in 2P1OL. The results suggest that addition proceed to give a product similar to that obtained for propyne, only that it is thermodynamically more stable because of the hydrogen bonding produced by the hydroxyl group in propargyl alcohol. The abstraction reaction, on the other side, should proceed through a pair of intermediate species, where water forms a complex with different isomers of the radical formed, to give the very stable A1C2′ radical. Abstraction is about 7 to 11 times faster in 2P1OL than in P and, together with the fact that addition proceeds at more or less the same rate, should explain why the experimental rate constant for the reaction of 2P1OL with OH is about three times larger than that for the reaction of propyne with OH.
This journal is © The Royal Society of Chemistry 2015 |
