Efficient electrochemical water oxidation catalysis by nanostructured Mn₂O₃

Abstract

Prompted by recent research studies on the higher catalytic efficiency of Mn₂O₃ over MnO₂, efforts have been made to develop nanostructured MnO₂ and Mn₂O₃ and explore their comparative electrocatalytic response for water oxidation.

---

The water oxidation reaction has always been seen as a key reaction for the production of hydrogen; an alternative energy source of future fuels.^1–3 In a water splitting process, the anodic reaction that involves four electron transfer is energetically more demanding and often requires the catalyst to accomplish the oxygen production at a relatively lower overpotential.^4–6 The challenge in this process is the development of an efficient catalyst made of cost effective, non toxic elements. So far, the maximum efficiency has been achieved by using metal oxides or complexes based on metal ions such as Ru and Ir.^7–10 However, the limited availability and higher price of metals such as Ru and Ir, limit their use from large scale application. Nature is able to accomplish the water oxidation reaction efficiently using visible light and a molecular system (oxygen evolution center, OEC) consisting of a cheap and abundant element manganese. The OEC cluster has been reported to have structure Mn₄O_xCa cluster.¹¹ It is believed that the higher efficiency of the system lies in the ability of the Mn metal ion to switch between different redox states in presence of visible light.

Inspired by nature, many manganese complexes and oxides have been synthesized and demonstrated as water oxidation catalyst.^3,6,12–16 Manganese oxides have been reported to be present in different polymorphs with different crystal structures as well as in different oxidation states of Mn. The impact of the crystal structure of the manganese oxides on the water oxidation catalytic activity has not yet been systematically explored. Rao et al. has synthesized Mn₂O₃ using sol–gel method and demonstrated that the material is an efficient water oxidation catalyst with turnover frequency of 5 × 10⁻⁴ s⁻¹.¹⁷ Frei et al. also reported efficient water oxidation catalyst by different phases of manganese oxide impregnated in silica nanoparticles and concluded that among different phases, Mn₂O₃ showed the best response for water oxidation activity.¹⁸ It has been proposed that the presence of Mn in +3 oxidation states in manganese tri oxide (Mn₂O₃) provides a favourable electronic environment that makes it an excellent catalyst among other oxides. Recently, Jiao et al. have shown that the crystal structure and the morphology of MnO₂ have no impact on the photocatalytic response towards water oxidation.¹⁹ They demonstrated that the activity is strongly dependent on the surface area of the materials. In all the specified studies, the water oxidation catalysis has been achieved using [Ru(bpy)₃]²⁺ as a photosensitizer and persulfate as a sacrificial agent. The catalysis driven by chemicals has its own benefits but is not favourable for the practical applications. However, the electrochemical water oxidation catalysis offers a way to fabricate the electrodes that can be used for large scale production of hydrogen.

The present work is focussed on further exploration of the morphology versus oxidation states of Mn in manganese oxide for water oxidation reaction. We focussed on the synthesis of nanostructured β-MnO₂ and Mn₂O₃ and investigated their electrochemical catalytic response for water oxidation. To the best of our knowledge, Mn₂O₃ nanorods have never been implemented as an electrochemical water oxidation catalyst in literature. We hereby demonstrate that the oxidation state of Mn in manganese oxide has strong impact on the electrocatalytic response towards water oxidation reaction.

First, the synthesis of β-MnO₂ was carried out under hydrothermal conditions following a literature procedure.²⁰ The synthesis process has been briefly mentioned in the ESI.† The synthesized β-MnO₂ was then acid treated by immersing β-MnO₂ in a solution of 1 M HNO₃ for overnight. In a next step, the acid untreated β-MnO₂ was calcined at 600 °C for one hour to get the Mn₂O₃. β-MnO₂, acid treated β-MnO₂ and Mn₂O₃ will be abbreviated as L-MnO₂, L1-MnO₂ and L-Mn₂O₃ respectively in further discussion.

The synthesized manganese oxide was first characterized by powder X-ray diffraction method (PXRD) (Fig. 1). Well defined XRD patterns obtained for different samples confirmed the high crystalline nature of the synthesised manganese oxide. As can be seen from Fig. 1 and is consistent with the literature report that the PXRD pattern of L-MnO₂ matches with the majority of the phases attributed to the β-MnO₂ phase.²¹ This PXRD pattern confirms that the synthesized manganese oxide had β-MnO₂ structure. However, there is also minor contribution of other phase that can be indexed to the α-Mn₂O₃ bixbyte phase.²¹ The formation of mixture of two phases during the hydrothermal synthesis of manganese oxide has previously been observed by Kim and group.²¹ The synthesized manganese oxide was then subjected to acid treatment. Interestingly, as can be seen from Fig. 1 that the corresponding PXRD of the acid treated sample shows the complete disappearance of the contribution from the α-Mn₂O₃ and the peaks corresponding to only β-MnO₂ phase remains. Dismukes et al. demonstrated a significant increase in the catalytic efficiency on acid treatment of LiMn₂O₄.²² The increase in the catalytic response was attributed to the delithiation of LiMn₂O₄ and formation of λ-MnO₂ with cubical Mn₄O₄ cores as active sites to carry out water oxidation catalysis. However, on acid treatment, a change in the oxidation state of Mn was observed. Nitric acid is a well known oxidant and it may be possible that due to the acid treatment, the amount of Mn present in the +3 state as Mn₂O₃ undergo oxidation to produce completely pure β-MnO₂ phase. It is a known fact that on calcination at temperature higher than 500 °C MnO₂ results in the formation of manganese oxide with Mn in lower oxidation state than +4. Calcination at 600 °C produces α-Mn₂O₃ phase, which is considered as the most interesting phase from the catalytic point of view. Samples were further annealed at 600 °C for an hour.¹⁸ Corresponding PXRD of L-Mn₂O₃ clearly confirms the formation of pure α-Mn₂O₃ phase with no remaining contribution from the MnO₂.

Fig. 1 Top: PXRD patterns obtained for L-MnO₂, L1-MnO₂ and L-Mn₂O₃, where ★ refers to the peaks corresponding to the β-MnO₂ phase, Δ refers to the contribution of Mn₂O₃ in the β-MnO₂ and # refers to the peak corresponding to pure Mn₂O₃ phase.

The results obtained from XRD were further complemented with the XPS measurements (Fig. S1†). The oxidation state of Mn was determined by the position of the Mn 2p multiplet splitting for both the samples. According to literature reported by various groups, for different manganese oxides, the peak between 641.8 to 646.8 eV has been assigned for Mn(IV) while for Mn(III) corresponding peak is observed between 641.3 to 641.9 eV.^23–26 2p_3/2 position for the MnO₂ sample was obtained at 641.8 eV, while for Mn₂O₃ the peak shifts to the lower energy side at 641.6 eV. The shift in the peak position from higher (for L-MnO₂) to lower energy (for L-Mn₂O₃) clearly suggests that annealing of the MnO₂ results in the reduction of valence state of Mn. The Mn 2p_3/2 spectra were further deconvoluted to determine the presence of variable Mn valence states. However, it was realised that deconvolution of the L-MnO₂ spectra revealed no multiplet splitting pattern, suggesting the absence of the significant contribution of Mn in different valence states. However, deconvoluted L-Mn₂O₃ spectra consist of the multiplets as has been reported by other groups (Fig. 1).^24,25 Position of different multiplets along with their percentage contribution has been summarized in Table S1.† The deconvolution indicates the maximum contribution from the peak at 641.3, that has been attributed to the Mn(III) in Mn₂O₃ in literature,²⁶ indicating the presence of Mn in +3 state in L-Mn₂O₃. Although the results show the decrease in the binding energy for L-Mn₂O₃ compared to L1-MnO₂ still the position of 2p_3/2 for two samples are too close making it bit difficult to justify the change in oxidation state.

To further support the presence of Mn in +3 oxidation in L-Mn₂O₃, oxides were further characterized by the electrochemical method. As has been reported by Nathan et al. that CV of Mn₂O₃ film in alkaline medium shows the anodic and cathodic peak corresponding to the oxidation followed by reduction of Mn in Mn₂O₃ however MnO₂ did not show any such pattern under similar experimental conditions.²⁷ The CV recorded (Fig. S1†) for the L-Mn₂O₃ showed oxidation peak at 0.140 V vs. Ag/AgCl and reduction peak at 0.07 V vs. Ag/AgCl in 1 M NaOH electrolyte. However, we did not find any such feature for L-MnO₂ film. Although the trend is same as reported by Nathan but there is difference in the obtained redox potential value. We assume that the difference is due to the different choice of the substrates. In present case ITO was used as substrate while Nathan et al. have used stainless steel. These results also supports that the Mn in L-Mn₂O₃ is present in lower oxidation state compared to L-MnO₂.

Morphology of the L-MnO₂, L1-MnO₂ and L-Mn₂O₃ was further analysed by scanning electron microscopic (SEM) experiments (Fig. 2). The morphology of L-MnO₂ shows that it was consist of nanowires of the length ranging from 2.5–1 μm. The thicknesses of the wires were in between 10–20 nm. On acid treatment, the morphology remains unchanged and nanowires with the length ranging between 3–0.5 μm were observed. The thicknesses of the nanowires were found to be between 10–25 nm. The images of both L-MnO₂ and L1-MnO₂ also showed that some structure grown along with the nanowires. We assume that these are the structure that is not grown completely to the nanowire morphology during the synthesis. On calcination, the morphology of the L-Mn₂O₃ changed little bit with wider diameter between 150–200 nm and length of 4–1 μm.

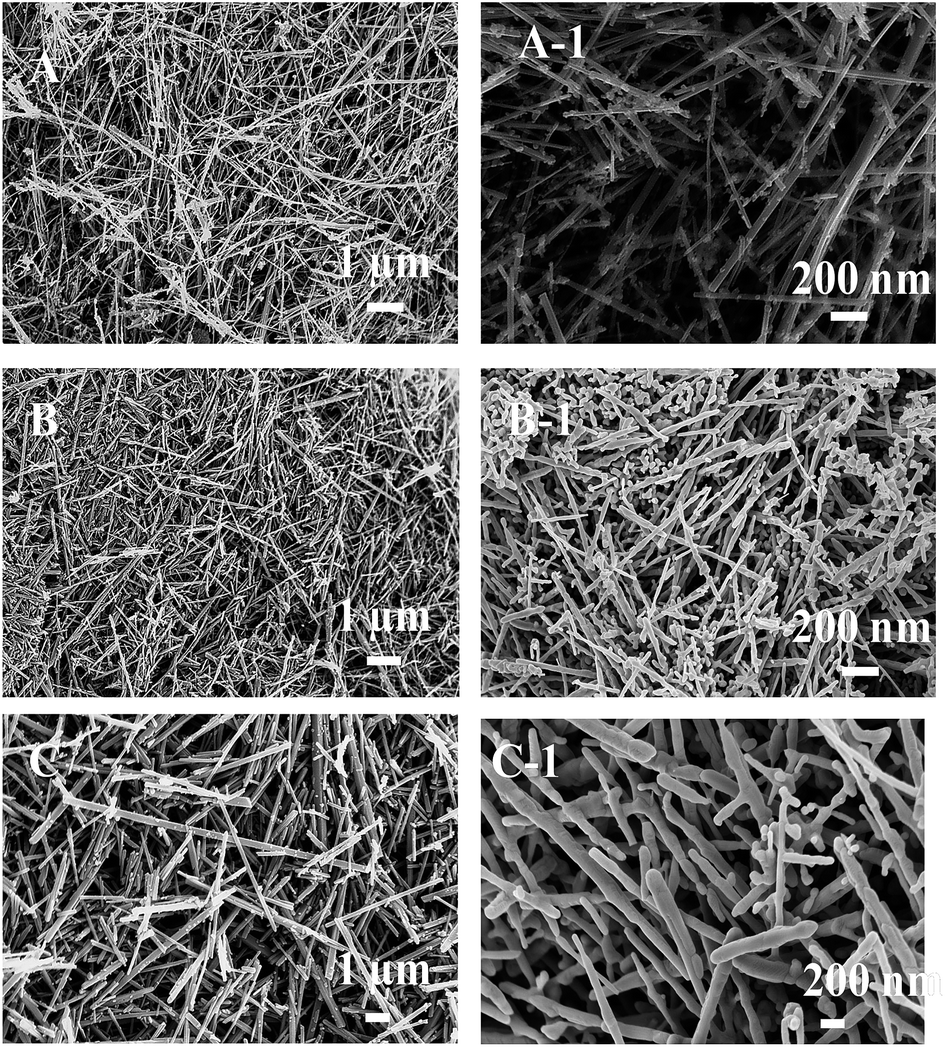

Fig. 2 Low (left hand side) and high (right hand side) magnification SEM images of the L-MnO₂ (A, A-1), L1-MnO₂ (B, B-1) and L-Mn₂O₃ (C, C-1).

Electrochemical water oxidation catalysis was performed using a three electrode electrochemical cell. Manganese oxide coated on ITO conducting glass, Ag/AgCl (3 M KCl), and Pt sheet were used as working electrode, reference electrode and counter electrode respectively. Linear scan voltammograms (LSV) were recorded for different films in 1 M NaOH and shown in Fig. 3. L-MnO₂ film showed the water oxidation catalytic activity at the onset potential of 0.970 V (overpotential of ∼0.570 V) while the overpotential further increased for the L1-MnO₂ film with the onset potential of 1.115 V (overpotential of 0.715 V, inset of Fig. 3). On the other hand for L-Mn₂O₃ this onset potential shifted significantly to a negative potential at 0.685 V corresponding to the overpotential of only 0.285 V. Not only an impressive over-potential drop was observed but also significant current density was obtained at relatively low overpotential for the L-Mn₂O₃ film. Current density of 1 mA cm⁻² was observed for the L-Mn₂O₃ films at an overpotential of just 0.40 V.

Fig. 3 Linear scan voltammograms for L-MnO₂, L1-MnO₂ and L-Mn₂O₃ films recorded in 1 M NaOH at scan rate of 5 mV s⁻¹. Inset shows the magnified image of the LSV of the L-MnO₂ film and L1-MnO₂ film with difference in the onset potential of water oxidation activity. Inset also shows the LSV of Mn₂O₃ film recorded in 0.1 M TBAPF₆/acetonitrile solvent (brown color trace).

To further prove that the observed current is due to the water oxidation, LSV of the L-Mn₂O₃ film was recorded in acetonitrile solvent (0.1 M tetrabutyl ammonium hexafluoro phosphate electrolyte solution, inset of Fig. 3). The figure shows that no current was observed in the absence of water. LSV of the films coated with the binder and charcoal only also did not show any significant activity in the 1 M NaOH electrolyte under same experimental conditions. Also, LSV of the L-Mn₂O₃ films were recorded in different volumes percentage of water to organic solvent (acetonitrile). As can be seen from Fig. S2,† that as the percentage volume of water to the acetonitrile increases the observed current also increases monotonically thus confirming that water is source for the obtained current. These observations are strong evidence suggesting that the current observed arises primarily from water oxidation and both manganese oxide and water are necessary for the observed current density. However, logical step would be to determine the Faradic efficiency by quantifying the oxygen and hydrogen production. Assuming all the Mn present in the L-Mn₂O₃ film are catalytically active, the turnover frequency was found to be 1 × 10⁻³ s⁻¹ at 0.400 V overpotential which is higher by a factor of 10 than observed in recent work where 5 × 10⁻⁴ s⁻¹ turnover frequency was observed at overpotential of ∼0.38 V in presence of 100 W halogen lamp with the light intensity kept equivalent to 25 000 flux.¹⁷ However, based on the available information in the literature on the catalytic activity of the Mn₂O₃, proper comparison cannot be made since in all the previous studies the driving forces were chemical oxidant as well as the light. In order to check the photoresponse of the film, LSV of films were recorded in NaOH in presence of bias and light (Fig. S3†). A small increase in current was observed for L-Mn₂O₃ at higher potentials; however for L-MnO₂ no increase in the activity was obtained. Further efforts will be made in future like doping with different metal ions in an effort to enhance the photo response of these catalysts.

To further explore the reason for the observed difference in the catalytic activity, surface area measurements were performed using Brunauer–Emmett–Teller (BET) method. L-MnO₂, L1-MnO₂ and L-Mn₂O₃ samples were found to have surface areas of 26, 30 and 5 m² g⁻¹ respectively. L-MnO₂ and L1-MnO₂ have nearly same surface area which is also consistent with the SEM images of both oxides as they did not show any change at all in the morphology before and after acid treatment. The surface area of the L-Mn₂O₃ films was found to be significantly less than the L-MnO₂ and L1-MnO₂. The decrease in surface area of L-Mn₂O₃ may be due to the transformation of the morphology from nanowires to more like nanorods. These results clearly indicate that the observed difference in activity is due to variation in the oxidation state of Mn.

To further analyse the impact of nanorod like morphology of Mn₂O₃ on the electrochemical water oxidation response, Mn₂O₃ nanoparticles were tested as water oxidation catalyst under similar experimental conditions. Commercial MnO₂ (C-MnO₂) nanoparticles were annealed at 600 °C for an hour in order to get the Mn₂O₃ nanoparticles (C-Mn₂O₃). The crystal structure and the morphology of the C-MnO₂ and C-Mn₂O₃ was confirmed using XRD and SEM (Fig. S4 and S5†). The LSV recorded for C-MnO₂ and C-Mn₂O₃ (Fig. S6†) clearly demonstrates the higher activity of L-Mn₂O₃ over the C-Mn₂O₃ confirming the importance of nanorod like structure to get higher efficiency. The low activity of the C-Mn₂O₃ may be due to their denser loading compared to the nanorod structure. As has been observed by Dyer²⁸ that for NiO_x denser loading results in the blockage effect. Because of morphology of the C-Mn₂O₃, it may result in limited exposure to the electrolyte which may not allow the participation of the all the Mn center in the water oxidation reaction, on contrary morphology of Nano rod like structure may lead to the higher participation of the metal center relative to the nanoparticles and thus result in the higher efficiency. Also the C-Mn₂O₃ outperforms the C-MnO₂ and L1-MnO₂ again suggesting that oxide with Mn in +3 state is highly favorable to achieve higher electrochemical catalytic response over +4 state.

Among different samples L-MnO₂, L1-MnO₂ and L-Mn₂O₃ as water oxidation catalyst, it was observed that although all of the manganese oxides have very close surface area as suggested by the surface area measurements value, they significantly differ in their electrocatalytic response. Presence of the manganese ion in +3 oxidation state has been demonstrated as an important factor for the design of the electrocatalyst with improved catalytic response,^17,29,30 however there is no clear understanding for the role of the presence of Mn in +3 state to achieve efficient catalysis. Recent work done by Rao et al. suggests that trivalency of Mn ions provide appropriate electronic environment around the metal ion of the electrocatalyst that increases its accessibility towards the oxygen and related intermediates species during the electrochemical oxygen evolution process and thereby results in better performance.¹⁷ It was proposed that the presence of 1e⁻ in the antibonding orbital for Mn³⁺ ion (t³_2g, e¹_g) results in a strong interaction between the metal center and oxygen that leads to a high catalytic activity of the Mn₂O₃ over MnO₂.¹⁷ It is because of this reason; a significant difference in the onset potential for water oxidation was also observed for L-MnO₂ and L1-MnO₂ (inset of Fig. 3). The later has got some contribution from Mn³⁺ ion due to the presence of Mn₂O₃ while after acid treatment all Mn was oxidized to +4 oxidation state results in higher overpotential required to achieve the water oxidation process.

In summary, we report that the Mn₂O₃ nanorods act as an efficient water oxidation electrocatalyst. The favourable oxidation state of Mn along with its nanorod like structure makes it an efficient electrochemical water oxidation catalyst at fairly low overpotential. The next step forward will be to synthesize Mn₂O₃ nanostructure with different morphology and develop a protocol where solar driven water oxidation catalysis could be achieved.
