Practical organic solvent-free Cu(OAc)₂/DMAP/TEMPO-catalyzed aldehyde and imine formation from alcohols under air atmosphere

Abstract

A highly efficient and practical organic solvent-free Cu(OAc)₂/DMAP/TEMPO catalyst system for the selective aerobic oxidation of benzylic and allylic alcohols to aldehydes and phenones under an ambient air atmosphere was reported. A wide range of functional groups such as phenolic hydroxyl, amino, and methylthio are compatible with the catalyst system. The organic solvent-free aerobic oxidative imine synthesis from benzyl alcohol and amines was also achieved via the newly developed Cu(OAc)₂/DMAP/TEMPO catalyst. 100 g-scale reactions for aldehyde and imine formation were achieved with over 90% yield using 0.5 mol% catalyst loading in 36 hours, presenting a potential valuable protocol for both economical and environmental considerations.

---

Introduction

Carbonyl compounds are significant intermediates used in the perfume, drug, dye, pharmaceutical and agrochemical industries. Thus, the development of highly selective catalytic oxidation of alcohols to their corresponding aldehydes or ketones is one of the most fundamental and challenging transformations for organic chemical synthesis.¹ A variety of classical reagents such as manganese,² chromium oxides,³ Swern reagents⁴ and Dess–Martin reagents⁵ have been developed for this reaction. However, these oxidation processes, stoichiometric hazardous or toxic oxidizing agents and large amount organic solvents were used. In the points of economic and environmental view, a catalytic method with oxygen as oxidant is quite attractive and important, which only gave water as byproduct. Accordingly, aerobic oxidation of alcohols to corresponding aldehydes or ketones with transition metal-free⁶ or transition metals⁷ catalyst system has been well developed over the past decades. Among the reports, the combination of copper salts and TEMPO (2,2,6,6-tetramehyl-1-piperidinyloxy) is one of the best catalytic system for this transformation.⁸ The first example was discovered by Semmelhack and co-workers in 1984, which was showed to be effective for the oxidation of benzylic and allylic alcohols in DMF.^8a A similar catalyst system with 2,2′-bipyridine as a ligand and tBuOK as a base was disclosed by Sheldon and co-workers.⁹ Recently, Stahl and co-workers reported (bpy)Cu(OTf)/NMI (N-methylimidazole)/TEMPO combination which could selective aerobic of a broad range alcohols, including allylic, benzylic, and aliphatic derivatives, to the corresponding aldehydes in acetonitrile.¹⁰ Several nitrogen containing ligands such as fluoroalkyl substituted 2,2′-bipyridine,¹¹ L-proline,¹² and diaziridinone,¹³ N-heterocyclic carbenes (NHCs)¹⁴ and 1,10-phenanthroline (phen)¹⁵ were well studied. Despite the advantages of these reactions, the use of large amount of solvent or expensive ligands has limited their application in synthetic chemistry. Due to the importance of this transformation in organic chemical synthesis, to further develop environmentally benign and easy scale-up oxidation reactions are extremely important. Herein, we report a high practical organic solvent-free Cu(OAc)₂/DMAP (4-dimethylaminopyridine)/TEMPO catalyst system for selective aerobic oxidation of the alcohols to corresponding aldehydes or ketones at room temperature with air as oxidant. Different types of imines can also be synthesized from alcohols and amines in excellent yields under air with the new developed catalyst system. Both the formation of aldehydes and imines from alcohols could be easily scaled up and reduced the catalyst loading to 0.5 mol% (Scheme 1).

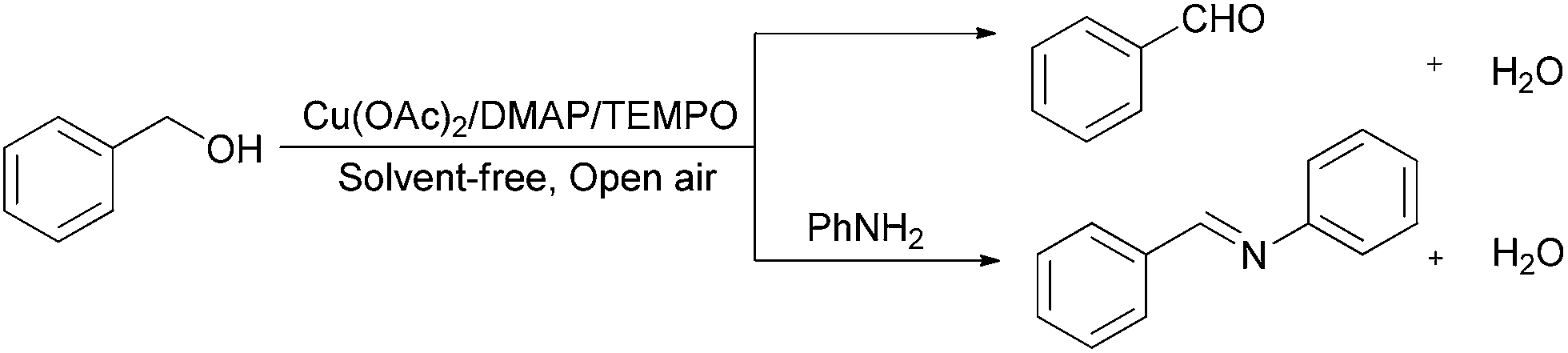

Scheme 1 The strategies for the direct synthesis of aldehydes and imines.

Inspired by the ligands effect in copper/TEMPO catalyst system for oxidation of alcohols to aldehydes and ketones,^8–15 we hypothesized that more efficient alcohol oxidation might be achieved in solvent-free conditions under ambient air atmosphere at room temperature by using a powerful ligand. At the outset of our study, we attempted to synthesize benzyl aldehyde from benzyl alcohol via aerobic oxidation with 1 mol% Cu(OAc)₂ and 1 mol% TEMPO under ambient air (open system) at room temperature for 24 hours without solvent. Only a low yield of benzyl aldehyde was observed by GC (Table 1, entry 1). The nitrogen containing ligands played an important role in the aerobic oxidation which had been reported by several groups.^8–15

Table 1 The optimization of copper-catalyzed alcohol oxidation^a

Entry	Ligand	Conv.^b (%)	Yield^b (%)
a Reaction conditions: benzyl alcohol (1 mmol), Cu(OAc)2 (1 mol%), ligand (1 mol% or 2 mol%), TEMPO (1 mol%), 25 °C solvent-free, open air.b Determined by GC using tridecane as an internal standard.c 1 atm O2.d No Cu(OAc)2 was added.
1	—	20	9
2	L2	45	21
3	L3	98	78
4	L4	55	36
5	L5	83	72
6	L6	64	43
7	L7	66	47
8	L8	70	51
9	L9	47	35
10	L10	43	31
11	L1	100	97
12^c	L1	97	80
13^d	L1	0	0

---

We first tested 2,2′-bipyridine under the general reaction condition without base. We were pleased to find the yield increased to 30%, along with 60% of benzyl alcohol recovered. The 1,10-phenanthroline, 1,4-diazabicyclo[2.2.2]octane (DABCO)¹⁶ and 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU)¹⁷ gave the yields no higher than 80% respectively (Table 1, entry 3–5). When pyridine derivatives¹⁸ were employed as the ligand respectively, around 50% yield of benzyl aldehyde was obtained, accompany with the conversion of alcohol around 60%. However, the L-proline had suppression effect compared to 2,2′-bipyridine. To our delight, the simple and easy accessible DMAP turned out to be the best ligand, and an exciting yield of 97% was obtained. However, only 80% yield was achieved when the reaction carried out under oxygen atmosphere. We also tested other copper salts, such as CuCl, CuBr, CuI, CuCl₂, CuBr₂, all of them gave similar yields as Cu(OAc)₂ (ESI†). Controlling experiments confirmed that no reaction happened without using copper, implicating the crucial role of copper salts for the transformation (Table 1, entry 13).

Once we had identified the optimal conditions for the aerobic oxidation of alcohol to corresponding aldehydes and ketones, the scope and limitation of this reaction were next explored and representative data are shown in Table 2 and 3. To our delight, a remarkable broad substrates scope of benzylic alcohols bearing various functional groups were tolerated. Both electron-rich and electron-deficient alcohols gave the corresponding aldehydes in good to excellent yields (Table 2, entry 1–27). As the melting point of part starting materials were higher than 25 °C, the reactions were tested at a little higher temperature (Tables 2 and 3), and gave good to excellent yields respectively. Notably, 2-furanmethanol, 2-thiophenemethanol and cinnamyl alcohol were all transformed to the corresponding aldehydes in excellent yield at room temperature.

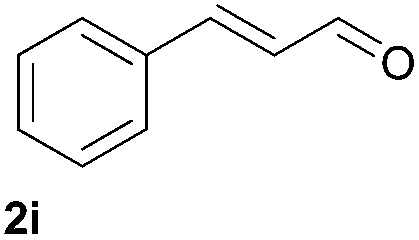

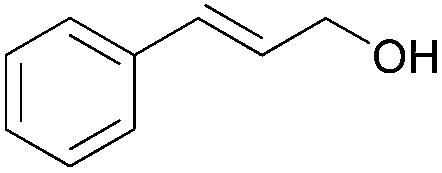

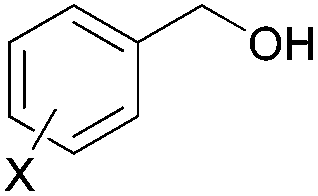

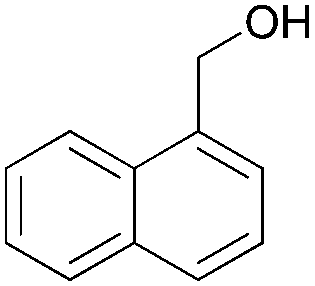

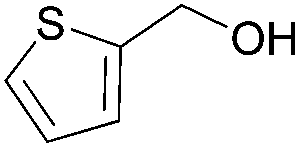

Table 2 Aerobic alcohol oxidation of primary alcohols to aldehydes^a

Entry	Substrate	Product	Time (h)	Yield^b (%)
a Reaction conditions: alcohol (1 mmol), Cu(OAc)2 (1 mol%), DMAP (2 mol%), TEMPO (1 mol%), solvent-free, open air, 25 °C.b Isolated yield.c 80 °C.d 100 °C.
1	X = H	1a	24	97
2	X = p-F	1b	24	86
3^c	X = o-Cl	1c	18	76
4^c	X = p-Cl	1d	18	72
5^c	X = o-Br	1e	18	88
6^c	X = p-Br	1f	18	85
7^d	X = o-l	1g	18	97
8^c	X = p-l	1h	18	99
9	X = m-OMe	1i	36	80
10	X = p-OMe	1j	36	99
11	X = p-tBu	1k	36	91
12^c	X = o-NO2	1l	24	98
13^c	X = m-NO2	1m	18	98
14^d	X = p-NO2	1n	18	83
15^c	X = p-Me	1o	18	87
16	X = 2,6-F	2a	24	92
17^c	X = 2-F-6-Cl	2b	18	95
18^d	X = 3,4-Cl	2c	18	97
19	X = 3,4-OMe	2d	36	82
20^c	X = 5-Br-2-OMe	2e	18	97
21^d			18	89
22			24	99
23^c			18	86
24			24	83
25			24	93
26			36	87

---

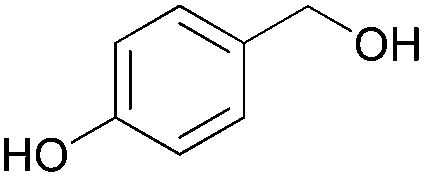

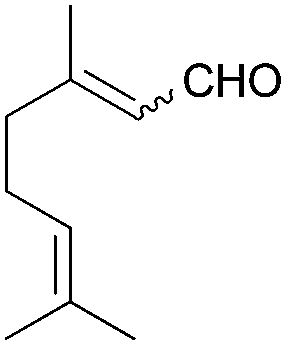

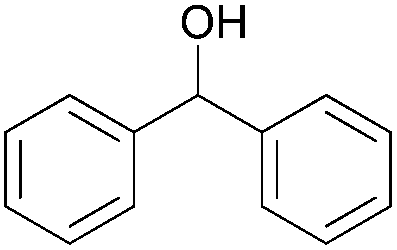

Table 3 Selective oxidation of alcohols^a

Entry	Alcohol	Product	Isolated yield (%)
a Reaction conditions: alcohol (1 mmol), Cu(OAc)2 (5 mol%), DMAP (10 mol%), TEMPO (5 mol%), solvent-free, open air.b Cu(OAc)2 (1 mol%), DMAP (2 mol%), TEMPO (1 mol%), 80 °C, 18 h.c 25 °C, 0.5 mL CH3CN, 24 h.d 25 °C, 0.5 mL CH3CN, 48 h.e 25 °C, 0.5 mL EtOH, 1 atm O2, 48 h.f 60 °C, 48 h.g Determined by ^1H NMR analysis.
1^b			3a, 93
2^c			3b, 94
3^c			3c, 90
4^d			3d, 89
5^d			3e, 77
6^e			3f, 88 E : Z = 62 : 38^g
7^f			3g, 72
8^b			3h, 99

---

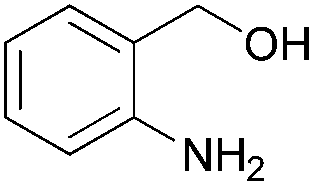

Highly chemoselective oxidation of a hydroxyl group of molecules which contain an easily oxidized functional group such as phenolic hydroxyl, amino, and methylthio are challenging. With the new developed catalyst system, all these types of alcohols were oxidized to corresponding aldehydes with acetonitrile as solvent in 36 hours (Table 3). The over oxidized product wasn't observed in all the reactions respectively. The geraniol was also delivered the aldehyde in excellent yield at room temperature with ethanol as solvent under oxygen atmosphere. The secondary benzylic alcohols could also be transformed to ketones at a little higher temperature in good yields (Table 3, entry 7 and 8).

Imines derivatives are important versatile synthetic precursors in the synthesis of nitrogen heterocycles, fine chemicals, and pharmaceuticals.^19,20 The new developed copper/DMAP/TEMPO catalyst system can also promoted the organic solvent-free imine synthesis from benzyl alcohols and aromatic or aliphatic amines in good excellent yields under air (open system) at 110 °C (Table 4).

Table 4 Synthesis of imines from various alcohols and aniline^a

Entry	Alcohol	Aniline	Product	Isolated yield (%)
a Reaction conditions: alcohol (1 mmol), aniline (1.2 mmol) Cu(OAc)2 (1 mol%), DMAP (2 mol%), TEMPO (1 mol%), solvent-free, open air, 24 h.b Determined by GC using tridecane as an internal standard.
1				4a, 95^b
2				4b, 81
3				4c, 89
4				4d, 84
5				4e, 66
6				4f, 69
7				4g, 73

---

Large-scale application of oxidation alcohols are constrained by safety concerns associated with the combination of oxidant, O₂ and organic solvents, especially the frequent use of halogenated solvent.²¹ With the newly developed organic solvent-free and Cu(OAc)₂/DMAP/TEMPO catalyst system, a 100 g-scale reactions for aldehyde and imine formation were achieved in higher than 90% yields in 36 hours, and the catalyst loading could even been decreased to 0.5 mol%, which highlights the power of this approach (Scheme 2).

Scheme 2 Aldehyde and imine formation in the mole-scale.

Based on the primary study by our group and others' reports,^8b,22 a possible mechanism for the aerobic copper/TEMPO was proposed (Scheme 3). The DMAP coordinated to copper(II) center to form a complex A which might similar to CuBr₂ (2,2′-bipyridine)-TEMPO catalyst system which was shown in Scheme 3. The high efficiency imines formation might be attributed to the open system which water could be got rid of from the reaction mixture under 110 °C.

Scheme 3 The proposed mechanism for Cu(II)-catalyzed oxidation.

Conclusions

In conclusion, we have developed a highly efficient and practical organic solvent-free Cu(OAc)₂/DMAP/TEMPO catalyst system for the selective oxidation of benzylic and allylic alcohols to aldehydes and phenones under ambient air atmosphere. A wide range of substrates which even contained phenolic hydroxyl, amino, and methylthio functional groups could be transformed into corresponding aldehydes with no trace of over oxidized carboxylic acids. The aerobic oxidative imine synthesis from benzyl alcohol and amines were achieved by employing the newly developed catalyst system. 100 g-scale reactions for aldehyde and imine formation were achieved in higher than 90% yield with low catalyst loading in 36 hours. To our best of knowledge, this is the most convenient way to synthesize these kinds of compounds in lab. The more detailed mechanism and synthetic applications of this new developed catalyst system are currently under investigation.

Experimental

General

All the chemicals and solvents were obtained from commercial sources and used without further purification. Column chromatography purifications were performed using 300–400 mesh silica gel. Reactions were monitored by thin-layer chromatography (TLC) carried out on 0.2 mm Huanghai silica gel plates (HSGF-254) using UV light as visualizing agent. NMR spectra were recorded on Bruker DRX-400 instruments and calibrated using residual solvent peaks as internal reference.

General procedures for synthesis of aldehydes

A mixture of alcohol (1 mmol, 1.0 eq.), Cu(OAc)₂ (1.8 mg, 0.01 eq.), DMAP (2.4 mg, 0.02 eq.) and TEMPO (1.5 mg, 0.01 eq.) in a 15 mL glass tube (under air atmosphere) was heated and stirred at 25 °C for 24 hours. The reaction mixture was cooled to rt, and concentrated in vacuo. The resulting residue was purified by column chromatography on silica gel to give the aldehyde.

Benzaldehyde(1a): ¹H NMR (400 MHz, CDCl₃) δ = 10.01 (s, 1H), 7.90–7.84 (m, 2H), 7.65–7.59 (m, 1H), 7.52 (dd, J = 7.9, 7.1 Hz, 2H). ¹³C NMR (101 MHz, CDCl₃) δ = 192.49, 136.47, 134.55, 129.82, 129.08.

General procedures for synthesis of imines

A mixture of alcohol (1 mmol, 1.0 eq.), amine (1.2 mmol, 1.2 eq.), Cu(OAc)₂ (1.8 mg, 0.01 eq.), DMAP (2.4 mg, 0.02 eq.) and TEMPO (1.5 mg, 0.01 eq.) in a 15 mL glass tube (under air atmosphere) was heated and stirred at 110 °C for 24 hours. The reaction mixture was cooled to rt, and concentrated in vacuo. The resulting residue was purified by column chromatography on silica gel to give the imine. The silica gel column was leached by eluent (PE : Et₃N = 100 : 1) at first.

N-Benzylideneaniline (4a): ¹H NMR (400 MHz, CDCl₃) δ = 8.45 (s, 1H), 7.91 (dd, J = 6.5, 3.1 Hz, 2H), 7.51–7.44 (m, 3H), 7.40 (dd, J = 10.6, 4.9 Hz, 2H), 7.27–7.17 (m, 3H). ¹³C NMR (101 MHz, CDCl₃) δ = 160.56, 152.20, 136.33, 131.51, 129.28, 128.94, 128.90, 126.07, 120.99.

Procedures for synthesis of benzaldehyde on mole-scale

A mixture of benzyl alcohol (1 mol, 1.0 eq.), Cu(OAc)₂ (900 mg, 0.005 eq.), DMAP (1200 mg, 0.01 eq.) and TEMPO (750 mg, 0.005 eq.) in a 250 mL round-bottomed flask (under air atmosphere) was heated at 80 °C for 36 hours. After the reaction was finished, the reaction mixture was extracted with n-pentane (5 × 250 mL). The combined n-pentane phase was concentrated in vacuo. The yield was determined by GC using tridecane as an internal standard and the residue was purified by vacuum distillation to afford benzaldehyde (87% isolated yield).

Procedures for synthesis of N-benzylideneaniline on mole-scale

A mixture of benzyl alcohol (1 mol, 1.0 eq.), aniline (1.2 mol, 1.2 eq.), Cu(OAc)₂ (900 mg, 0.005 eq.), DMAP (1200 mg, 0.01 eq.) and TEMPO (750 mg, 0.005 eq.) in a 500 mL round-bottomed flask (under air atmosphere) was heated at 110 °C with a decanter for 36 hours before it was quenched by NH₄Cl (250 mL, sat. aq.). The layers were separated and the aqueous layer was extracted with EtOAc (3 × 250 mL). The combined ethyl acetate phase was concentrated in vacuo. The yield was determined by GC using tridecane as an internal standard and the residue was purified by recrystallization (ethyl acetate/n-pentane, three times) to afford N-benzylideneaniline (80% isolated yield).

Acknowledgements

This research was financially supported by the financial support from the Natural Science Foundation of Jiangsu Province of China (L210903913), and a start-up fund (Q410901212) from Soochow University for support of this work. The PAPD and Qing Lan Project are also gratefully acknowledged.

Notes and references

1. (a) R. A. Sheldon and J. K. Kochi, Metal-Catalysed Oxidations of Organic Compounds, Academic Press, New York, 1981; (b) R. C. Larok, Comprehensive organic transformations, John Wiley & Sons, New York, 2nd edn, 1999.
2. (a) J. W. Ladbury and C. F. Cullis, Chem. Rev., 1958, 58, 403; (b) A. J. Fatiadi, Synthesis, 1976, 65; (c) R. J. K. Taylor, M. Reid, J. Foot and S. A. Raw, Acc. Chem. Res., 2005, 38, 851.
3. (a) E. J. Corey and J. W. Suggs, Tetrahedron Lett., 1975, 16, 2647; (b) R. J. K. Taylor, M. Reid, J. Foot and S. A. Raw, Acc. Chem. Res., 2005, 38, 851.
4. (a) K. E. Pfitzner and J. G. Moffatt, J. Am. Chem. Soc., 1963, 85, 3027; (b) A. J. Mancuso, S. L. Huang and D. Swern, J. Org. Chem., 1978, 43, 2480; (c) T. T. Tidwell, Synthesis, 1990, 857.
5. (a) D. B. Dess and J. C. Martin, J. Org. Chem., 1983, 48, 4155; (b) M. Frigerio and M. Santagostino, Tetrahedron Lett., 1994, 35, 8019; (c) Y. Jiang, W. Chen and W. Lu, Tetrahedron, 2013, 69, 3669.
6. (a) S. Wertz and A. Studer, Green Chem., 2013, 15, 3116; (b) M. C. López, G. Royal, C. Philouze, P. Y. Chavant and V. Blandin, Eur. J. Org. Chem., 2014, 4884; (c) R. Prebil, G. Stavber and S. Stavber, Eur. J. Org. Chem., 2014, 395.
7. (a) K. Yamaguchi, K. Mori, T. Mizugaki, K. Ebitani and K. Kaneda, J. Am. Chem. Soc., 2000, 122, 7144; (b) R. A. Sheldon, I. W. C. E. Arends, G. J. T. Brink and A. Dijksman, Acc. Chem. Res., 2002, 35, 774; (c) T. Mallat and A. Baiker, Chem. Rev., 2004, 104, 3037; (d) S. S. Stahl, Angew. Chem., Int. Ed., 2004, 43, 3400; (e) D. I. Enache, J. K. Edwards, P. Landon, B. Solsona-Espriu, A. F. Carley, A. A. Herzing, M. Watanabe, C. J. Kiely, D. W. Knight and G. J. Hutchings, Science, 2006, 311, 362; (f) M. Turner, V. B. Golovko, O. P. H. Vaughan, P. Abdulkin, A. Berenguer-Murcia, M. S. Tikhov, B. F. G. Johnson and R. M. Lambert, Nature, 2008, 454, 981; (g) M. Uyanik and K. Ishihara, Chem. Commun., 2009, 2086; (h) S. Gowrisankar, H. Neumann and M. Beller, Angew. Chem., Int. Ed., 2011, 50, 5139; (i) C. Parmeggiani and F. Cardona, Green Chem., 2012, 14, 547; (j) S. Sarina, H. Zhu, E. Jaatinen, Q. Xiao, H. Liu, J. Jia, C. Chen and J. Zhao, J. Am. Chem. Soc., 2013, 135, 5793; (k) Y. Sasano, S. Nagasawa, M. Yamazaki, M. Shibuya, J. Park and Y. Iwabuchi, Angew. Chem., Int. Ed., 2014, 53, 3236.
8. (a) M. F. Semmelhack, C. R. Schmidt, D. A. Cortes and C. S. Chou, J. Am. Chem. Soc., 1984, 106, 3374; (b) R. Ben-Daniel, P. Alsters and R. Neumann, J. Org. Chem., 2001, 66, 8650; (c) I. A. Ansari and R. Gree, Org. Lett., 2002, 4, 1507; (d) N. Jiang and A. J. Ragauskas, Org. Lett., 2005, 7, 3689; (e) M. Shibuya, M. Tomizawa, I. Suzuki and Y. Iwabuchi, J. Am. Chem. Soc., 2006, 128, 8412; (f) A. E. Wendlandt, A. M. Suess and S. S. Stahl, Angew. Chem., Int. Ed., 2011, 50, 11062.
9. (a) P. Gamez, I. W. C. E. Arends, J. Reedijk and R. A. Sheldon, Chem. Commun., 2003, 2414; (b) P. Gamez, I. W. C. E. Arends, R. A. Sheldon and J. Reedijk, Adv. Synth. Catal., 2004, 346, 805.
10. J. M. Hoover and S. S. Stahl, J. Am. Chem. Soc., 2011, 133, 16901.
11. (a) B. Betzemeier, M. Cavazzini, S. Quici and P. Knochel, Tetrahedron Lett., 2000, 41, 4343; (b) G. Ragagnin, B. Betzemeier, S. Quici and P. Knochel, Tetrahedron, 2002, 58, 3985.
12. G. Zhang, X. Han, Y. Luan, Y. Wang, X. Wen and C. Ding, Chem. Commun., 2013, 49, 7908.
13. B. Z. Ying, G. Zhu and Y. Shi, Org. Lett., 2012, 15, 992.
14. (a) J. Olguin, H. Muller-Bunz and M. Albrecht, Chem. Commun., 2014, 50, 3488; (b) X. Liu, Q. Xia, Y. Zhang, C. Chen and W. Chen, J. Org. Chem., 2013, 78, 8531; (c) D. R. Jensen, M. J. Schultz, J. A. Mueller and M. S. Sigman, Angew. Chem., Int. Ed., 2003, 42, 3810.
15. (a) I. E. Markó, P. R. Giles, M. Tsukazaki, S. M. Brown and C. J. Urch, Science, 1996, 274, 2044; (b) I. E. Marko, A. Gautier, R. Dumeunier, K. Doda, F. Philippart, S. M. Brown and C. J. Urch, Angew. Chem., Int. Ed., 2004, 43, 1588.
16. (a) A. J. Ragauskas, Org. Lett., 2005, 7, 3689; (b) S. Mannam, S. K. Alamsetti and G. Sekar, Adv. Synth. Catal., 2007, 349, 2253.
17. Y. Matano and H. Nomura, Angew. Chem., Int. Ed., 2002, 41, 3028.
18. (a) T. O. T. Nishimura, K. Ohe and S. Uemura, J. Org. Chem., 1999, 64, 6750; (b) B. A. S. Steinhoff and S. S. Stahl, Org. Lett., 2002, 4, 4179.
19. (a) S. F. Martin, Pure Appl. Chem., 2009, 81, 195; (b) L. Shi, H. M. Ge, S. H. Tan, H. Q. Li, Y. C. Song, H. L. Zhu and R. X. Tan, Eur. J. Med. Chem., 2007, 42, 558; (c) Z. Y. Liu, Y. M. Wang, Z. R. Li, J. D. Jiang and W. Boykin, Bioorg. Med. Chem. Lett., 2009, 19, 5661.
20. (a) R. W. Layer, Chem. Rev., 1963, 63, 489; (b) J. K. Whitesell, Acc. Chem. Res., 1985, 18, 280; (c) J. A. Ellman, T. D. Owens and T. P. Tang, Acc. Chem. Res., 2002, 35, 984; (d) W. Tang and X. Zhang, Chem. Rev., 2003, 103, 3029; (e) H. Groeger, Chem. Rev., 2003, 103, 2795; (f) A. Cordova, Acc. Chem. Res., 2004, 37, 102; (g) S. J. Connon, Angew. Chem., Int. Ed., 2006, 45, 3909; (h) K. I. Yamada and K. Tomioka, Chem. Rev., 2008, 108, 2874; (i) Y. Wei and M. Shi, Acc. Chem. Res., 2010, 43, 1005; (j) J. Wang, X. Liu and X. Feng, Chem. Rev., 2011, 111, 6947.
21. (a) A. Dijksman, A. Marino-González, A. M. I. Payeras, I. W. C. E. Arends and R. A. Sheldon, J. Am. Chem. Soc., 2001, 123, 6826; (b) M. Shibuya, Y. Osada, Y. Sasano, M. Tomizawa and Y. Iwabuchi, J. Am. Chem. Soc., 2011, 133, 6497.
22. (a) A. J. Ragauskas, Org. Lett., 2005, 7, 3689; (b) P. J. Figiel, M. Leskelä and T. Repo, Adv. Synth. Catal., 2007, 349, 1173; (c) M. Uyanik and K. Ishihara, Chem. Commun., 2009, 2086.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c4ra09851j

---
