Synthesis and inclusion behavior of a heterotritopic receptor based on hexahomotrioxacalix[3]arene

Abstract

A heterotritopic hexahomotrioxacalix[3]arene receptor with the capability of binding two alkali metals and a transition metal in a cooperative fashion was synthesized. The binding model was investigated by using ¹H NMR titration experiments in CDCl₃–CD₃CN (10 : 1, v/v), and the results revealed that the transition metal was bound at the upper rim and the alkali metals at the lower and upper rims. Interestingly, the alkali metal ions Li⁺ and Na⁺ bind at the lower and upper rim respectively depending on the dimensions of the alkali metal ions versus the size of the cavities formed by the calix[3]arene derivative. The hexahomotrioxacalix[3]arene receptor acts as a heterotritopic receptor, binding with the transition metal ion Ag⁺ and the alkali metals ions Li⁺ and Na⁺. These findings were not applicable to other different sized alkali metals, such as K⁺ and Cs⁺.

---

Introduction

Calixarenes and their derivatives are attractive compounds for use in host–guest and supramolecular chemistry. In particular, hexahomotrioxacalix[3]arene derivatives with C₃-symmetry can selectively bind ammonium ions which play important roles in both chemistry and biology.^1,2 Furthermore, the incorporation of two types of recognition sites via the introduction of different ionophores on the homotrioxacalix[3]arene will create potential heteroditopic receptors with the capability of binding cations and anions, e.g. ammonium ions and halides.

Recently, we reported a novel ditopic receptor possessing two complexation sites and bearing a thiacalix[4]arene in the 1,3-alternate conformation. The binding behaviour with Na⁺, K⁺ and Ag⁺ ions was examined by ¹H NMR titration experiments. Although the formation of a heterogeneous di-nuclear complex was not clearly observed, the exclusive formation of mononuclear complexes of the 1,3-alternate-derivative with metal cations is of particular interest with respect to the observation of positive/negative allosteric effects within the thiacalix[4]arene family.³

On the other hand, Nabeshima et al. reported a novel calix[4]arene derivative bearing two 2,2′-bipyridine moieties and two ester groups at the lower rim in the cone conformation to construct sophisticated molecular devices and systems.⁴ Indeed, bipyridyl containing calixarenes have been extensively used to complex various metal ions.^5–12 Di- or polytopic receptors are those constructed with two or more binding subunits within the same macrocyclic structure.^13–15 It is well known that these kinds of systems are suitable candidates for the allosteric regulation^5–7 of host–guest interactions with metal cations which play a major role in biological systems.

Moving from our interest in the synthesis of heteroditopic or heteropolytopic receptors that function as multiple types of cation binder, we introduced a 2,2′-bipyridyl group linked via a carbonyl group at the upper rim and diethylacetamide group at the lower rim of the hexahomotrioxacalix[3]arene. Herein, we report the synthesis and complexation studies of these cone-hexahomotrioxacalix[3]arene triamide derivatives that serve as tritopic receptors for Ag⁺, Li⁺ and Na⁺ ions in a cooperative fashion. The recognition behaviour towards multiple types of cation was investigated by ¹H NMR experiments in CDCl₃–CD₃CN solution.

Results and discussion

Synthesis

The preparation of cone-7,15,23-triethoxycarbonyl-25,26,27-tris-(N,N-diethylaminocarbonylmethoxy)-2,4,10,12,18,20-hexahomo-3,11,19-trioxacalix[3]arene (cone-4) is shown in Scheme 1. Thus, bis(hydroxymethylation) of ethyl 4-hydroxybenzoate (1) with formaldehyde in aqueous NaOH for one week afforded ethyl 3,5-bis(hydroxymethyl)-4-hydroxybenzoate (2)¹⁶ in 41% yield. Heating compound (2) to reflux in p-xylene for 24 h afforded hexahomotrioxacalix[3]arene (3).¹⁷ The O-alkylation of compound (3) with N,N-diethylchloroacetamide in the presence of NaI/NaH in refluxing THF/DMF(v/v = 5/1) gave cone-tris(N,N-diethylamino-carbonylmethoxy)hexahomotrioxacalix[3]arene cone-4 (ref. 17) in 45% yield. Hydrolysis of the O-alkylated compound, cone-4, was carried out with NaOH in a mixture of ethanol–water (4 : 1) at 50 °C for 2 h to yield the cone-hexahomotrioxacalix[3]arene tricarboxylic acid cone-5.¹⁷

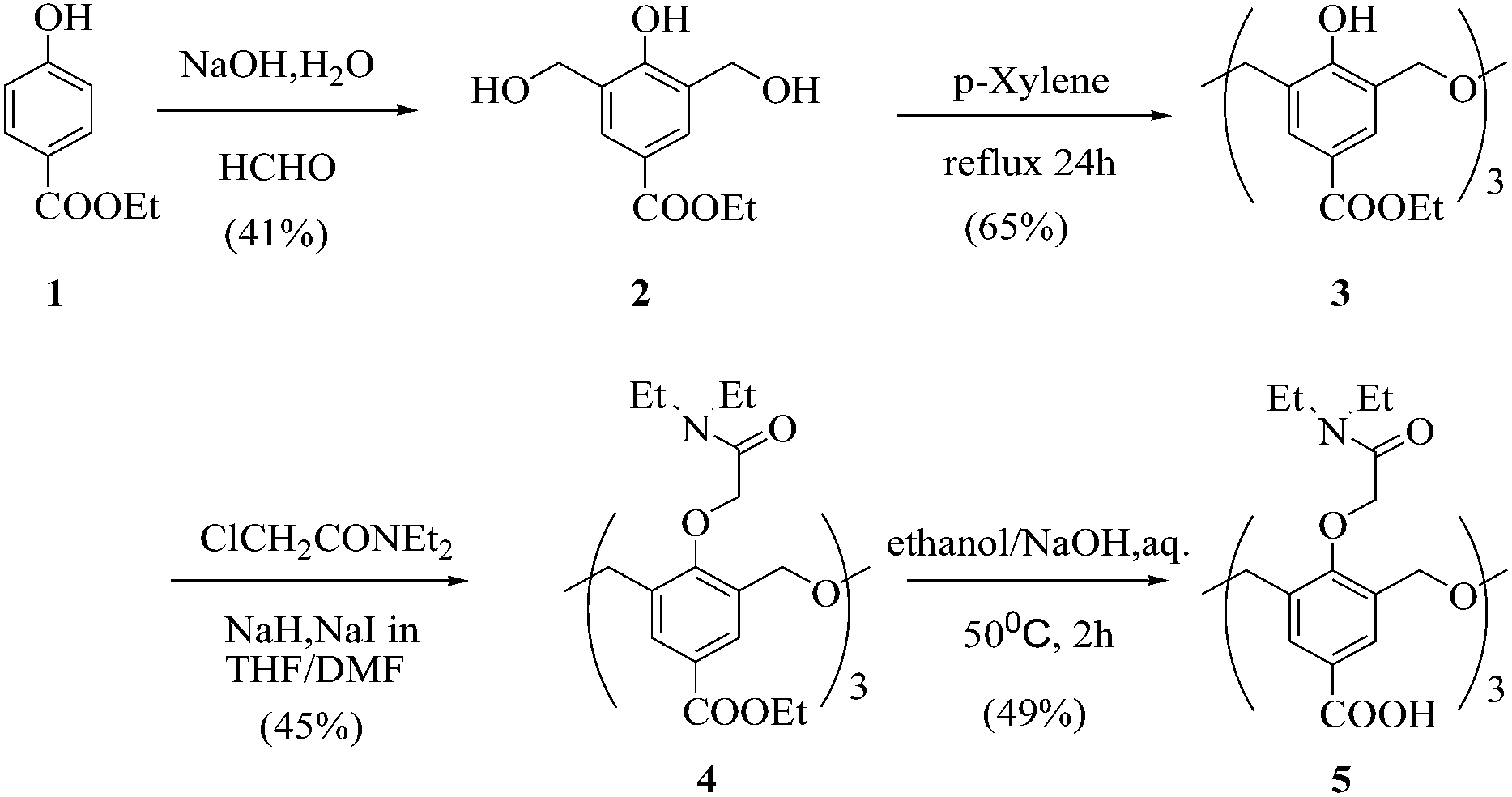

Scheme 1 Synthesis of hexahomotrioxacalix[3]arene cone-5.

Cone-hexahomotrioxacalix[3]arene triamide derivative (cone-7) was prepared by a condensation reaction of cone-5 with 6 in the presence of dicyclohexylcarbodiimide (DCC) and 4-dimethylaminopryidine (DMAP) at room temperature for 3 days in dichloromethane (Scheme 2).

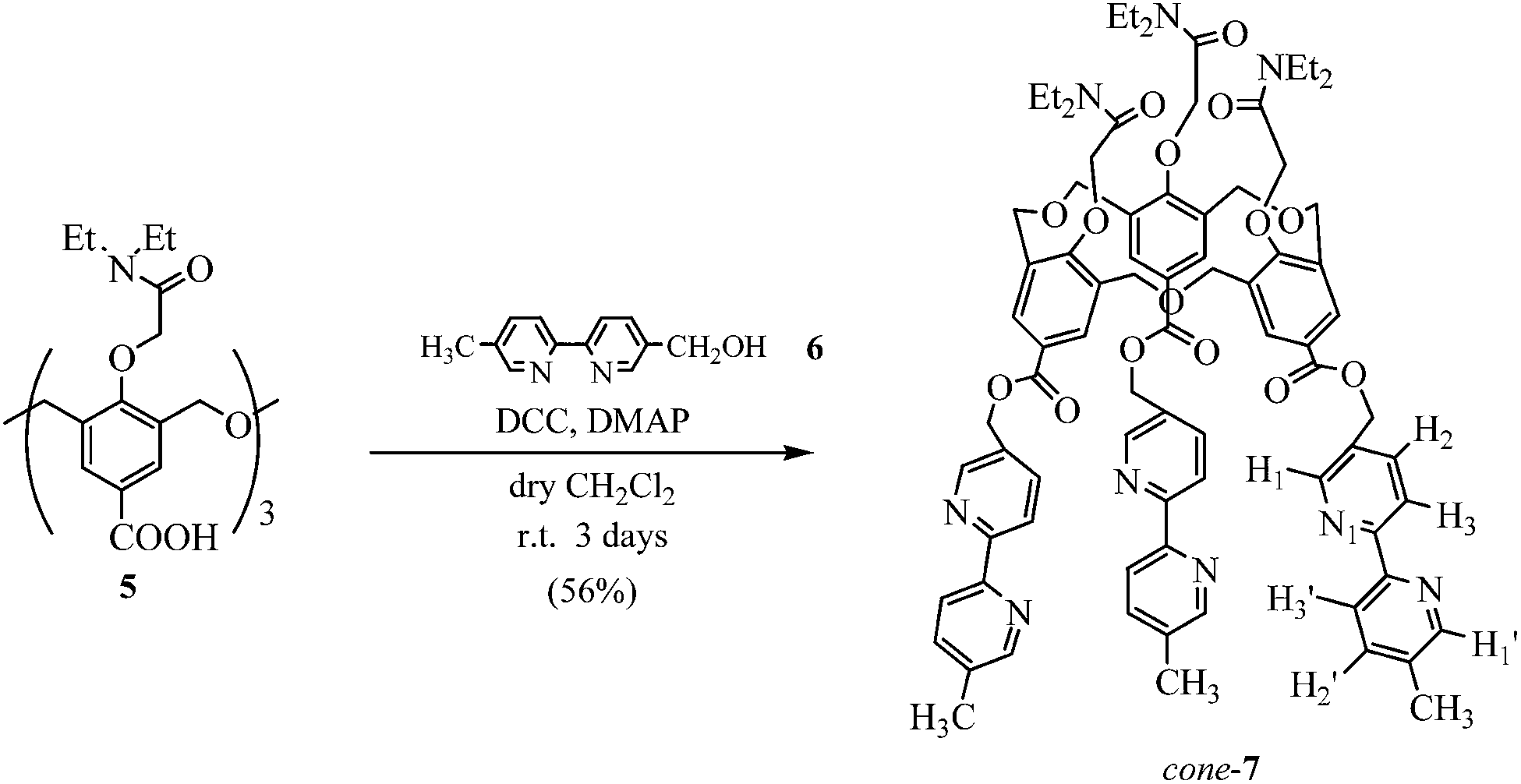

Scheme 2 Synthesis of hexahomotrioxacalix[3]arene cone-7.

Cone-7 immobilised in a ‘flattened cone’ conformation (in which the phenolic rings are tilted to open up the calixarene cavity), was obtained in moderate yield. Conformational assignments for cone-7 were firmly established by the presence of the bridging methylene protons with a Δδ_H separation between H_ax and H_eq of 0.41 ppm in the ¹H NMR spectra (CDCl₃). For the calix[4]arenes, the Δδ_H value of the ArCH₂Ar protons has been correlated with the orientation of adjacent aromatic rings.^2d,e,18,19 The same findings were observed for homotrioxacalix[3]arenes.²⁰

UV-vis spectroscopy studies

Cone-7 as a tritopic hexahomotrioxacalix[3]arene ligand was synthesized, which possessed N,N-diethylacetamide groups at the lower rim and 2,2′-bipyridyl groups at the upper rim linked by a carbonyl group. Consequently, the binding behaviour of cone-7 towards different metal cations can be investigated by UV-vis absorption spectroscopy. As shown in Fig. 1 and S4,† the UV-vis spectra of cone-7 displayed a typical absorption at around 290 nm in CH₂Cl₂–CH₃CN (10 : 1, v/v). The effects of the addition of various metal ions such as Li⁺, Na⁺, K⁺, Cs⁺, Ag⁺, Cu²⁺, Zn²⁺, Pb²⁺ and Hg²⁺ as their perchlorate salts in CH₂Cl₂–CH₃CN solution have been studied. As can be seen, an obvious absorption change in the UV-vis spectrum occurred upon addition of Li⁺, Na⁺ and transition metal ions. The electronic absorption spectrum of cone-7 exhibited a red shift in the presence of transition metals, whereas only an intensity change was observed for alkali metals. For the metal Zn²⁺, it was noticed that the absorption band was split into two absorption bands at around 310 nm and 320 nm, respectively. No significant UV-vis absorption changes were observed upon the addition of K⁺ and Cs⁺ ions. Thus, it can be explained that the 2,2′-bipyridyl group acted as a chromophore displaying a red-shift absorption after binding with transition metals. According to this observation, we can demonstrate the transition metals bound with 2,2′-bipyridyl group at the upper rim and alkali metals bound with other sites respectively. This finding also can be proved by the ¹H NMR titration experiments.

Fig. 1 UV-vis absorption spectra response of cone-7 (1 × 10⁻⁶ M) in CH₂Cl₂–CH₃CN (10 : 1, v/v) to 1 × 10⁻⁵ M various tested metal ions. λ_max = 290 nm, ε = 1.89 × 10⁵ cm⁻¹ M⁻¹.

¹H NMR titration studies

To investigate the binding behaviour between cone-7 with Li⁺, Na⁺ and Ag⁺ ions, ¹H NMR spectroscopic studies were carried out in CDCl₃/CD₃CN (10 : 1, v/v). The spectral differences are shown in Fig. 2. In the presence of an equivalent of Li⁺, for example, the Δδ_H value for H_ax and H_eq for the ArCH₂O methylene protons changed from δ 0.39 ppm to δ 0.27 ppm, The Δδ_H′ value for the –NCH₂CH₃ methylene proton changed from δ 0.11 ppm to δ 0.30 ppm. In comparison with the complex cone-7 ⊃ Li⁺, in the spectra of cone-7 ⊃ Na⁺ complex, the Δδ_H value for the ArCH₂O methylene protons barely changed but the signals for the ArCH₂O methylene protons both were both shifted upfield, i.e. δ 0.19 ppm. The Δδ_H′ value for the –NCH₂CH₃ methylene proton changed from δ 0.11 ppm to δ 0.25 ppm. In addition, obvious downfield chemical shifts for Ar-H (δ 0.33 ppm) and bipy-CH₂ (δ 0.11 ppm) were observed for the complex cone-7 ⊃ Na⁺.

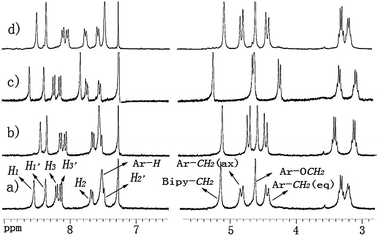

Fig. 2 Partial ¹H NMR titration of cone-7/guest complex (H/G = 1 : 1); (a) free cone-7; (b) cone-7 ⊃ Li⁺; (c) cone-7 ⊃ Na⁺; (d) cone-7 ⊃ Ag⁺; solvent: CDCl₃/CD₃CN (10 : 1, v/v).

The addition of an equiv. of AgClO₄ to cone-7 caused instant complexation at the upper rim as demonstrated by the downfield shifts of the 2,2′-bipyridyl protons (H_2′, Δδ = −0.08 ppm, H₂, Δδ = −0.10 ppm), and the upfield shifts of the 2,2′-bipyridyl protons (H_3′, Δδ = +0.10 ppm, H₃, Δδ = +0.10 ppm) for the 1 : 1 complex of cone-7 ⊃ Ag⁺ (K_a = 2.24 × 10⁵ M⁻¹) as shown in Fig. 2d, whereas the lower rim protons were scarely affected in the presence of Ag⁺. This results strongly suggested that Ag⁺ can be selectively bound by the nitrogen atoms of the 2,2′-bipyridyl group.

The Li⁺ formed a complex with the N,N-diethylmethoxy-carbonylmethoxy group of cone-7 and adopted the more-upright C₃-symmetric form. It is known that the introduction of bulky substituents onto the OH groups forces the phenol units to stand upright from the calixarene ring plane.¹ This inclination was reflected by the chemical-shift difference (Δδ_H) between the axial and equatorial ArCH₂ protons, the small Δδ_H value for H_ax and H_eq indicated that the phenol groups in the complex are positioned in a more upright orientation. We have already reported that when a Li⁺ ions was bound to the ionophoric group at the lower rim, the calix cavity changed from a “flattened cone” to a more-upright form.²¹ The Na⁺ ion was bound in the cavity formed by the three phenoxy rings, as evidenced by the upfield chemical shift of the axial and equatorial ArCH₂ protons (i.e. δ 0.19 ppm), the downfield chemical shifts for the Ar-H (δ 0.33 ppm) and bipy–CH₂ (δ 0.11 ppm).

We also carried out ¹H NMR titration experiments for cone-7 with K⁺ and Cs⁺ ions (Fig. S5 and S6†). An equivalent of KClO₄ and CsClO₄ were added to the solution of cone-7, and no obvious chemical shift change was observed. Because of the size of K⁺ and Cs⁺ ions, they are not suitable for binding with the lower rim or upper rim cavities.

The complexation modes of receptor cone-7 with Ag⁺ and Li⁺ were investigated by ¹H NMR spectroscopy. The addition of an equiv. of AgClO₄ to cone-7 caused instant complexation at the upper rim as demonstrated in Fig. 3b. Fig. 3c showed the ¹H NMR spectrum after the addition of Li⁺ ion to the cone-7 ⊃ Ag⁺ complex. When an equivalent of LiClO₄ was added, the Δδ_H value for H_ax and H_eq for the ArCH₂O methylene protons changed, the Δδ_H value (from peaks around δ 4.42–4.69 ppm) for the LiClO₄ ⊂ [cone-7 ⊃ Ag⁺] (δ 0.27 ppm) was smaller than that of the cone-7 ⊃ Ag⁺ (from peaks around δ 4.42–4.80 ppm) (δ 0.38 ppm). The Δδ_H′ value for the –NCH₂CH₃ methylene protons (δ 0.29 ppm) of LiClO₄ ⊂ [cone-7 ⊃ Ag⁺] was larger than that of the cone-7 ⊃ Ag⁺ (δ 0.12 ppm). This result implied that Li⁺ formed a complex with the N,N-diethylmethoxy-carbonylmethoxy group after cone-7 complexed with Ag⁺ and adopted the more upright C₃-symmetric form. This result was also observed after changing the binding sequence of metal ions, first to form the complex cone-7 ⊃ Li⁺ and then to form the complex AgClO₄ ⊂ [cone-7 ⊃ Li⁺] (Fig. S7†). Thus, the cone-hexahomotrioxacalix[3]arene triamide derivative cone-7 can serve as a receptor for Ag⁺ and Li⁺ in a cooperative fashion. Similar findings were observed for the NaClO₄ ⊂ [cone-7 ⊃ Ag⁺] complex.

Fig. 3 Partial ¹H NMR titration of cone-7/guest complex (H/G = 1 : 1); (a) free cone-7; (b) cone-7 ⊃ AgClO₄; (c) LiClO₄ ⊂ [cone-7 ⊃ Ag⁺]; solvent: CDCl₃/CD₃CN (10 : 1, v/v).

¹H NMR titration experiments were also carried out with the Na⁺ ion and solutions of cone-7 ⊃ Ag⁺ as shown in Fig. 4c and d. When 0.4 equivalents of NaClO₄ was added, the complex NaClO₄ ⊂ [cone-7 ⊃ Ag⁺] and the free species [cone-7 ⊃ Ag⁺] both existed in the system. However, when 1 equivalent of NaClO₄ was added to the solution of cone-7 ⊃ Ag⁺, the free species [cone-7 ⊃ Ag⁺] gradually disappeared and only the complex Na⁺ ⊂ [cone-7 ⊃ Ag⁺], as shown in Fig. 4d, was observed. The corresponding protons shifts were given by ¹H NMR complexation experiments. Thus, cone-7 first bound with Ag⁺ at the upper rim, then bound with Na⁺ ion in the cavity formed by the three phenoxy rings of the oxacalix[3]arene. Δδ_H value for H_ax and H_eq for ArCH₂O methylene protons mostly did not change, however the signals for the ArCH₂O methylene protons were both shifted upfield, i.e. δ 0.20 ppm (H_eq, δ 4.45 ppm to δ 4.23 ppm and H_ax, δ 4.84 ppm to δ 4.64 ppm, respectively). The Δδ_H′ value for the –NCH₂CH₃ methylene protons (δ 0.24 ppm) for NaClO₄ ⊂ [cone-7 ⊃ Ag⁺] was larger than that of the cone-7 ⊃ Ag⁺ (δ 0.11 ppm). The Ar-H proton was shifted downfield (δ 0.32 ppm) and the bipy–CH₂ proton was shifted downfield (δ 0.20 ppm). When 0.4 equivalents of NaClO₄ was added to the complex cone-7 ⊃ Ag⁺, the complex NaClO₄ ⊂ [cone-7 ⊃ Ag⁺] and the free species [cone-7 ⊃ Ag⁺] both existed in the system. It was necessary to consider whether the negative allosteric effect caused by the binding of Ag⁺ existed or not, so the sequence of metal ions addition was changed, viz. initially bind with Na⁺ ion, then to the Ag⁺ ion as shown in Fig. 5. However, when 0.4 equivalents of NaClO₄ was added to cone-7, the complex cone-7 ⊃ Na⁺ and the free species cone-7 were both observed as shown in Fig. 5c. On further addition of the metal ion Na⁺ (1 equiv.), the free species disappeared and only the complex cone-7 ⊃ Na⁺ existed. In most other work, a passive/negative allosteric effect was caused by the binding with Ag⁺, but here, there was no observation of the allosteric effect.

Fig. 4 Partial ¹H NMR titration of cone-7/guest complex (H/G = 1 : 1); (a) free cone-7; (b) cone-7 ⊃ AgClO₄; (c) NaClO₄ (0.4 equiv.) ⊂ [cone-7 ⊃ Ag⁺], blue triangles for free and red circles for complexed; (d) NaClO₄ (1 equiv.) ⊂ [cone-7 ⊃ Ag⁺]; solvent: CDCl₃/CD₃CN (10 : 1, v/v).

Fig. 5 Partial ¹H NMR titration of cone-7/guest complex (H/G = 1 : 1); (a) free cone-7; (b) cone-7 ⊃ NaClO₄; (c) cone-7 ⊃ NaClO₄ (0.4 equiv.), blue triangles for free and red circles for complexed; (d) AgClO₄ ⊂ [cone-7 ⊃ Na⁺]; solvent: CDCl₃/CD₃CN (10 : 1, v/v).

Until now, the ability of the cone-7 to serve as a heteroditopic receptor has been demonstrated, but now to illustrate that cone-7 can serve as a heterotritopic receptor, cone-7 was allowed to complex with Li⁺, Na⁺ and Ag⁺ metal ions in a cooperative fashion. ¹H NMR spectroscopic titration experiments were carried out by addition of Li⁺ ions to the solution of cone-7, by Na⁺ ions to the solution of cone-7 ⊃ Li⁺ and by Ag⁺ ions to the solution of Na⁺ ⊂ [cone-7 ⊃ Li⁺] as shown in Fig. 6. In the presence of an equivalent of Li⁺, the Δδ_H values for H_ax and H_eq for the ArCH₂O methylene protons changed from δ 0.40 ppm to δ 0.24 ppm, and the Δδ_H′ value for the –NCH₂CH₃ methylene protons changed from δ 0.11 ppm to δ 0.28 ppm. When 1 equiv. of NaClO₄ was added to the solution of cone-7 ⊃ Li⁺, the Δδ_H value for H_ax and H_eq of the ArCH₂O methylene protons changed from δ 0.24 ppm to δ 0.34 ppm, and the signals for the ArCH₂O methylene protons were both shifted upfield, i.e. δ 0.18 ppm (H_eq, δ 4.48 ppm to δ 4.30 ppm and H_ax, δ 4.72 ppm to δ 4.64 ppm, respectively), indicating that binding was occurring between the cone-7 ⊃ Li⁺ and Na⁺; the corresponding chemical shift changes were attributable to the cooperative effects by the Li⁺ and Na⁺ ions. The Ar-H proton was shifted downfield (δ 0.15 ppm) and the bipy–CH₂ proton was shifted downfield (δ 0.06 ppm). After addition of Ag⁺ ion to the solution of Na⁺ ⊂ [cone-7 ⊃ Li⁺], we also observed the same downfield shifts for the 2,2′-bipyridyl protons (H_2′, Δδ = −0.08 ppm, H₂, Δδ = −0.10 ppm). Thus, cone-7 can serve as a heterotritopic receptor. This result was also observed after changing the binding sequence of the metal ions. Firstly, the complex of cone-7 ⊃ Ag⁺ was formed, then the complex LiClO₄ ⊂ [cone-7 ⊃ Ag⁺], Na⁺ ⊂ {Li⁺ ⊂ [cone-7 ⊃ Ag⁺]} (Fig. S8†) was formed. We observed the same¹H NMR spectrum as shown in Fig. 6d and S8d,† and thus it was proved that cone-7 can serve as a heterotritopic receptor for the Ag⁺, Li⁺ and Na⁺ ions in a cooperative fashion (Fig. 7).

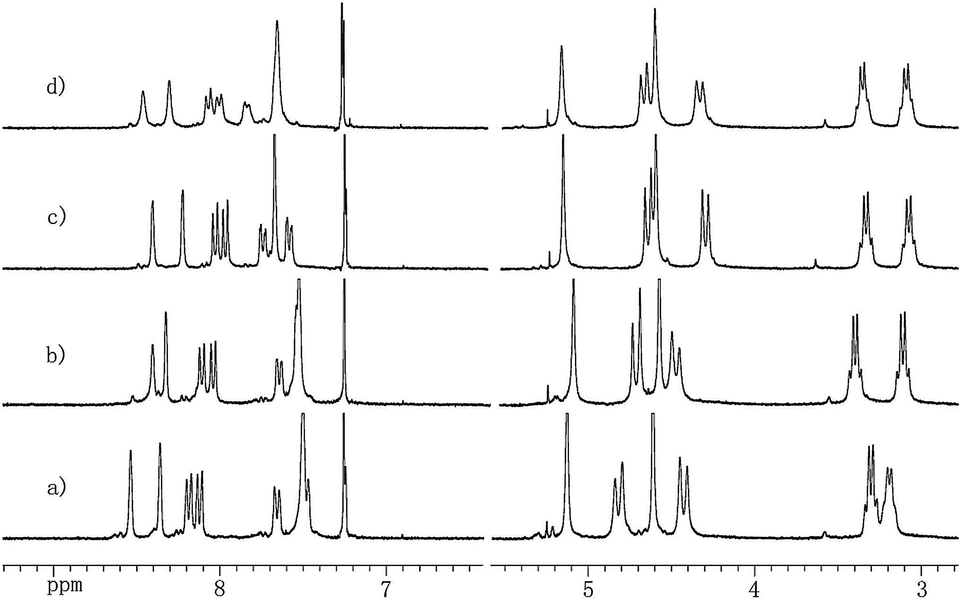

Fig. 6 Partial ¹H NMR titration of cone-7/guest complex (H/G = 1 : 1); (a) free cone-7; (b) cone-7 ⊃ LiClO₄; (c) NaClO₄ ⊂ [cone-7 ⊃ Li⁺]; (d) Ag⁺ ⊂ {Na⁺ ⊂ [cone-7 ⊃ Li⁺]}; solvent: CDCl₃/CD₃CN (10 : 1, v/v).

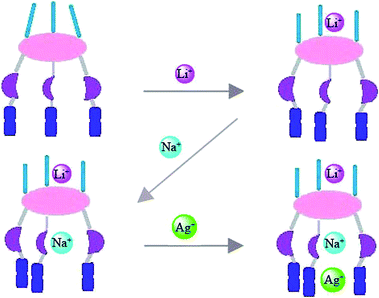

Fig. 7 Plaussible complexation mode of host cone-7 with Li⁺, Na⁺ and Ag⁺ ions.

As shown in Table 1, the nitrogen atom N₁ in the bipyridine ring pointed away from the calix cavity in free cone-7 because of the electron repulsion between the nitrogens. After complexation, the nitrogen turned inwards towards the cavity to complex with the Ag⁺ and thus affected the 2,2′-bipyridyl protons with downfield shifts for H_2′ (Δδ = −0.08 ppm) and H₂ (Δδ = −0.10 ppm), upfield shifts for H_3′ (Δδ = +0.10 ppm), H₃ (Δδ = +0.10 ppm) and H₁ (Δδ = +0.04 ppm) (Table 1) due to the tetrahedral interaction of the N–Ag⁺ motif.

Table 1 Chemical shift of pyridine protons in cone-7

Compd.	Chemical shift,δppm^a^,^b
	H1	H2	H3	H^′1	H^′2	H^′3
a Δδ values are the difference of the chemical shift between cone-7 in CDCl3–CD3CN at 27 °C.b A minus sign (−) denotes a shift to lower magnetic field, a plus sign (+) denotes a shift to higher magnetic.c The midpoint values of multiplet are indicated.
cone-7	8.55	7.67^c	8.21^c	8.37	7.50^c	8.14^c
cone-7⊃Ag^+	8.51	7.77	8.11	8.36	7.58	8.04
Δδ	+0.04	−0.10	+0.10	+0.01	−0.08	+0.10

---

Furthermore, after complexation, H_3′ and H₃, H_2′ and H₂ have similar magnetic environments, and therefore the downfield/upfield shifts were similar.

Complexation studies

The stoichiometries of the cone-7 complexes with Ag⁺ and Li⁺ were determined by UV-vis absorption spectra [CH₂Cl₂/CH₃CN (10 : 1, v/v)], using the continuous variation method, the absorption reached a maximum at around 0.5 mol fraction for this cation (Fig. 8), which clearly indicated that the Ag⁺ formed a 1 : 1 complex with cone-7. Thus, Ag⁺ was completely bound by the soft bipyridine cavity of cone-7 and the homotrioxacalix[3]arene cavity did not participate in the complexation. The stoichiometry of the cone-7 complexes with Li⁺ was also determined by UV-vis absorption spectra [CH₂Cl₂/CH₃CN (10 : 1, v/v)] (Fig. S9†), using the continuous variation method. The absorption also reached maximum at 0.5 mol fraction for this cation, indicating that the Li⁺ ion formed a 1 : 1 complex with cone-7, and the Li⁺ ion was completely bound by the N,N-diethylaminocarbonyl-methoxy groups. The molar ratio method was used to determine the stoichiometry of cone-7 complexed with Na⁺ by UV-vis absorption spectra [CH₂Cl₂/CH₃CN (10 : 1, v/v)] (Fig. S10†), which also indicated that the Na⁺ ion formed a 1 : 1 complex with cone-7.

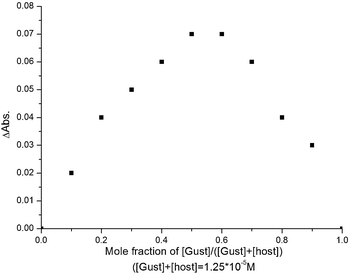

Fig. 8 Job plot of the extractions of Ag⁺ with host cone-7.

UV-vis spectrophotometric analysis was employed to detemine the association constant of the inclusion complex of cone-7 and Ag⁺. The decrease in absorbance at 290 nm versus the increase in concentration of the Ag⁺ was fitted to a 1 : 1 binding model to determine the association constant, which was found to be 2.24 × 10⁵ M⁻¹. The association constant for cone-7 and Li⁺ was 2.58 × 10⁵ M⁻¹ and for cone-7 and Na⁺, which was found to be 1.55 × 10⁵ M⁻¹ (Fig. S11–13†).

Conclusions

A cone-hexahomotrioxacalix[3]arene receptor cone-7 bearing 2,2′-bipyridyl linked via a carbonyl group at the its upper rim and N,N-diethylacetamide chains at the lower rim, respectively, has been synthesized. The receptor cone-7 can serve as a heterotritopic hexahomotrioxacalix[3]arene receptor with capability for binding two types of cations in a cooperative fashion. The binding of the alkali metal ion Li⁺ took place at the lower rim, and the alkali metal ion Na⁺ and transition metal ion Ag⁺ at the upper rim, respectively. In addition, given the Na⁺ ion is larger than the Li⁺ ion, the Li⁺ ion bound with the lower rim cavity through the oxygens whereas the Na⁺ ion chose to bind with the larger cavity formed by the three phenoxy rings of the oxacalix[3]arene, which was verified by ¹H NMR titration experiments.

The nitrogen atom in the bipyridine ring pointed away from the calix cavity in the cone-7 because of the electronic repulsion between the nitrogens. After complexation, the nitrogen atom in the bipyridine ring turned inwards towards the cavity to complex with Ag⁺ to allow for the tetrahedral disposition of the N⋯Ag⁺ motif.

Further studies on the synthesis of tritopic receptors based on the hexahomotrioxacalix[3]arene are also underway in our laboratory.

Experimental

General

All melting points (Yanagimoto MP-S1) are uncorrected.¹H NMR and ¹³C NMR spectra were recorded on a Nippon Denshi JEOL FT-300 NMR spectrometer and Varian-400MR-vnmrs400 with SiMe₄ as an internal reference: J-values are given in Hz. IR spectra were measured for samples as KBr pellets on a Nippon Denshi JIR-AQ2OM spectrophotometer. Mass spectra were obtained with a Nippon Denshi JMS-HX110A Ultrahigh Performance mass spectrometer at 75 eV by using a direct-inlet system. UV-vis spectra were recorded using a Shimadzu UV-3150UV-vis-NIR spectrophotometer. Elemental analyses were performed by a Yanaco MT-5.

Materials

cone-7,15,23-Tris(hydroxycarbonyl)-25,26,27-tris(N,N-diethyl-aminocarbonylmethoxy)-2,4,10,12,18,20-hexahomo-3,11,19-trioxacalix[3]arene triacid (cone-5) was synthesized from cone-7,15,23-tris(ethoxycarbonyl)-25,26,27-trihydroxy-2,4,10,12,18,20-hexahomo-3,11,19-trioxacalix[3]arene cone-3 as following the reported procedure.²¹ 5′-Methyl-2,2′-bipyridyl-5-ylmethanol 6 was prepared according to the reported procedure.²²

Synthesis of 7,15,23-tris(5′-methyl-2,2′-bipyridyl-5-yl-methyl-oxycarbonyl)-25,26,27-tris(N,N-diethylaminocarbonyl-methoxy)-2,4,10,12,18,20-hexahomo-3,11,19-trioxacalix[3]arene (cone-7)

To a solution of cone-5 (100 mg, 0.11 mmol), 5′-methyl-2,2′-bipyridyl-5-ylmethanol 6 (110 mg, 0.55 mmol) and 1-hydroxybenzotriazole (DMAP) (67.2 mg, 0.55 mmol) in CH₂Cl₂ (10 mL), was added dropwise a solution of dicyclohexylcarbodiimide (DCC) (190 mg, 0.92 mmol) in CH₂Cl₂ (10 mL) at 0 °C. The reaction mixture was stirred for 3 days at room temperature then condensed under reduced pressure. The residue was extracted with ethyl acetate (2 × 30 mL). The combined extracts were washed with 10% citric acid (2 × 20 mL), 5% sodium bicarbonate (20 mL), water (20 mL) and saturated brine (20 mL); the solution was dried (MgSO₄) and condensed under reduced pressure. The cone-7 was obtained from column chromatography [(CHCl₃–MeOH (5 : 1, v/v)) (88 mg, 56%) as colorless prisms. M.p. 84.5–85 °C. IR: υ_max(KBr)/cm⁻¹ = 1723 (COOR) and 1650 (CONRR′).¹H NMR (300 MHz, CDCl₃): δ = 1.11–1.12 (18H, m, –CH₂CH₃), 2.40 (9H, s, Bipy–CH₃), 3.30–3.41 (12H, m, –NCH₂), 4.50 (6H, d, J = 13.2 Hz, Ar-CH₂), 4.67 (6H, s, Ar-OCH₂), 4.92 (6H, d, J = 12.6 Hz, Ar-CH₂), 5.21 (6H, s, Bipy–CH₂), 7.57 (3H, dd, J = 6.7 Hz, J = 1.2 Hz, Bipy-H), 7.58 (6H, s, Ar-H), 7.74 (3H, dd, J = 10.2, J = 2.0 Hz, Bipy-H), 8.21 (3H, d, J = 8.1 Hz, Bipy-H), 8.28 (3H, d, J = 8.1 Hz, Bipy-H), 8.45 (3H, s, Bipy-H) and 8.62 (3H, s, Bipy-H) ppm. ¹³C NMR (100 MHz, CDCl₃): δ = 13.5 (CH₃), 18.5 (CH₃), 40.5 (CH₂), 63.5 (CH₂), 67.0 (CH₂), 72.5 (CH₂), 120.7–160.1 (Ar-C, Bipy-C), 165.0 (C=O) and 167.0 (C=O) ppm. FABMS: m/z: 1426.78 (M⁺). C₈₁H₈₇O₁₅N₉ (1426.61): calcd C 68.19, H 6.15; N 8.84. Found: C 68.31, H 6.24, N 8.93.

¹H NMR complexation experiments

To a CDCl₃ solution (500 μL, 5 × 10⁻³ M) of cone-7 in an NMR tube was added a CD₃CN solution (50 μL, 5 × 10⁻³ M) of LiClO₄, NaClO₄, KClO₄, CsClO₄ and AgClO₄. The spectrum for each was recorded after the addition metal ions. The temperature of the ¹H NMR probe was kept constant at 27 °C. The¹H NMR data of the most representative complexes are given below.

The ¹H NMR data of the most representative complexes was given below:

cone-7 ⊃ Li⁺ (1 : 1): δ_H (CDCl₃/CD₃CN, 10 : 1, v/v): 3.12–3.42 (12H, m, –NCH₂), 4.46 (6H, d, J = 13.2 Hz, Ar-CH₂), 4.59 (6H, s, Ar-OCH₂), 4.73 (6H, d, J = 12.6 Hz, Ar-CH₂), 5.12 (6H, s, Bipy–CH₂), 7.54 (3H, dd, J = 6.7 Hz, J = 1.2 Hz, Bipy-H), 7.56 (6H, s, Ar-H), 7.66 (3H, dd, J = 10.2 Hz, J = 1.2 Hz, Bipy-H), 8.08 (3H, d, J = 8.1 Hz, Bipy-H), 8.15 (3H, d, J = 8.1 Hz, Bipy-H), 8.35 (3H, s, Bipy-H) and 8.45 (3H, s, Bipy-H) ppm.

cone-7 ⊃ Na⁺ (1 : 1): δ_H (CDCl₃/CD₃CN, 10 : 1, v/v): 3.10–3.35 (12H, m, –NCH₂), 4.26 (6H, d, J = 13.2 Hz, Ar-CH₂), 4.64 (6H, s, Ar-OCH₂), 4.66 (6H, d, J = 12.6 Hz, Ar-CH₂), 5.26 (6H, s, Bipy–CH₂), 7.56 (3H, dd, J = 6.7 Hz, J = 1.2 Hz, Bipy-H), 7.85 (6H, s, Ar-H), 7.75 (3H, dd, J = 10.2 Hz, J = 1.2 Hz, Bipy-H), 8.16 (3H, d, J = 8.1 Hz, Bipy-H), 8.25 (3H, d, J = 8.1 Hz, Bipy-H), 8.40 (3H, s, Bipy-H) and 8.63 (3H, s, Bipy-H) ppm.

cone-7 ⊃ Ag⁺ (1 : 1): δ_H (CDCl₃/CD₃CN, 10 : 1, v/v): 3.21–3.32 (12H, m, –NCH₂), 4.45 (6H, d, J = 13.2 Hz, Ar-CH₂), 4.62 (6H, s, Ar-OCH₂), 4.84 (6H, d, J = 12.6 Hz, Ar-CH₂), 5.10 (6H, s, Bipy–CH₂), 7.58 (3H, dd, J = 6.7 Hz, J = 1.2 Hz, Bipy-H), 7.47 (6H, s, Ar-H), 7.77 (3H, dd, J = 10.2 Hz, J = 2.0 Hz, Bipy-H), 8.04 (3H, d, J = 8.1 Hz, Bipy-H), 8.11 (3H, d, J = 8.1 Hz, Bipy-H), 8.36 (3H, s, Bipy-H) and 8.51 (3H, s, Bipy-H) ppm.

[cone-7 ⊃ Ag⁺] ⊃ Li⁺ (1 : 1): δ_H (CDCl₃/CD₃CN, 10 : 1, v/v): 3.08–3.37 (12H, m, –NCH₂), 4.42 (6H, d, J = 13.2 Hz, Ar-CH₂), 4.54 (6H, s, Ar-OCH₂), 4.69 (6H, d, J = 12.6 Hz, Ar-CH₂), 5.08 (6H, s, Bipy–CH₂), 7.62 (3H, dd, J = 6.7 Hz, J = 1.2 Hz, Bipy-H), 7.51 (6H, s, Ar-H), 7.78 (3H, dd, J = 10.2 Hz, J = 2.0 Hz, Bipy-H), 8.01 (3H, d, J = 8.1 Hz, Bipy-H), 8.08 (3H, d, J = 8.1 Hz, Bipy-H), 8.33 (3H, s, Bipy-H) and 8.43 (3H, s, Bipy-H) ppm.

[cone-7 ⊃ Ag⁺] ⊃ Na⁺ (1 : 0.4): 3.13–3.35 (12H, m, –NCH₂), 4.23 (6H, d, J = 13.2 Hz, Ar-CH₂) complex, 4.45 (6H, d, J = 13.2 Hz, Ar-CH₂) free, 4.64 (6H, s, Ar-OCH₂), 4.64 (6H, d, J = 12.6 Hz, Ar-CH₂) complex, 4.84 (6H, d, J = 12.6 Hz, Ar-CH₂) free, 5.29 (6H, s, Bipy–CH₂) complex, 5.09 (6H, s, Bipy–CH₂) free, 7.64 (3H, dd, J = 6.7 Hz, J = 1.2 Hz, Bipy-H) free, 7.72 (3H, dd, J = 6.7 Hz, J = 1.2 Hz, Bipy-H) complex, 7.81 (6H, s, Ar-H) complex, 7.48 (6H, s, Ar-H) free, 7.99 (3H, dd, J = 10.2 Hz, J = 2.0 Hz, Bipy-H), 8.15 (3H, d, J = 8.1 Hz, Bipy-H), 8.23 (3H, d, J = 8.1 Hz, Bipy-H) complex, 8.09 (3H, d, J = 8.1 Hz, Bipy-H) free, 8.37 (3H, s, Bipy-H) and 8.59 (3H, s, Bipy-H) complex and 8.53 (3H, s, Bipy-H) free ppm.

[cone-7 ⊃ Ag⁺] ⊃ Na⁺ (1 : 1): δ_H (CDCl₃/CD₃CN, 10 : 1, v/v): 3.11–3.35 (12H, m, –NCH₂), 4.23 (6H, d, J = 13.2 Hz, Ar-CH₂), 4.65 (6H, s, Ar-OCH₂), 4.64 (6H, d, J = 12.6 Hz, Ar-CH₂), 5.29 (6H, s, Bipy–CH₂), 7.72 (3H, dd, J = 6.7 Hz, J = 1.2 Hz, Bipy-H), 7.80 (6H, s, Ar-H), 7.97 (3H, dd, J = 10.2 Hz, J = 2.0 Hz, Bipy-H), 8.15 (3H, d, J = 8.1 Hz, Bipy-H), 8.23 (3H, d, J = 8.1 Hz, Bipy-H), 8.35 (3H, s, Bipy-H) and 8.59 (3H, s, Bipy-H) ppm.

cone-7 ⊃ Na⁺ (1 : 0.4): δ_H (CDCl₃/CD₃CN, 10 : 1, v/v): 3.15–3.31 (12H, m, –NCH₂), 4.25 (6H, d, J = 13.2 Hz, Ar-CH₂) complex, 4.40 (6H, d, J = 13.2 Hz, Ar-CH₂) free, 4.62 (6H, s, Ar-OCH₂), 4.62 (6H, d, J = 12.6 Hz, Ar-CH₂) complex, 4.79 (6H, d, J = 12.6 Hz, Ar-CH₂) free, 5.24 (6H, s, Bipy–CH₂) complex, 5.14 (6H, s, Bipy–CH₂) free, 7.50 (3H, dd, J = 6.7 Hz, J = 1.2 Hz, Bipy-H), 7.83 (6H, s, Ar-H) complex, 7.50 (6H, s, Ar-H) free, 7.68 (3H, dd, J = 10.2 Hz, J = 1.2 Hz, Bipy-H), 8.14 (3H, d, J = 8.1 Hz, Bipy-H), 8.20 (3H, d, J = 8.1 Hz, Bipy-H), 8.39 (3H, s, Bipy-H) and 8.56 (3H, s, Bipy-H) ppm.

[cone-7 ⊃ Na⁺] ⊃ Ag⁺ (1 : 1): δ_H (CDCl₃/CD₃CN, 10 : 1, v/v): 3.06–3.31 (12H, m, –NCH₂), 4.19 (6H, d, J = 13.2 Hz, Ar-CH₂), 4.62 (6H, s, Ar-OCH₂), 4.60 (6H, d, J = 12.6 Hz, Ar-CH₂), 5.26 (6H, s, Bipy–CH₂), 7.65 (3H, dd, J = 6.7 Hz, J = 1.2 Hz, Bipy-H), 7.78 (6H, s, Ar-H), 7.90 (3H, dd, J = 10.2 Hz, J = 1.2 Hz, Bipy-H), 8.13 (3H, d, J = 8.1 Hz, Bipy-H), 8.21 (3H, d, J = 8.1 Hz, Bipy-H), 8.32 (3H, s, Bipy-H) and 8.56 (3H, s, Bipy-H) ppm.

Stoichiometry of metal complexation and determination of association constants

Job's plot experiment was carried out using the absorption spectrum, make the volume fixed and the concentration of [Host]+[Guest] = 1.25 × 10⁻⁵ M, [Guest]/([Host]+[Guest]) changed from 0.1 to 0.9, and the association constants also determined by the absorption spectrum in a varying guest concentration of 0–1.25 μM and a constant concentration of host receptors with 1 μM. As a probe the absorption intensity signal was used. The association constant values were calculated by the intensity changes in the complex and the free host molecules.
