Electrochemical properties of ultrafine TiO2-doped MoO3 nanoplates prepared by one-pot flame spray pyrolysis

Gi Dae Park, Seung Ho Choi and Yun Chan Kang*
Department of Chemical Engineering, Konkuk University, 1 Hwayang-dong, Gwangjin-gu, Seoul 143-701, Korea. E-mail: yckang@konkuk.ac.kr; Fax: +82-2-458-3504; Tel: +82-2-2049-6010

Received 28th February 2014 , Accepted 26th March 2014

First published on 1st April 2014


Abstract

Ultrafine TiO2-doped α-MoO3 nanoplates with a low thickness of 24 nm were prepared by one-pot flame spray pyrolysis, using water-soluble ammonium molybdate tetrahydrate as precursor. Pure MoOx nanopowders had a mixed morphology of rod-like and cube-like crystals, and a complex crystal structure composed of α-MoO3, β-MoO3, and Mo17O47 phases. However, addition of TiO2 influenced the morphology as well as the crystal structure of MoOx. The TiO2-doped MoOx powders had a regular nanoplate-like morphology and single-crystalline α-MoO3 structure. The initial discharge and charge capacities of the pure MoOx powders were 1481 and 998 mA h g−1 at a current density of 500 mA g−1. In contrast, 5 wt% TiO2-doped MoO3 nanoplates had high initial discharge and charge capacities of 1728 and 1171 mA h g−1, respectively. The discharge capacities of pure MoOx, 5 wt% TiO2-doped MoO3, and 10 wt% TiO2-doped MoO3 nanopowders after 200 cycles were 676, 1022, and 831 mA h g−1, respectively, and the corresponding capacity retentions measured from the second cycles were 68, 86, and 85%. The reversible discharge capacities of the TiO2-doped MoO3 nanoplates decreased from 1424 to 978 mA h g−1 as the current density increased from 200 to 1000 mA g−1, and the discharge capacity recovered to 1196 mA h g−1 when the current density returned to 200 mA g−1 after 50 cycles.


Introduction

Molybdenum trioxide (MoO3) exists in mainly three polymorphic forms, orthorhombic (α-MoO3), monoclinic (β-MoO3), and hexagonal (h-MoO3). Nanostructured MoO3 is attractive owing to its myriad potential applications in various fields such as energy storage, photochromic and electrochromic devices, gas sensors, and catalysis.1–15 MoO3 crystal preparation by conventional processes results in preferential growth along the 〈100〉 directions.16 Therefore, MoO3 nanoplates of various sizes are mainly prepared by liquid solution methods.14–18 However, the long processing times of these liquid solution methods result in micrometer-sized nanoplates with high thicknesses owing to the high vapor pressure of MoOx and high mobility of MoO3 tetrahedron along the diagonal directions.19,20 The MoO3 nanoplates prepared by hydrothermal and topochemical process had mean sizes of 1 and 1.5 μm, respectively.14,15 Thus, the development of a process for synthesizing ultrafine MoO3 nanoplates remains a conceptual challenge.

Combustion of an appropriate precursor solution by using flame spray pyrolysis has emerged as a promising and versatile technique for commercial production of nanosized ceramic, metal, and metal–ceramic composite powders in large-scale.21–25 In particular, nanopowders of spherical or polyhedral shapes have been mainly prepared by flame spray pyrolysis, by maintaining an extremely short residence time of the order of few milliseconds inside the high-temperature diffusion flame. To the best of our knowledge, direct preparation of ultrafine nanoplates by high temperature flame spray pyrolysis above 2500 °C using inexpensive metal salts dissolved in distilled water, has not been reported in the literature.

Doping of other metal oxides was known as an effective way to improve the electrochemical performance of MoO3 powders.26,27 TiO2 is one kind of good anode material for lithium ion battery. In this study, we report the synthesis of ultrafine α-MoO3 nanoplates by one-pot flame spray pyrolysis of water-soluble ammonium molybdate tetrahydrate precursor solution. In addition, we have analyzed the effect of TiO2 dopant on the preparation of α-MoO3 nanoplates and their electrochemical properties for use as anode materials in LIBs.

Experimental

Pure MoOx and TiO2-doped MoOx nanopowders were prepared directly by flame spray pyrolysis (Fig. S1). The flame spray pyrolysis system used in this study was composed of a droplet generator, flame nozzle, powder collector, and blower.25 An ultrasonic spray generator (1.7 MHz) with 6 resonators was used to generate droplets, which were subsequently carried into the high-temperature diffusion flame by the carrier gas, oxygen. Propane and oxygen were used as the fuel and oxidizer, respectively, in order to create the diffusion flame. The flame nozzle consisted of five concentric pipes. The carrier gas was used to supply the droplets generated from the precursor solution to the diffusion flame through the central pipe. The flow rates of the fuel, oxidizer, and carrier gases were maintained at 5, 40, and 10 L min−1, respectively. The spray solution was prepared by dissolving a pre-determined quantity of ammonium molybdate tetrahydrate ((NH4)6Mo7O24·4H2O) in distilled water to a concentration of 0.25 M. Titanium tetraisopropoxide (TTIP) was used as the precursor for TiO2.

The morphologies of pure MoOx and TiO2-doped MoOx nanopowders were investigated through scanning electron microscopy (SEM, JEOL JSM-6060), field-emission scanning electron microscopy (FE-SEM, Hitachi S-4800), and high-resolution transmission electron microscopy (HR-TEM, JEOL JEM-2100F). The crystal structure of the nanopowders prepared in this study was investigated by X-ray diffraction (XRD, X'Pert PRO MPD) using CuKα radiation (λ = 1.5418 Å) at the Korea Basic Science Institute (Daegu). The specific surface area of the samples was determined by Brunauer–Emmett–Teller (BET) method with N2 as the adsorbate gas. Furthermore, the electrochemical properties of pure MoOx and TiO2-doped MoOx nanopowders were analyzed by constructing a 2032-type coin cell. The anode was prepared from a mixing the MoOx active material, carbon black, and sodium carboxymethyl cellulose (CMC) in the weight ratio of 7[thin space (1/6-em)]:[thin space (1/6-em)]2[thin space (1/6-em)]:[thin space (1/6-em)]1. The size of the electrode was 1 cm × 1 cm and the mass loading was about 1.6 mg cm−2. Li metal and a microporous polypropylene film were used as the counter electrode and the separator, respectively. The electrolyte was composed of a solution of 1 M LiPF6 in a mixture of ethylene carbonate/dimethyl carbonate (EC/DMC, 1[thin space (1/6-em)]:[thin space (1/6-em)]1 v/v) containing 2% vinylene carbonate. The discharge/charge characteristics of the samples were investigated by cycling potential in the range of 0.01–3 V at various current densities.

Results and discussion

The morphologies of pure MoOx and TiO2-doped MoOx powders prepared by flame spray pyrolysis are shown in Fig. 1 and 2, respectively. The SEM and TEM images shown in Fig. 2 correspond to the MoOx powder with TiO2 doping concentration of 5 wt%. As can be seen from the figures, the MoOx powders were in nanometer size, irrespective of TiO2 additive. Furthermore, the SEM images indicated the absence of micrometer- or submicrometer-sized powders that are often formed due to the incomplete evaporation of the precursor. The drying and decomposition of the precursor droplet composed of Mo and Ti components resulted in the formation of micron-sized MoOx–TiO2 composite intermediate. The complete evaporation of MoOx and TiO2 occurred inside the high temperature diffusion flame, at above 2500 °C. It is believed that the formation of nanosized TiO2-doped MoOx powders would have proceeded via the nucleation and growth of the evaporated vapors of Mo and Ti components. As can be seen from the TEM images, the addition of the TiO2 dopant influenced the morphology of the MoOx nanopowders prepared by flame spray pyrolysis. The TEM images of pure MoOx nanopowders shown in Fig. 1b–d indicate a mixed morphology, composed of rod-like and cube-like crystals. On the other hand, the TEM and SEM images of the TiO2-doped MoOx powders shown in Fig. 2 indicate the formation of regular plate-like morphology. The thickness of the TiO2-doped MoOx nanoplates, as measured from the high-resolution FE-SEM image shown in Fig. 2b, was estimated to be 24 nm. The lateral side of the TiO2-doped MoOx nanoplate as shown in Fig. 2d had clear lattice fringes separated by a lattice spacing of 0.63 nm. This lattice spacing value corresponds to the (020) plane of the α-MoO3 crystal.28 The spherical TiO2 powders in the size range of few nanometers were observed in the high-resolution TEM image, as shown by white arrow in Fig. 2d. The spherical-shaped powder had clear lattice fringes separated by a lattice spacing of 0.32 nm. This lattice spacing value corresponds to the (110) plane of the rutile TiO2 crystal.29 Only small amount of Ti component was doped onto the MoOx crystals. The corresponding dot-mapping image shown in Fig. 2e reveals the distribution of the Ti component over the MoOx nanoplates. In addition, some segregated Ti components were also observed in the dot-mapping image, as shown by arrows in the figure.
image file: c4ra01780c-f1.tif
Fig. 1 (a) SEM and (b)–(d) TEM images of the pure MoOx powders prepared by flame spray pyrolysis.

image file: c4ra01780c-f2.tif
Fig. 2 SEM, TEM, and dot-mapping images of the 5 wt% TiO2-doped MoO3 powders prepared by flame spray pyrolysis.

Fig. 3 shows the morphology of the 10 wt% TiO2-doped MoOx powders. As can be seen from the figure, these powders exhibit two different morphologies, namely rod and spherical shape. The spherical-shaped powder, as shown by a circle in Fig. 3d, had clear lattice fringes of the rutile TiO2 crystal separated by a lattice spacing of 0.32 nm. The spherical-shaped powders observed in the FE-SEM and TEM images in Fig. 2 and 3 correspond to rutile TiO2 crystals. In addition, the detailed structures of pure MoOx and 5 wt% TiO2-doped MoOx powders were elucidated from the nitrogen adsorption and desorption isotherms (Fig. S2). The pure MoOx nanopowders generated type IV nitrogen adsorption and desorption isotherm with type H3 hysteresis loop, indicating the presence of slit-shaped pores. The pure MoOx nanopowders had an average pore size of 18 nm. On the other hand, 5 wt% TiO2-doped MoOx powders were found to exhibit a dense structure without pores inside the plate-like crystals. The Brunauer–Emmett–Teller (BET) specific surface areas of pure MoOx and 5 wt% TiO2-doped MoOx powders were found to be 20 and 5 m2 g−1, respectively. The formation of homogeneous plate-like crystals with dense structure decreased the BET surface area of the TiO2-doped MoO3 powders.


image file: c4ra01780c-f3.tif
Fig. 3 TEM images of the 10 wt% TiO2-doped MoO3 powders prepared by flame spray pyrolysis.

Fig. 4 shows the XRD patterns of pure MoOx and TiO2-doped MoOx powders prepared by flame spray pyrolysis. The diffraction pattern of pure MoOx powders indicates a mixed crystal structure composed of α- and β-MoO3 and oxygen deficient Mo17O47 phases.15 On the other hand, the diffraction pattern of TiO2-doped MoOx powders indicated the formation of phase-pure α-MoO3. Diffraction peaks corresponding to TiO2 were not observed in the XRD patterns because of fine crystallite size as well as the low doping concentration. The pure crystal structure resulted in the morphological homogeneity of the TiO2-doped MoO3 powders in Fig. 2 and 3.


image file: c4ra01780c-f4.tif
Fig. 4 XRD patterns of the pure MoOx and TiO2-doped MoO3 powders prepared by flame spray pyrolysis.

The mechanism underlying the formation of pure MoOx and TiO2-doped MoO3 powders by the flame spray pyrolysis process is described in the Scheme 1. Here, pure MoOx and TiO2-doped MoO3 powders were prepared from the completely evaporated vapors, analogous to the formation mechanism shown in Section 1. However, the TiO2 dopant changed the morphology as well as the crystal structure of the MoOx powders formed at a short residence time of the powders inside the high temperature diffusion flame. Typically, the growth mechanism involves the formation of MoOx and TiO2 nuclei, by random collisions of the MoOx and TiO2 molecules. Surface growth and coagulation resulted in the formation of MoOx–TiO2 composite as an intermediate product inside the high-temperature diffusion flame. Subsequently, quenching of the intermediate composite powders resulted in the formation of nanopowders with different morphologies. The metal oxides diffused inside the composite to form crystals of Mo and Ti components. Consequently, the phase separation of the composite occurred, resulting in the formation of MoO3–TiO2 Janus-structured composite nanopowder, in which TiO2 nanopowder was attached in the plate or rod-like MoO3 powders depending on the concentration of TiO2.30 Furthermore, plate or rod-like MoO3 crystals were formed via subsequent crystal-oriented growth by particle annealing and rearrangement during the late flame process.23 The addition of TiO2 is believed to have improved the formation of the plate or rod-like MoO3 crystals.


image file: c4ra01780c-s1.tif

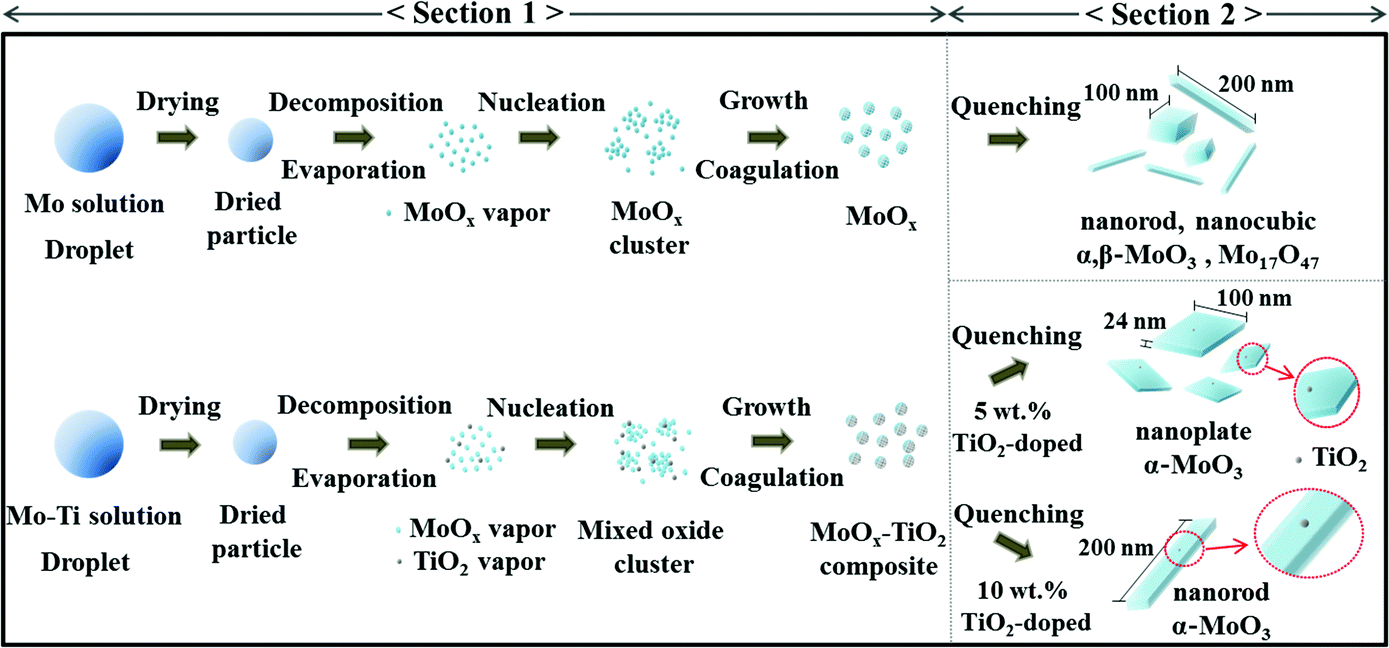

Scheme 1 Formation mechanisms of the pure MoOx and TiO2-doped MoO3 powders in the flame spray pyrolysis.

The electrochemical properties of pure MoOx and TiO2-doped MoO3 powders were investigated in the voltage range of 0.01–3 V vs. Li/Li+. Fig. 5a shows the initial discharge and charge voltage profiles at a constant current density of 500 mA g−1. In this study, insertion of lithium into the anode is referred to as discharging and Li extraction from the electrodes is referred to as charging. The initial charge and discharge curves of the MoOx powders had a similar shape, irrespective of the concentration of the TiO2 additive. The initial discharge and charge capacities of the pure MoOx powders were 1481 and 998 mA h g−1, respectively, and the corresponding first coulombic efficiency was 67%. On the other hand, 5 wt% TiO2-doped MoO3 nanoplates had the initial discharge and charge capacities of 1728 and 1171 mA h g−1, respectively, and the corresponding coulombic efficiency was 68%. Similarly, 10 wt% TiO2-doped MoO3 nanorods had the initial discharge and charge capacities of 1326 and 946 mA h g−1, respectively, with the corresponding coulombic efficiency of 71%. The results indicate that the addition of small amount of TiO2 improved the initial discharge and charge capacities of the MoO3 nanoplates, while the addition of large amount of TiO2 (10 wt%) decreased the initial discharge and charge capacities.


image file: c4ra01780c-f5.tif

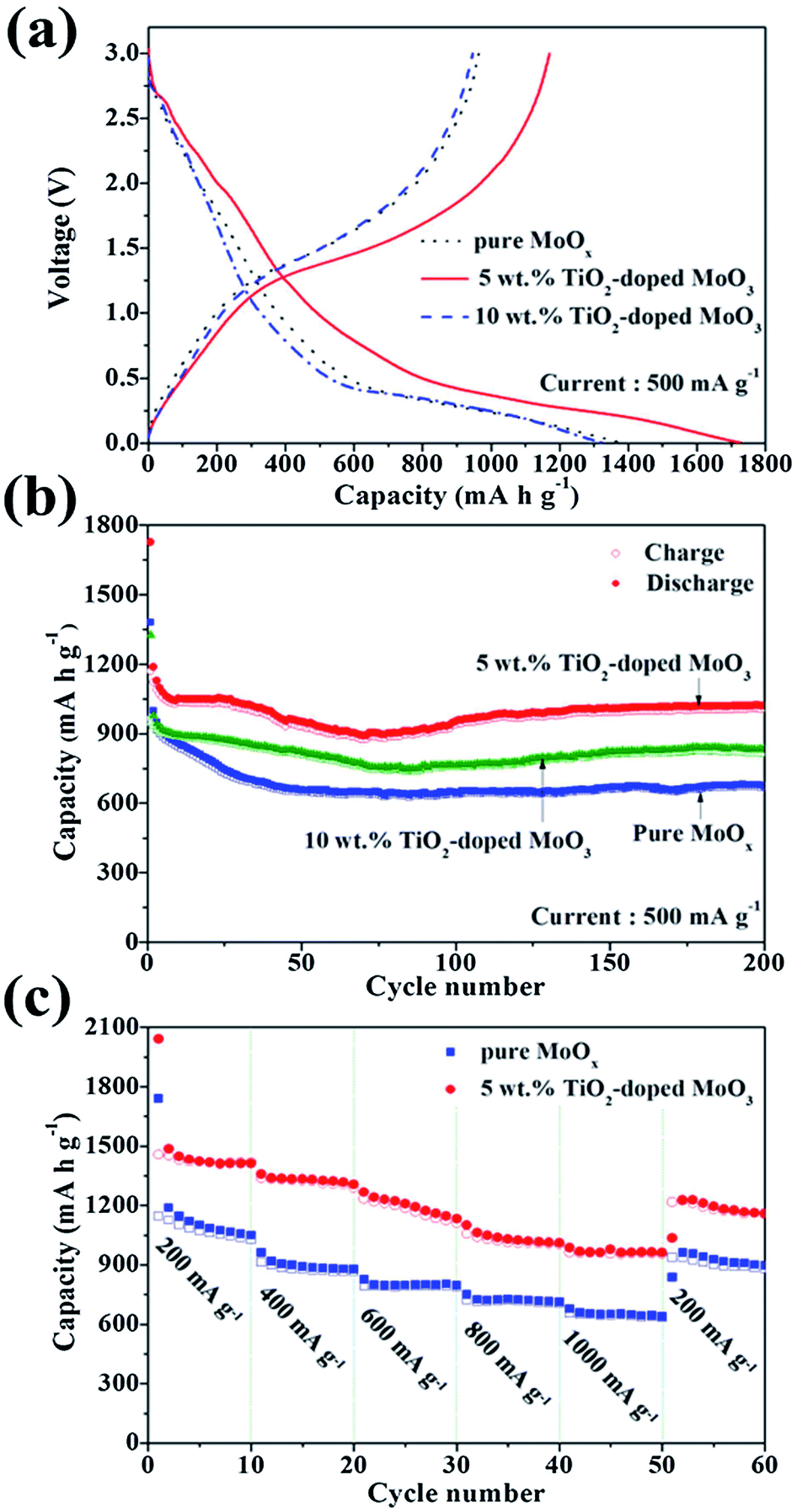

Fig. 5 Electrochemical properties of the pure MoOx and TiO2-doped MoO3 powders; (a) initial discharge and charge voltage profiles at a current density of 500 mA g−1, (b) cycling performances at a current density of 500 mA g−1, (c) rate performances of the pure MoOx and 5 wt% TiO2-doped MoO3 powders.

Fig. 5b shows the cycling performances of pure MoOx and TiO2-doped MoO3 nanopowders at a constant current density of 500 mA g−1. The discharge capacities of pure MoOx, 5 wt% TiO2-doped MoO3, and 10 wt% TiO2-doped MoO3 nanopowders after 200 cycles were 676, 1022, and 831 mA h g−1, respectively, and the corresponding capacity retentions measured from the second cycles were 68, 86, and 85%, respectively. Fig. 5c shows the rate performances of the pure MoOx and 5 wt% TiO2-doped MoO3 nanopowders. As can be seen from the figure, the current density increased stepwise from 200 mA g−1 to 1000 mA g−1, and then returned to 200 mA g−1. For each step, 10 cycles were measured to evaluate the rate performance. The reversible discharge capacities of the TiO2-doped MoO3 nanoplates decreased from 1424 to 978 mA h g−1, with increase in current density from 200 to 1000 mA g−1. The discharge capacity recovered to 1196 mA h g−1 when the current density returned to 200 mA g−1 after 50 cycles. On the other hand, the reversible discharge capacities of pure MoOx nanopowders decreased from 1101 to 651 mA h g−1, as the current density increased from 200 to 1000 mA g−1. The addition of TiO2 is considered to have improved cycling and rate performances as well as capacities of the MoOx nanopowders by increasing the morphological homogeneity as well as the phase purity of α-MoO3. The short diffusion length of lithium ions and electrons in nanoplate with low thickness improved the electrochemical properties of the TiO2-doped MoO3 powders.

Conclusions

In this study, we have investigated the effect of TiO2 additive on the crystal structure and morphology of MoOx nanopowders prepared by high-temperature flame spray pyrolysis. Results indicated that pure MoOx nanopowders had a complex crystal structure and a mixed morphology. On the other hand, addition of TiO2 influenced the crystal structure as well as the morphology of the MoOx nanopowders. The 5 wt% TiO2-doped MoO3 nanoplates exhibited uniform morphology and single-crystalline α-MoO3, formed by the nucleation, growth, and quenching of completely evaporated MoOx and TiO2 vapors. The ultrafine TiO2-doped MoO3 nanoplates had higher discharge and charge capacities and better cycling performances than those of the pure MoOx nanopowders at a constant current density of 500 mA g−1. Systematic studies performed in this study indicate that the addition of TiO2 improved the electrochemical properties of the MoO3 nanopowders by increasing the morphological homogeneity as well as the phase purity of MoO3.
