Issue 5, 2022

Synthesis of an AlI3-doped Li2S positive electrode with superior performance in all-solid-state batteries

Abstract

A (100 − x)Li2xAlI3 (0 ≤ x ≤ 30) positive electrode was prepared by the planetary ball-milling method for application in all-solid-state Li–S batteries. X-Ray diffraction results showed that I in AlI3 dissolved into the Li2S structure in (100 − x)Li2xAlI3 with x ≤ 5 to form the solid solution. The change of the electronic structure of Li2S and AlI3 was further proved by UV-Vis spectroscopy and X-ray photoelectron spectroscopy results. The highest conductivity of about 6.0 × 10−5 S cm−1 at room temperature was obtained with 80Li2S·20AlI3 (mol%) and the highest conductivity at 150 °C of about 7.0 × 10−3 S cm−1 was observed in 75Li2S·25AlI3. The maximum capacities of the cells with x = 0, 0.5, 1.5, and 2 were 880, 1059, 1006, and 869 mA h g−1 Li2S, respectively. The capacity retention of the cells with x = 0, 0.5, 1.5, and 2 after 60 cycles was 64.0%, 88.4%, 69.6%, and 71.2%, respectively. This study showed that AlI3 doping could improve not only the conductivities of Li2S but also the cyclic properties of all-solid-state Li–S batteries.

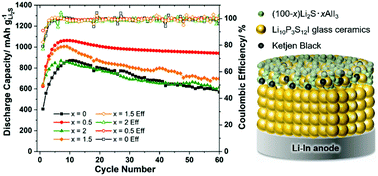

Graphical abstract: Synthesis of an AlI3-doped Li2S positive electrode with superior performance in all-solid-state batteries

Supplementary files

Article information

Article type
Paper
Submitted
23 déc. 2021
Accepted
26 janv. 2022
First published
09 févr. 2022
This article is Open Access
Creative Commons BY-NC license

Mater. Adv., 2022,3, 2488-2494

Synthesis of an AlI3-doped Li2S positive electrode with superior performance in all-solid-state batteries

H. Gamo, T. Maeda, K. Hikima, M. Deguchi, Y. Fujita, Y. Kawasaki, A. Sakuda, H. Muto, N. H. H. Phuc, A. Hayashi, M. Tatsumisago and A. Matsuda, Mater. Adv., 2022, 3, 2488 DOI: 10.1039/D1MA01228B

This article is licensed under a Creative Commons Attribution-NonCommercial 3.0 Unported Licence. You can use material from this article in other publications, without requesting further permission from the RSC, provided that the correct acknowledgement is given and it is not used for commercial purposes.

To request permission to reproduce material from this article in a commercial publication, please go to the Copyright Clearance Center request page.

If you are an author contributing to an RSC publication, you do not need to request permission provided correct acknowledgement is given.

If you are the author of this article, you do not need to request permission to reproduce figures and diagrams provided correct acknowledgement is given. If you want to reproduce the whole article in a third-party commercial publication (excluding your thesis/dissertation for which permission is not required) please go to the Copyright Clearance Center request page.

Read more about how to correctly acknowledge RSC content.

Social activity

Spotlight

Advertisements
