Terahertz short-range mobilities in neat and intermixed regions of polymer:fullerene blends with controlled phase morphology

Abstract

The molecular-level arrangement of the donor and acceptor (i.e. the local morphology) in organic solar cells governs charge separation and charge transport via its effect on the mobility of charges. However, the nanometre-scale mobility in such systems, which can be measured using terahertz (THz) spectroscopy, has been little investigated at relevant low excitation densities, due to extremely weak signals. Here, we study the mobility over short distances and at ultrashort times using time-resolved optical-pump-THz-probe (OPTP) spectroscopy on pBTTT:PCBM blends. This complements our previous results obtained with transient absorption (TA) and electro-modulated differential absorption (EDA) techniques. In the pBTTT:PCBM system, the co-existence of fullerene-/polymer-rich (‘neat’) and co-crystalline (‘intermixed’) regions can be controlled through choice of composition (weight ratio of the two components, use of processing additive). We demonstrate high short-range mobilities that help charges separate, and we show how this mobility of photogenerated charges develops in time, in particular as the charges move between different phase regions of the blend. By reducing the pump fluence below the threshold for nonlinear recombination mechanisms, we access these properties at solar cell operating conditions. Overall, we explain the necessity of different local phases through their influence on charge lifetime and mobility.

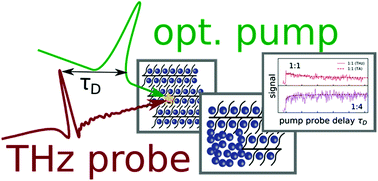

Graphical abstract: Terahertz short-range mobilities in neat and intermixed regions of polymer:fullerene blends with controlled phase morphology

Supplementary files

Article information

Article type
Paper
Submitted
19 août 2018
Accepted
09 oct. 2018
First published
09 oct. 2018

J. Mater. Chem. A, 2018,6, 22301-22309

Terahertz short-range mobilities in neat and intermixed regions of polymer:fullerene blends with controlled phase morphology

P. Krauspe, D. Tsokkou, M. Causa', E. Buchaca-Domingo, Z. Fei, M. Heeney, N. Stingelin and N. Banerji, J. Mater. Chem. A, 2018, 6, 22301 DOI: 10.1039/C8TA08061E
