Effective photocatalysis of functional nanocomposites based on carbon and TiO₂ nanoparticles

Abstract

A unique nanocomposite C–TiO₂ was prepared by the growth of TiO₂ on carbon nanoparticles using a simple hydrothermal procedure. Transmission electron microscopic (TEM) measurements showed that the nanocomposites exhibited an average core diameter of approximately 5 nm with a rather well-defined lattice space (0.4 nm) that was somewhat larger than that (0.38 nm) of the (100) crystalline planes of anatase TiO₂. This lattice expansion was accounted for by the formation of surface defect dipoles of the nanosized TiO₂ particles. X-ray photoelectron spectroscopic (XPS) measurements suggested that partial charge transfer occurred from carbon nanoparticles to TiO₂ by the interfacial Ti–O–C linkages, which led to effective diminishment of the C–TiO₂ photoluminescence as compared to that of pure TiO₂ or carbon nanoparticles, suggesting intimate electronic interactions between the carbon and TiO₂ components in the nanocomposites. Such unique characteristics were then exploited for the effective photocatalytic degradation of organic pollutants, as exemplified by methylene blue, by C–TiO₂ under UV photoirradiation. Experimental measurements showed that the photocatalytic activity of C–TiO₂ nanocomposites was about twice that of TiO₂ alone, whereas little activity was observed with carbon nanoparticles. This was attributed to the electron-accepting sites on the carbon nanoparticles that facilitated interfacial charge separation.

---

Introduction

Titanium dioxide (TiO₂) has been extensively studied for potential applications in photocatalysis due to its low cost, non-toxicity, high redox ability and stability.^1–3 However, with an intrinsic bandgap close to ∼3 eV, TiO₂ typically exhibits low efficiency in light utilization and fast recombination of electron–hole pairs, which greatly limit the photocatalytic performance. Therefore, in the past few decades, a number of effective approaches have been developed to further engineer the TiO₂ structures and properties, such as coupling with other semiconductor materials,^4–7 modification with metal and nonmetal elements and structures,^8–12 and surface sensitization by dye molecules.^13–15 Among these, formation of functional composites with carbon nanomaterials represents one of the most popularly used methods, largely motivated by the unique optical and electronic properties of carbon nanostructures. There are various kinds of carbon modifications, such as carbon-doped TiO₂,^16–20 carbon-coated TiO₂,^21–24 and mounting of TiO₂ on activated carbon.^25–27 For instance, Chu et al.¹⁷ prepared carbon-doped nanostructured TiO₂ films (the average size of the nanoparticles was about 40 nm) with oxalic acid and tetrabutylammonium bromide as the carbon sources and the carbon-doped into the lattice sites of TiO₂, leading to apparent narrowing of the TiO₂ bandgap and hence improved efficiency of photoenergy utilization. In another study,²⁰ carbon-doped TiO₂ nanotubes, nanowires and nanorods were prepared by utilizing the nanoconfinement of hollow titanate nanotubes. The procedure entailed two steps, adsorption of ethanol onto the inner walls of the nanotubes and thermal treatment of the complex in an inert nitrogen atmosphere. The resulting catalysts exhibited enhanced photocatalytic activity in the degradation of toluene in the gas phase under both visible and simulated solar light irradiation, as compared to that of commercial Degussa P25. Carbon dopants have also been incorporated into TiO₂ micro/nanospheres and nanotubes by chemical vapor deposition in an inert atmosphere, and the resulting TiO₂ exhibited much higher photocurrents than commercial P25.^28,29 In these studies, the key motivation is to engineer the TiO₂ bandgap by carbon dopants so that the efficiency of light absorption and utilization can be improved. However, the synthetic procedure typically requires rather harsh experimental conditions and/or sophisticated instrumentation, and the lack of structural stability of the dopants might compromise the durability of the photocatalysts.

Another effective strategy is to prepare carbon and TiO₂ nanocomposites. For instance, carbon-coated anatase TiO₂ catalysts (>20 nm in diameter) have been prepared by heating a mixture of poly(vinyl alcohol) and commercial TiO₂ at elevated temperatures (700–900 °C), which exhibited markedly enhanced photocatalytic activity in the degradation of methylene blue, as compared to that of the original commercial TiO₂.³⁰ This was ascribed to the improved crystalline structure of the anatase TiO₂ after the heating treatments as well as the suppression of phase transformation from anatase to rutile by the carbon coating layer. In another study,²⁷ effective photocatalysts were prepared by homogeneous dispersion of TiO₂ on activated carbon cloths by a process of dip-coating and subsequent annealing in a nitrogen atmosphere, and the photocatalytic activity was assessed quantitatively by the photodegradation of methylene blue under UV irradiation. Yet, in these early studies, the TiO₂ nanoparticles are typically rather large (diameter of the order of tens of nm), and whereas the photocatalytic activity of the nanocomposites might be apparently improved, the impacts of the electronic interactions between carbon and TiO₂ are mostly ignored.

In the present study, we report the facile synthesis of a functional nanocomposite based on carbon and TiO₂ nanoparticles. The carbon nanoparticles were prepared by refluxing the combustion soot of natural gas in nitric acid, and then mixed with titanium(IV) n-butoxide to form C–TiO₂ composite nanoparticles by using a simple hydrothermal process. XPS and photoluminescence studies of C–TiO₂ suggested that there were effective electronic interactions between the carbon and TiO₂ components in the nanocomposites, as compared to pure TiO₂ nanoparticles. This unique characteristic led to a marked improvement of the photocatalytic activity of the resulting C–TiO₂ nanocomposites in the photodegradation of methylene blue, which was about twice that of the TiO₂ nanoparticles alone.

Experimental section

Chemicals

Nitric acid (HNO₃, 69.8%, Fisher), sodium carbonate anhydrous (Na₂CO₃, 99%, Fisher Scientific), 3-chloroaniline (99%, ACROS), titanium(IV) n-butoxide (99%, ACROS), oleic acid (Fisher Scientific), and methylene blue (ACROS) were used as received without further treatment. Water was supplied by a Barnstead Nanopure Water System (18.3 MΩ cm).

Synthesis of carbon nanoparticles (CNP)

The preparation of carbon nanoparticles has been reported in our previous studies.^31,32 In brief, carbon soot was collected from the inside wall of a glass beaker by placing the beaker upside-down above the flame of a natural gas burner. Then 100 mg of soot was refluxed in 10 mL of HNO₃ (5 M) for 12 h. After cooling down to room temperature, the brownish yellow supernatant was filtered and then neutralized by Na₂CO₃. Finally, the sample was dialyzed against Nanopure water through a dialysis membrane for 3 days, affording purified carbon nanoparticles (CNP). Transmission electron microscopic (TEM) measurements showed that the nanoparticles exhibited a mixture of amorphous and graphitic structures and an average core diameter of 4.8 ± 0.6 nm.^31,32

Synthesis of TiO₂ nanoparticles

TiO₂ nanoparticles were prepared by a hydrothermal method.³³ Briefly, 0.1 mL of 3-chloroaniline was added into 15 mL of Nanopure water, and then transferred to a Teflon-lined stainless-steel autoclave. Subsequently, 0.17 g of titanium(IV) n-butoxide and 1.0 mL of oleic acid were dissolved in 10 mL of toluene and then transferred to the autoclave. The mixed solution was then subject to hydrothermal reactions at 180 °C for 12 h. The white precipitates were collected and extensively rinsed with methanol.

Synthesis of carbon hybridized TiO₂ nanoparticles (C–TiO₂)

The preparation and processing of carbon hybridized TiO₂ was the same as that of TiO₂ described above. The only difference was to add 15 mg of carbon nanoparticles to the water phase at a concentration of 1 mg mL⁻¹ prior to the hydrothermal procedure. The resulting C–TiO₂ nanocomposite contained about 27 wt% of carbon.

Characterization

Transmission electron microscopy (TEM) studies were carried out with a JOEP JEM-2010 TEM microscope operated at 200 kV. The samples were prepared by suspending the powder sample in toluene and dropcasting onto a Cu grid. UV-vis absorption spectra of the samples were measured with an ATI Unicam UV4 spectrometer by using a 1 cm quartz cuvette with a resolution of 2 nm. Fluorescence spectra were acquired with a PTI photoluminescence spectrometer. X-ray photoelectron spectra (XPS) were recorded with a PHI 5400 XPS instrument equipped with an Al Kα source operated at 350 W and at 10⁻⁹ Torr. The spectra were charge-referenced to the Au4f_7/2 peak (83.8 eV) of sputtered gold.

Photocatalysis

Methylene blue at the concentration of 20 mg L⁻¹ was used as the testing solution, and a UV lamp (365 nm, 6 W) was employed as the light source. In a typical experiment, 2 mL of the methylene blue solution was added into a quartz cuvette and 1 mg of photocatalysts was added into the solution and mixed under magnetic stirring for at least 2 h in the dark to establish an adsorption/desorption equilibrium, prior to exposure to the light source. In photocatalytic assessments, the distance between the light source and the cuvette was ca. 10 cm. The solution was under magnetic stirring during the entire experimental procedure. The photocatalytic activities were quantified by collecting the UV-vis absorption spectra of the solution at different reaction intervals.

Results and discussion

Fig. 1 depicts two representative TEM micrographs of (A and B) TiO₂ and (C and D) C–TiO₂ nanoparticles. Despite rather extensive agglomeration in both samples (panels A and C), individual particles remained resolvable with a largely spherical shape and an average diameter of 5.20 nm and 5.05 nm for the TiO₂ and C–TiO₂ nanoparticles, respectively. In addition, high-resolution TEM measurements exhibited well-defined lattice fringes in both TiO₂ and C–TiO₂ nanoparticles, where the lattice spacing was estimated to be ca. 0.40 nm (red lines). This is somewhat larger than the d-spacing (0.38 nm) of the (100) diffracting planes of bulk anatase TiO₂.³⁴ In a previous study it was found that TiO₂ exhibited an apparent linear lattice expansion with a diminishment of the grain size to the nanometer regime (<50 nm), as a result of the formation of surface defect dipoles, in contrast with metal nanoparticles that typically exhibited positive surface pressure and hence lattice contraction instead with shrinking physical dimensions.³⁵ In the present study, the TiO₂ nanoparticles were very small, only about 5 nm in diameter. Because of low coordination of the surface sites, bonding interactions with reactive molecules (e.g., H₂O) likely occurred, leading to the generation of surface defect dipoles and lattice expansion, as observed above. Nevertheless, one can see that in both samples the TiO₂ nanoparticles were of rather pure crystalline phase and rich in high-energy {100} facets, consistent with X-ray diffraction studies (Fig. S1†). This may be advantageous to their photocatalytic performance in the degradation of organic pollutants, as detailed below.³⁴

Fig. 1 Representative TEM micrographs of (A and B) TiO₂ and (C and D) C–TiO₂ nanoparticles. Red lines highlight the lattice fringes of TiO₂.

In the above TEM study, it was difficult to resolve the carbon components in C–TiO₂ probably because of the low contrast and poor crystallinity as compared to TiO₂.³² Yet the electronic interactions between the carbon and TiO₂ components in the C–TiO₂ hybrids were readily revealed by XPS measurements. Fig. 2(A) depicts the full survey spectra of the TiO₂ and C–TiO₂ nanoparticles. One can see that in both samples the elements of C, Ti, and O can be clearly identified, with the binding energies of C1s, Ti2p and O1s electrons at approximately 286.6 eV, 459.4 eV and 530.7 eV, respectively (the carbon signals in TiO₂ were likely from the organic precursors used to prepare the nanoparticles, whereas in C–TiO₂, there were additional contributions from the carbon nanoparticles). However, high-resolution scans showed that the exact binding energies of these electrons were slightly different, as revealed in panels (B) to (D). In panel (B), the Ti2p_1/2 and 2p_3/2 electrons can be identified at 465.1 eV and 459.4 eV for the TiO₂ nanoparticles (bottom curves), and slightly lower for C–TiO₂ at 465.0 eV and 459.2 eV (upper curves), suggesting a partial charge transfer from functional moieties on the carbon nanoparticle surface to the Ti(IV) centers in the oxide nanoparticles. Nevertheless, these binding energies (and their corresponding spin–orbital splitting) are highly comparable to those reported in the literature for TiO₂. For instance, in a previous study, for anatase TiO₂ grown on multiwalled carbon nanotubes (MWCNT) the binding energies for Ti2p electrons were found at 464.9 eV and 458.8 eV,³⁶ whereas for bulk anatase TiO₂ at 464.5 eV and 458.8 eV, respectively.³⁷

Fig. 2 (A) XPS survey spectra of TiO₂ and C–TiO₂ nanoparticles, and high-resolution scans of the binding energies of (B) Ti2p, (C) C1s and (D) O1s electrons in TiO₂ (bottom curves) and C–TiO₂ (top curves) nanoparticles.

Similar behaviors were observed with the binding energies of the C1s electrons. From panel (C), one can see that for TiO₂ nanoparticles (bottom curves), there are two major peaks centered at 285.4 eV and 286.8 eV, which may be assigned to the 1s electrons of sp² hybridized carbon (C=C, for instance, from the aniline precursors used in TiO₂ nanoparticle synthesis)³⁸ and to the formation of Ti–O–C carbonate species,^36,39,40 respectively. For the C–TiO₂ nanoparticles (top curves), these two peaks red-shifted slightly to 285.0 eV and 286.7 eV. The significantly greater intensity of the higher energy peak can be ascribed to the presence of carbon nanoparticles where the surface was decorated with various oxygenated functional species and they served as the anchoring sites for TiO₂ nanoparticle growth.^31,32 Furthermore, a small broad peak can be seen at around 290 eV, which may be assigned to the carboxylate C1s electrons on the carbon nanoparticle surface.^31,32,36

For the O1s electrons, one can see from panel (D) that both TiO₂ and C–TiO₂ nanoparticles exhibited an asymmetric peak within the range of 528 eV to 538 eV, which might be deconvoluted into two major subpeaks. The lower energy peak was located at 530.8 eV for TiO₂ and 530.7 eV for C–TiO₂ nanoparticles, which was assigned to oxygen bonded to Ti.^41–45 The binding energy of the Ti2p electrons was also somewhat lower with C–TiO₂ than with TiO₂ (panel (B)), which suggests that partial charge transfer might occur from the carbon nanoparticles to TiO₂ by Ti–O–C linkages. In addition, for TiO₂, the peak at 532.1 eV is likely due to hydroxyl O on the TiO₂ surfaces,^41,46 whereas for C–TiO₂, the second peak was markedly broader, spanning a large range of 528 to 538 eV with center at 533.3 eV, which most probably included contributions from both the TiO₂ hydroxyl groups as well as various oxygenated species on the carbon nanoparticle surfaces (such as carbonyl, carboxylate, phenylate, etc.).^31,32,47 This again indicates that carbon nanoparticles were indeed incorporated with TiO₂ to form nanoscale composites.

The intimate electronic interactions between the carbon and TiO₂ nanoparticles in C–TiO₂ led to unique interfacial charge transfer upon photoirradiation. Fig. 3 shows the excitation (solid curves) and emission (dashed curves) fluorescence spectra of the carbon, TiO₂ and C–TiO₂ nanoparticles. It can be seen that the carbon nanoparticles (black curves) exhibited a broad excitation spectrum centered at ca. 311 nm and an equally broad emission peak at approximately 428 nm, a behavior consistent with the results reported previously that was ascribed to electronic transitions of oxygenated functional species on the nanoparticle surface.^31,32 For TiO₂ nanoparticles (red curves), the fluorescence features were different, where a major excitation peak might be identified at 362 nm, along with two emission peaks at 460 nm and 528 nm. Note that the excitation peak energy (3.4 eV) is somewhat greater than the bandgap energy of bulk anatase TiO₂ (3.2 eV), most probably as a result of lattice expansion as observed above (Fig. 1).³⁵ It should be mentioned that reports of photoluminescence emission of TiO₂ nanoparticles are generally rather few, as titania is a well-known indirect bandgap semiconductor and in most previous studies the nanoparticles possess low crystallinity and broad size distributions.^48–52 In an earlier study, using a sol–gel method we prepared TiO₂ nanoparticles (5 nm in diameter) that were attached onto a gold Janus nanoparticle surface and observed apparent fluorescence characteristics with the excitation and emission peaks at ca. 400 and 609 nm, respectively, which were ascribed to electronic transitions involving trap states of the nanoparticles.⁵³

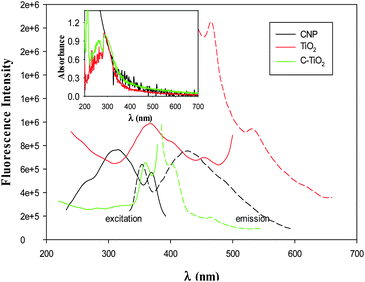

Fig. 3 Excitation (solid curves) and emission (dashed curves) fluorescence spectra of carbon, TiO₂ and C–TiO₂ nanoparticles. The inset shows the corresponding UV-vis spectra of the three samples with the absorbance normalized to the respective value at 290 nm.

However, for the C–TiO₂ nanoparticles (green curves), the fluorescence intensity was drastically diminished in both excitation and emission measurements, with the excitation and emission peaks at 360 nm and 403 nm, respectively. Note that the former is very close to that of TiO₂ nanoparticles whereas the latter appears to be part of the broad emission envelope of carbon nanoparticles. This suggests that in the composite C–TiO₂ nanoparticles, efficient charge/energy transfer likely occurred from TiO₂ to carbon under photoirradiation, leading to apparent quenching of the TiO₂ fluorescence. This may be facilitated by the oxygenated functional moieties on the carbon nanoparticle surface that behaved as efficient electron acceptors and were suspected to be the active sites for photoluminescence.⁵⁴

In addition, as manifested in the UV-vis absorption spectra (Fig. 3, inset), one can see that whereas TiO₂ nanoparticles exhibited an absorption edge around 360 nm (red curve), the C–TiO₂ composite nanoparticles extended the absorption to the visible range (up to 450 nm, green curve), very similar to that of the carbon nanoparticles (black curve). This again indicates that carbon nanoparticles and TiO₂ nanoparticles were indeed integrated to form C–TiO₂ nanocomposites.

The photocatalytic activity of the C–TiO₂ nanocomposites was then examined by using the photodegradation of methylene blue as the illustrating example. Fig. 4 shows the UV-vis absorption spectra of methylene blue in water in the presence of C–TiO₂ under UV photoirradiation (365 nm) for various periods of time. It can be clearly seen that within the range of 500 to 800 nm, two major absorption peaks appear at about 612 and 664 nm which were characteristic of methylene blue,⁵⁵ and when exposed to UV light the absorbance diminished apparently with increasing exposure time, indicating effective photocatalytic activity of the C–TiO₂ nanocomposites in the degradation of methylene blue. From the optical absorbance at 664 nm (A₆₆₄), the fraction of methylene blue that was degraded could be estimated, (A_o,664 − A₆₆₄)/A_o,664, where A_o,664 denotes the absorbance prior to UV light irradiation (i.e., t = 0 min). The corresponding reaction dynamics is depicted in Fig. 5 (yellow diamonds). The photocatalytic activities of the carbon, TiO₂ nanoparticles and their simple mixture were also evaluated in a similar fashion and included for comparison.

Fig. 4 UV-vis absorption spectra of methylene blue (MB) in water as a function of reaction times catalyzed by C–TiO₂ nanoparticles. The concentrations of the C–TiO₂ nanoparticles and MB were 0.5 mg mL⁻¹ and 20 mg L⁻¹ respectively.

Fig. 5 Photodegradation efficiency of carbon, TiO₂, and C–TiO₂ nanoparticles, as well as the simple mixture of carbon nanoparticles and TiO₂ nanoparticles (C + TiO₂) under UV light irradiation. Data were acquired from UV-vis absorption measurements as exemplified in Fig. 4.

It can be seen that for carbon nanoparticles alone (black circles), there was virtually no change of the optical absorption even after four hours of UV photoirradiation of the methylene blue solution, indicating little photocatalytic activity. For TiO₂ nanoparticles (red triangles), the fraction of methylene blue that was photodegraded increased almost linearly with reaction time, and after 120 min of UV light irradiation, about 70% of methylene blue was consumed. Note that when carbon and TiO₂ nanoparticles were simply mixed together (with a quantity and mass ratio similar to those of C–TiO₂) into the reaction solution (green squares), the reactivity in the early stage of the reactions (∼60 min) was almost identical to that of TiO₂ nanoparticles, suggesting that the TiO₂ nanoparticles were the major contributors in the mixture to the photocatalytic activity; at longer reaction times (>60 min), the activity of the carbon and TiO₂ nanoparticle mixtures actually diminished. In sharp contrast, the activity of the C–TiO₂ nanocomposites (yellow diamonds) was markedly better. After only 60 min of UV light photoirradiation, more than 75% of methylene blue was degraded already. That is, within the present experimental context, the photocatalytic activity of C–TiO₂ nanocomposites was about twice that of TiO₂ alone, and the performance increased in the order of carbon nanoparticles < mixture of carbon and TiO₂ nanoparticles ≤ TiO₂ nanoparticles < C–TiO₂ nanocomposites. This indicates that intimate contacts and hence electronic interactions between the carbon and TiO₂ nanoparticles in the C–TiO₂ nanocomposites were likely to be the key factors that facilitated interfacial charge separation upon photoirradiation and hence led to improved photocatalytic activity, consistent with the effective diminishment of the photoluminescence emission of C–TiO₂ as compared to that of TiO₂ nanoparticles alone (Fig. 3).

As mentioned earlier, the carbon nanoparticle surface was decorated with various oxygenated functional moieties, including quinone derivatives, such as 9,10-phenanthraquinone, that are well-known electron acceptors.^31,32,56 For instance, previously we observed that the carbon nanoparticles exhibited two pairs of voltammetric peaks with the formal potentials at −0.28 V and −0.06 V (vs. Ag/AgCl) in electrochemical measurements.⁵⁴ Note that in neutral solutions, the conduction band of TiO₂ is located at ca. −0.35 V (vs. Ag/AgCl) whereas the valence band is at ca. +2.65 V.⁵⁷ Thus, under UV photoirradiation, the valence electrons of TiO₂ were excited to the conduction band, which then crossed the carbon–TiO₂ interface and were accepted by the quinone moieties of the carbon nanoparticles. Such photogenerated electrons were then used to reductively degrade methylene blue, hence leading to the diminishment of the optical absorption (the corresponding holes were likely involved in the oxidation of water). For the physical mixture of carbon and TiO₂ nanoparticles, the lack of bonding interactions greatly impeded charge/energy transfer between them and thus they behaved independently, as observed above.

It should be noted that in earlier studies of carbon-supported TiO₂, the enhanced photocatalytic activities were largely attributed to the enhanced dispersion and/or crystallinity (by thermal treatments) of TiO₂, whereas the impacts of the chemical reactivity of the carbon support were largely ignored.^21–27 In the present study, using equally nanosized TiO₂ particles as the comparative example, one can see that the rich surface chemistry of carbon nanoparticles might also be exploited to facilitate charge separation upon UV photoirradiation, leading to further enhancement of the photocatalytic performance.

Conclusions

A functional C–TiO₂ nanocomposite was prepared by the growth of TiO₂ on carbon nanoparticles by a simple hydrothermal procedure. XPS measurements showed that partial charge transfer occurred from carbon nanoparticles to the Ti(IV) centers in the oxide nanoparticles by the Ti–O–C interfacial bonds, in comparison to pure TiO₂ nanoparticles. Because of these intimate electronic interactions, the C–TiO₂ nanoparticles exhibited apparent diminishment of the photoluminescence as compared to TiO₂ and carbon nanoparticles, suggesting that effective electron/energy transfer occurred in the nanocomposites under photoirradiation. Such unique properties were exploited for the enhancement of the photocatalytic activity of C–TiO₂ nanocomposites, as illustrated in the photodegradation of methylene blue, which was ascribed to the improved efficiency of interfacial charge separation from TiO₂ to carbon because of abundant electron-accepting sites on the carbon nanoparticles.

Acknowledgements

This work was supported, in part, by the National Science Foundation (CHE – 1012258, CBET – 1258839 and DMR – 0804049) and the ACS Petroleum Research Fund (49137 – ND10). C. L. acknowledged partial support of a research fellowship from the China Scholarship Council. XPS and TEM studies were carried out at the Molecular Foundry and National Center for Electron Microscopy, Lawrence Berkeley National Laboratory, as part of a user project.
