Decoupling Ion Size from Electrochemistry: Cation-Size-Independent Accommodation of Li+ to Cs+ in an Amorphous Sulfonamide Coordination Polymer

Abstract

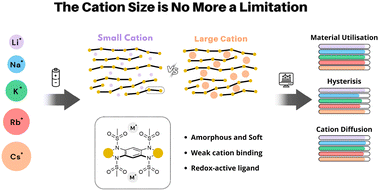

Understanding how cation identity governs charge storage is critical for next-generation batteries beyond lithium. Here we show that the amorphous Ca-Zn-PTtSA coordination polymer functions as a universal host for reversible electrochemical storage of all alkali-metal cations from Li+ to Cs+, including the rare case of reversible Rb+ and Cs+ electrochemical cycling in a positive electrode material. Despite the large variation in ionic radius, all cations yield nearly identical redox potentials, full material utilization (~95 mAh g-1), and low hysteresis. Elemental and spectroscopic analyses confirm a cation storage mechanism without solvent co-intercalation. This behavior originates from the framework’s amorphous flexibility and the delocalized electronic structure of the conjugated sulfonamide ligand, which together enable weak, reversible metal-ligand interactions and fast cation transport (D ≈ 10-9 cm2 s-1). Consequently, M2-Zn-PTtSA delivers high-rate capability and long-term cycling stability across the entire alkali-metal series, providing a platform that decouples ion size from electrochemical performance and supports “cation-of-choice” battery chemistries.
