Design of nonlinear metastructure for temperature detection and biosensing based on second harmonic generation in theory

Abstract

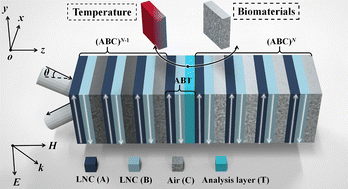

When the second harmonic generation (SHG) occurs in temperature-controlled ferroelectric crystals, it serves as an effective method for detecting temperature and changes in refractive index (RI). A one-dimensional nonlinear metastructure (NM) composed of periodically poled lithium niobate crystals is designed precisely to exhibit significant SHG enhancement in the visible to near-infrared spectral range. When a tunable fundamental electromagnetic wave is incident at a frequency (f) near 241 THz, the NM achieves frequency conversion and enables wide-range temperature detection (25 °C~105 °C) at the second harmonic wave (SHW) scale 2f with a sensitivity of S=0.32 %/°C. By altering the filling material of the sample layer, it is possible to distinguish between three types of healthy or cancerous liver tissues using RI biosensing with a fundamental wave around 273 THz. The sensing range is from 1.3463~1.3655, with a S of 14.75 THz/RIU. The proposed NM integrates the SHW effect with optical detection and sensing, offering new insights for SHW applications and biomedical fields.
