Assessing the role of morphological changes as the origin of improved cycling stability of Sn-based anodes for sodium-ion batteries

Abstract

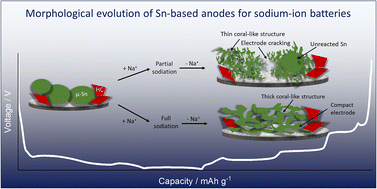

Tin (Sn) is a promising anode material for sodium-ion batteries (NIBs) due to its high theoretical capacity, good conductivity and higher density compared to hard carbon, which could significantly increase energy density. However, the substantial volume changes Sn undergoes during (de-)sodiation typically result in mechanical degradation and unstable solid-electrolyte interphase (SEI). While recent research has reported unexpectedly stable cycling of micrometric Sn anodes in ether-based electrolytes, the mechanisms behind this performance remain underexplored. In this work, we investigate the influence of both Sn content and particle size on the structural and electrochemical stability of Sn-based electrodes. Contrary to expectations, increasing the Sn content does not compromise the cycling stability. Instead, higher Sn loading facilitates the formation of a robust bicontinuous porous architecture, known as coral-like structure, which enhances electrode resilience by distributing mechanical stress and accommodating volumetric expansion. This morphology is particularly prevalent in Sn-rich electrodes, where sufficient Sn enables extended structural connectivity during cycling. Interestingly, smaller Sn particles (submicron and nanoscale) result in poorer cycling performance, underscoring the importance of both particle size and network formation in achieving mechanical robustness. Moreover, we demonstrate that the development and propagation of the coral-like framework are contingent not only on the initial Sn content but also on the degree of sodiation. While Sn-rich anodes cycled in half-cells achieve a fully sodiated crystalline phase that supports dense network formation, in full-cell configurations the full sodiation is not achieved, leading to the formation of a less dense and continuous porous structures that are more susceptible to cracking. These insights highlight the need for full-cell optimization to promote complete sodiation and unlock the full potential of Sn-based anodes in practical NIB applications with higher energy density.
