The combined effect of a carbon sleeve and carbon veil as an anode electrode in enhancing microbial fuel cell performance

Abstract

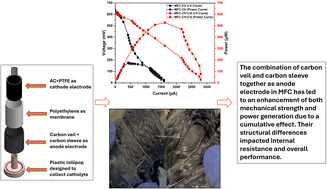

In this study, a novel composite anode electrode for microbial fuel cells (MFCs) was developed by wrapping a carbon sleeve around the surface of carbon veil. While the carbon veil is widely used due to its biocompatibility and surface area, its poor mechanical strength limits long-term operation. The novelty of the study lies in reinforcing the flexible, non-woven carbon veil with a mechanically robust and tubular carbon sleeve layer without compromising performance. This composite electrode (carbon veil + carbon sleeve) improved mechanical integrity and in addition, facilitated better biofilm development. Over a 5 week operation, the composite anode achieved a maximum power output of 527.7 μW, a 3-fold increase compared to using the carbon veil alone (175.5 μW). SEM analysis confirms biofilm improvement in the combined electrodes compared to the control. FTIR analysis confirmed changes in surface functional groups post-operation, suggesting enhanced biofilm–electrode interactions. This work demonstrates a simple yet effective reinforcement strategy that significantly enhances MFC anode durability and power performance.
