Layer-by-layer growth of graphene oxide multilayers using robust interlayer linking chemistry. 2 Zr–bissulfates

Abstract

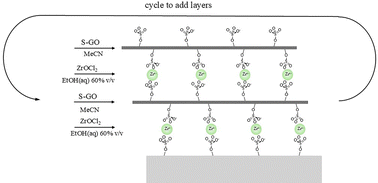

We report on the facile layer-by-layer growth of graphene oxide sulfate (GO-S) multilayer structures. The layers are bonded to a modified planar silica support using Zr⁴⁺ ions. Optical ellipsometry shows step-by-step layer growth with layer thickness consistent with that expected from molecular mechanics calculations. The reaction to form Zr–bissulfate linkages is facile, with multistep layer deposition occurring within six to ten minutes per layer. The GO-S layers can be deposited directly on GO-S underlayer(s) or interlayer spacers can be incorporated to control the spacing with GO-S layers. X-ray photoelectron spectroscopy (XPS) data provides information on the density of the sulfonated groups present at the graphene oxide surface and on the Zr : S ratio. This is the first report we are aware of that demonstrates robust layer-by-layer growth of graphene oxide structures.
