High-voltage cycling degradation mechanisms of the NaNi1/3Fe1/3Mn1/3O2 cathode in sodium-ion pouch cells

Abstract

Sodium-ion batteries (SIBs) utilizing the NaNi1/3Fe1/3Mn1/3O2 (NFM) cathode paired with a hard carbon (HC) anode exhibit a relatively high energy density. To further enhance the energy density, elevating the charging cutoff voltage offers a more universally applicable strategy compared with material approaches, which may encounter limitations due to raw material cost and supply constraints. However, the accelerated degradation mechanisms induced by high-voltage operation severely compromise the cycle life, creating a critical barrier to commercialization. This study reveals the high-voltage degradation mechanism of the NFM cathode at the full battery level, as determined by evaluation of the electrochemical performance at the upper voltage range, profiling of the structural characterization and evolution, tracking of interfacial reactions, analysis of reaction kinetics, and quantification of transition metal dissolution. The HC||NFM battery cycling at a charging cut-off voltage of 4.2 V showed a significantly reduced capacity retention rate (55%, 300 cycles) due to the interfacial side reactions and NFM structural degradation, although it had a considerably higher initial capacity. The cathode underwent an irreversible structural evolution (X and O3′ phases), with frequent cell volume expansion/contraction exacerbating the particle cracking and interfacial parasitic reactions. In contrast, cycling at a 4.0 V upper voltage could maintain a good balance between a high capacity and long cycle life due to the simple reversible structural evolution of NFM (O3–P3–O3) and the moderate impedance during cycling. Finally, the use of electrolytes with boron-containing additives was demonstrated to be an effective strategy to improve the comprehensive performance of the NFM at high voltage. The mechanistic insights and material modification strategy presented herein can pave the way for engineering high-performance layered oxide cathodes that could concurrently achieve extended cyclability and high energy density in SIBs.

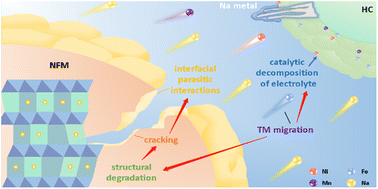

Graphical abstract: High-voltage cycling degradation mechanisms of the NaNi1/3Fe1/3Mn1/3O2 cathode in sodium-ion pouch cells

Supplementary files

Transparent peer review

To support increased transparency, we offer authors the option to publish the peer review history alongside their article.

View this article’s peer review history

Article information

Article type
Paper
Submitted
23 Apr 2025
Accepted
30 May 2025
First published
04 Jun 2025
This article is Open Access
Creative Commons BY license

EES Batteries, 2025, Advance Article

High-voltage cycling degradation mechanisms of the NaNi1/3Fe1/3Mn1/3O2 cathode in sodium-ion pouch cells

S. Lin, W. Li, H. Yang, M. Chen, H. Xie, Y. Qin, J. Zeng, P. Zhang and J. Zhao, EES Batteries, 2025, Advance Article , DOI: 10.1039/D5EB00077G

This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. You can use material from this article in other publications without requesting further permissions from the RSC, provided that the correct acknowledgement is given.

Read more about how to correctly acknowledge RSC content.

Social activity

Spotlight

Advertisements
