Reconstructing nearly isotropic microstructures to construct a one-dimensional framework causing record birefringence in thiophosphates

Abstract

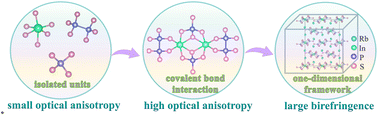

Infrared birefringent crystals that hold significant importance for optoelectronic application have been rarely reported. Traditional tetrahedral PS₄, ethane-like P₂S₆, and octahedral InS₆ units in thiophosphates typically manifest near isotropy, often resulting in extremely small birefringence. However, this study prepares α-Rb₂InP₂S₇ (1), β-Rb₂InP₂S₇ (2), and Cs₂InP₂S₇ (3), consisting of the aforementioned microstructures, notably exhibiting the highest refractive index difference or birefringence values (0.247, 0.298, and 0.250 at 546 nm, respectively) among thiophosphates, the middle one being larger than that of commercial birefringent materials. This unusual increase in birefringence can be primarily attributed to two key factors: (1) simultaneous stretching and compressing of the P–S and In–S covalent bond interactions, generating high polarizability anisotropy of InS₆, PS₄, and P₂S₆ polyhedral units; (2) the additional incorporation of alkali metals that further reduces the dimensionality of the crystal structure, creating one-dimensional [InP₂S₇]²⁻ structures with increasing polarizability anisotropy. This study presents an alternative approach to enhance birefringent materials by reconstructing covalent bond interactions and specific spatial arrangements.
