Issue 5, 2024

Epitaxial graphene growth on cubic silicon carbide on silicon with high temperature neutron reflectometry: an operando study

Abstract

The growth of graphene on silicon carbide on silicon offers a very attractive route towards novel wafer-scale photonic and electronic devices that are easy to fabricate and can be integrated in silicon manufacturing. Using a Ni/Cu catalyst for the epitaxial growth of graphene has been successful in the mitigation of the very defective nature of the underlying silicon carbide on silicon, leading to a consistent graphene coverage over large scales. A more detailed understanding of this growth mechanism is warranted in order to further optimise the catalyst composition, preferably via the use of operando characterization measurements. Here, we report in situ neutron reflectometry measurements of (Ni, Cu)/SiC films on silicon wafers, annealed from room temperature to 1100 °C, which initiates graphene formation at the buried (Ni, Cu)/SiC interface. Detailed modelling of the high temperature neutron reflectometry and corresponding scattering length density profiles yield insights into the distinct physical mechanisms within the different temperature regimes. The initially smooth solid metallic layers undergo intermixing and roughening transitions at relatively low temperatures below 500 °C, and then metal silicides begin to form above 600 °C from interfacial reactions with the SiC, releasing atomic carbon. At the highest temperature range of 600–1100 °C, the low neutron scattering length density at high temperature is consistent with a silicon-rich, liquid surface phase corresponding to molten nickel silicides and copper. This liquid catalyst layer promotes the liquid-phase epitaxial growth of a graphene layer by precipitating the excess carbon available at the SiC/metal interface.

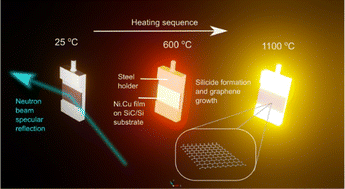

Graphical abstract: Epitaxial graphene growth on cubic silicon carbide on silicon with high temperature neutron reflectometry: an operando study

Supplementary files

Article information

Article type
Paper
Submitted
05 Dec 2023
Accepted
13 Jan 2024
First published
19 Jan 2024
This article is Open Access
Creative Commons BY-NC license

RSC Adv., 2024,14, 3232-3240

Epitaxial graphene growth on cubic silicon carbide on silicon with high temperature neutron reflectometry: an operando study

A. Pradeepkumar, D. Cortie, E. Smyth, A. P. Le Brun and F. Iacopi, RSC Adv., 2024, 14, 3232 DOI: 10.1039/D3RA08289J
