Issue 1, 2024

From waste to energy storage: post-consumer waste expanded polystyrene/rGO composite as a high performance self-standing electrode for coin cell supercapacitors

Abstract

This research work aims to explore the potential usage of post-consumer waste expanded polystyrene (EPS) for the fabrication of self-standing electrodes by incorporating reduced graphene oxide (rGO) into it via a facile cost-effective mechanical mixing process. The π–π interaction between the expanded polystyrene and rGO is evidenced from FT-IR and Raman analysis. The elevated thermal stability of the EPS/rGO composite from thermogravimetric analysis (TGA) further confirms the interconnection between the rGO and EPS. This π–π stacking interaction between the rGO and the polystyrene molecules present in the polymer matrix enable the composite material to be interconnected throughout which is beneficial for the charge transport process. The symmetric coin cell supercapacitor fabricated using the EPS/rGO composite electrode can be operated with a high operating voltage of 1.6 V in aqueous KOH and Na2SO4 electrolytes. The devices fabricated with KOH and Na2SO4 electrolytes deliver an areal capacitance of 11.9 mF cm−2 and 10 mF cm−2 at the discharge current density of 0.1 mA cm−2. Further, the devices fabricated with the KOH and Na2SO4 electrolytes demonstrated remarkable rate capability of 87.1% and 99.5% after 10 000 continuous charge discharge cycles. This facile method of preparation without consuming energy or polluting the environment is a novel approach which can be scaled-up to large-scale fabrication of self-standing plastic electrodes for low-cost energy storage applications.

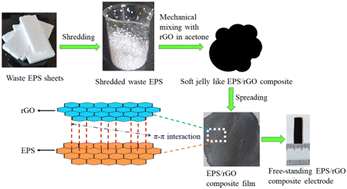

Graphical abstract: From waste to energy storage: post-consumer waste expanded polystyrene/rGO composite as a high performance self-standing electrode for coin cell supercapacitors

Supplementary files

Article information

Article type
Paper
Submitted
17 Oct 2023
Accepted
09 Dec 2023
First published
02 Jan 2024
This article is Open Access
Creative Commons BY-NC license

RSC Adv., 2024,14, 689-699

From waste to energy storage: post-consumer waste expanded polystyrene/rGO composite as a high performance self-standing electrode for coin cell supercapacitors

S. Vijaya and L. J. Kennedy, RSC Adv., 2024, 14, 689 DOI: 10.1039/D3RA07071A
