Issue 1, 2022

Sample preparation induced phase transitions in solution deposited copper selenide thin films

Abstract

Thin films of CuSe were deposited onto GaAs substrate. XRD showed that the as-deposited films were of the Klockmannite (CuSe – P63/mmc 194) phase with lattice parameters a0 = b0 = 0.3939 nm, c0 = 1.7250 nm; however, electron diffraction in the TEM surprisingly indicated the β-Cu2−xSe phase (Cu1.95Se – R[3 with combining macron]m 166) with lattice parameters a0 = b0 = 0.412 nm, c0 = 2.045 nm. The discrepancy originated from the specimen preparation method, where the energy of the focused ion beam resulted in loss of selenium which drives a phase transition to β-Cu2−xSe in this system. The same phase transition was observed also upon thermal treatment in vacuum, as well as when the 200 keV electron beam was focused on a powder sample in the TEM. The initial phase can be controlled to some extent by changing the composition of the reactants in solution, resulting in thin films of the cubic α-Cu2−xSe (Cu1.95Se – Fm[3 with combining macron]m) phase co-existing together with the β-Cu2−xSe phase.

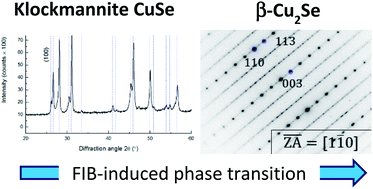

Graphical abstract: Sample preparation induced phase transitions in solution deposited copper selenide thin films

Article information

Article type
Paper
Submitted
28 Oct 2021
Accepted
14 Dec 2021
First published
21 Dec 2021
This article is Open Access
Creative Commons BY-NC license

RSC Adv., 2022,12, 277-284

Sample preparation induced phase transitions in solution deposited copper selenide thin films

B. Koren, O. Friedman, N. Maman, S. Hayun, V. Ezersky and Y. Golan, RSC Adv., 2022, 12, 277 DOI: 10.1039/D1RA07947F

This article is licensed under a Creative Commons Attribution-NonCommercial 3.0 Unported Licence. You can use material from this article in other publications, without requesting further permission from the RSC, provided that the correct acknowledgement is given and it is not used for commercial purposes.

To request permission to reproduce material from this article in a commercial publication, please go to the Copyright Clearance Center request page.

If you are an author contributing to an RSC publication, you do not need to request permission provided correct acknowledgement is given.

If you are the author of this article, you do not need to request permission to reproduce figures and diagrams provided correct acknowledgement is given. If you want to reproduce the whole article in a third-party commercial publication (excluding your thesis/dissertation for which permission is not required) please go to the Copyright Clearance Center request page.

Read more about how to correctly acknowledge RSC content.

Social activity

Spotlight

Advertisements
