Issue 12, 2022

Amine-functionalized stable Nb2CTx MXene toward room temperature ultrasensitive NO2 gas sensor

Abstract

Large surface area and abundant surface functional groups favor the MXene (Nb2CTx) for potential gas sensor applications. However, atmospheric instability is the major limitation of MXenes. In this work, (3-aminopropyl)triethoxysilane (APTES) with distinct concentrations (0.1, 0.2, 0.3 mL) was used for the surface modification of MXene, which is a popular silane coupling agent. It minimizes the oxidation of the MXene by forming a homogeneous, thick protective layer on the Nb2CTx MXene structures by covalent contact through silylation processes, thereby allowing the simultaneous incorporation of additional reactive groups (–NH2). The functionalization and stability of the synthesized materials were characterized using XRD, FESEM, HR-TEM, XPS, FT-IR, UV-Vis, and zeta potential. The hydrophilic –NH2 group acts as an electron donor that helps sense acidic gases such as nitrogen dioxide (NO2). APTES-functionalized Nb2CTx MXene showed a better sensing response toward NO2 gas (31.52%) than pristine Nb2CTx MXene (12.5%) at 25 ppm, which is stable for more than 45 days at room temperature (∼25 °C). The sensitivity of Nb2CTx and Nb2CTx-0.2 APTES MXene shows 0.492 and 1.2314 ppm−1, respectively, confirming that APTES-functionalized Nb2CTx MXene shows better sensitivity. Nb2CTx-0.2 APTES sensors can sense the NO2 gas at the detection limit (LOD) of 3 ppb and quantification limit (LOQ) of 12 ppb. In contrast, the pristine Nb2CTx sensor can provide an LOD of 15 ppb and LOQ of 52 ppb, showing that the APTES-functionalized Nb2CTx sensor can sense even a minute concentration of the gas with high sensitivity.

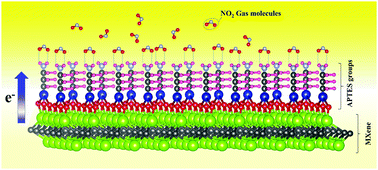

Graphical abstract: Amine-functionalized stable Nb2CTx MXene toward room temperature ultrasensitive NO2 gas sensor

Supplementary files

Article information

Article type
Paper
Submitted
16 Mar 2022
Accepted
17 May 2022
First published
18 May 2022
This article is Open Access
Creative Commons BY-NC license

Mater. Adv., 2022,3, 5151-5162

Amine-functionalized stable Nb2CTx MXene toward room temperature ultrasensitive NO2 gas sensor

A. N. Kumar and K. Pal, Mater. Adv., 2022, 3, 5151 DOI: 10.1039/D2MA00301E
