Issue 11, 2022

Lithium recovery from geothermal brine – an investigation into the desorption of lithium ions using manganese oxide adsorbents

Abstract

Spinel type lithium manganese oxides (LMOs) are promising adsorption materials for selective recovery of lithium from salty brines. In this work a lithium-ion sieve material, H1.6Mn1.6O4, derived from Li1.6Mn1.6O4, a spinel type LMO, was successfully prepared via hydrothermal synthesis. This lithium-ion sieve, H1.6Mn1.6O4, was then used in laboratory tests to adsorb Li+ from a generic LiCl solution and geothermal brine from Bruchsal geothermal power plant. Desorption experiments were performed with the following desorption solutions: ammonium peroxydisulfate ((NH4)2S2O8), sodium peroxydisulfate (Na2S2O8), acetic acid (CH3COOH), sulfuric acid (H2SO4), carbonic acid (H2CO3), ascorbic (C6H8O6) and hydrochloric acid (HCl). The results showed that C6H8O6 led to adsorbent destruction and only small amount of lithium was desorbed with H2CO3. CH3COOH and (NH4)2S2O8 showed the best desorption performance with high lithium recovery and low Mn dissolution. The kinetic experiments indicate that more than 90% of equilibrium was reached after 4 hours. A decline in the adsorption/desorption capacity was measured for all desorption agents after eight cycles in the long-term experiments. These long-term tests revealed that higher lithium recovery in desorption with HCl and CH3COOH was achieved compared to (NH4)2S2O8. On the other hand, the use of CH3COOH and (NH4)2S2O8 seems to be advantageous to HCl because of lower Mn dissolution. According to the XRD results, the spinel structure of the treated adsorbents was preserved, but a weakening of the peak intensity was observed. Analyzing the adsorbent composition after eight cycles, an accumulation of competing ions was observed. This was especially remarkable when acetic acid was used.

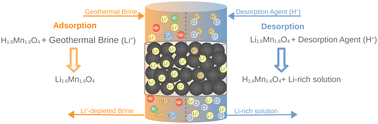

Graphical abstract: Lithium recovery from geothermal brine – an investigation into the desorption of lithium ions using manganese oxide adsorbents

Article information

Article type
Paper
Submitted
29 Apr 2022
Accepted
12 Sep 2022
First published
21 Sep 2022
This article is Open Access
Creative Commons BY-NC license

Energy Adv., 2022,1, 877-885

Lithium recovery from geothermal brine – an investigation into the desorption of lithium ions using manganese oxide adsorbents

L. Herrmann, H. Ehrenberg, M. Graczyk-Zajac, E. Kaymakci, T. Kölbel, L. Kölbel and J. Tübke, Energy Adv., 2022, 1, 877 DOI: 10.1039/D2YA00099G
