A general approach for hierarchically porous metal/N/C nanosphere electrocatalysts: nano-confined pyrolysis of in situ-formed amorphous metal–ligand complexes

Author affiliations

Abstract

A nano-confined pyrolysis approach was developed for constructing highly nitrogen-doped hierarchically porous metal/N/C nanospheres (typically Fe/N/C-HP). Hierarchically porous silica nanospheres (NKM-5) were used as a hard template, and an amorphous Fe/Zn-(MeIm)2 complex was employed as a carbon and nitrogen source. During the pyrolysis process, first, the molten Fe/Zn-(MeIm)2 complex diffused into hierarchically porous tunnels of NKM-5. Secondly, the interface confinement effect of nanopores in NKM-5 could effectively immobilize nitrogen to coordinate with iron atom, prevent the aggregation of Fe-based species and form single-atom Fe sites. After the silica template was removed, the catalyst exhibited a hierarchically porous structure and uniform spherical morphology. This hierarchically porous structure of Fe/N/C-HP can enhance mass transport/electron transfer and greatly improve the accessibility of Fe/N/C sites. As a result, the Fe/N/C-HP catalyst exhibits excellent oxygen reduction performance with a half-wave potential (E1/2) of 0.90 V in alkaline media and 0.78 V in acidic media. A primary Zn–air battery with Fe/N/C-HP as the cathode catalyst exhibits a large peak power density of 181 mW cm−2 and discharge stability. This nano-confined pyrolysis of amorphous M/Zn-(MeIm)2 complex is a general method to construct a hierarchically porous M/N/C (M = Fe, Co, Cu, Mn and Ni) electrocatalyst with well-defined morphology.

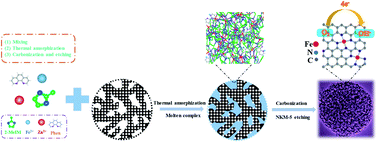

Graphical abstract: A general approach for hierarchically porous metal/N/C nanosphere electrocatalysts: nano-confined pyrolysis of in situ-formed amorphous metal–ligand complexes

Back to tab navigation

Supplementary files

Article information


Submitted
18 Jul 2020
Accepted
21 Sep 2020
First published
22 Sep 2020

J. Mater. Chem. A, 2020,8, 21026-21035
Article type
Paper

A general approach for hierarchically porous metal/N/C nanosphere electrocatalysts: nano-confined pyrolysis of in situ-formed amorphous metal–ligand complexes

L. Wu, B. Ni, R. Chen, P. Sun and T. Chen, J. Mater. Chem. A, 2020, 8, 21026
DOI: 10.1039/D0TA07029G
