Mechanically programmed 2D and 3D liquid crystal elastomers at macro- and microscale via two-step photocrosslinking

Author affiliations

Abstract

Liquid crystal elastomers (LCEs) are a unique class of active materials with the largest known reversible shape transformation in the solid state. The shape change of LCEs is directed by programming their molecular orientation, and therefore, several strategies to control LC alignment have been developed. Although mechanical alignment coupled with a two-step crosslinking is commonly adopted for uniaxially-aligned monodomain LCE synthesis, the fabrication of 3D-shaped LCEs at the macro- and microscale has been rarely accomplished. Here, we report a facile processing method for fabricating 2D and 3D-shaped LCEs at the macro- and microscales at room temperature by mechanically programming (i.e., stretching, pressing, embossing and UV-imprinting) the polydomain LCE, and subsequent photocrosslinking. The programmed LCEs exhibited a reversible shape change when exposed to thermal and chemical stimuli. Besides the programmed shape changes, the actuation strain can also be preprogrammed by adjusting the extent of elongation of a polydomain LCE. Furthermore, the LCE micropillar arrays prepared by UV-imprinting displayed a substantial change in pillar height in a reversible manner during thermal actuation. Our convenient method for fabricating reversible 2D and 3D-shaped LCEs from commercially available materials may expedite the potential applications of LCEs in actuators, soft robots, smart coatings, tunable optics and medicine.

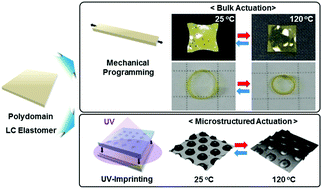

Graphical abstract: Mechanically programmed 2D and 3D liquid crystal elastomers at macro- and microscale via two-step photocrosslinking

Back to tab navigation

Supplementary files

Article information


Submitted
11 Nov 2019
Accepted
09 Feb 2020
First published
10 Feb 2020

Soft Matter, 2020, Advance Article
Article type
Paper

Mechanically programmed 2D and 3D liquid crystal elastomers at macro- and microscale via two-step photocrosslinking

J. Lee, Y. Guo, Y. Choi, S. Jung, D. Seol, S. Choi, J. Kim, Y. Kim, K. Jeong and S. Ahn, Soft Matter, 2020, Advance Article , DOI: 10.1039/C9SM02237F
