Autonomous analysis to identify bijels from two-dimensional images

Author affiliations

Abstract

Bicontinuous interfacially jammed emulsion gels (bijels) are novel composite materials that can be challenging to manufacture. As a step towards automating production, we have developed a machine learning tool to classify fabrication attempts. We use training and testing data in the form of confocal images from both successful and unsuccessful attempts at bijel fabrication. We then apply machine learning techniques to this data in order to classify whether an image is a bijel or a non-bijel. Our principal approach is to process the images to find their autocorrelation function and structure factor, and from these functions we identify variables that can be used for training a supervised machine learning model to identify a bijel image. We are able to categorise images with reasonable accuracies of 85.4% and 87.5% for two different approaches. We find that using both the liquid and particle channels helps to achieve optimal performance and that successful classification relies on the bijel samples sharing a characteristic length scale. Our second approach is to classify the shapes of the liquid domains directly; the shape descriptors are then used to classify fabrication attempts via a decision tree. We have used an adaptive design approach to find an image pre-processing step that yields the optimal classification results. Again, we find that the characteristic length scale of the images is crucial in performing the classification.

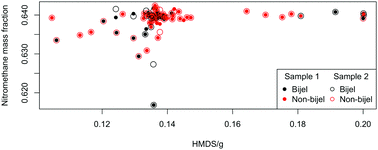

Graphical abstract: Autonomous analysis to identify bijels from two-dimensional images

Back to tab navigation

Supplementary files

Article information


Submitted
04 Nov 2019
Accepted
10 Feb 2020
First published
11 Feb 2020

This article is Open Access

Soft Matter, 2020, Advance Article
Article type
Paper

Autonomous analysis to identify bijels from two-dimensional images

E. M. Gould, K. A. Macmillan and P. S. Clegg, Soft Matter, 2020, Advance Article , DOI: 10.1039/C9SM02187F
