All-self-metered solution-coating process in ambient air for the fabrication of efficient, large-area, and semitransparent perovskite solar cells

Author affiliations

Abstract

We herein report several characteristics of semitransparent perovskite solar cells (PVSCs) composed of functional layers fabricated by means of a solution-coating process of self-metered horizontal dip- (H-dip-) coating. The perovskite precursor solution used here was prepared by mixing PbI2 and CH3NH3I in anhydrous GBL and DMSO. To enhance the film-forming capabilities of the CH3NH3PbI3 perovskite PV layer, a small amount of a surfactant additive of poly(oxyethylene tridecyl ether) (PTE) was mixed with the perovskite precursor solution. Using the H-dip-coating process with PTE additives dramatically reduces the formation of film defects such as grain-boundary defects and nano-pinholes in the perovskite layers, resulting in uniform and homogeneous PV layers with smooth surface morphologies, even in ambient air. The use of H-dip-coated perovskite and other functional layers, including electron/hole collecting layers, and transparent silver nanowire electrodes resulted in good performance of the semitransparent device, with a transmittance level of 23% between 400 and 800 nm and a corresponding power conversion efficiency (PCE) of 10.2%. Furthermore, we demonstrated the feasibility of fabricating over a large area 8.5 × 8.5 cm2 in size with a high PCE of 5.6% for all-solution-processed semitransparent PVSCs even in ambient air. Our study indicates that H-dip-coated functional layers can be used to yield transparent, efficient, and large-area, solution-processable semitransparent PVSCs, thus creating a new pathway toward transparent solar cells with high photovoltaic efficiencies.

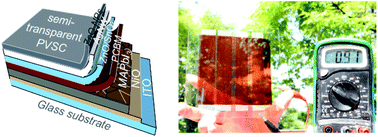

Graphical abstract: All-self-metered solution-coating process in ambient air for the fabrication of efficient, large-area, and semitransparent perovskite solar cells

Back to tab navigation

Supplementary files

Article information


Submitted
17 Apr 2020
Accepted
20 Apr 2020
First published
20 Apr 2020

Sustainable Energy Fuels, 2020,4, 3115-3128
Article type
Paper

All-self-metered solution-coating process in ambient air for the fabrication of efficient, large-area, and semitransparent perovskite solar cells

I. Bae and B. Park, Sustainable Energy Fuels, 2020, 4, 3115
DOI: 10.1039/D0SE00598C
