3D-Printed electrodes for membraneless water electrolysis

Author affiliations


Additive manufacturing encompasses an emerging class of techniques that are increasingly finding applications in the field of electrochemistry. While most of these demonstrations have involved the use of 3D-printing to fabricate structural components of electrochemical devices, this manuscript describes the design, manufacture and performance of 3D-printed porous flow-through electrodes employed in an electrolyzer that is itself made almost entirely by 3D-printing. These electrodes were 3D-printed using fused deposition modeling (FDM) from a composite of conductive carbon and polylactic acid (PLA), followed by electrodeposition of nickel (Ni) electrocatalyst. The stability and performance of these Ni-PLA electrodes were evaluated for water electrolysis in 1.0 M sodium hydroxide (NaOH). After characterizing the performance of a single electrode pair for the hydrogen evolution reaction (HER) and oxygen evolution reaction (OER), three pairs of electrodes were incorporated into a simple and scalable 3D-printed membraneless electrolyzer by “clicking” them into a monolithic lid containing manifolding for collection of the O2 and H2 product gases. The device utilizes a membraneless architecture capable of operating in a stagnant electrolyte through buoyancy-driven separation of product gases, and allowing for easy regeneration of electrodes by electrodeposition. Device operation was evaluated through a combination of electroanalytical measurements, in situ high-speed video imaging, and finite element modeling. Although the efficiency and cross-over rates of these membraneless electrolyzers fall below what is required for commercial applications, additive manufacturing of electrodes offers an exciting new design space to improve performance and enable robust operation for applications where membrane-based electrolyzers are inherently unstable.

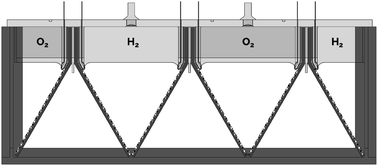

Graphical abstract: 3D-Printed electrodes for membraneless water electrolysis

Back to tab navigation

Supplementary files

Publication details

The article was received on 26 Aug 2019, accepted on 25 Oct 2019 and first published on 29 Oct 2019

Article type: Paper
DOI: 10.1039/C9SE00710E
Sustainable Energy Fuels, 2020, Advance Article

  •   Request permissions

    3D-Printed electrodes for membraneless water electrolysis

    J. C. Bui, J. T. Davis and D. V. Esposito, Sustainable Energy Fuels, 2020, Advance Article , DOI: 10.1039/C9SE00710E
