Issue 3, 2020

Pyroelectric power generation from the waste heat of automotive exhaust gas

Author affiliations

Abstract

Waste heat is a potentially exploitable energy source but remains a problem awaiting a solution. To explore solutions for automobile applications, we investigate pyroelectric power generation from the temperature variation of exhaust gas using a novel electro-thermodynamic cycle. Niobium-doped lead zirconate titanate stannate (PNZST) ceramics were applied as pyroelectric materials, and their structural characteristics were investigated. In the driving cycle assessments (JC-08) using real exhaust gas, the maximum power generated was identified as 143.9 mW cm−3 (777.3 J L−1 per 1 cycle) over a temperature range of 150–220 °C and an electric field of 13 kV cm−1. The net mean generating power of the total driving cycle was 40.8 mW cm−3, which is the most enhanced result in our power generating systems to date and 314 times greater than our first report. Materials with sharp transition behaviors with the temperature and electric field are worthy of study with regard to pyroelectric energy harvesting materials, and their corresponding crystal and domain structures were investigated to optimize performance.

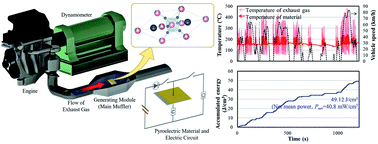

Graphical abstract: Pyroelectric power generation from the waste heat of automotive exhaust gas

Article information


Submitted
06 May 2019
Accepted
07 Oct 2019
First published
24 Dec 2019

This article is Open Access

Sustainable Energy Fuels, 2020,4, 1143-1149
Article type
Paper

Pyroelectric power generation from the waste heat of automotive exhaust gas

J. Kim, S. Yamanaka, I. Murayama, T. Katou, T. Sakamoto, T. Kawasaki, T. Fukuda, T. Sekino, T. Nakayama, M. Takeda, M. Baba, H. Tanaka, K. Aizawa, H. Hashimoto and Y. Kim, Sustainable Energy Fuels, 2020, 4, 1143 DOI: 10.1039/C9SE00283A

This article is licensed under a Creative Commons Attribution-NonCommercial 3.0 Unported Licence. You can use material from this article in other publications, without requesting further permission from the RSC, provided that the correct acknowledgement is given and it is not used for commercial purposes.

To request permission to reproduce material from this article in a commercial publication, please go to the Copyright Clearance Center request page.

If you are an author contributing to an RSC publication, you do not need to request permission provided correct acknowledgement is given.

If you are the author of this article, you do not need to request permission to reproduce figures and diagrams provided correct acknowledgement is given. If you want to reproduce the whole article in a third-party commercial publication (excluding your thesis/dissertation for which permission is not required) please go to the Copyright Clearance Center request page.

Read more about how to correctly acknowledge RSC content.
