Jump to main content
Jump to site search
Access to RSC content Close the message box

Continue to access RSC content when you are not at your institution. Follow our step-by-step guide.



Structures and Properties of Side-Chain Liquid Crystalline Polynorbornenes Containing Amide Group: Hydrogen Bonding Interaction and Spacer Length Effect.

Abstract

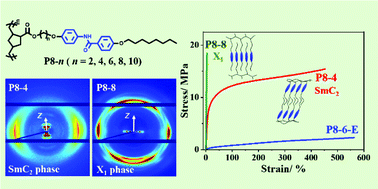

To Investigate the structure-property relationship of side-chain liquid crystalline (LC) polymer with specific interactions, we synthesized a series of polynorbornene derivatives bearing benzanilide side-chains (denoted as P8-n, where n represents the number of methylene units in the spacer, and the number 8 indicates the side-chain tail of octyl). For comparison, a reference polynorbornene derivative (denoted as P8-6-E) was also synthesized by replacing amide group in the rod-like mesogen with ester group. It is found that with polynorbornene main-chain the samples can exhibit rich LC behaviors, different from other benzanilide-containing polymers. P8-2 and P8-4 form a bilayer smectic C (SmC2) phase. On the other hand, with longer spacers, the molecules of P8-8 and P8-10 can pack into a highly ordered structure (denoted as X1). The X1 phase has an orthorhombic lattice with the side- and main-chain along the c- and b-axis, wherein the side-chains are interdigitated packed with some features of crystal E (CrE) structure. For P8-6, some bilayer CrE domains may coexist with X1, resulting a mixed phase of X1/E2. It is unveiled that the amide group at the center of benzanilide always tends to form hydrogen bonds, leading to the unique molecular packing of P8-ns which is dependent on the size matching between the spacer and tail. Moreover, weakening the hydrogen bonds in P8-ns (n ≥ 8) could induce the phase transition from X1 to X1/E2. Compared with the rather soft and ductile P8-6-E with a smectic B phase, P8-ns show much higher Young’s moduli because of the existence of lateral hydrogen bonds. While those with the X1 phase are brittle, the P8-ns with SmC2 structure exhibit better overall mechanical properties, rendering the breaking strain of ~450%.

Back to tab navigation

Supplementary files

Article information


Submitted
21 Apr 2020
Accepted
28 Jun 2020
First published
29 Jun 2020

Polym. Chem., 2020, Accepted Manuscript
Article type
Paper

Structures and Properties of Side-Chain Liquid Crystalline Polynorbornenes Containing Amide Group: Hydrogen Bonding Interaction and Spacer Length Effect.

D. Shi, W. Chang, X. Ren, S. Yang and E. Chen, Polym. Chem., 2020, Accepted Manuscript , DOI: 10.1039/D0PY00586J

Social activity

Search articles by author

Spotlight

Advertisements
