Ultrasensitive self-driven broadband photodetector based on 2D-WS2/GaAs type-II Zener heterojunction

Abstract

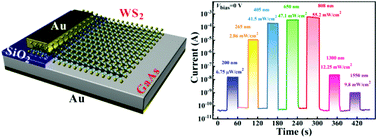

High-performance broadband photodetectors have attracted extensive research interest because of their significance in optoelectrical applications. In this study, a highly sensitive room-temperature (RT) broadband photodetector composed of a WS2/GaAs type-II Van der Waals heterojunction was demonstrated, which exhibited obvious photoresponse to broadband light illuminations from 200 to 1550 nm beyond the limitation of the bandgaps. The impressive device performances were achieved in terms of a low noise current of ~59.7 pA, a high responsivity up to 527 mA/W, an ultrahigh Ilight/Idark ratio of 107, a large specific detectivity of 1.03×1014 Jones, a minimum detection light intensity of 17 nW/cm2 and an external quantum efficiency (EQE) up to 80%. Transient photoresponse measurements revealed that the present detector is capable of working at a high frequency with a 3 dB cutoff frequency up to 10 kHz and a corresponding rise/fall time of 21.8/49.6 μs. Notably, this heterojunction device demonstrated Zener tunneling behaviors with a threshold voltage of -4 V. The capacitance-voltage (C-V) properties of the heterojunction were investigated to understand the device performances. In addition, the as-fabricated device can function as an image sensor with a well-pleasing imaging capability. Considering the above superior features, the proposed WS2/GaAs type-II Van der Waals heterojunction may find great potential in high-performance broadband photodetection applications.

Back to tab navigation

Supplementary files

Article information


Submitted
06 Dec 2019
Accepted
13 Jan 2020
First published
14 Jan 2020

Nanoscale, 2020, Accepted Manuscript
Article type
Paper

Ultrasensitive self-driven broadband photodetector based on 2D-WS2/GaAs type-II Zener heterojunction

C. Jia, X. Huang, D. Wu, Y. Tian, J. Guo, Z. Zhao, Z. Shi, Y. Tian, J. Jie and X. Li, Nanoscale, 2020, Accepted Manuscript , DOI: 10.1039/C9NR10348A
