Sub-100 nm 2D nanopatterning on a large scale by ultrafast laser energy regulation

Author affiliations

Abstract

Coupling ultrafast light irradiation to surface nanoreliefs leads to periodic patterns, achieving record processing scales down to tens of nanometers. Driven by near-field interactions, the promising potential of the spontaneous pattern formation relies on the scaling up of one-step manufacturing processes. Here, we report the self-assembly of unconventional arrays of nanocavities of 20 nm diameter with a periodicity down to 60 nm upon ultrafast laser irradiation of a nickel surface. In stark contrast to laser-induced surface ripples, which are stochastic and suffer from a lack of regularity, the 2D patterns present an unprecedented uniformity on extreme scales. The onset of nanocavity arrays ordered in a honeycomb lattice is achieved by overcoming the anisotropic polarization response of the surface by a delayed action of cross-polarized laser pulses. The origin of this self-arrangement is identified as a manifestation of Marangoni convection instability in a nanoscale melt layer, destabilized by the laser-induced rarefaction wave.

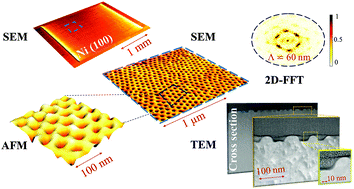

Graphical abstract: Sub-100 nm 2D nanopatterning on a large scale by ultrafast laser energy regulation

Back to tab navigation

Article information


Submitted
11 Nov 2019
Accepted
19 Feb 2020
First published
24 Feb 2020

Nanoscale, 2020,12, 6609-6616
Article type
Communication

Sub-100 nm 2D nanopatterning on a large scale by ultrafast laser energy regulation

A. Abou Saleh, A. Rudenko, S. Reynaud, F. Pigeon, F. Garrelie and J. Colombier, Nanoscale, 2020, 12, 6609
DOI: 10.1039/C9NR09625F
