Rational synthesis of highly efficient ultra-narrow red-emitting carbon quantum dots for NIR-II two-photon bioimaging

Author affiliations

Abstract

Despite the growing research interest in highly bio-compatible carbon quantum dots (CQDs) for bioimaging, the synthesis of red-emitting CQDs with high photoluminescence efficiency and a sharp emission spectrum remains a formidable challenge in this field. Herein, we established a rational strategy for the synthesis of highly efficient ultra-narrow red-emitting CQDs by adopting a conjugated aromatic amine precursor (tris(4-aminophenyl)amine, TAPA) and introducing oxidative radical reagents. The resultant CQDs, T-CQDs featured red PL (615 ± 2 nm) with a high photoluminescence quantum yield (84 ± 5%) and a narrow emission linewidth (FWHM = 27 ± 1 nm), which together represented one of the highest levels in the field of CQDs so far. The T-CQDs were then further analyzed from the spectral and structural aspects, and the repeatability and universality of this strategy have also been discussed. Finally, the T-CQDs were successfully applied for both one-photon imaging and two-photon imaging with various bio-samples, both in vitro and in vivo.

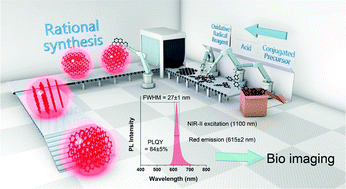

Graphical abstract: Rational synthesis of highly efficient ultra-narrow red-emitting carbon quantum dots for NIR-II two-photon bioimaging

Back to tab navigation

Supplementary files

Article information


Submitted
08 Nov 2019
Accepted
13 Dec 2019
First published
13 Dec 2019

Nanoscale, 2020, Advance Article
Article type
Paper

Rational synthesis of highly efficient ultra-narrow red-emitting carbon quantum dots for NIR-II two-photon bioimaging

Y. Liu, H. Gou, X. Huang, G. Zhang, K. Xi and X. Jia, Nanoscale, 2020, Advance Article , DOI: 10.1039/C9NR09524A
