A self-encapsulated broadband phototransistor based on a hybrid of graphene and black phosphorus nanosheets

Author affiliations

Abstract

A phototransistor based on a hybrid of graphene and BP nanosheets with a facile fabrication method and remarkable performance is presented. Unlike previously reported single BP flake-based devices, this phototransistor employs diverse BP nanosheets with different sizes and layer numbers. The wet transfer process of graphene is exploited to integrate the liquid-exfoliated BP nanosheets into the device smoothly. Due to the diversity of BP nanosheets, the device demonstrates a broadband photo-response in the spectrum from 360 nm to 785 nm. The photo-response mechanism is revealed to be the photogating effect caused by the discrete BP nanosheets adsorbed on graphene. The phototransistor has a responsivity of 7.7 × 103 A W−1 in the near-UV region with a wide conductive channel of 200 μm. Moreover, the simplified wet transfer process of graphene leaves a self-encapsulated layer of PMMA on the as-prepared device, inducing a good atmospheric stability in the device. This report provides a valid, implantable, and facile strategy to apply BP nanosheets in a broadband, high-performing and air-stable photodetector.

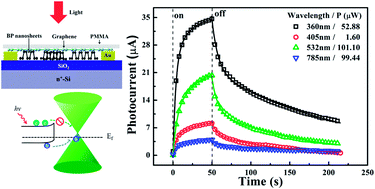

Graphical abstract: A self-encapsulated broadband phototransistor based on a hybrid of graphene and black phosphorus nanosheets

Back to tab navigation

Supplementary files

Article information


Submitted
23 Aug 2019
Accepted
20 Dec 2019
First published
20 Dec 2019

This article is Open Access

Nanoscale Adv., 2020, Advance Article
Article type
Paper

A self-encapsulated broadband phototransistor based on a hybrid of graphene and black phosphorus nanosheets

G. Zhou, Z. Li, Y. Ge, H. Zhang and Z. Sun, Nanoscale Adv., 2020, Advance Article , DOI: 10.1039/C9NA00528E
