2D Nanosheets /3D Cubic Frameworks Ni-Co Sulfides for Improved Supercapacitors Performance via Structurally Engineering

Abstract

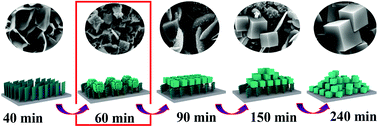

The construction of multi-dimensional structured battery-type electrode materials is a promising strategy to develop high performance electrodes for supercapacitors. Herein, a series of battery-type Ni3S2@Co3S4 electrodes with different morphologies are synthesized by controlling the hydrothermal reaction time. Owning to the unique structure with independent but interconnected 2D nanosheets and 3D cubic frameworks, NCS-60 displays high conductivity, rich active sites and good wettability behaviors. It can deliver a high specific capacity of 388.9 mAh g-1 (3500 F g-1) at 1 A g-1, outstanding rate capacity of keeping 88.6% at 10 A g-1 and long cycle stability. The battery-type supercapacitors hybrid (BSH) device with active carbon (AC) as the negative electrode delivers energy density of 41.8 W h kg-1 at the power density of 800 W kg-1. This work provides a feasible route for regulating morphologies of in-situ growth materials and then improves the electrochemical performance for supercapacitors.

Back to tab navigation

Supplementary files

Article information


Submitted
20 Apr 2020
Accepted
21 May 2020
First published
21 May 2020

Dalton Trans., 2020, Accepted Manuscript
Article type
Paper

2D Nanosheets /3D Cubic Frameworks Ni-Co Sulfides for Improved Supercapacitors Performance via Structurally Engineering

Q. Zhang, Q. Shi, Y. Yang, Q. Zang, Z. Xiao, X. Zhang and L. Wang, Dalton Trans., 2020, Accepted Manuscript , DOI: 10.1039/D0DT01430C
