Synergies and compromises between charge and energy transfers in three-component organic solar cells

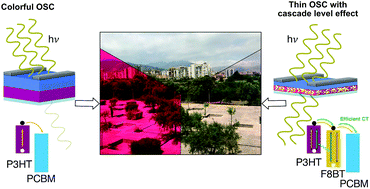

In this paper, we developed different three-component organic heterojunction structures supported by PET/ITO substrates with the aim to study the possible synergies and/or compromises between charge transfer (CT) and energy transfer (ET) processes in organic solar cells (OSCs). As components we employed the poly(3-hexylthiophene-2,5-diyl) (P3HT; donor), the [6,6]-phenyl-C61-butyric acid methyl ester (PCBM; acceptor) and the poly(9,9-dioctylfluorene-alt-benzothiadiazole) (F8BT) that is known to give good ET to P3HT. At first, we observed that in a planar heterojunction (PHJ) solar cell, F8BT has to be properly located in between P3HT and PCBM to get a cascade energy levels configuration allowing for a better CT and power conversion efficiency. Then, we observed that by performing a P3HT:F8BT blend, the energy transfer process can be improved in the P3HT:F8BT/PCBM active layer. This may allow for decreasing the thickness of the active layer by maintaining similar PCE that is very interesting for the development of transparent OSCs. However, the P3HT:F8BT blend limits the P3HT-PCBM CT with respect to a P3HT/F8BT/PCBM PHJ showing that a compromise between CT and ET is needed to get higher PCE or higher transparency. By the above approach, in this paper we developed highly transparent heterojunction structures able to give in solar cell devices PCE comparable to those observed by the colorful reference P3HT/PCBM PHJ solar cells on PET/ITO substrates.
