Micronization of CL-20 using supercritical and liquefied gases

Author affiliations


Liquid and supercritical CO2 and TFE have been systematically studied as media for CL-20 recrystallization to estimate their potential for the selective preparation of ultrafine particles. It has been found that the polymorphic composition of produced microcrystals can be efficiently controlled by the alteration of the solvent system and the micronization method used. Thus, the application of CO2 as an anti-solvent in both SAS and GAS methods results in the formation of α-CL-20–CO2 solvates, regardless of the process conditions. The use of TFE as an active medium for the GAS and RESS methods allows for selective preparation of uniform ultrafine β- or ε-CL-20 particles under mild conditions. The developed ε-CL-20 production method favorably differs from the known analogues by its tolerance to the quality of the initial substrate (crude CL-20), increased environmental and industrial safety, ease of product isolation, and the ability to control the particle morphology and crystalline phase.

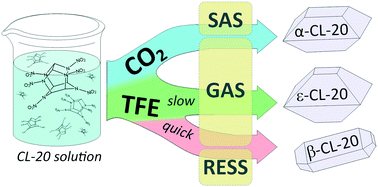

Graphical abstract: Micronization of CL-20 using supercritical and liquefied gases

Back to tab navigation

Supplementary files

Article information

10 Aug 2020
21 Sep 2020
First published
21 Sep 2020

CrystEngComm, 2020, Advance Article
Article type

Micronization of CL-20 using supercritical and liquefied gases

M. N. Zharkov, I. V. Kuchurov and S. G. Zlotin, CrystEngComm, 2020, Advance Article , DOI: 10.1039/D0CE01167C
