New Metal Organic Frameworks Derived from pyridine-3,5-dicarboxylic acid: Structural Diversity Rising from the Addition of Templates in the Reaction Systems

Abstract

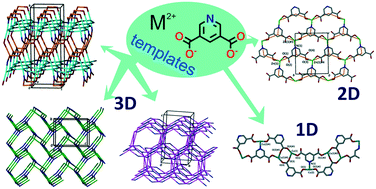

A series of new compounds are reported prepared from reactions of pyridine-3,5-dicarboxylic acid (PDCH2), bipositive d-metal ions (Cd2+, Zn2+, Co2+ and Cu2+) and various template molecules [1,3-propanediol (pdH2), diethanolamine (deaH2), N-phenyldiethanolamine (phdeaH2), triethanolamine (teoaH3), 2-hydroxymethylpyridine (2hmpH), 3-hydroxymethylpyridine (3hmpH), 3-hydroxypropyllpyridine (3hppH), and 4-hydroxymethylpyridine (4hmpH)]. Among them [[(CH3)2NH2]2[Cd2(PDC)3]]n·4nDMF·6nH2O, [1], [Mn(PDC)(DMF)]n, [2], [Mn3(PDC)2(INA)2(DMF)1.5(H2O)0.5]n ·nDMF·2nH2O, [3], and [Zn(PDC)(NMP)]n·nH2O, [4] are 3D coordination polymers, [Zn(PDC)(H2O)(DMF)]n, [5], [Zn(PDC)(3hmpH)]n·nDMF·0.5nH2O, [6], and [Co(PDC)(3hmpH)2]n·0.25nDMF, [8] have 2D polymeric structures, while [Zn(PDC)(2hmpH)2]2·2DMF, [7] is a 0D binuclear complex, and [Cu(PDC)(3hmpH)2]n·0.5nDMF·1.5nH2O, [9] is a chain polymer. Topological analysis reveals that some of the compounds display unusual structural architectures and two of them, in particular [1] and [3], present new topological types. The effect of the use of aminoalcohol/polyol templates on the formation of the new compounds is also discussed in detail. The thermal stability of the prepared complexes was also studied. This study represents the initial systematic investigation on the use of a combination of polytopic nitrogen and oxygen-donor ligands and amino – or pyridine- alcohols templates for the synthesis of new MOFs.

Back to tab navigation

Supplementary files

Article information


Submitted
20 Dec 2019
Accepted
07 Feb 2020
First published
07 Feb 2020

CrystEngComm, 2020, Accepted Manuscript
Article type
Paper

New Metal Organic Frameworks Derived from pyridine-3,5-dicarboxylic acid: Structural Diversity Rising from the Addition of Templates in the Reaction Systems

E. Moushi, A. Kourtellaris, E. Andreou, A. M. Fidelli, G. S. Papaefstathiou, J. C. Plakatouras and A. Tasiopoulos, CrystEngComm, 2020, Accepted Manuscript , DOI: 10.1039/C9CE02006C
