Issue 35, 2020

Strain-based chemical sensing using metal–organic framework nanoparticles

Author affiliations


Metal–organic frameworks (MOFs) have received much attention for their potential as chemical sensors, owing to unparalleled tunability of their host–guest response, high uptake and structural flexibility. However, because of the limited compatibility between MOF properties and sensor transduction mechanisms, very few MOFs have successfully been integrated into practical devices. We report the fabrication of the first strain-based sensor constructed from MOF nanoparticles deposited directly onto a membrane-type surface stress sensor (MSS) architecture, which exhibits unprecedented response times on the order of seconds and ppm-level sensitivity towards volatile organic compounds (VOCs). Finite element analysis is used to demonstrate that the sensor response is a result of analyte-induced strain in the MOF receptor layer. We show that an array of four types of MOF nanoparticles allows for clear discrimination between different classes of VOCs and even individual gases, using principal component analysis of their response profiles. This work opens up the possibility of VOC sensing using a wide range of MOFs, beyond those that are electrically conducting or those that form oriented thin films, with the added advantages of high sensitivity and rapid response compared to existing MOF strain-based sensors.

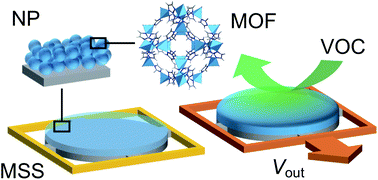

Graphical abstract: Strain-based chemical sensing using metal–organic framework nanoparticles

Supplementary files

Article information

24 Jul 2020
06 Aug 2020
First published
14 Aug 2020

This article is Open Access

J. Mater. Chem. A, 2020,8, 18007-18014
Article type

Strain-based chemical sensing using metal–organic framework nanoparticles

H. H.-M. Yeung, G. Yoshikawa, K. Minami and K. Shiba, J. Mater. Chem. A, 2020, 8, 18007 DOI: 10.1039/D0TA07248F
