Achiral H-shaped liquid crystals exhibiting an electric-field-induced chiral namatic phase

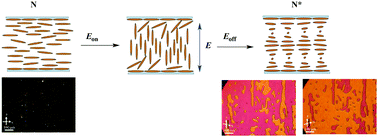

We prepared two achiral H-shaped liquid crystals, 4, 4’-bis(6-{2-[4-(4-cyanophenyl)phenyloxycarbonyl]-5-octyloxyphenyloxycrabonyl}heptyloxy)biphenyl (I) and 4’-bis(6-{2-[4-(4-cyanophenyl)phenyloxycarbonyl]-5-octyloxyphenyloxycrabonyl}heptyloxy)octafluorobiphenyl (II), and investigated their phase transition properties using optical microscopy and differential scanning calorimetry. Both compounds exhibit a monotropic nematic (N) phase with compound I showing a higher Iso–N transition temperature than compound II. The phase transition behavior reveals that the molecules of both compounds form a rod-like shape instead of an H shape in the N phase. They exhibit monotoropic blue phase III in their mixtures with a chiral compound. Furthermore, both I and II are characterized by an electric-field-induced chiral nematic phase. When applying an AC electric field on homogeneously aligned sample cells of each compound in its nematic phase, the molecules reorient perpendicular to the substrate. Upon removing the electric field, the molecules align once again parallel to the substrate, however this time their nematic texture changes to one consisting of domains with opposite helical handedness. We establish that coupling of the on/off switching of the electric field and the surface anchoring is responsible for breaking the mirror symmetry breaking in the nematic phase of the flexible achiral liquid crystal oligomer.

Back to tab navigation

Publication details

The article was received on 16 Mar 2019, accepted on 08 May 2019 and first published on 09 May 2019

Article type: Paper
DOI: 10.1039/C9TC01432B
J. Mater. Chem. C, 2019, Accepted Manuscript

  •   Request permissions

    Achiral H-shaped liquid crystals exhibiting an electric-field-induced chiral namatic phase

    S. Sayama and A. Yoshizawa, J. Mater. Chem. C, 2019, Accepted Manuscript , DOI: 10.1039/C9TC01432B
