Structure, luminescence and energy transfer in Ce3+ and Mn2+ codoped γ-AlON phosphors

Author affiliations

Abstract

Mn2+ doped γ-AlON is an interesting narrow-band green emitting phosphor which can be used in wide color gamut white LED backlights for liquid crystal displays (LCDs). However, the spin-forbidden transition of 3d5 in Mn2+ results in a quite low absorption efficiency, γ-AlON:Mn2+ thus has a small external quantum efficiency. Besides Eu2+,Ce3+ is another promising sensitizer and is expected to improve the emission of Mn2+ through a distinctive energy transfer process. In this work, a series of Ce3+–Mn2+ codoped γ-AlON phosphors were synthesized by gas pressure sintering at 1800 °C for 2 h under 0.5 MPa nitrogen gas pressure. The Rietveld refinement analysis shows that Al atoms occupy both 8a and 16d sites, while codoped Ce3+ and Mn2+ ions substitute the 8a Al atoms only in the tetrahedral sites. The 27Al solid state NMR spectrum further confirms the chemical shifts of AlO4 and AlO6 sites at 71.4 and 0 ppm, respectively. The measured PL, CL and decay times have evidenced that a brisk energy transfer occurs between the Ce3+ and Mn2+ ions. The energy transfer mechanism from Ce3+ to Mn2+ in γ-AlON is a quadrupole–quadrupole interaction and the critical distance is calculated to be 15.97 Å. Upon UV or blue light excitation, the codoped γ-AlON phosphor has higher luminescence intensity, quantum efficiency and thermal stability than the Mn2+-doped γ-AlON due to the energy transfer and low total concentration of Ce3+ and Mn2+ ions. Meanwhile, the absorption, internal quantum efficiency and external quantum efficiency are raised to 60.2%, 61.3% and 36.9% upon 310 nm excitation.

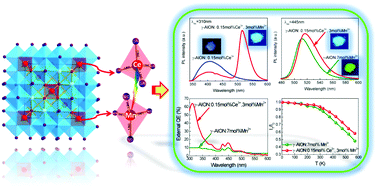

Graphical abstract: Structure, luminescence and energy transfer in Ce3+ and Mn2+ codoped γ-AlON phosphors

Back to tab navigation

Supplementary files

Publication details

The article was received on 27 Oct 2018, accepted on 04 Dec 2018 and first published on 04 Jan 2019


Article type: Paper
DOI: 10.1039/C8TC05430D
Citation: J. Mater. Chem. C, 2019,7, 733-742
  •   Request permissions

    Structure, luminescence and energy transfer in Ce3+ and Mn2+ codoped γ-AlON phosphors

    J. Si, L. Wang, L. Liu, W. Yi, G. Cai, T. Takeda, S. Funahashi, N. Hirosaki and R. Xie, J. Mater. Chem. C, 2019, 7, 733
    DOI: 10.1039/C8TC05430D
